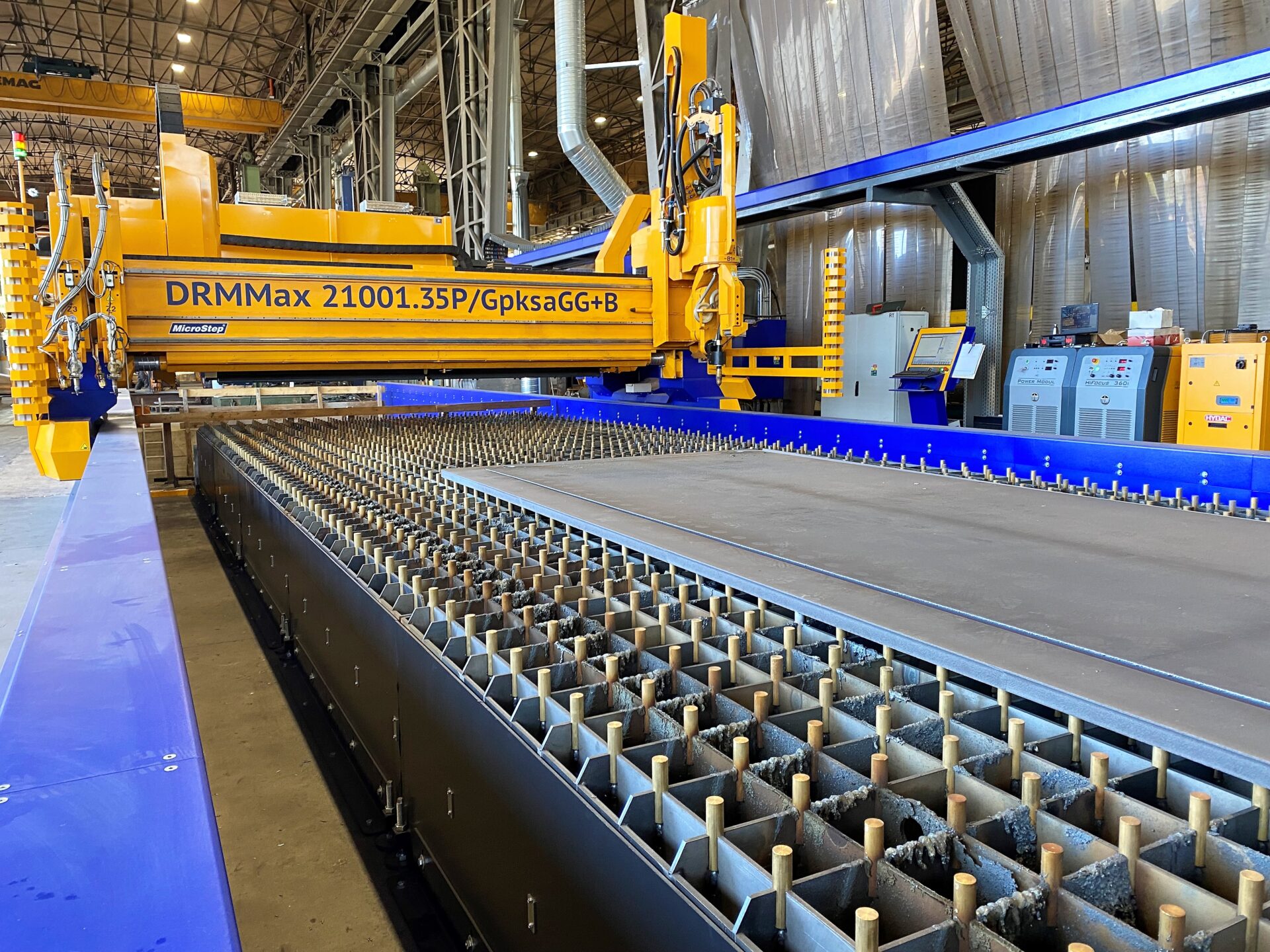

Heavy-duty CNC cutting, drilling and milling
The machine has a dedicated drilling/milling area with an independent sub-gantry and two powerful retainers that make milling up to a length 750 mm along the X axis possible. The robust design enables drilling up to Ø 70 mm and a variety of milling jobs such as large hole milling, face milling, pocket & slot milling, chamfer milling, thread milling or counter boring. DRM Max can be also equipped with other accessories of the DRM series enabling plate, pipe, beam and dome cutting applications.
Features

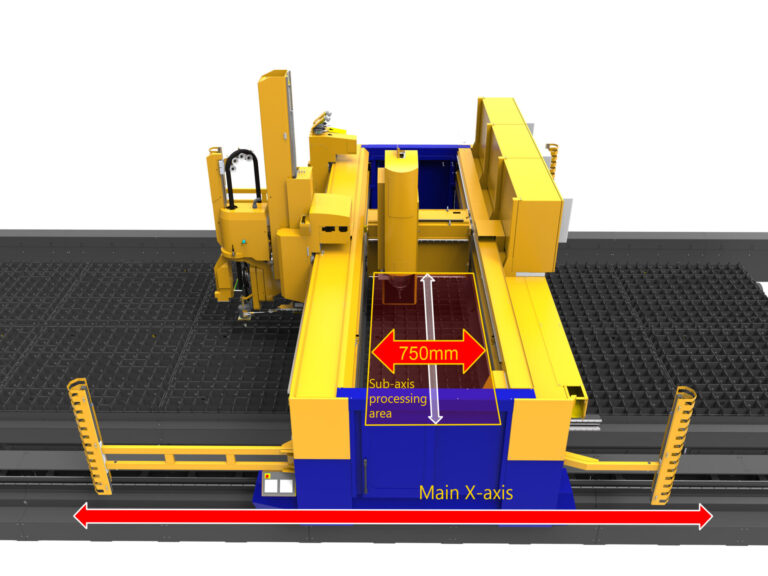

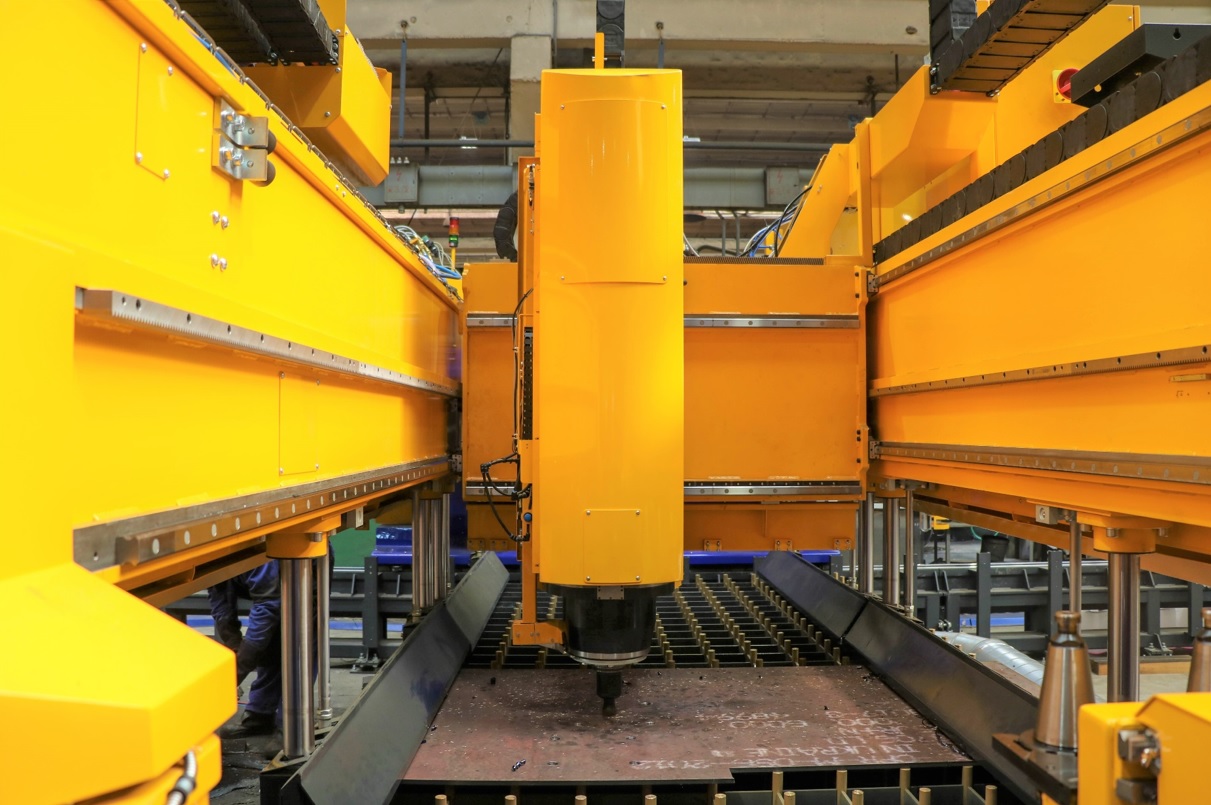

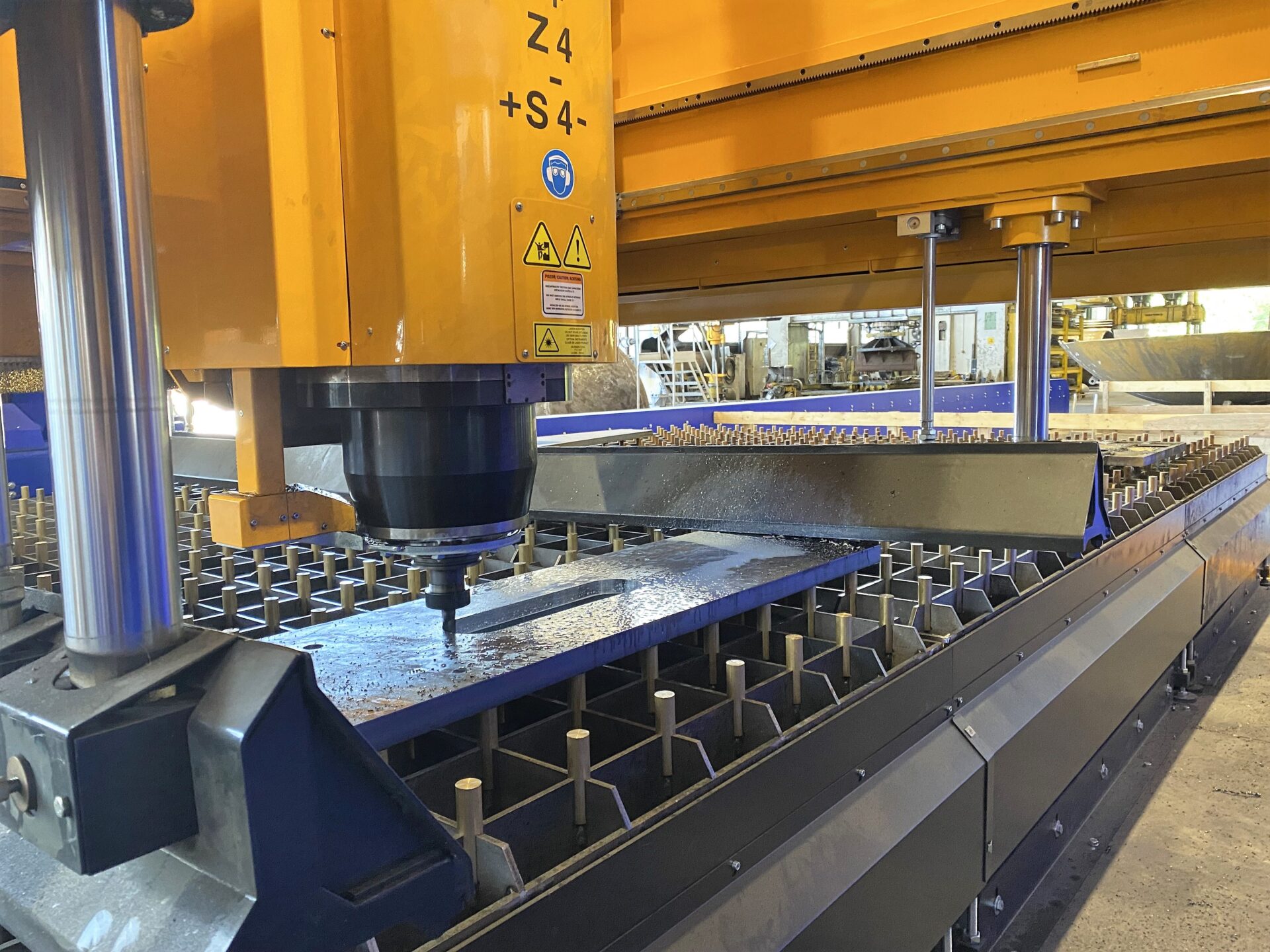

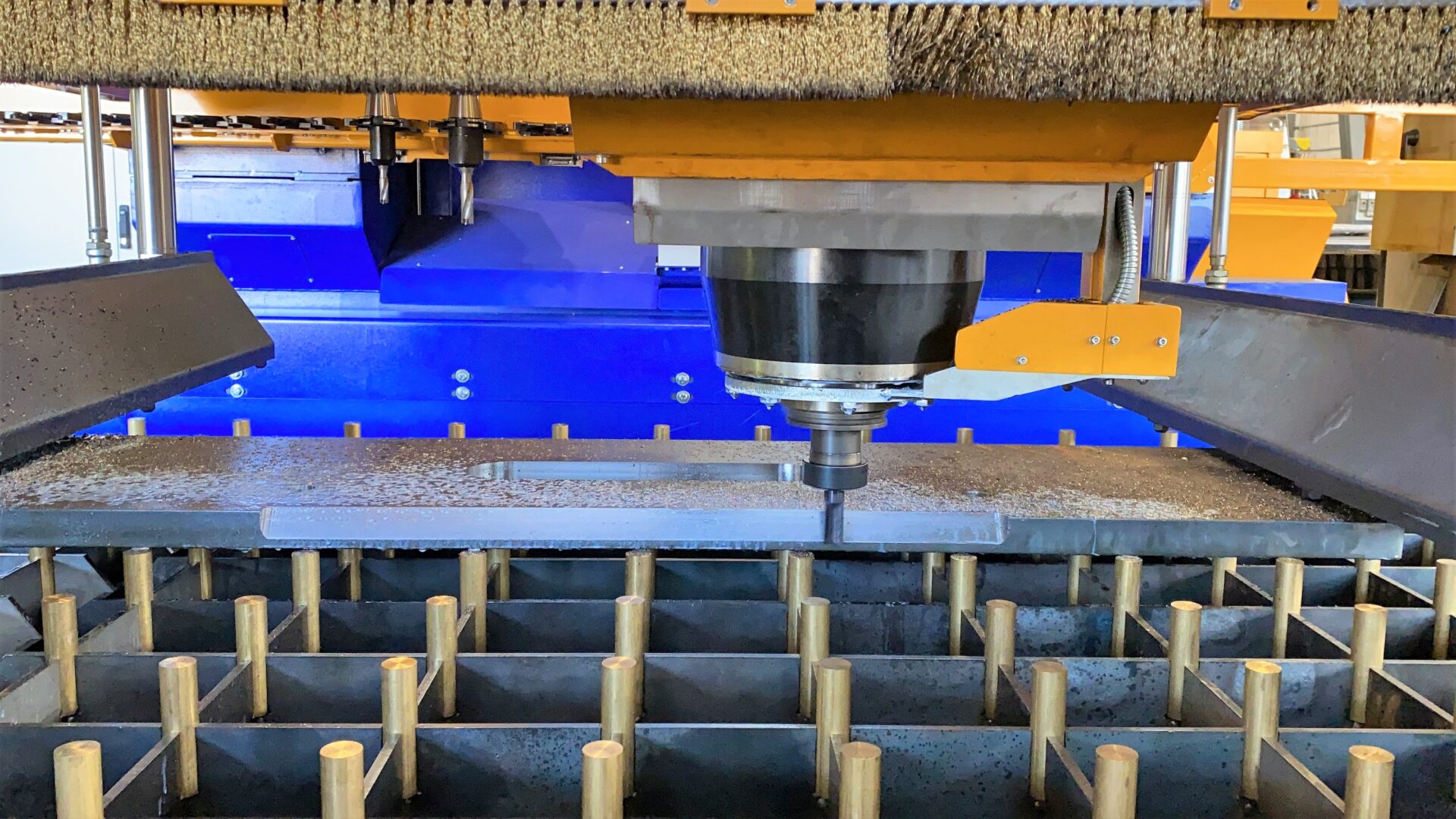

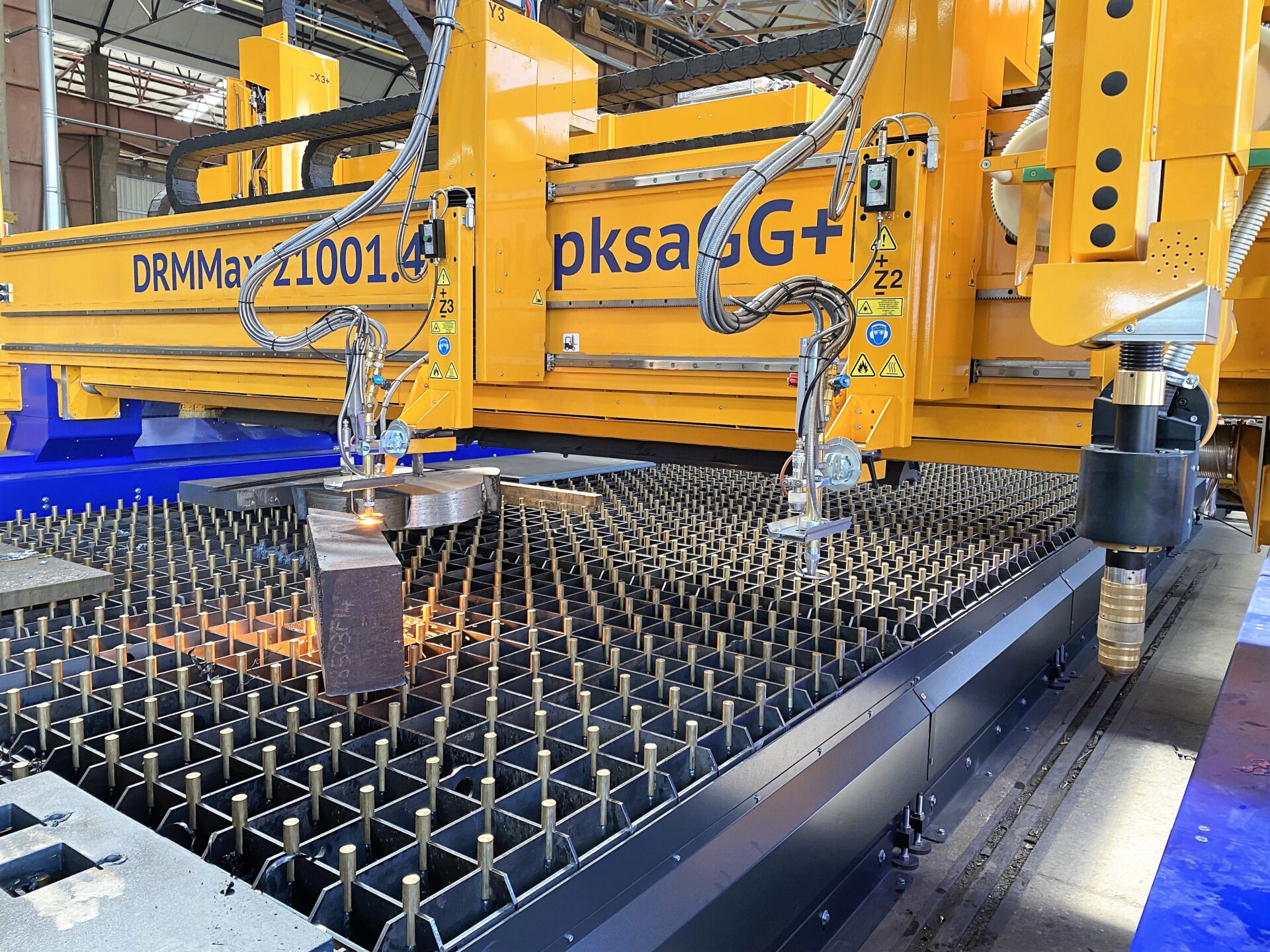

DRM Max gantry features a rigid doublebeam structure with an independent subgantry carrying a 55 kW spindle and two powerful retainers that clamp down with 24,000 N each, over a 750 mm wide drilling and milling area.

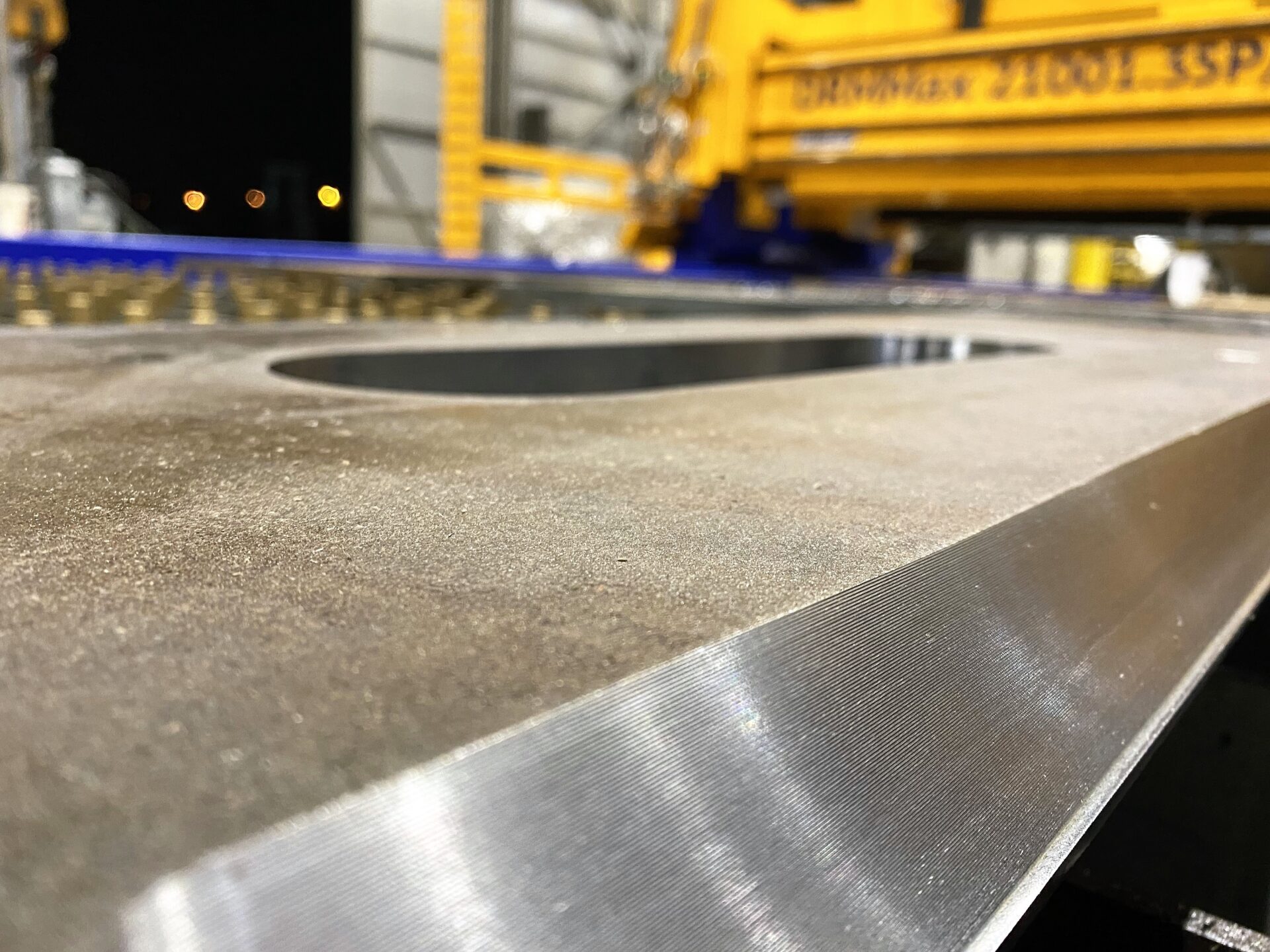

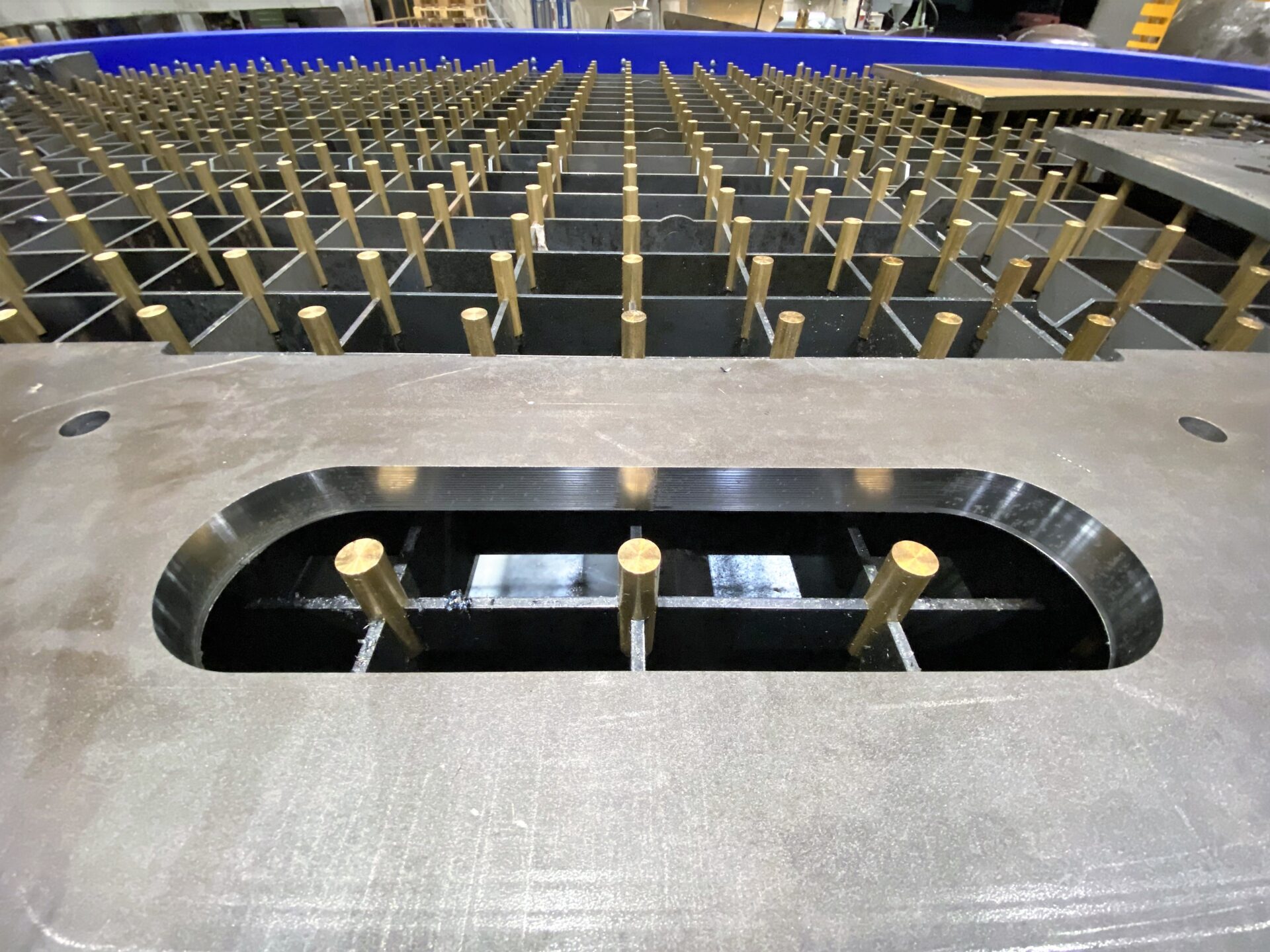

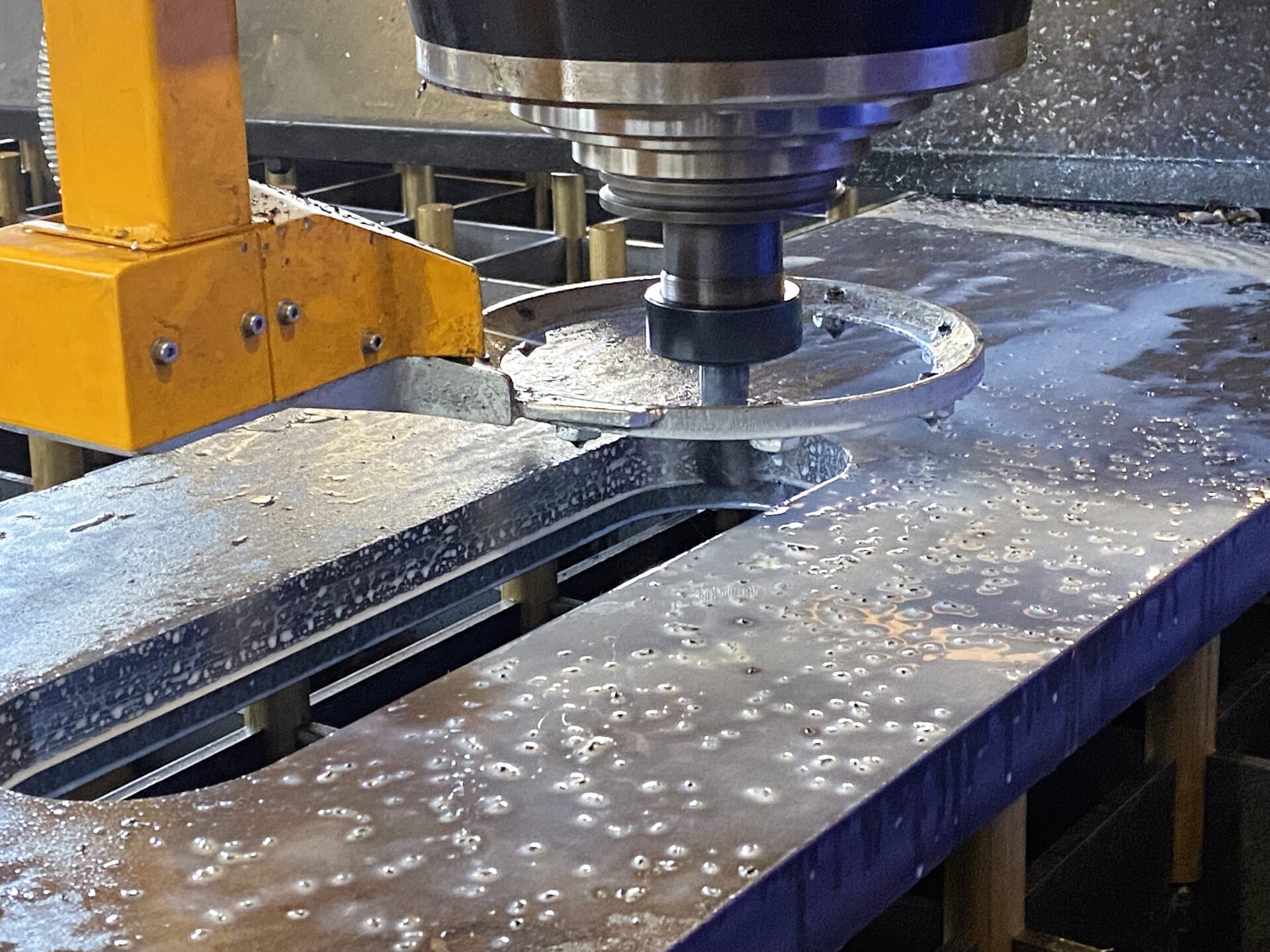

The powerful spindle enables drilling up to Ø 70 mm and a variety of milling operations such as large hole milling, face milling, pocket & slot milling, chamfer milling, thread milling or counter boring.
DRM Max can handle it all: in addition to its drilling and milling capabilities, the machine provides all the advanced functionalities of other MicroStep cutting machines, such as bevel cutting, tapping, countersinking, marking and scanning.

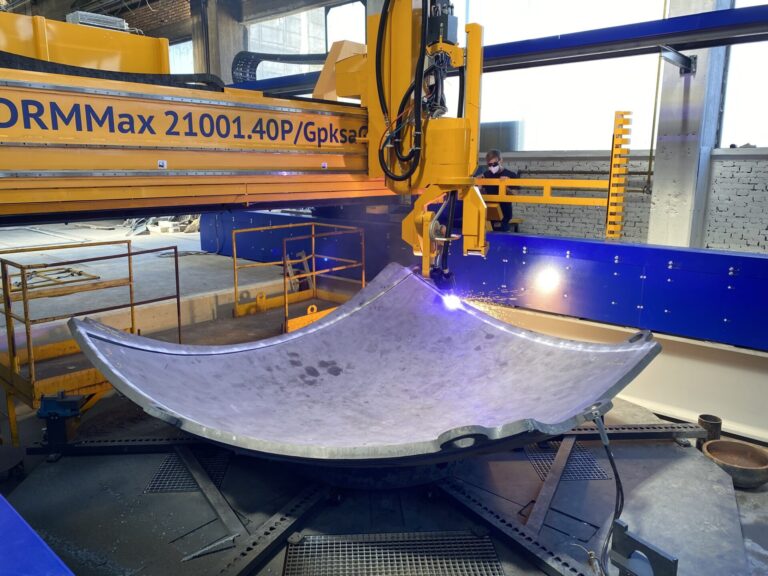

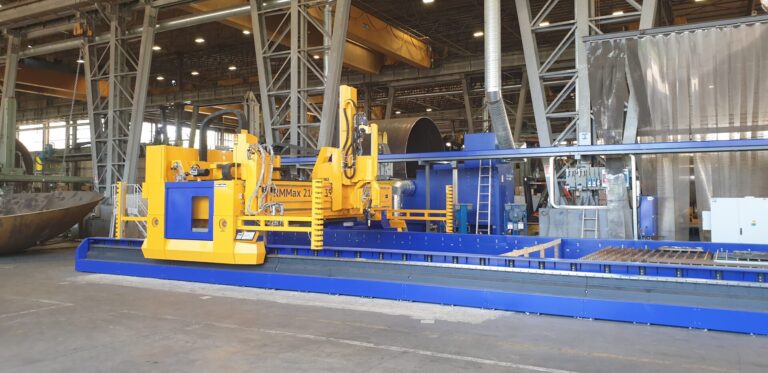

DRM Max can process a whole range of workpieces including domes up to a height of 1,500 mm as well as dome petals. A 3D laser scanner and mScan technology compensate for possible deviations of the real domes for achieving outstanding precision.
DRM Max gantry features a rigid doublebeam structure with an independent subgantry carrying a 55 kW spindle and two powerful retainers that clamp down with 24,000 N each, over a 750 mm wide drilling and milling area.
The powerful spindle enables drilling up to Ø 70 mm and a variety of milling operations such as large hole milling, face milling, pocket & slot milling, chamfer milling, thread milling or counter boring.
DRM Max can handle it all: in addition to its drilling and milling capabilities, the machine provides all the advanced functionalities of other MicroStep cutting machines, such as bevel cutting, tapping, countersinking, marking and scanning.
DRM Max can process a whole range of workpieces including domes up to a height of 1,500 mm as well as dome petals. A 3D laser scanner and mScan technology compensate for possible deviations of the real domes for achieving outstanding precision.
Additional beveling process (ABP) is used for creating Y or K cuts in thicker plates.…
The in-house developed automatic calibration system for geometry of the cutting tool – ACTG® –…
The Automatic Plate Alignment is a feature of the control system that enables automatic setting…
This camera can be used for two applications: Template scanning The template is scanned and…
Plasma tool station for straight (vertical) cutting comes with anti-collision protection, laser pointer, automatic torch-height…
5-axis rotary bevel head with endless rotation enables plasma bevel cutting of plates, pipes, profiles…
MicroPunch marking unit is designed for fast and simple micro-percussion marking of plates, pipes or…
This tool station for oxyfuel bevel cutting with continuous rotation allows contour bevel cutting with…
This tool station with a fork-type torch is intended for cutting stripes with oxyfuel torches…
5-axis rotary bevel head with endless rotation enables oxyfuel bevel cutting of plates, pipes and…
It is possible to add another touch screen on the gantry which has the all…
Tilting tool station enables automatic setting of the torch’s tilt for bevel cutting with plasma…
RSV is dedicated for clamping and turning of pipes and profiles. Together with plasma rotator…
RSV is dedicated for clamping and turning of pipes and profiles. Together with plasma rotator…
MicroStep offers variety of drilling and tapping tool stations for several machine types reaching from…
Video
Technical parameters
| Working length | 3000 – 30000 mm |
|---|---|
| Working width | 1500 – 4000mm |
| Max number of tool stations (front gantry) | 4 (6 oxyfuel) |
| Max number of tool stations (inner gantry) | 1 drilling/milling |
| Max thickness of material cut by plasma | according to the plasma source |
| Max thickness of material cut by oxyfuel | 300 mm |
| Bevel cutting | yes (see Accessories) |
|---|---|
| Pipe cutting | Ø 30 – 1500 mm, max. 12t |
| Spindle type (power/torque/rpm) | Direct drive (42kW, 276Nm, 10000 rpm) Direct drive (55kW, 834Nm, 6000 rpm) |
| Tool changer | Automatic, 8 positions ISO50 |
| Drilling and tapping | Ø 4 – 70 mm, M4 – M33 |
| Milling | yes |
| Positioning speed | max. 40 m/min |
| Bidirectional repeatability | 0.05 mm/m |

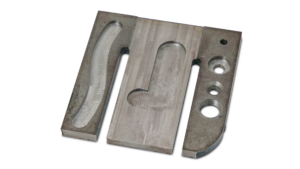

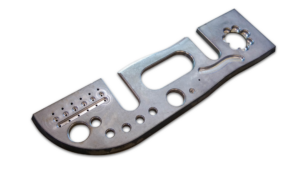

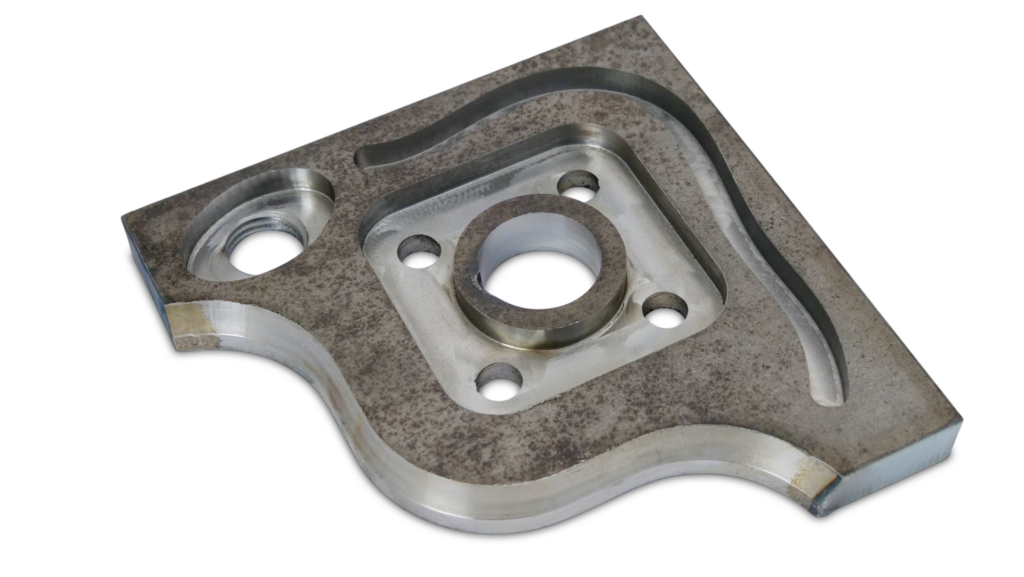

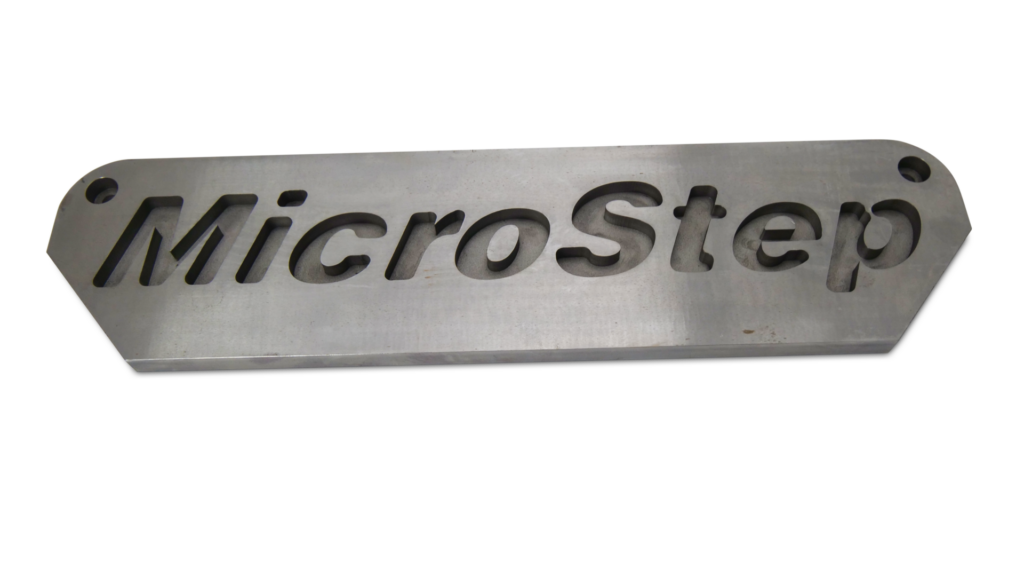

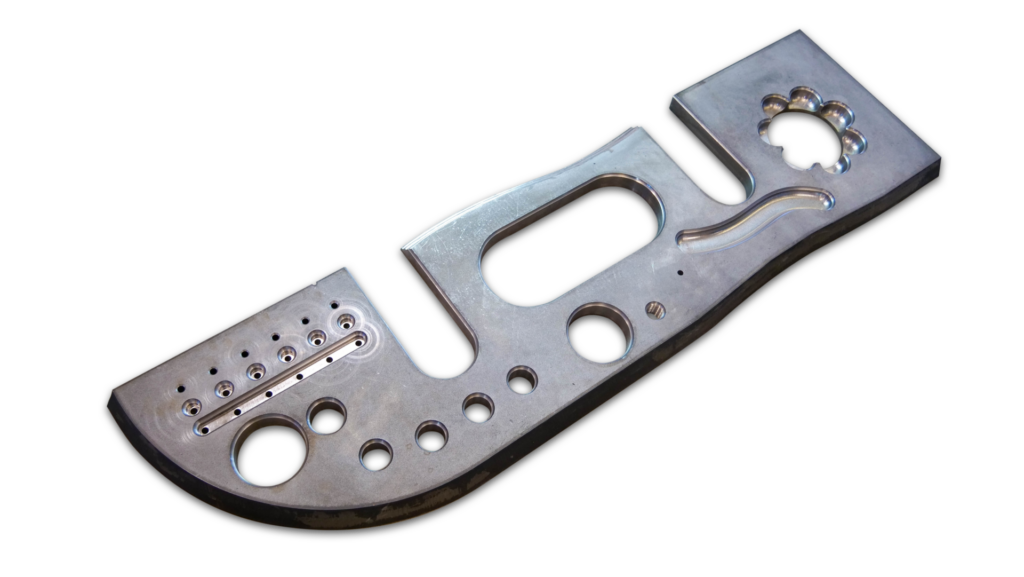

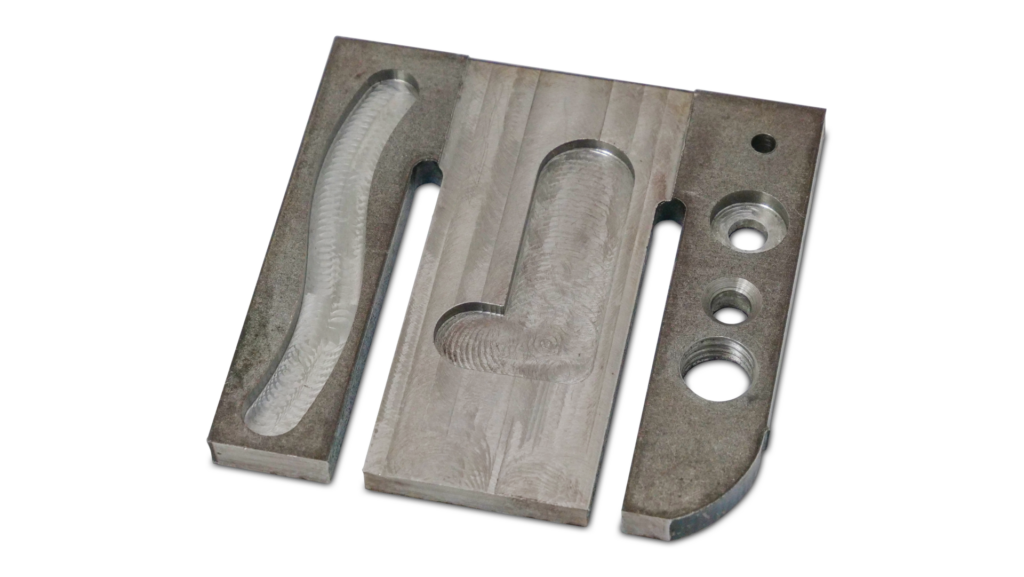

Samples
