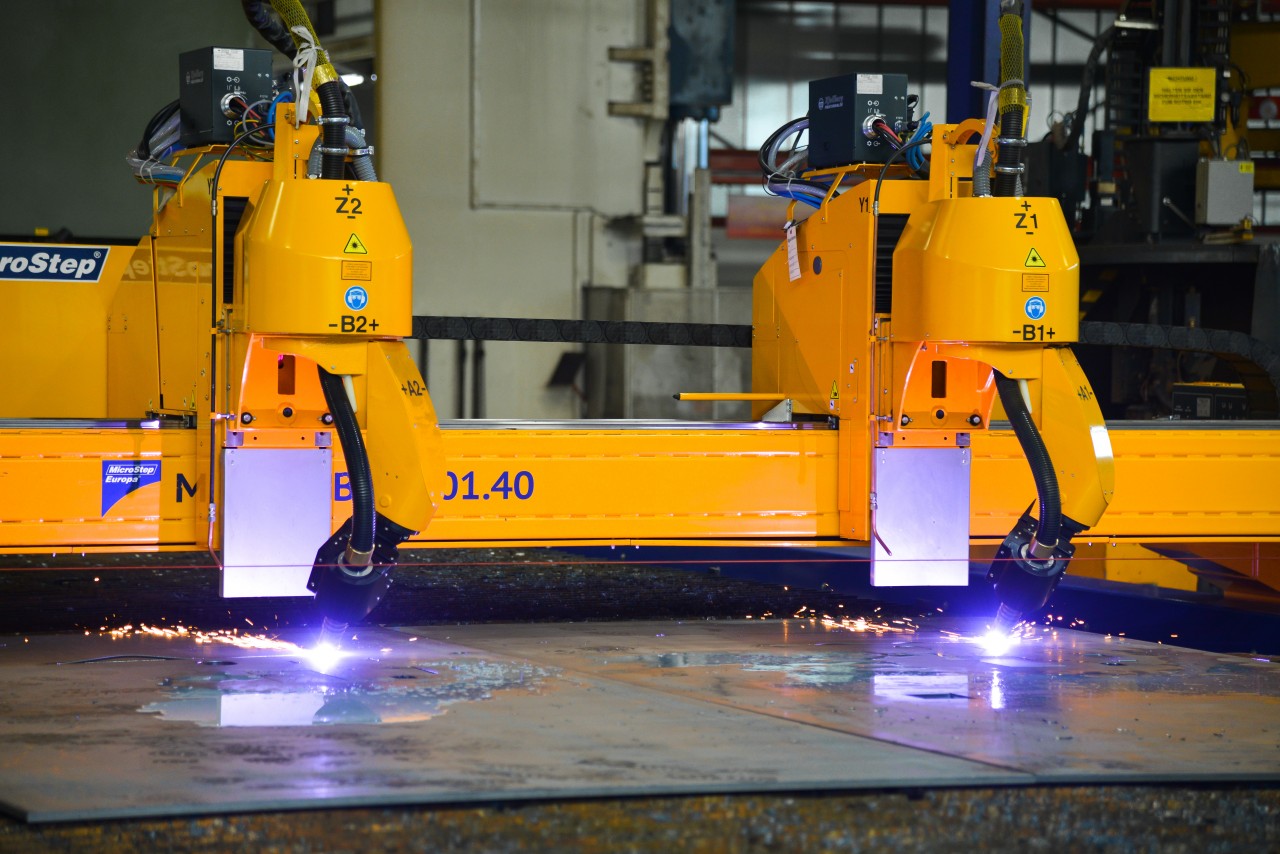

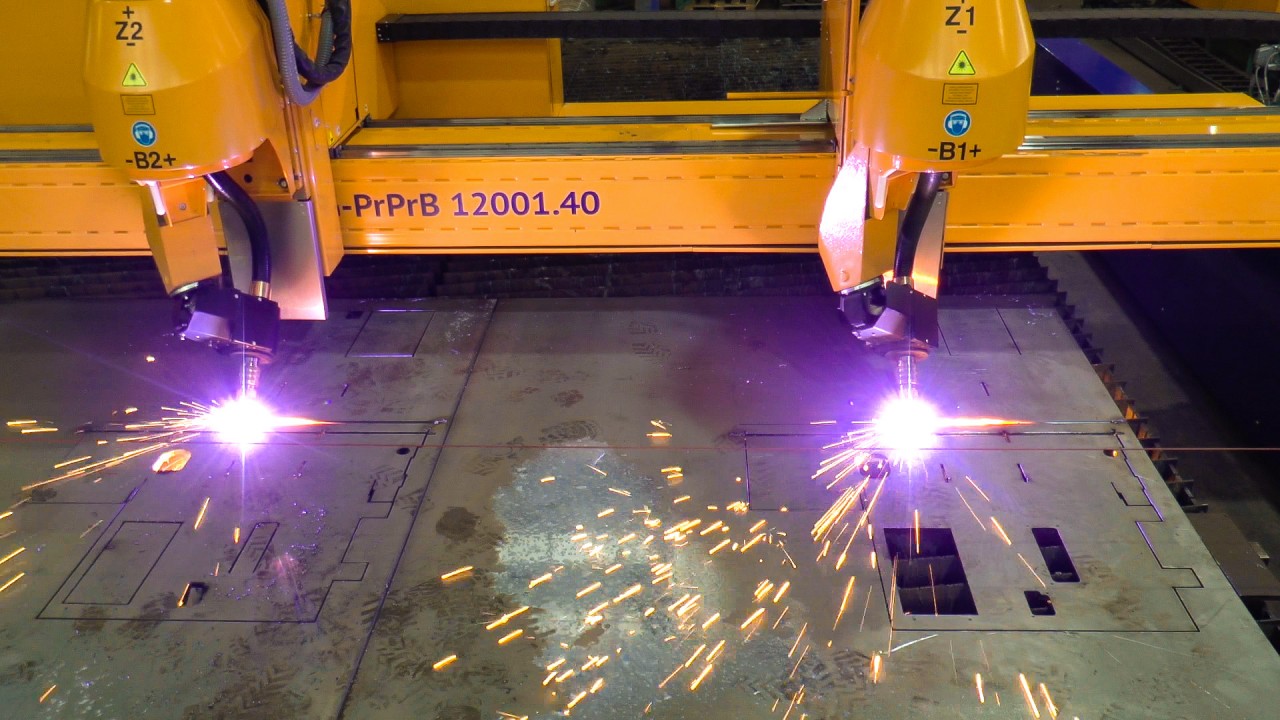

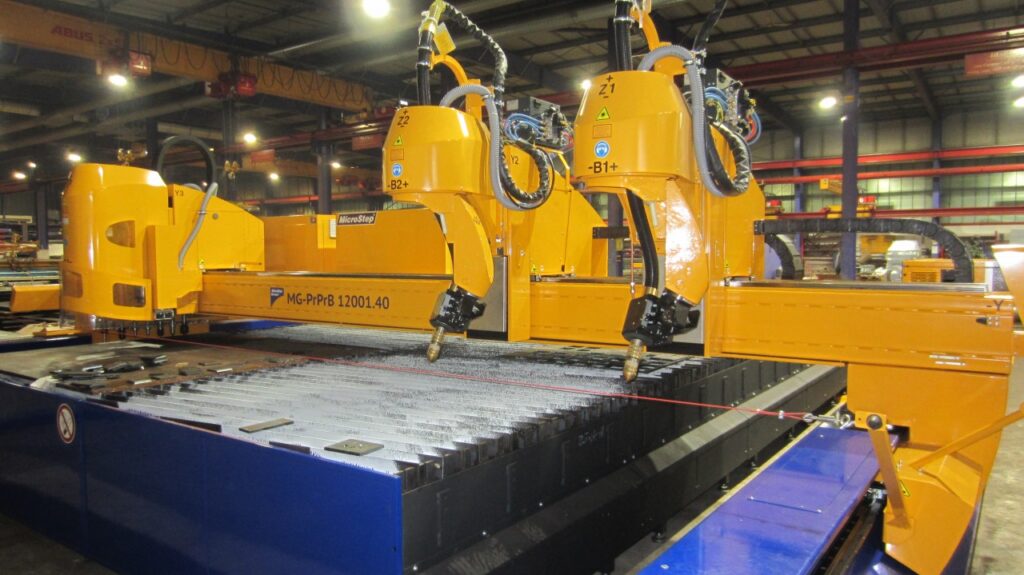

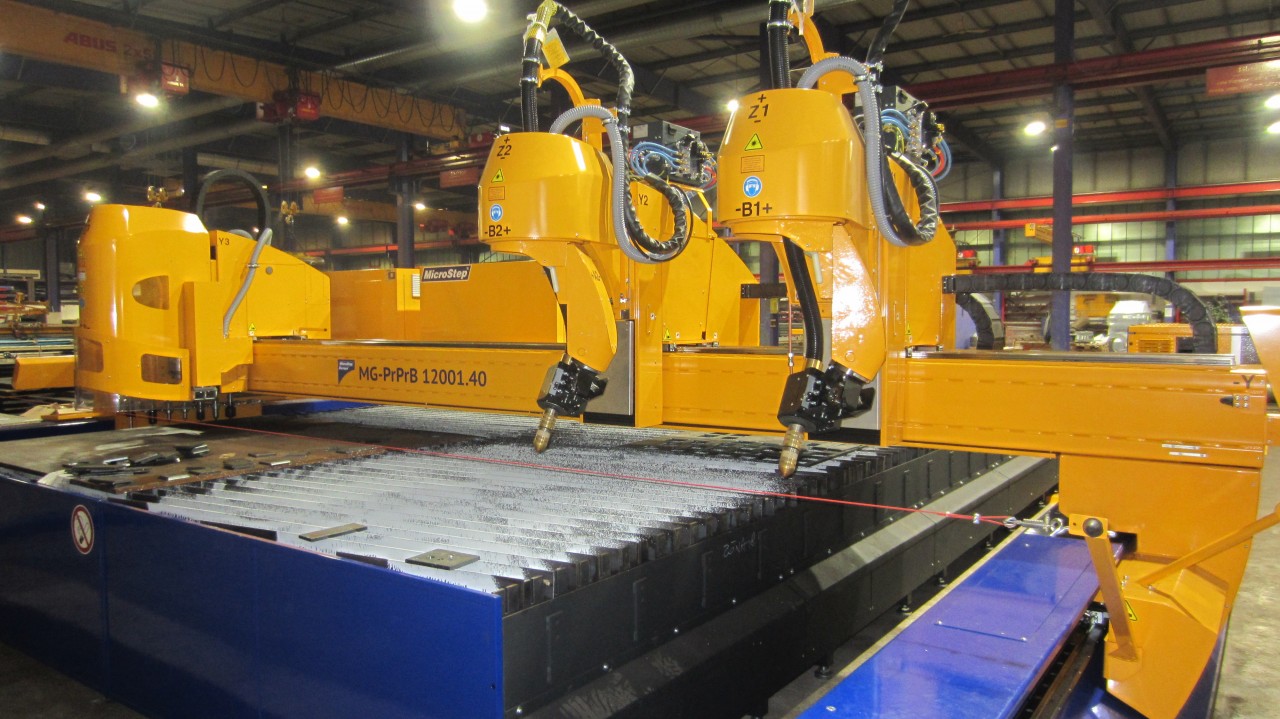

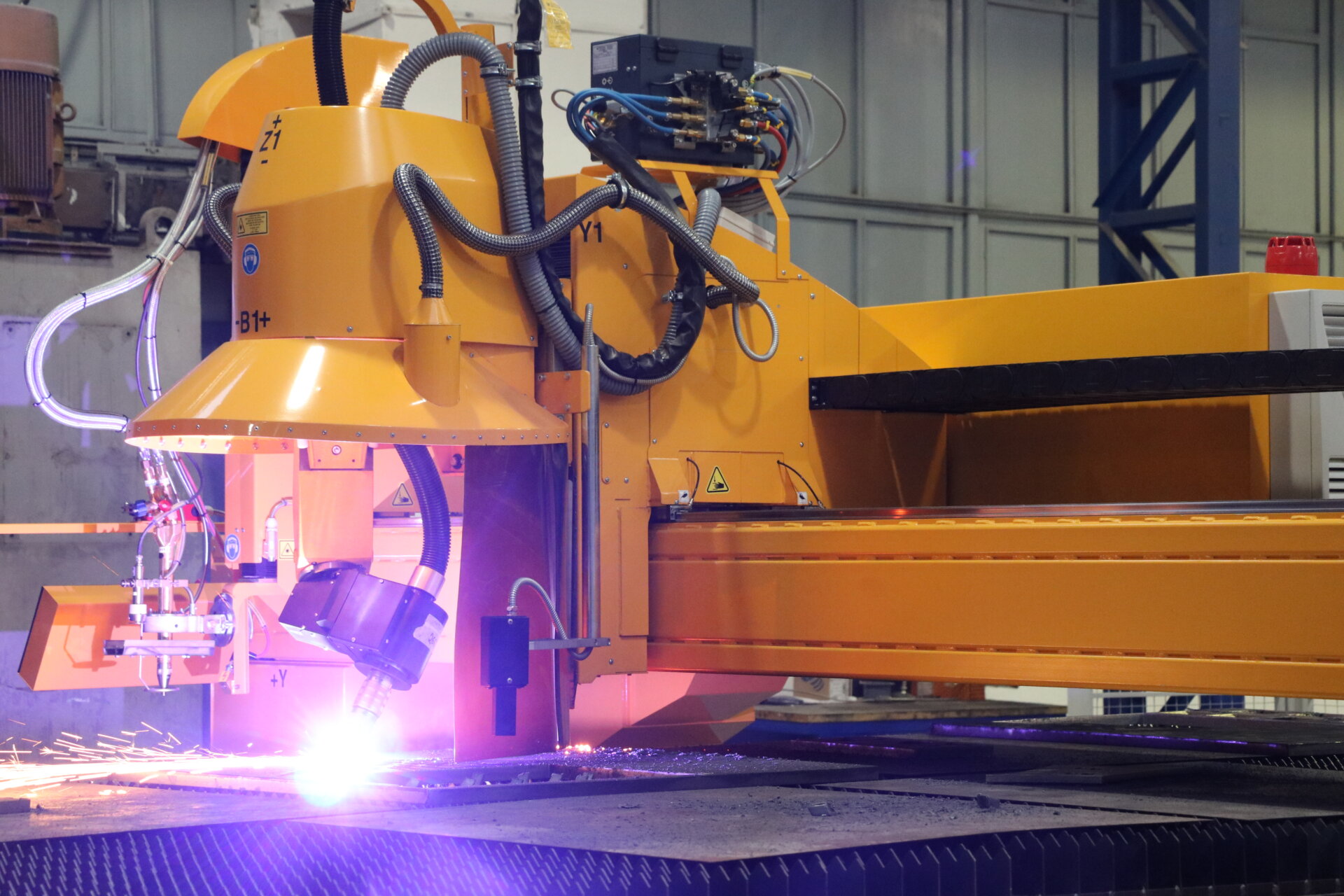

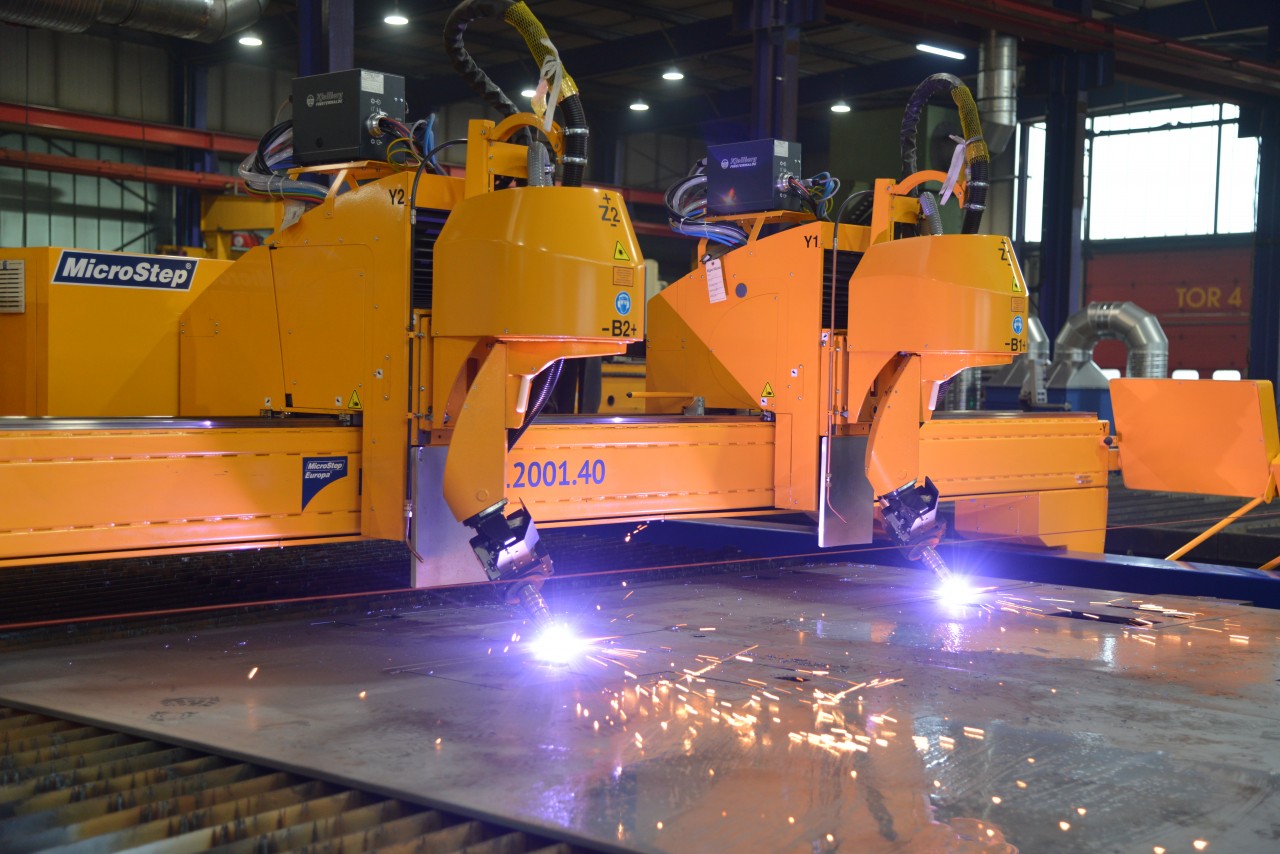

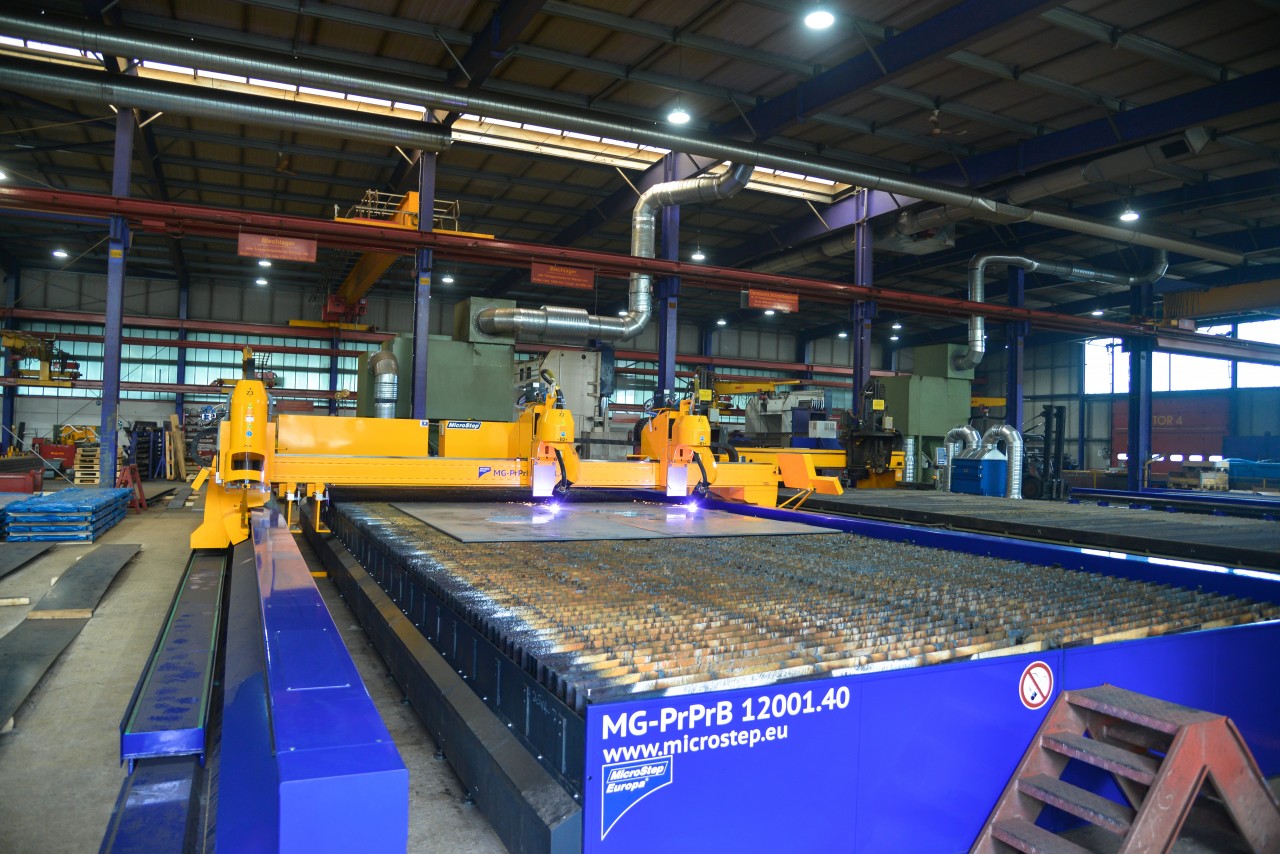

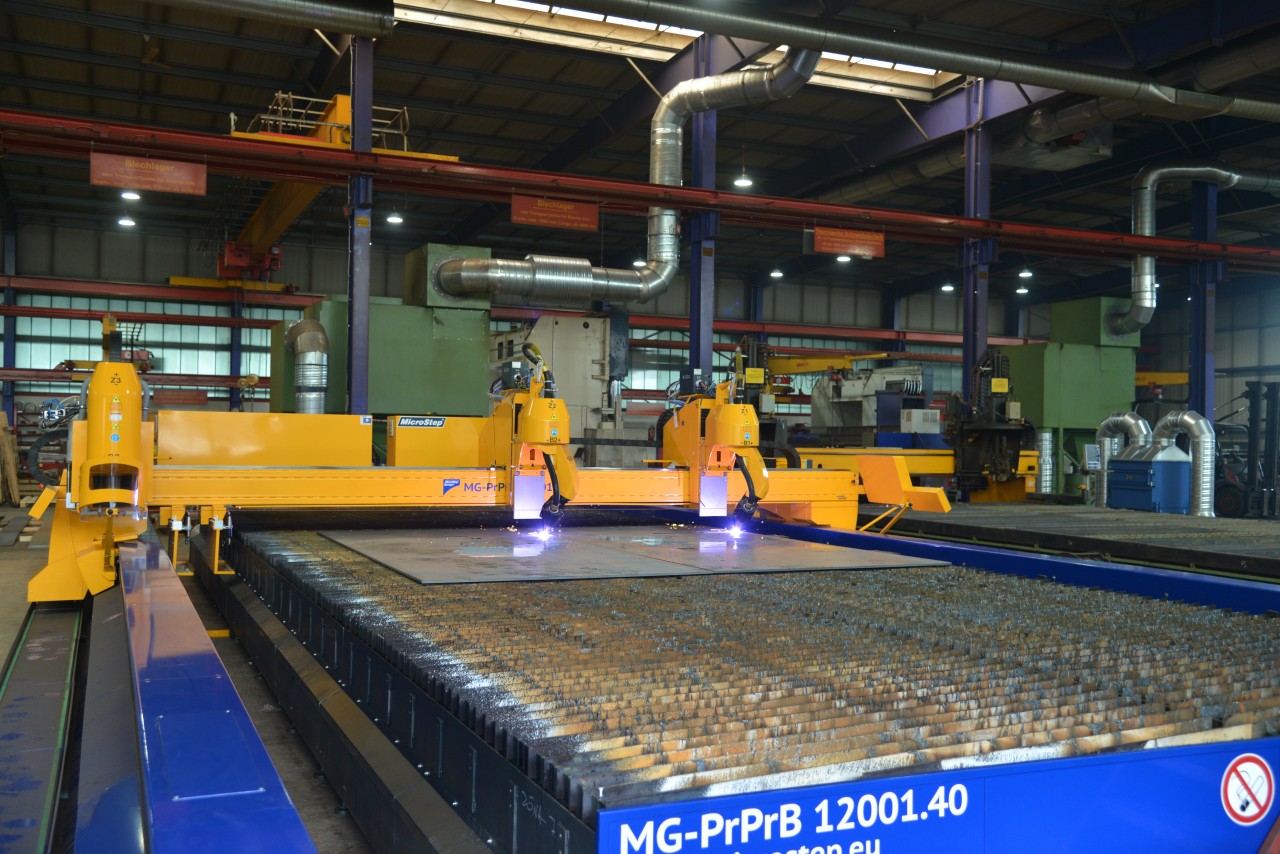

Plasma Rotator

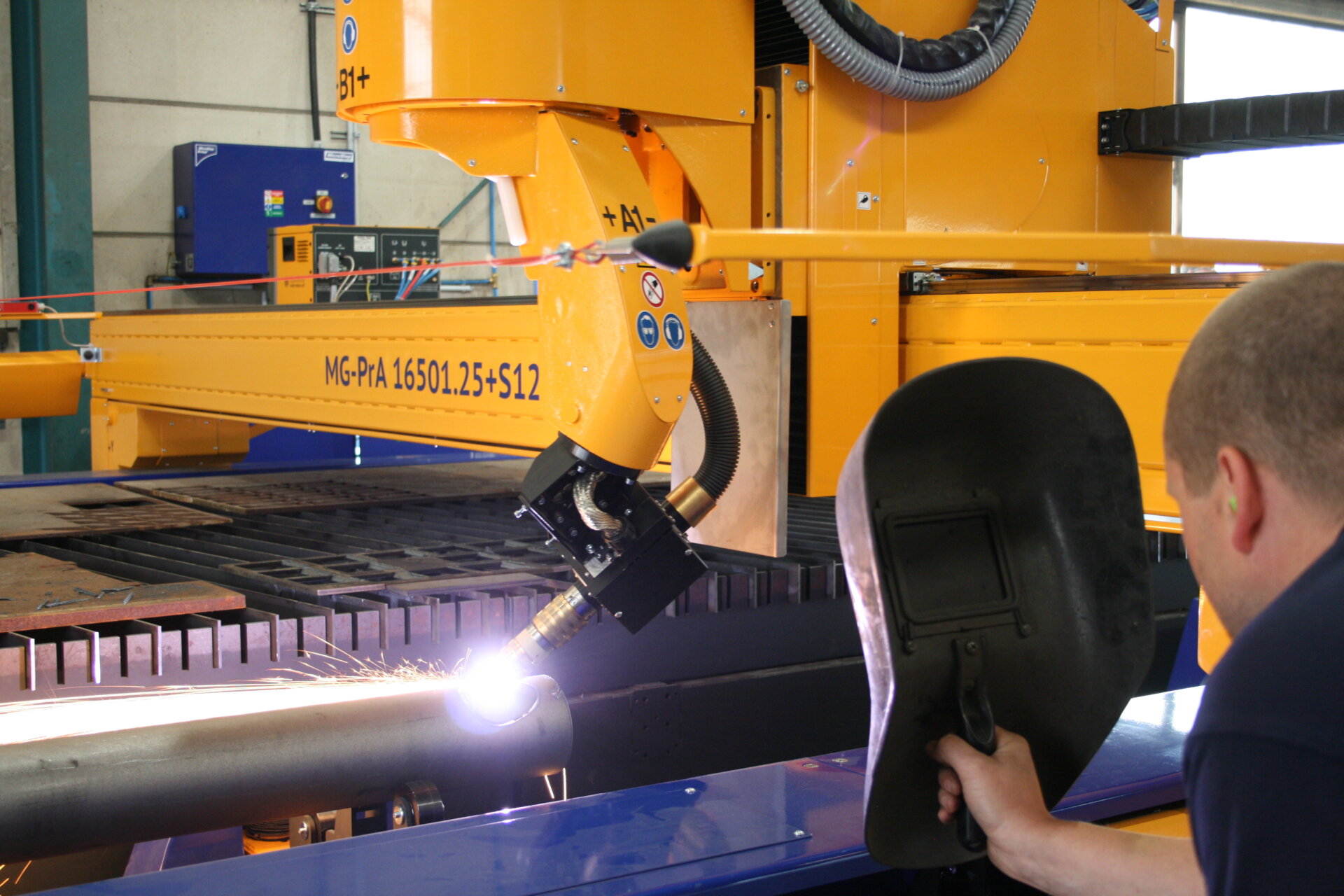

5-axis rotary bevel head with endless rotation enables plasma bevel cutting of plates, pipes, profiles and domes up to 52°. The innovative intelligent torch holder (ITH) includes sensors for torch displacement detection, initial height sensing (IHS) and auto-calibration.
Technical parameters
| Degrees of freedom | 4 (Y, Z, A, B) + X on the machine |
|---|---|
| Max. thickness of material | according to plasma source |
| Torch inclination range (A) | ± 52° (including bevel corrections) |
| Torch rotation range (B) | unlimited |
| Total stroke (Z) | up to 400 mm |
|---|---|
| Angular velocity | up to 130°/s (A and B axes) |
| Positioning speed in Z | up to 6 m/min |
| Precision of cutting | ISO 9013:2002 – tolerance class 2 |
Please note: Some parameters (e.g. max. thickness of material, total stroke etc.) vary with the machine type the tool station is installed upon.
| Degrees of freedom | 4 (Y, Z, A, B) + X on the machine |
|---|---|
| Max. thickness of material | according to plasma source |
| Torch inclination range (A) | ± 52° (including bevel corrections) |
| Torch rotation range (B) | unlimited |
| Total stroke (Z) | up to 15 3⁄4 in |
|---|---|
| Angular velocity | up to 130°/s (A and B axes) |
| Positioning speed in Z | up to 19.70 ft/min |
| Precision of cutting | ISO 9013:2002 – tolerance class 2 |
Please note: Some parameters (e.g. max. thickness of material, total stroke etc.) vary with the machine type the tool station is installed upon.
