Plate processing line for structural steel applications

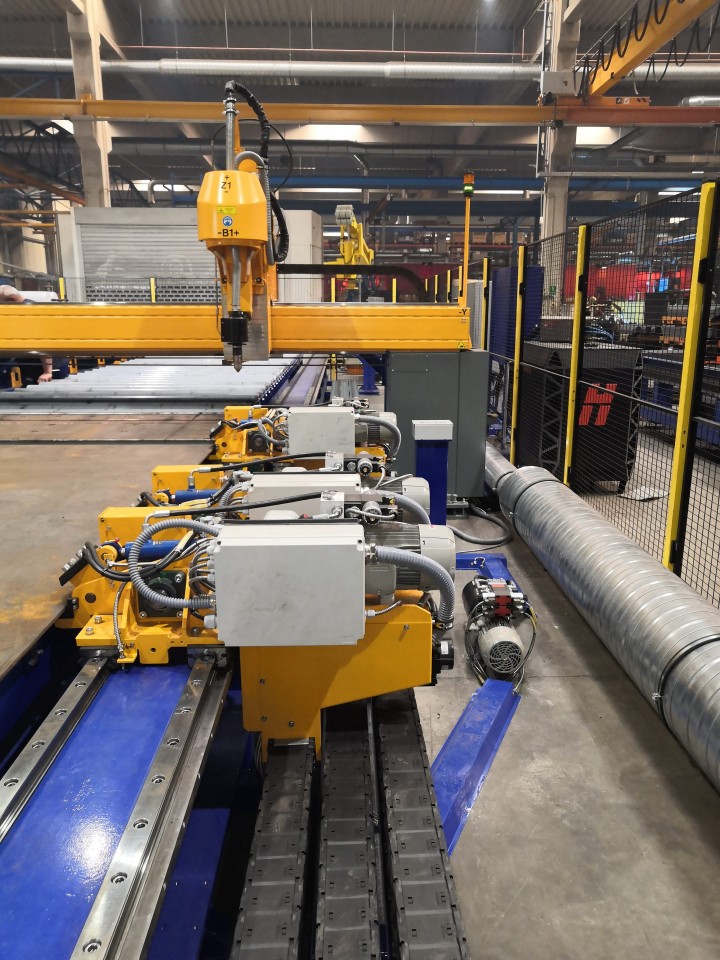

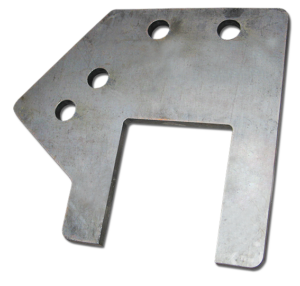

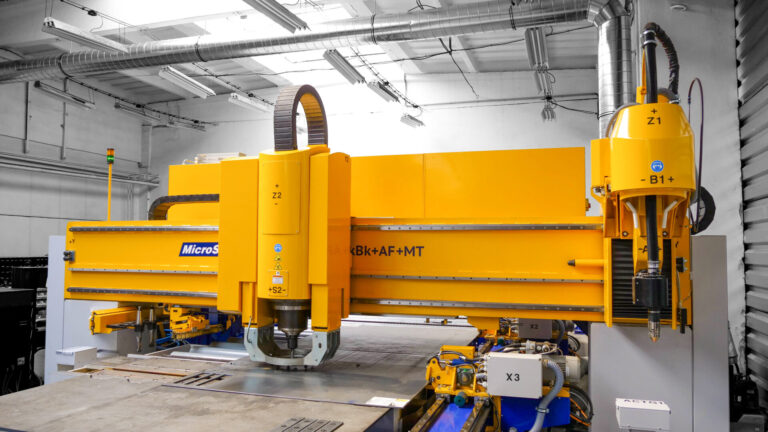

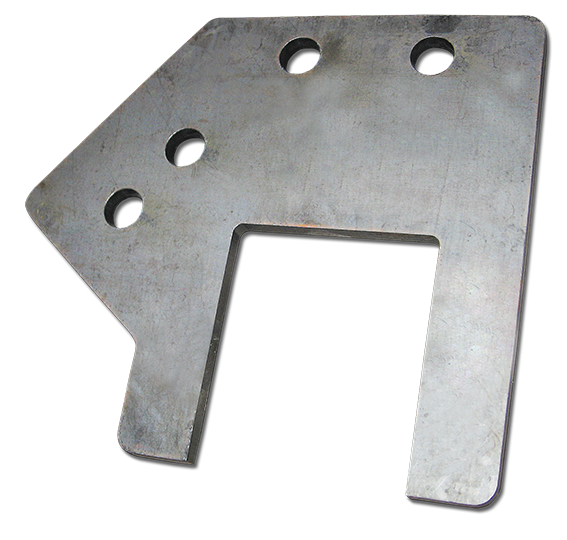

The automated plate processing line DS was designed for high-efficiency drilling and cutting with the possibilities of automatic plate feeding and automatic part sorting on output. The machine is dedicated to heavy-duty structural steel applications such as production of high-precision fittings, gussets and end plates.
Features
The DS series offers a variety of automated processing options for flat materials. Besides drilling, straight cutting and bevel cutting for weld edge preparation up to 50°, oxyfuel cutting, tapping, countersinking as well as scanning and marking are possible. The standard work area size is up to 6,000 x 2,000 mm.

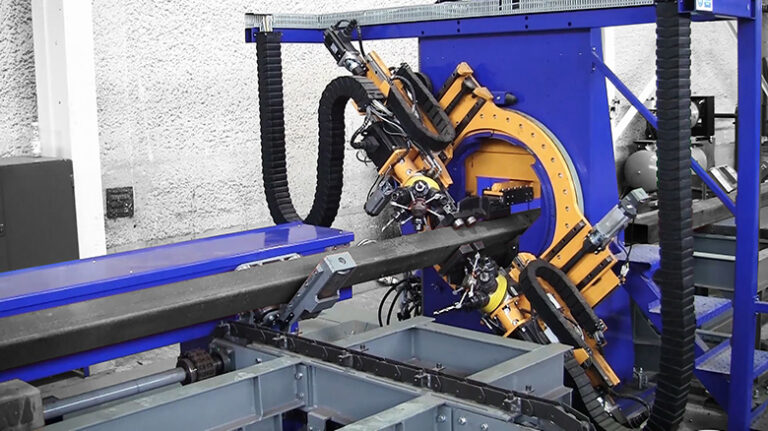

The DS-B series, a special version of the DS machine, was designed for automatic dual drilling, tapping and micro-percussion marking of hollow profiles with square or rectangular cross-sections. The work area of the machine consists of a rotary drilling support with two turret heads for drilling up to Ø 24 mm and tapping up to M12, each having 6 tool positions. The machine can process hollow sections up to 300 x 300 mm with a length of up to 12 m. Material loading, feeding and unloading are fully automated.

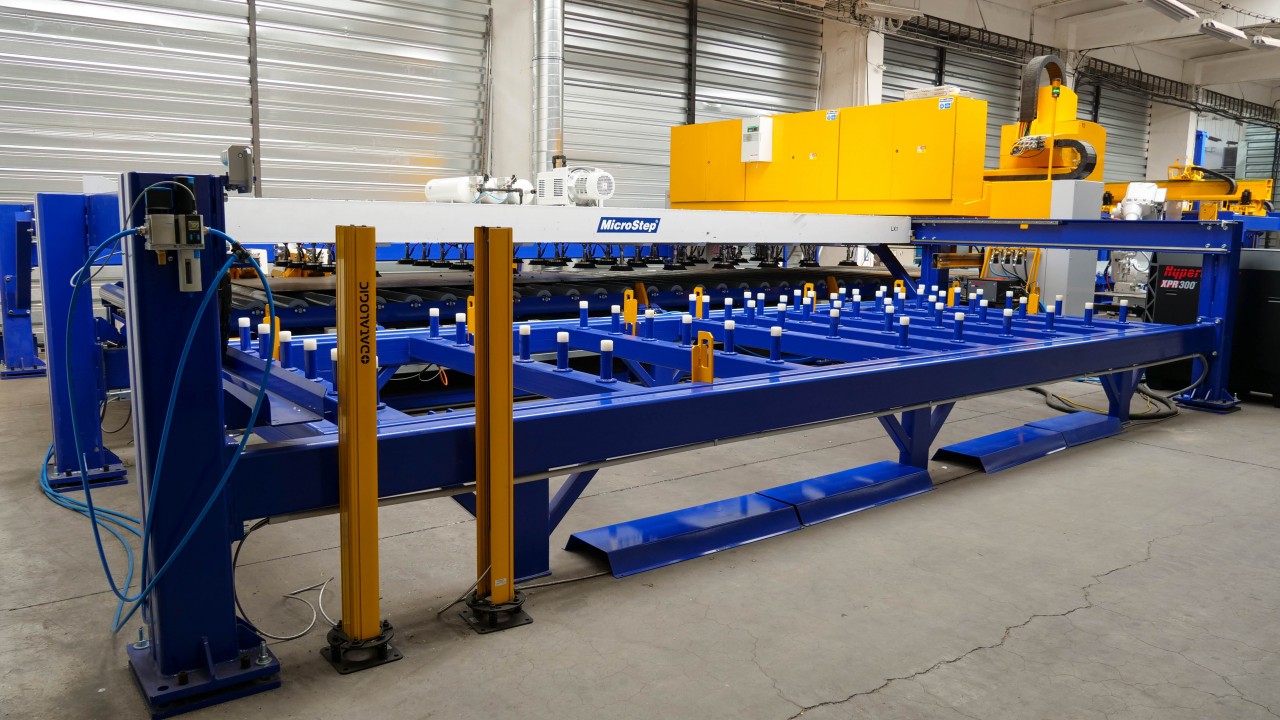

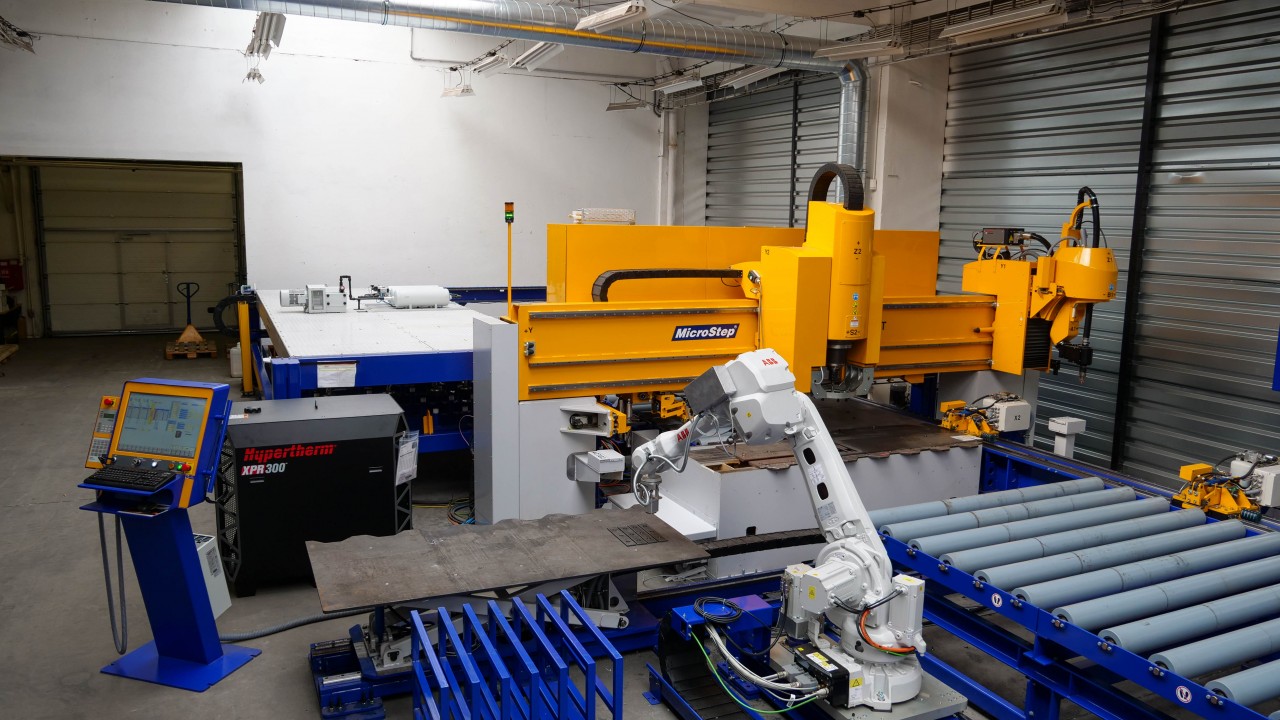

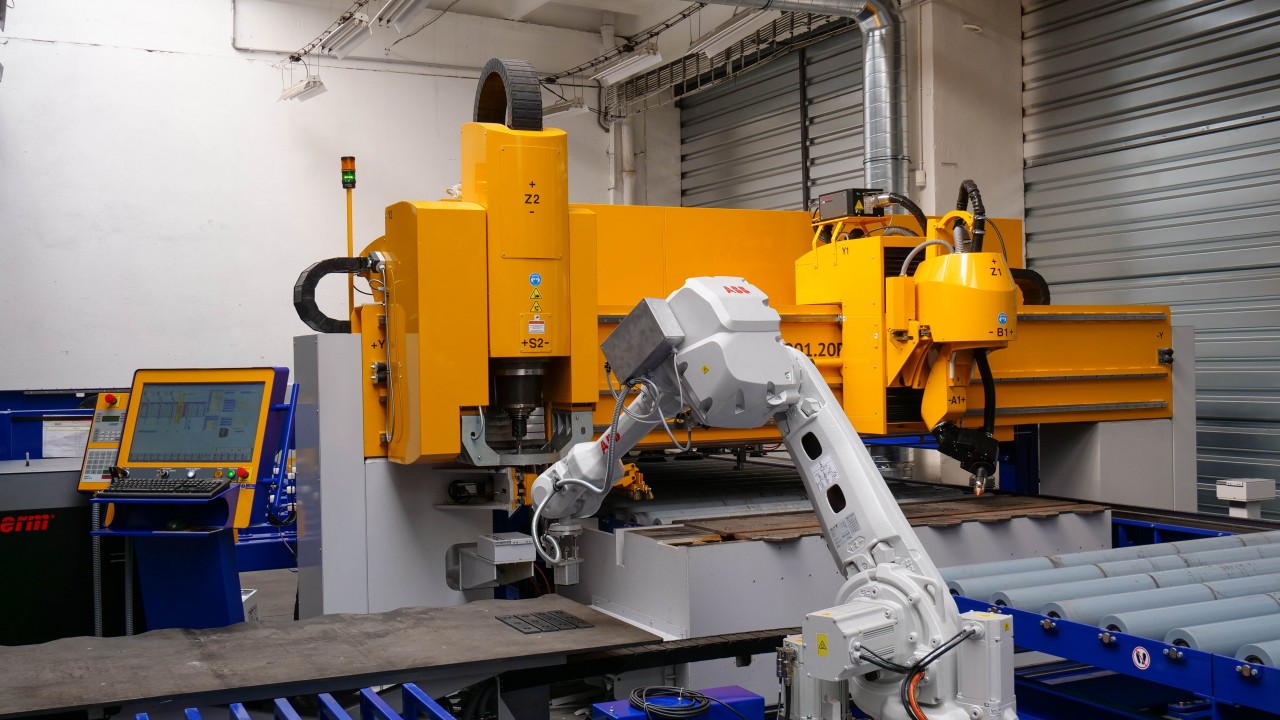

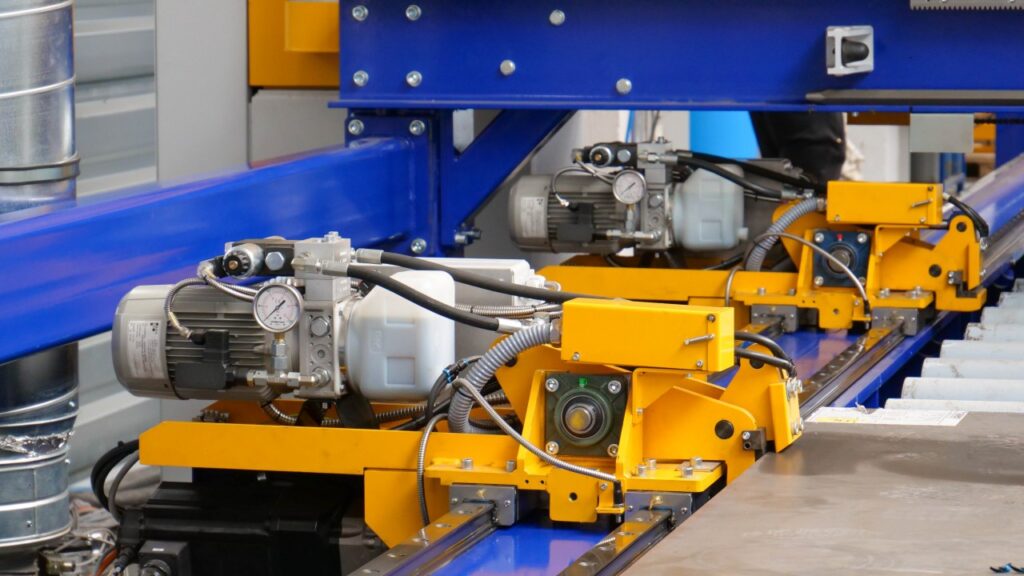

As a time- and cost-efficient production solution, the DS series has a high degree of automation. Loading of plates into the cutting zone, unloading of processed parts as well as separation of residual material are fully automated. The modular design of the machine allows to customize the unloading process incl. sorting by robots. Moreover, the machine is operated by MicroStep‘s production management software CyberFab® Manager that can be interconnected with local ERP system.
The DS series offers a variety of automated processing options for flat materials. Besides drilling, straight cutting and bevel cutting for weld edge preparation up to 50°, oxyfuel cutting, tapping, countersinking as well as scanning and marking are possible. The standard work area size is up to 6,000 x 2,000 mm.
The DS-B series, a special version of the DS machine, was designed for automatic dual drilling, tapping and micro-percussion marking of hollow profiles with square or rectangular cross-sections. The work area of the machine consists of a rotary drilling support with two turret heads for drilling up to Ø 24 mm and tapping up to M12, each having 6 tool positions. The machine can process hollow sections up to 300 x 300 mm with a length of up to 12 m. Material loading, feeding and unloading are fully automated.
As a time- and cost-efficient production solution, the DS series has a high degree of automation. Loading of plates into the cutting zone, unloading of processed parts as well as separation of residual material are fully automated. The modular design of the machine allows to customize the unloading process incl. sorting by robots. Moreover, the machine is operated by MicroStep‘s production management software CyberFab® Manager that can be interconnected with local ERP system.
The in-house developed automatic calibration system for geometry of the cutting tool – ACTG® –…

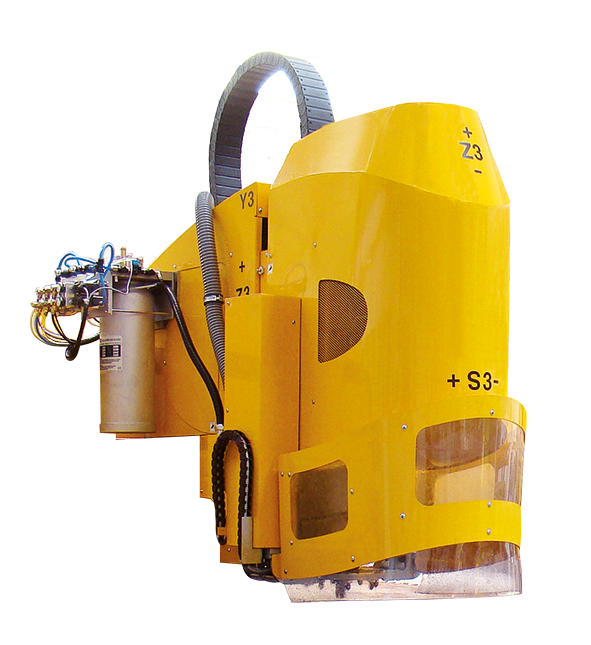

The drilling tool station extends the machine’s abilities by adding drilling, tapping, countersinking. This can…

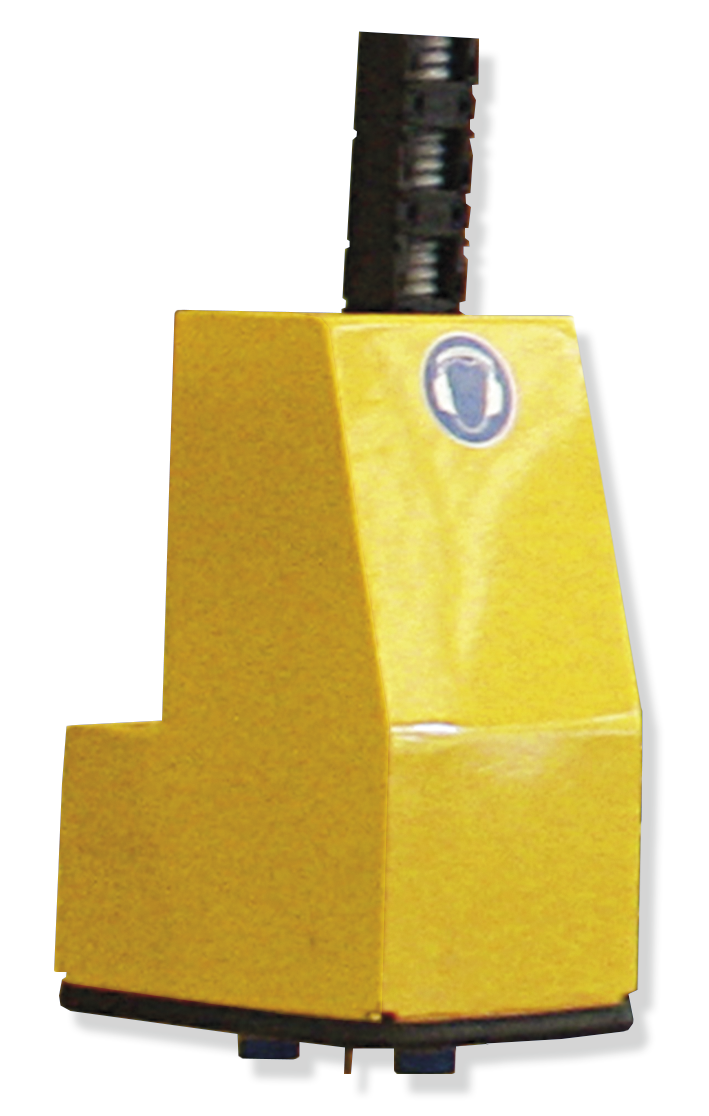

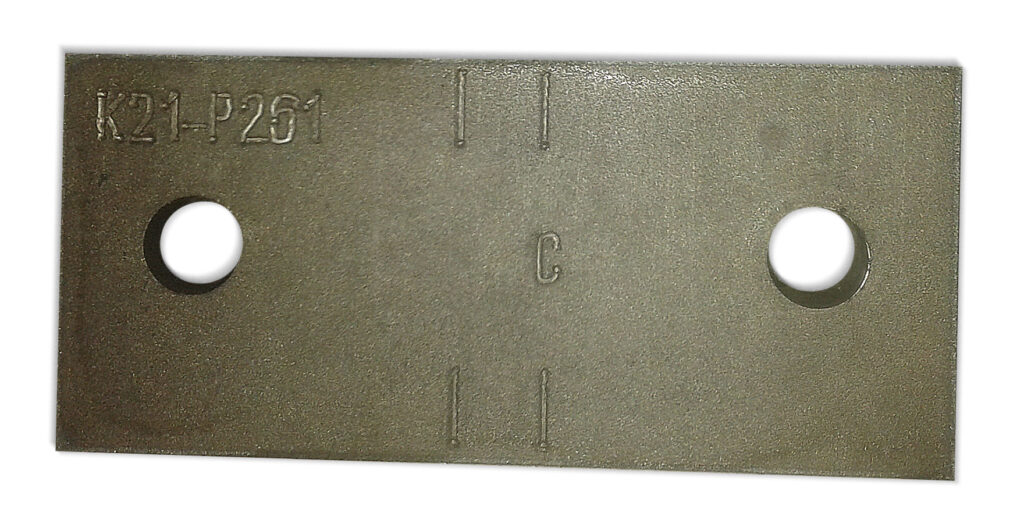

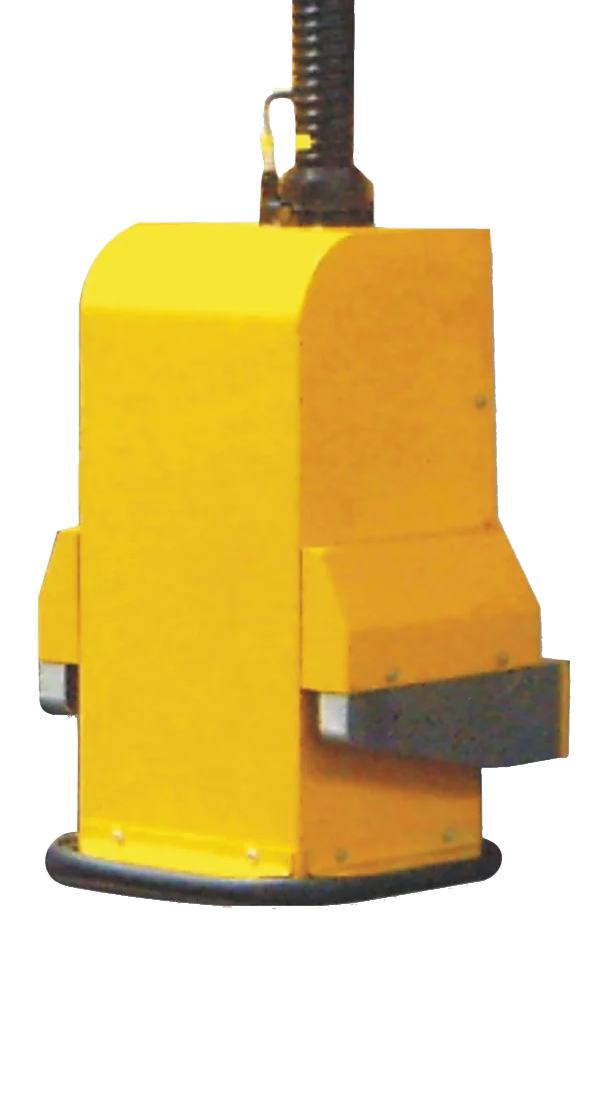

MicroPunch marking unit is designed for fast and simple micro-percussion marking of plates, pipes or…

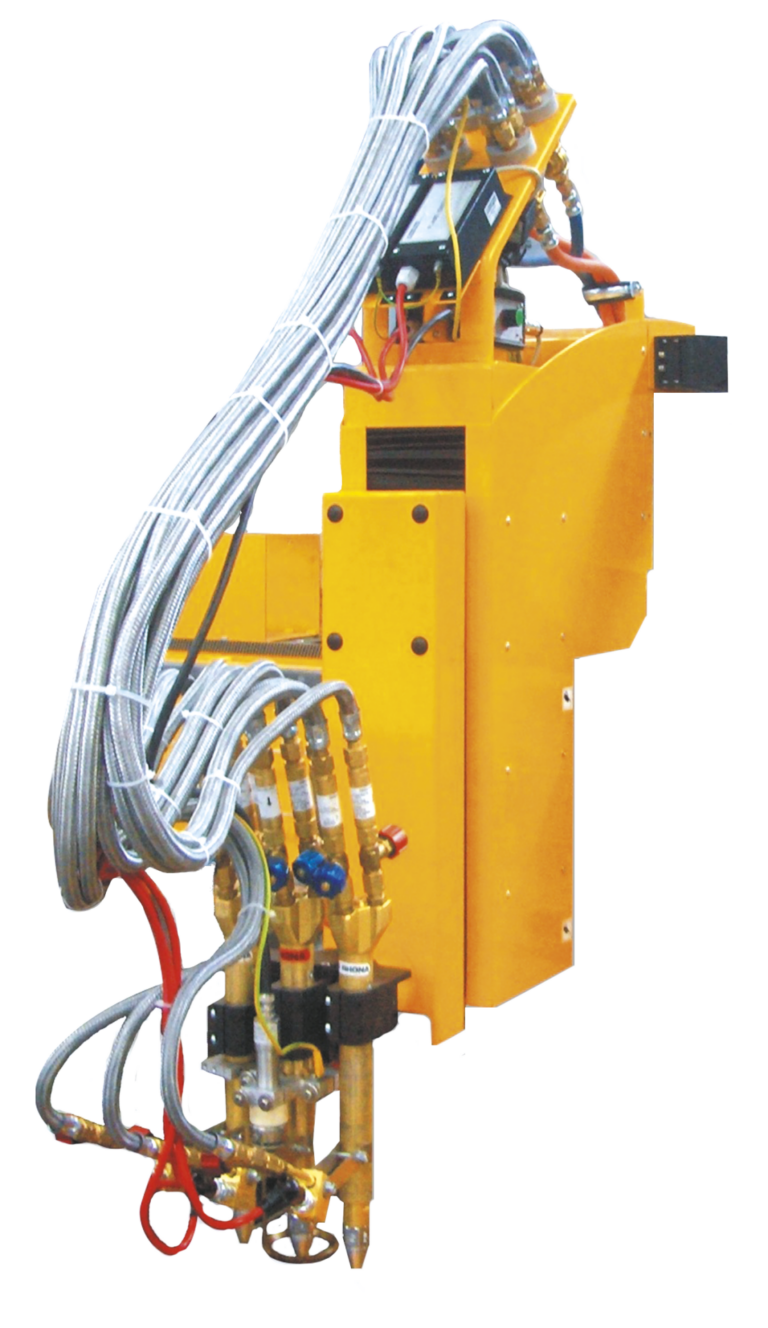

This tool station with a fork-type torch is intended for cutting stripes with oxyfuel torches…

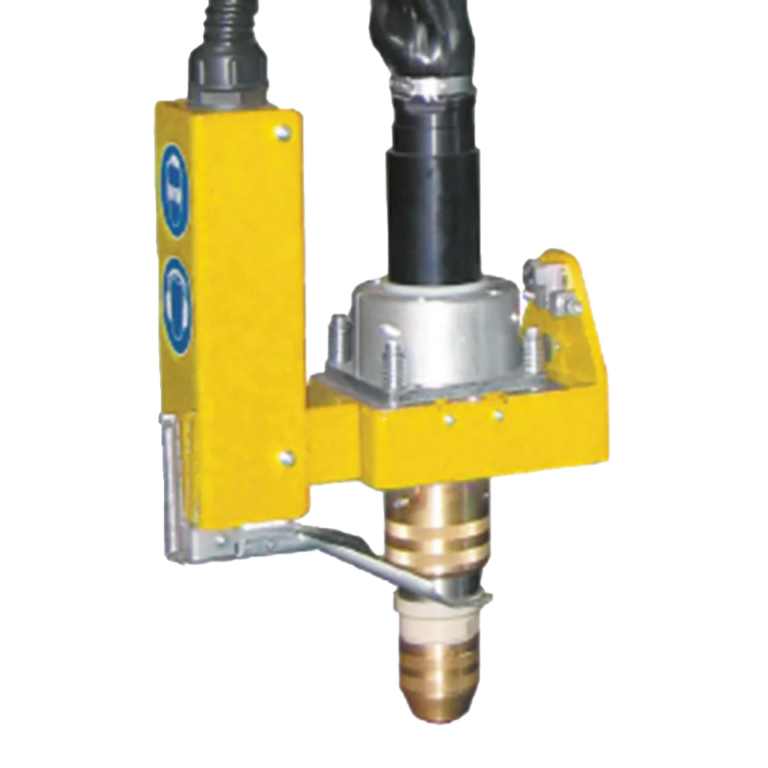

Plasma tool station for straight (vertical) cutting comes with anti-collision protection, laser pointer, automatic torch-height…

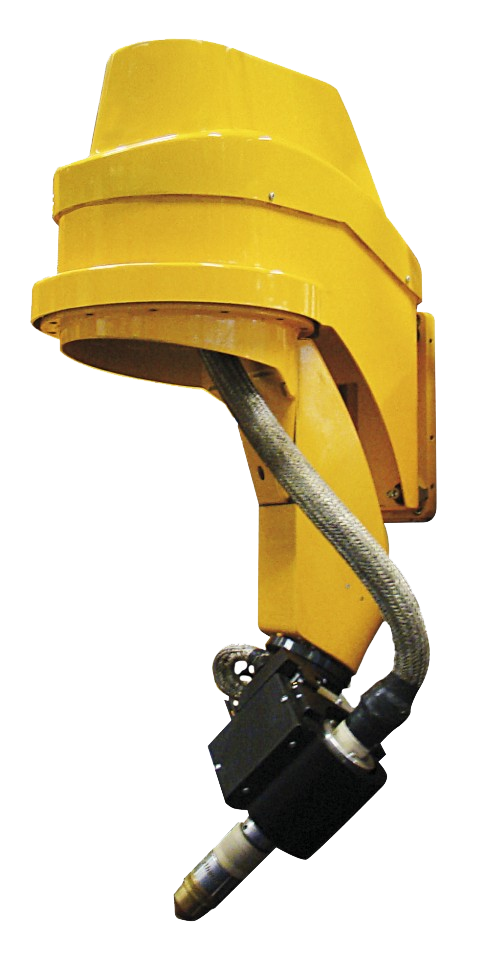

5-axis rotary bevel head with endless rotation enables plasma bevel cutting of plates, pipes, profiles…
Tilting tool station enables automatic setting of the torch’s tilt for bevel cutting with plasma…
Video
Technical parameters
| Standard sheet dimensions | 4 x 2 m, 6 x 2 m, 12 x 2 m |
|---|---|
| Material thickness range | 3 – 40 mm |
| Max number of tool stations | 4 |
| Max thickness of material cut by plasma | According to gripper capacity and plasma source |
| Max thickness of material cut by oxyfuel | According to gripper capacity |
| Bevel cutting | yes (see Accessories) |
|---|---|
| Pipe cutting | no |
| Drilling and tapping | up to Ø 60 mm |
| Positioning speed | max 62 m/min |
| Bidirectional repeatability | 0.05 mm/m |
