MicroStep Waterjet
Cut Anything
MicroStep high-precision waterjet solutions deliver exceptional dimensional accuracy and versatile bevel cutting on virtually any material, without a heat-affected zone.
Learn more
Beyond Thermal Cutting
Material Freedom
From Metals to Stone & Plastics
Process virtually any material with high precision, from metals and stone to plastics, rubber, foam, PTFE, glass and composite materials, without a heat-affected zone.
Precision Beveling
Up to 45°
Create accurate V, A, Y, X and K bevels with exceptional contour accuracy, with taper and stream lag compensation. Add bevels to already straight-cut parts with ABP®.
Multi-Technology, incl. Pipes
Add Plasma, Tapping & More
Combine waterjet with plasma, plasma bevel, tapping and marking, with automatic switching between technologies – even all on a single part.
Precision Waterjet in Motion
Watch dynamic waterjet cutting in aluminium, from straight cuts to constant and variable V and A bevels. Taper compensation, smooth edges, and precise bevels thanks to ACTG®.
Engineered for Advanced Waterjet Production
Dynamic process control, precision beveling, powerful CAD/CAM and smart automation. From flat parts to 3D shapes.
Smart Process Control
Rigid machine design, high-torque drives and precision gearboxes combine with intelligent motion control, abrasive feed control and automatic abrasive-flow monitoring.
Taper Compensation
Dynamic 2.5D head tilting up to +7° compensates for jet deviation, taper and dynamic kerf changes to ensure perpendicular cut accuracy.
Beveling up to 45°
Cut parts with complex V, A, Y, X, K bevels – you can even use two bevel heads simultaneously. Features continuous height control for true dimensional accuracy.
ACTG® Calibration
ACTG® automatically measures bevel-head geometry and compensates X, Y and Z deviations across the operating range, reducing manual adjustment and downtime.
Additional Beveling
ABP® lets you add bevels to already straight-cut parts, while ABC automatically compensates process-related deviations in bevel angles.
Dynamic Piercing
Adapt piercing parameters such as nozzle distance, water pressure and abrasive flow for reliable piercing of demanding materials and applications.
5 Cutting Qualities
Balance cutting speed, edge finish and cutting cost with 5 preset cutting qualities – from the fastest cut to the finest edge finish.
IGEMS CAD/CAM
The leading waterjet CAD/CAM solution features advanced nesting, contour and speed optimization, dynamic tilting, multi-technology support and more.
Abrasive Removal
Automatically remove used abrasive and cut-material particles from the water tank into a Big Bag, reducing manual cleaning to approximately once a year.
3D Pipe/Profile Cutting
Process pipes and hollow sections with waterjet or plasma, programming complex 3D shapes directly from STEP models.
Ready for Autonomous Operation
Automate material flow with automatic loading, unloading and material transfer integrated into your factory workflow.

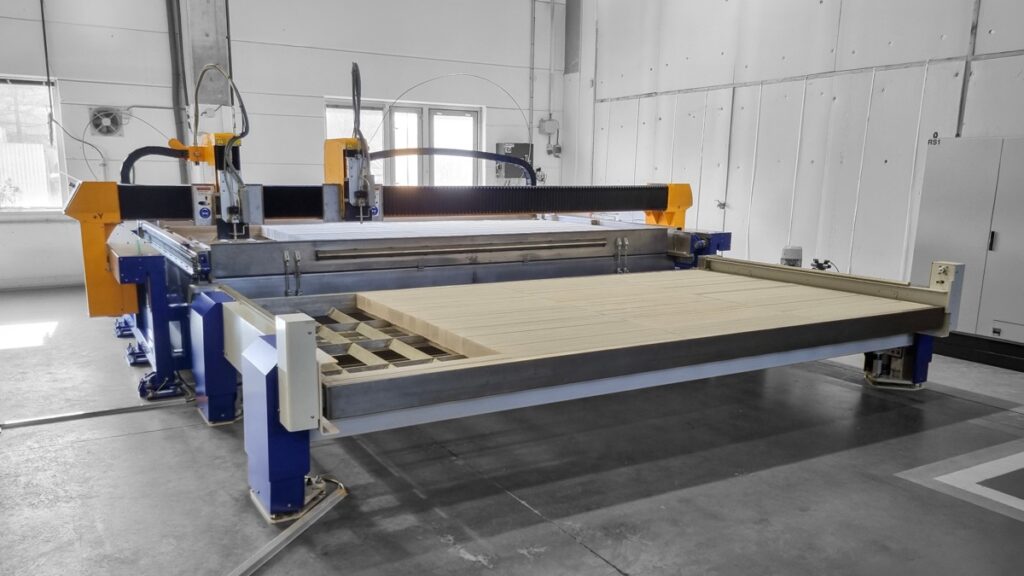

Automatic Shuttle Tables
Move material into and out of the cutting zone automatically, reducing manual handling and simplifying loading and unloading around the waterjet tank.
Smart Zone Management
Separate loading, unloading and cutting zones while enabling synchronous multi-head cutting for a continuous production flow.

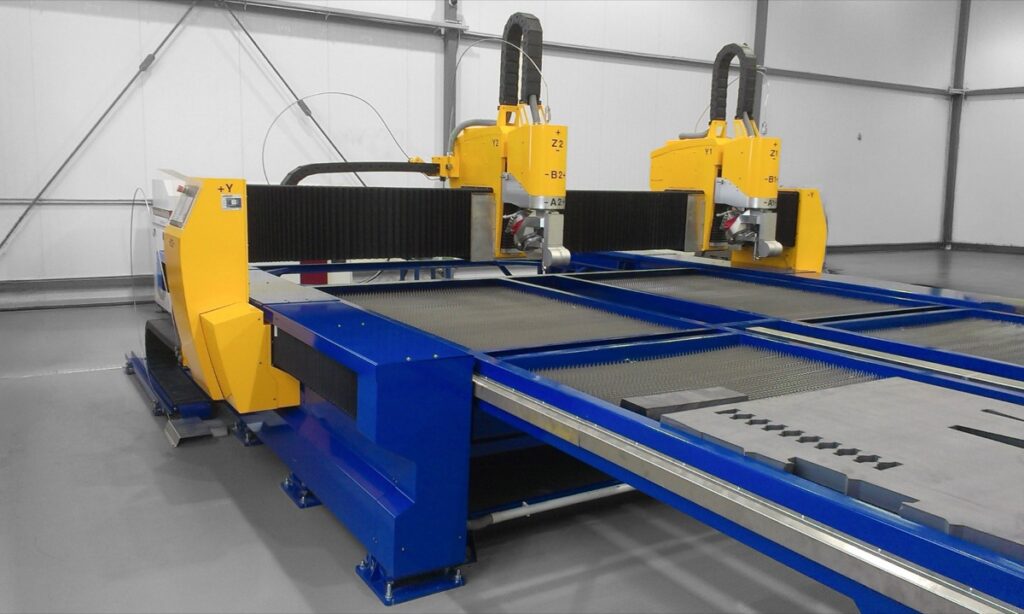

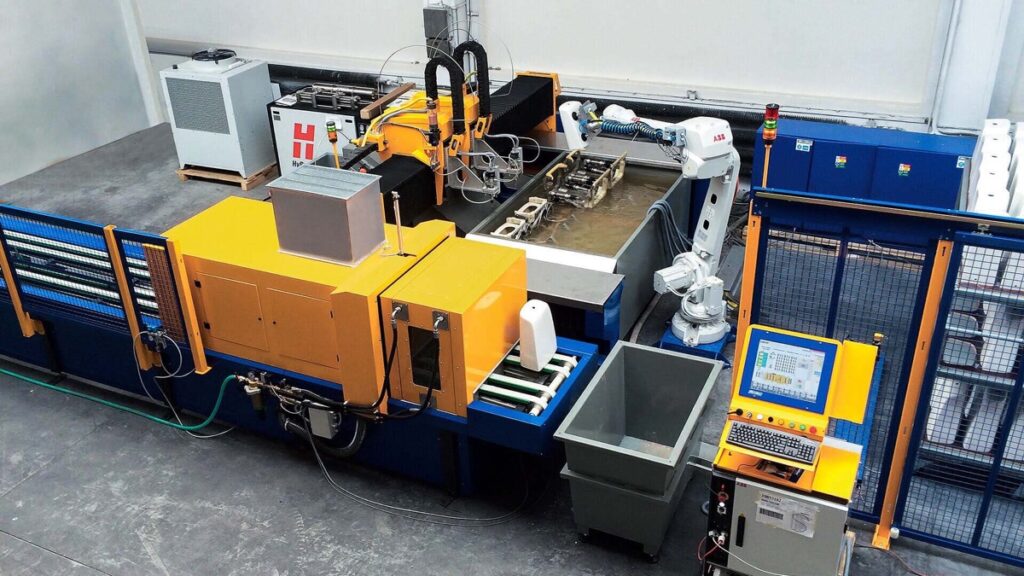

Integrated Material Transfer
Utilize automatic loading and unloading at the waterjet workplace with manipulators, conveyors and lifting systems, integrated into your workflow.

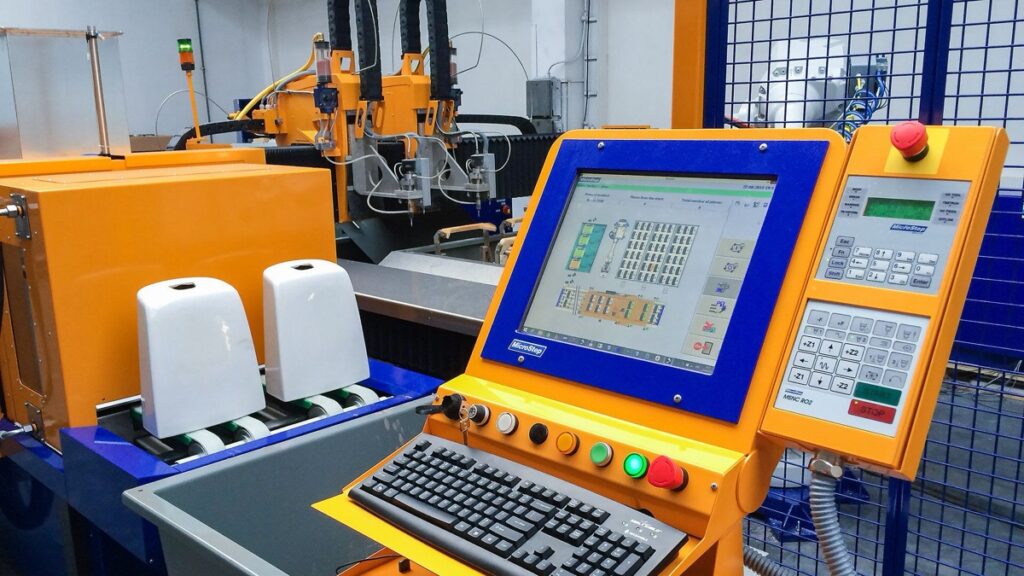

Connected Material Flow
Integrate material storage, waterjet cutting and downstream processing with MicroStep or third-party equipment for automated production.
Waterjet Built Around
Your Needs
We help you configure the best fit for your application – from precision 2D cutting with taper compensation to beveling, with multiple cutting heads and optional integration of drilling, tapping or plasma.

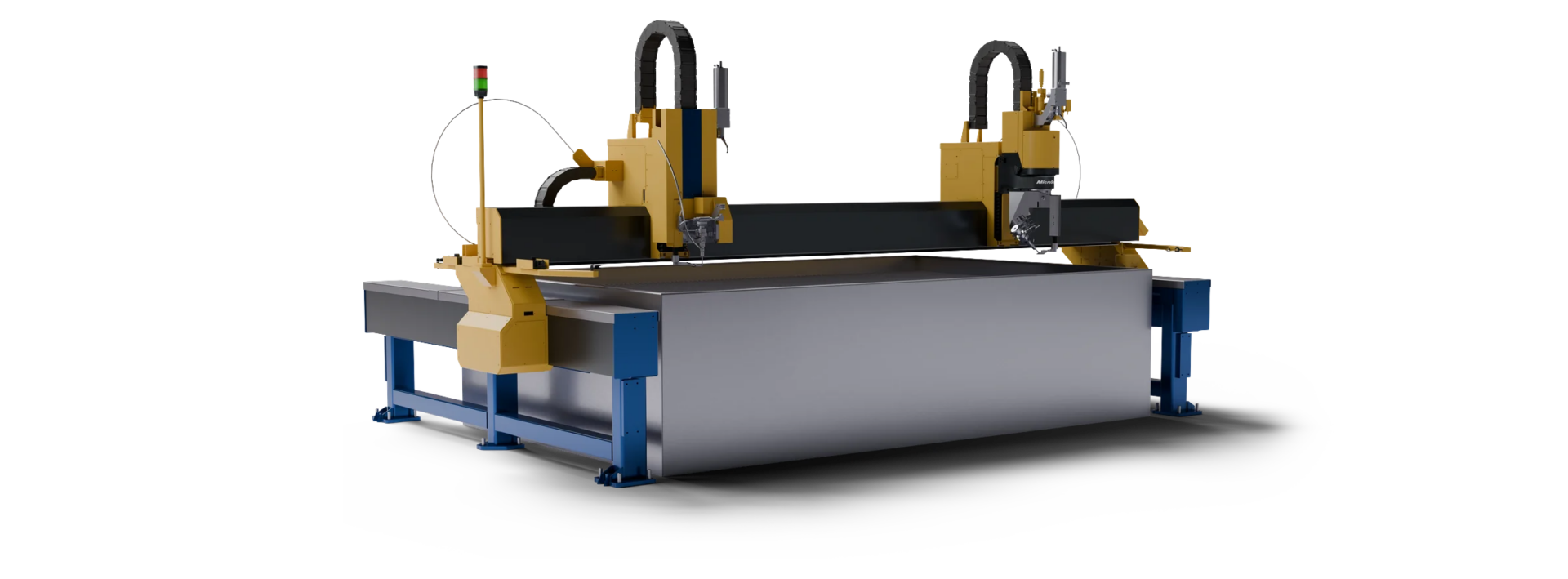

MicroStep waterjet systems range from compact machines to multifunctional double-gantry solutions, supporting multiple cutting and machining technologies and options for automated loading, unloading and material handling.
