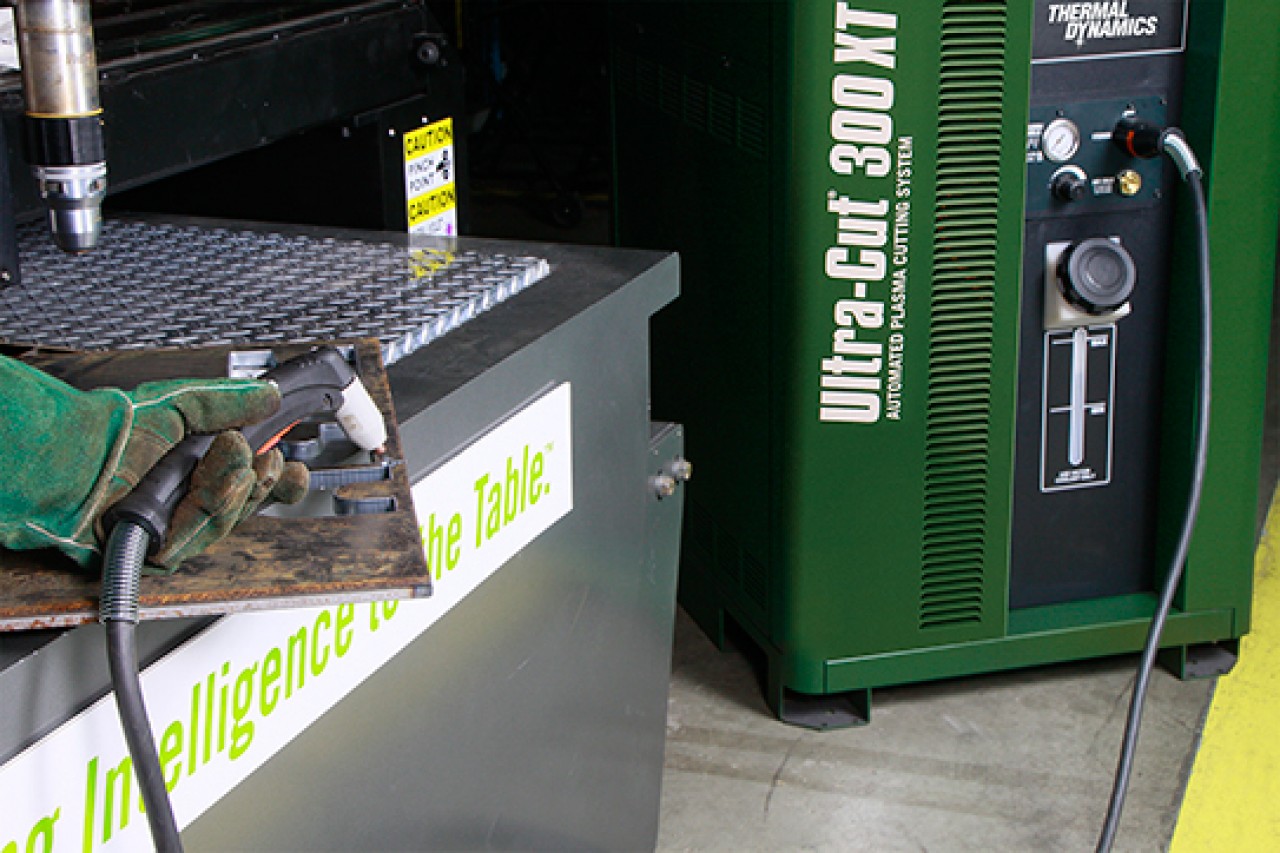

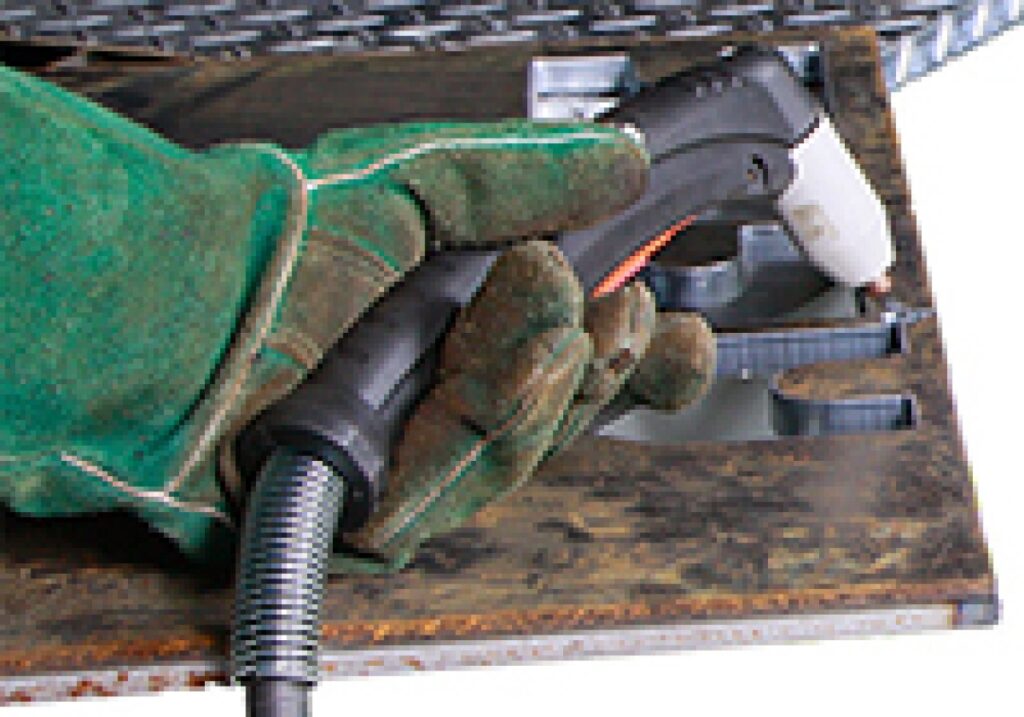

Ultra-Cut XT Power supplies are now compatible with the TD 1Torch® as standard. Simply connect the torch to the power supply and start cutting – you no longer need any additional equipment to cut the leftover metal skeleton into manageable pieces.
ScrapCutter
Ultra-Cut XT power supplies configured with ScrapCutter are in stock and available to order. (Torch supplied separately). Due to overwhelming positive feedback from the market, and to allow all our customers to take advantage of this upgrade, all Ultra-Cut XT systems stocked in Europe will be pre-configured with ScrapCutter. (A limited number of standard systems are still available from stock and in future will be available on request, with a longer delivery time.)
Features and Benefits
- 100 Amp output @ 100% Duty Cycle for high cut speeds.
- Torch leads up to 30 m allows convenient reach to the cutting area.
- Output automatically folds back to 45 A if tip touches the plate to improve parts life.
- Rapid restart for constant arc on to improve cut times.
- Activated automatically by the torch trigger – no need to switch the 1Torch function on or off at the power supply.
- Air pressure controls on the XT front panel allow the operator to adjust for different leads lengths.
- Parts-in-Place (PIP) sensor prevents operation if consumables are not correctly inserted, improving operator safety.
