New generation electric servo MSBend-E press brake is a eco-friendly non-hydraulic bending solution. The innovative machine concept combines productivity, accuracy, flexibility and reliability with high respect for ecological aspects. Compared to hydraulic press brakes, MSBend-E series has significantly lower energy consumption, lower maintenance costs, higher productivity and noiseless operation.
| New Generation Electrical Servo Bending Method |
| Delem touch-screen control unit (2D programming, 3D visual only) |
| O-frame design (more stable, stronger and produces less deformation in ram and bed) |
| CNC controlled back gauge X, R axes |
| Belt and pulley drive system |
| Entire bed lenght to work (no throat depth limit) |

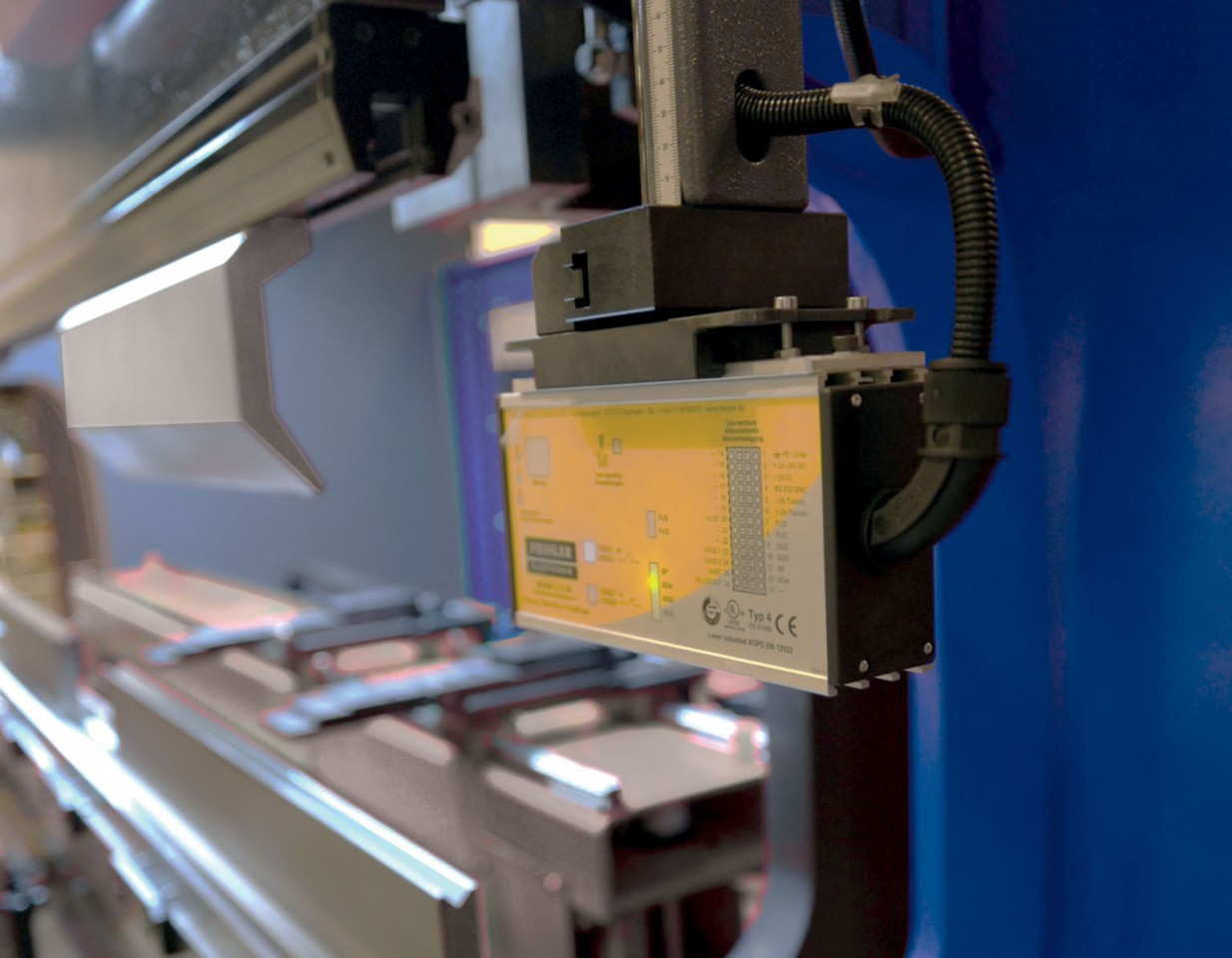

| Robust safety features |
| Universal top and bottom tooling with Promecan clamp |
| CNC controlled sheet following system (125kg carriage capacity) |

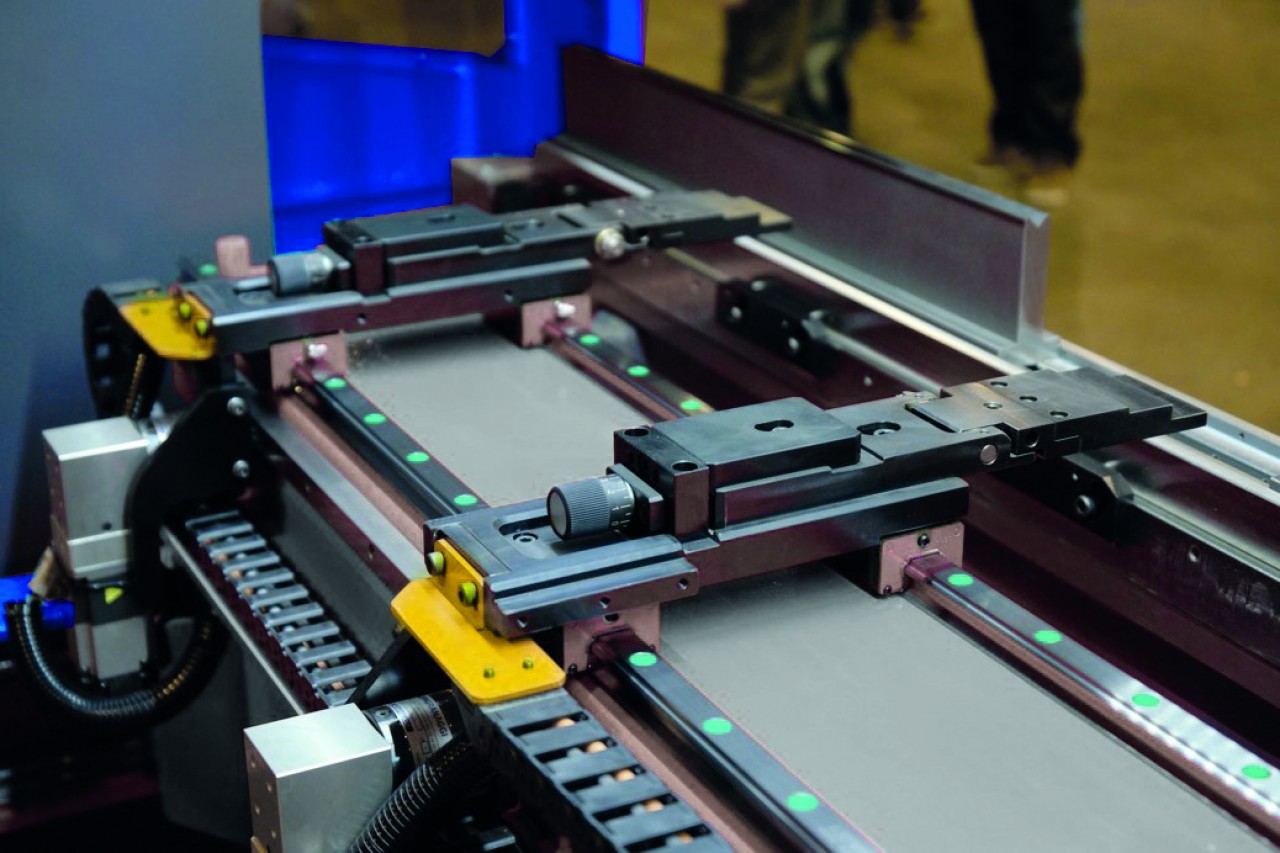

| CNC controlled back gauge X1-X2, R1-R2, Z1-Z2 axes |
| Automatic central lubrication |
| Bending force | 40 - 100 tons |
| Bending length | 1,530 - 3,050 mm |
| Distance between columns | 1,790 - 3,350 mm |
| Stroke | 240 mm |
| Daylight | 505 mm |
| Throat depth | O Frame |
| R Axis travel | 160 mm |
| Y rapid speed | 75 - 170 mm/sec |
| X Axis speed | 800 mm/sec |
| Motor power | 11 kW |
| Width | 1,850 mm |
| Height | 2,525 mm |
| Weight | 4,800 - 7,200 kg |
If you have any question, please feel free to contact us.
