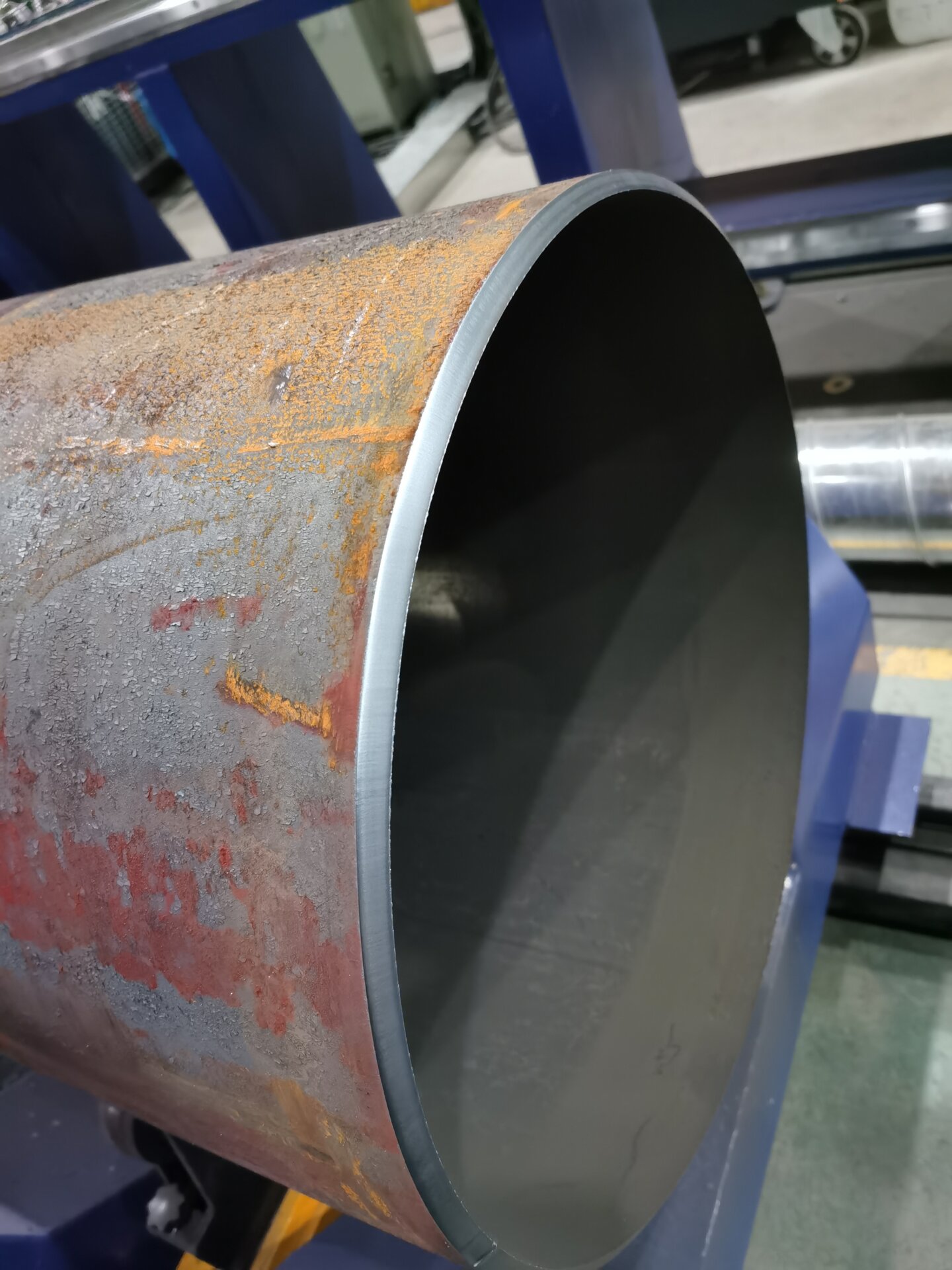

Weld edge preparation on pipes and profiles
The PipeCut series offers a wide range of pipe and profile cutting possibilities for various industrial applications in offshore, lifting and agricultural equipment, pipelines, power plant and steel constructions or shipbuilding.
Modular design of the machine allows to meet unique pipe fabrication needs and thus become a valid part of your production facility.
Features

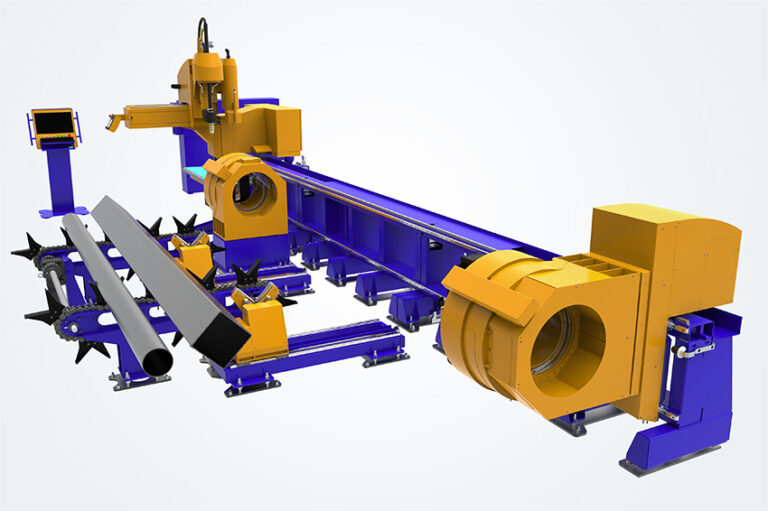

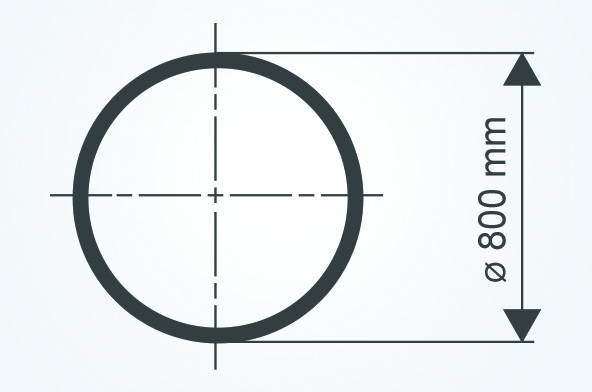

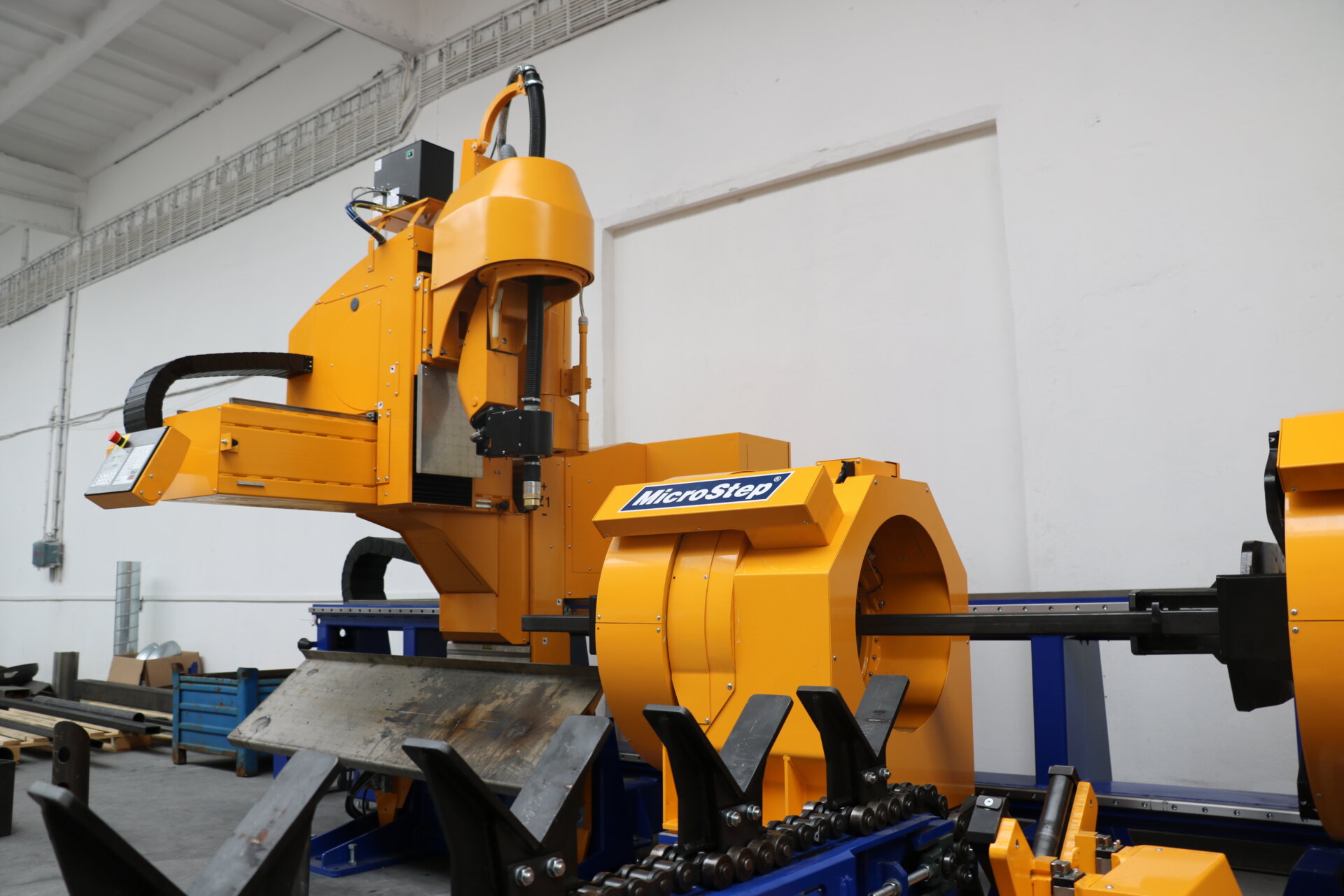

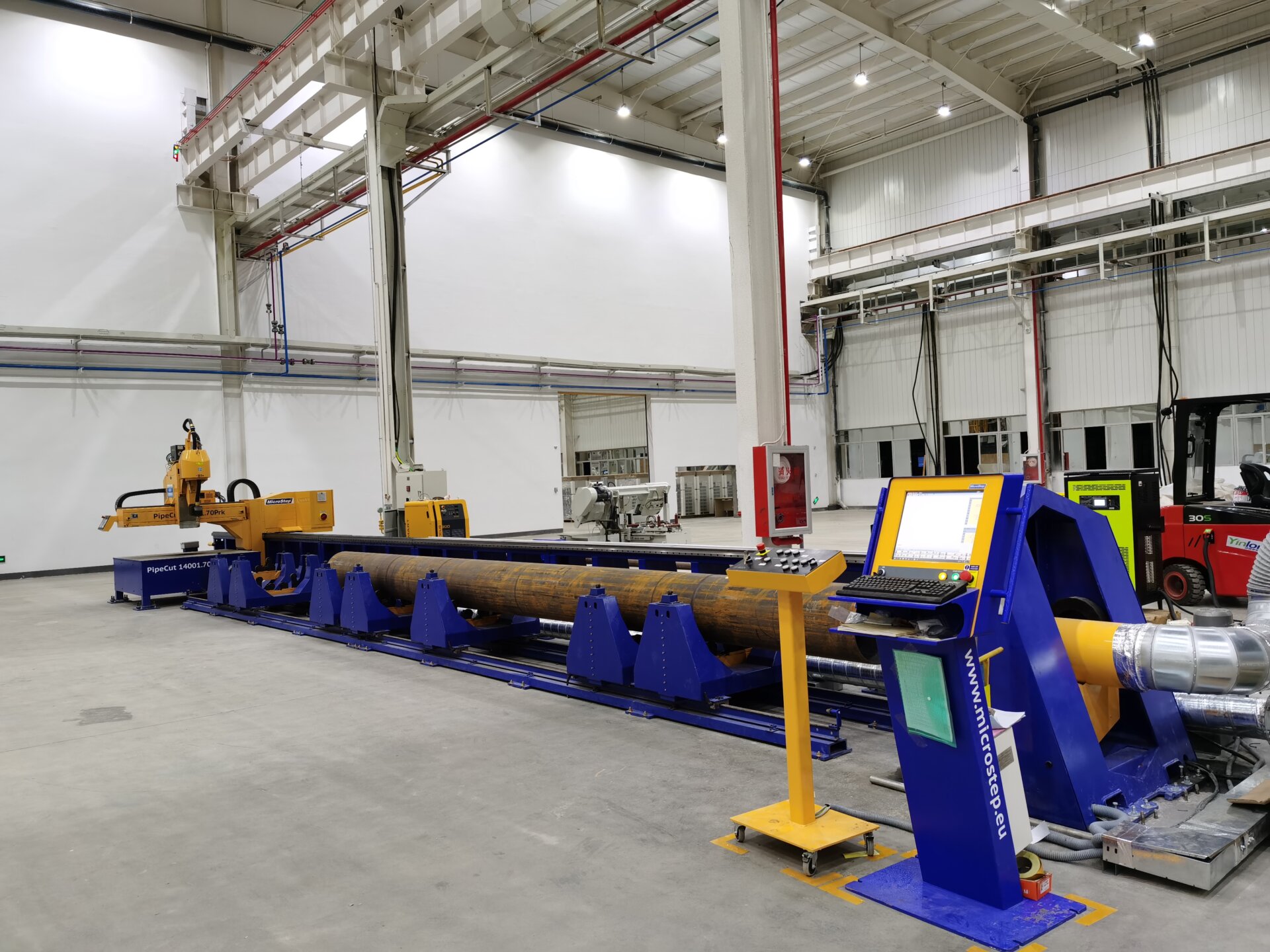

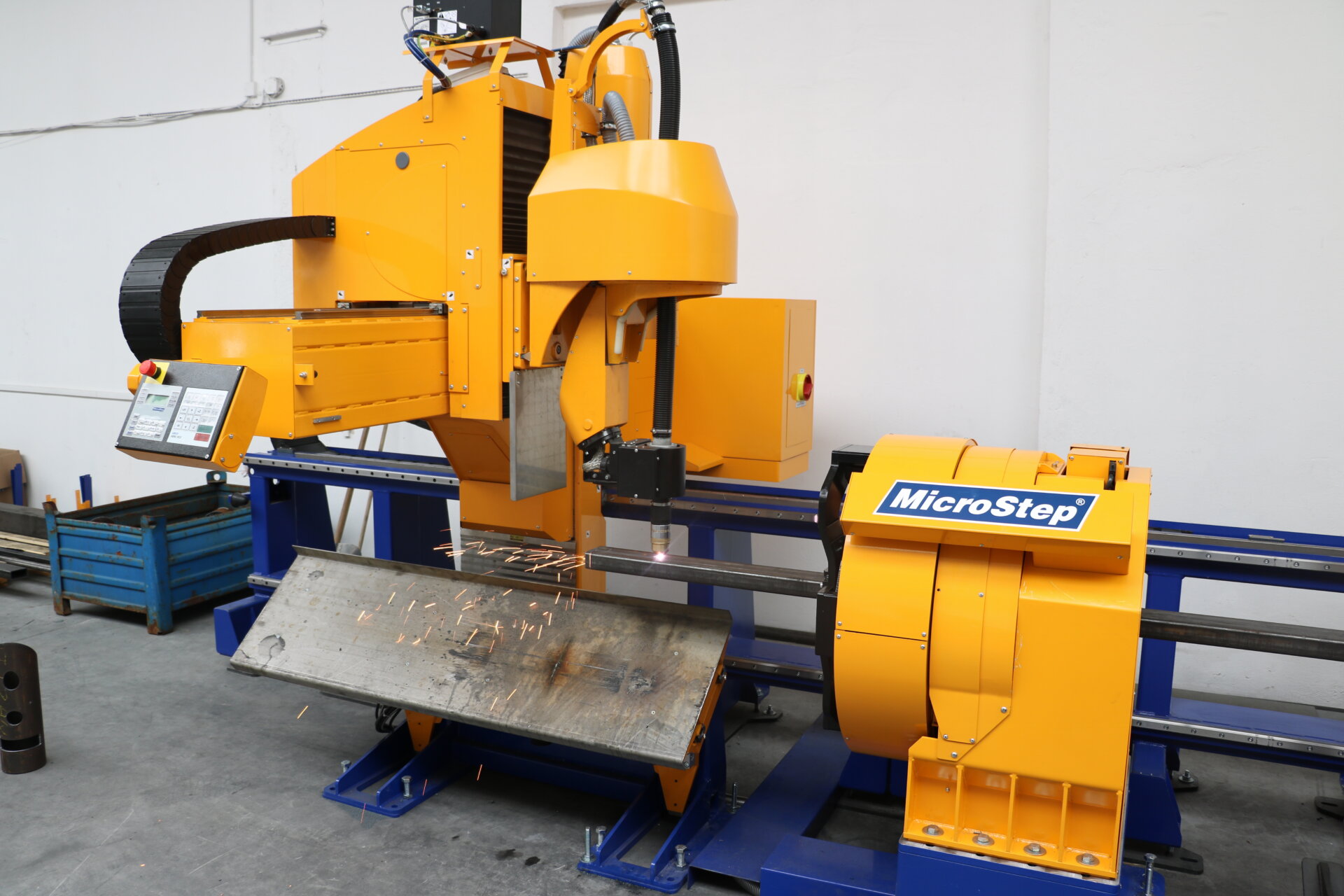

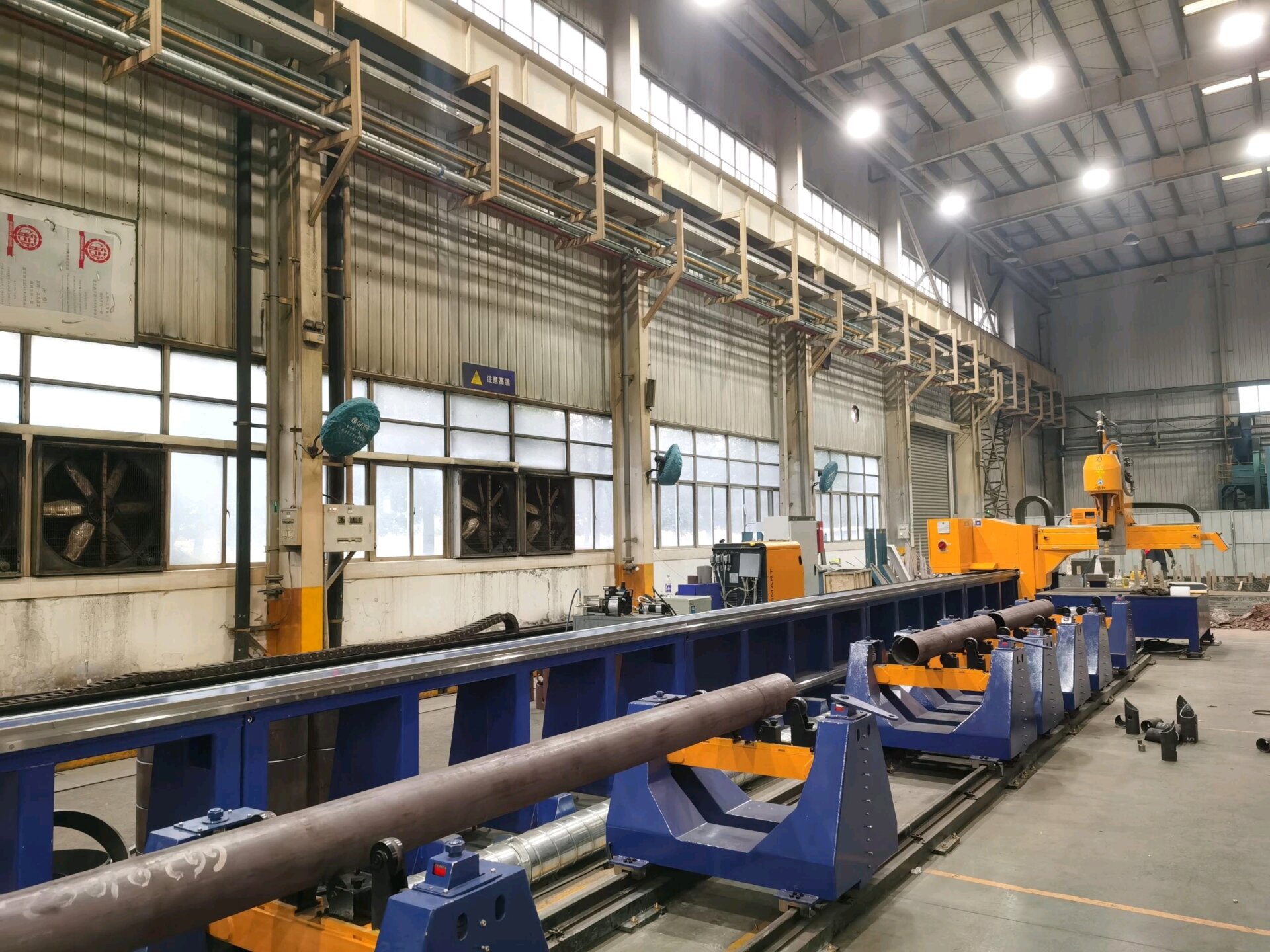

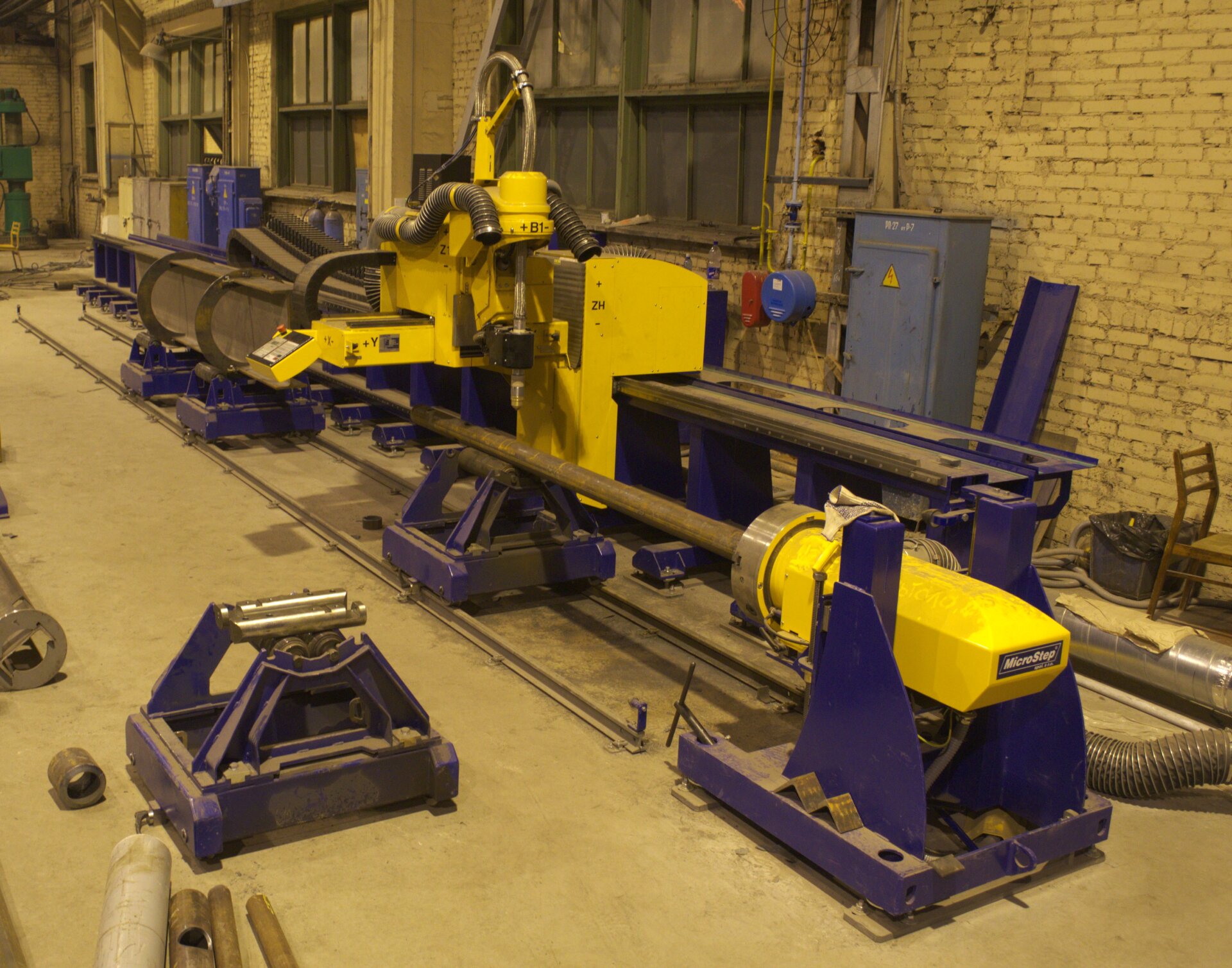

PipeCut‘s cantilever design with open loading area enables processing of pipes and profiles up to Ø 800 mm.

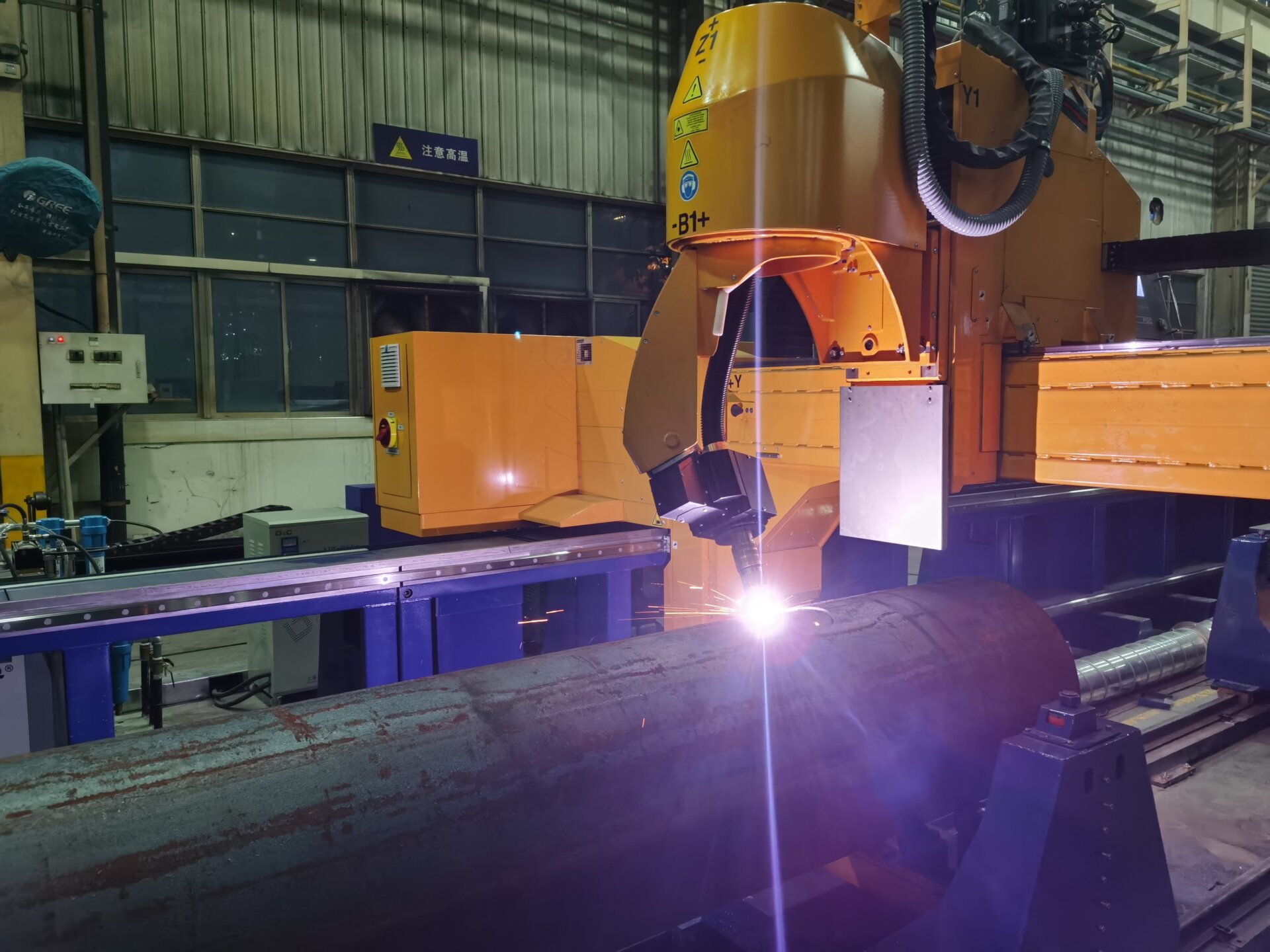

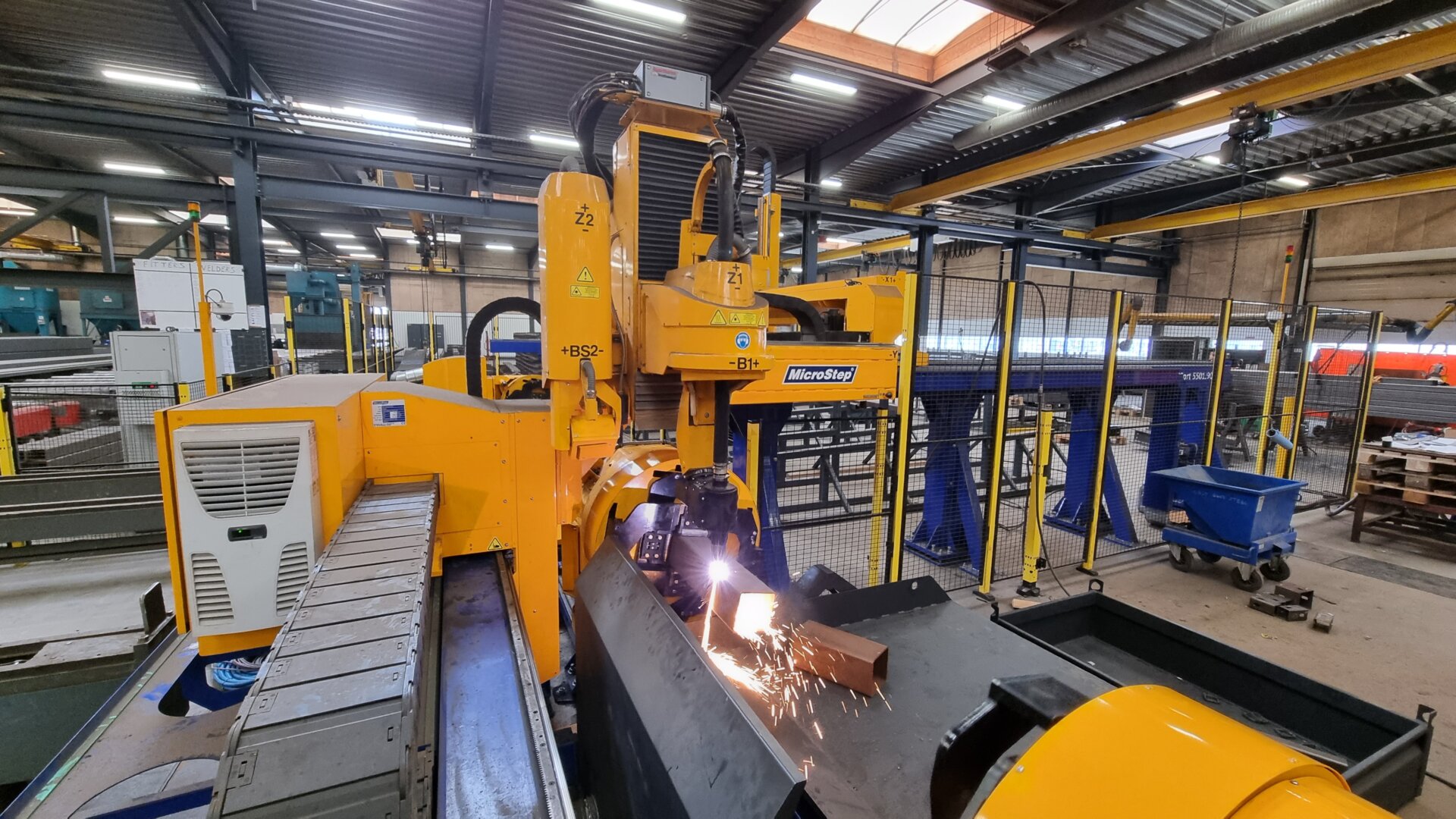

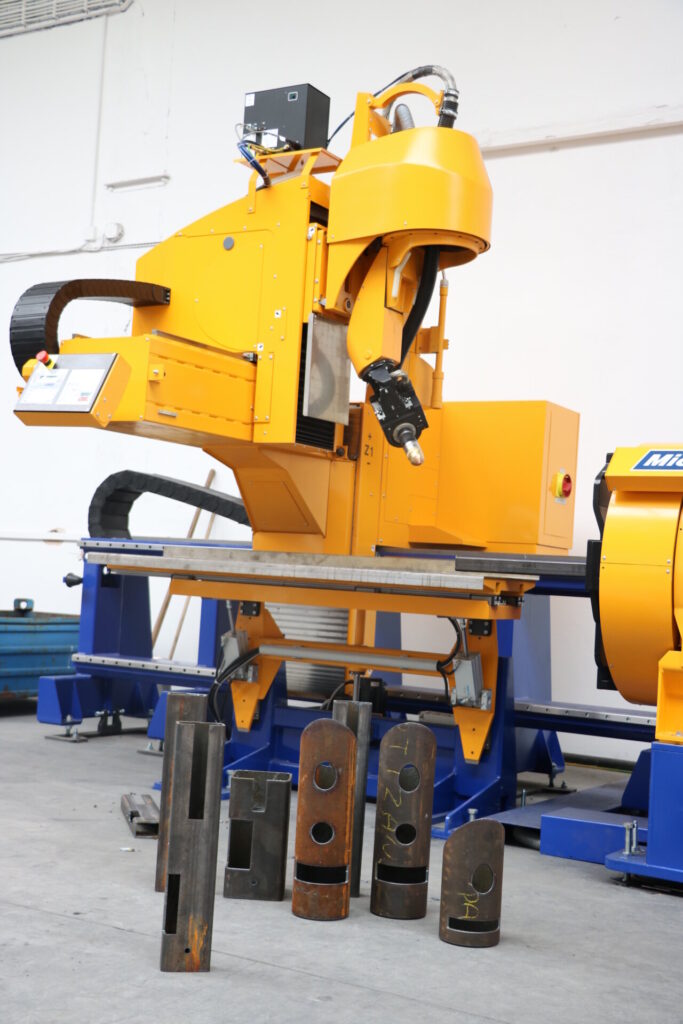

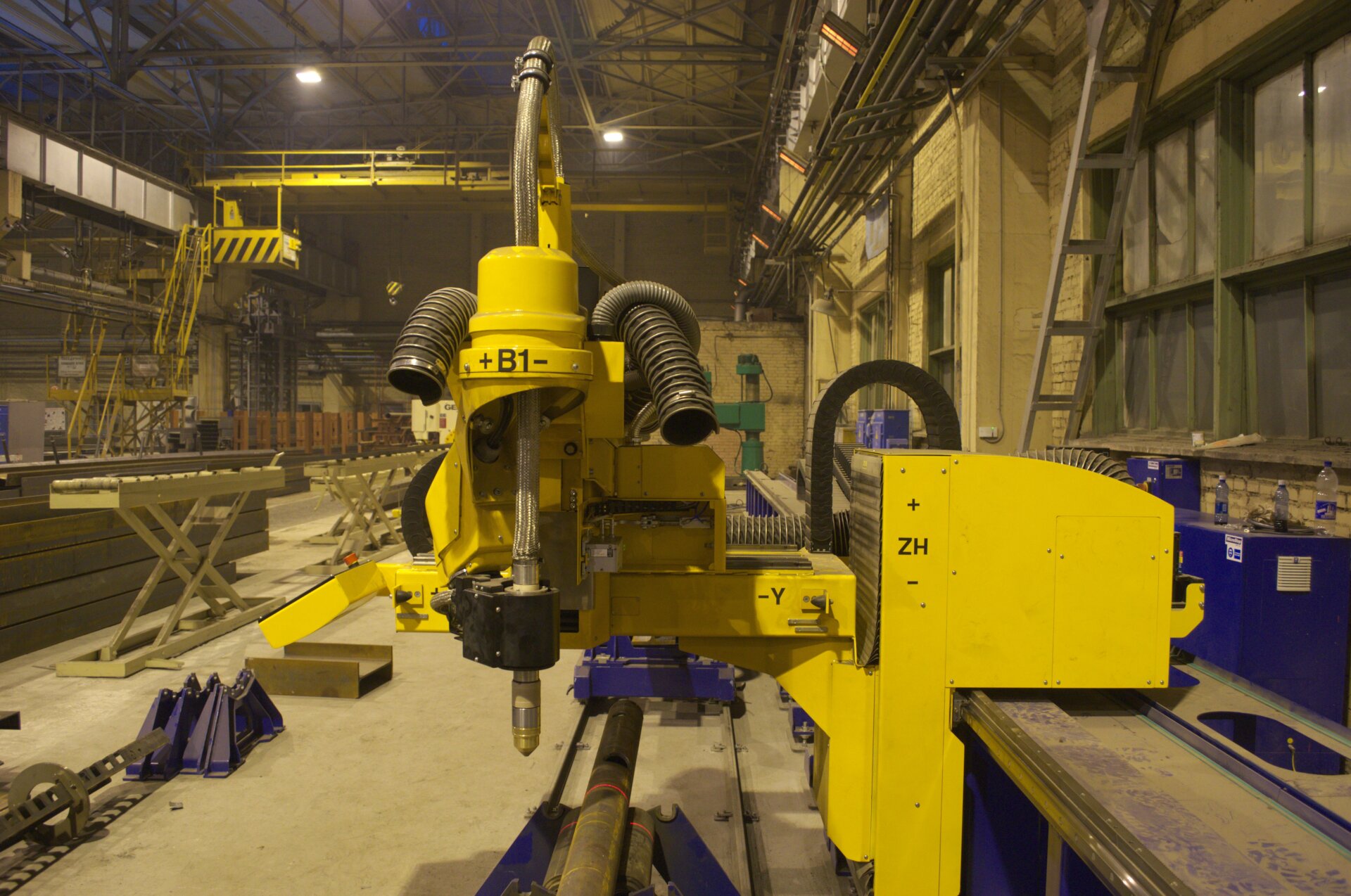

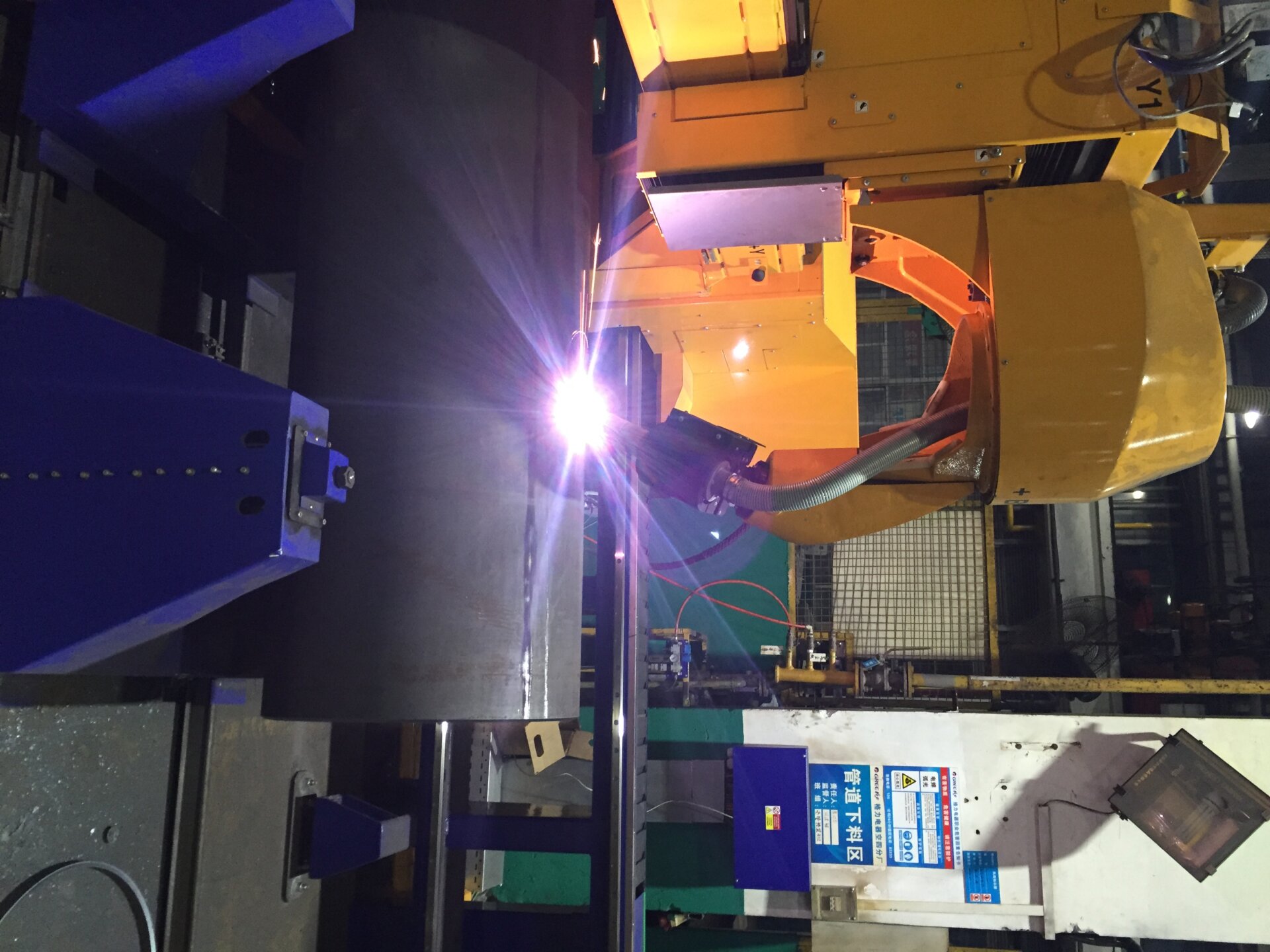

- 3D plasma for fast and efficient cutting
- 3D oxyfuel for thick-walled workpieces

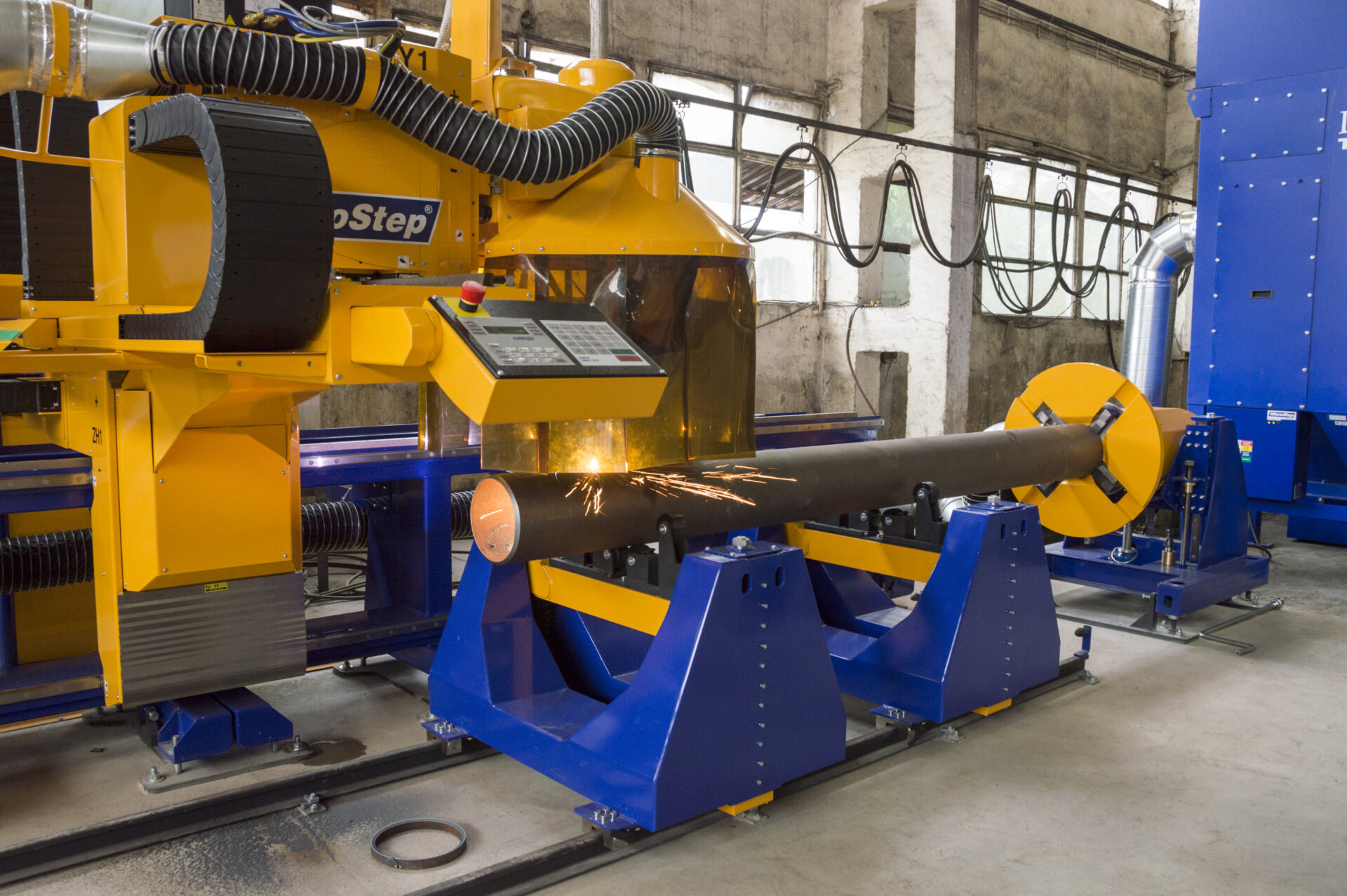

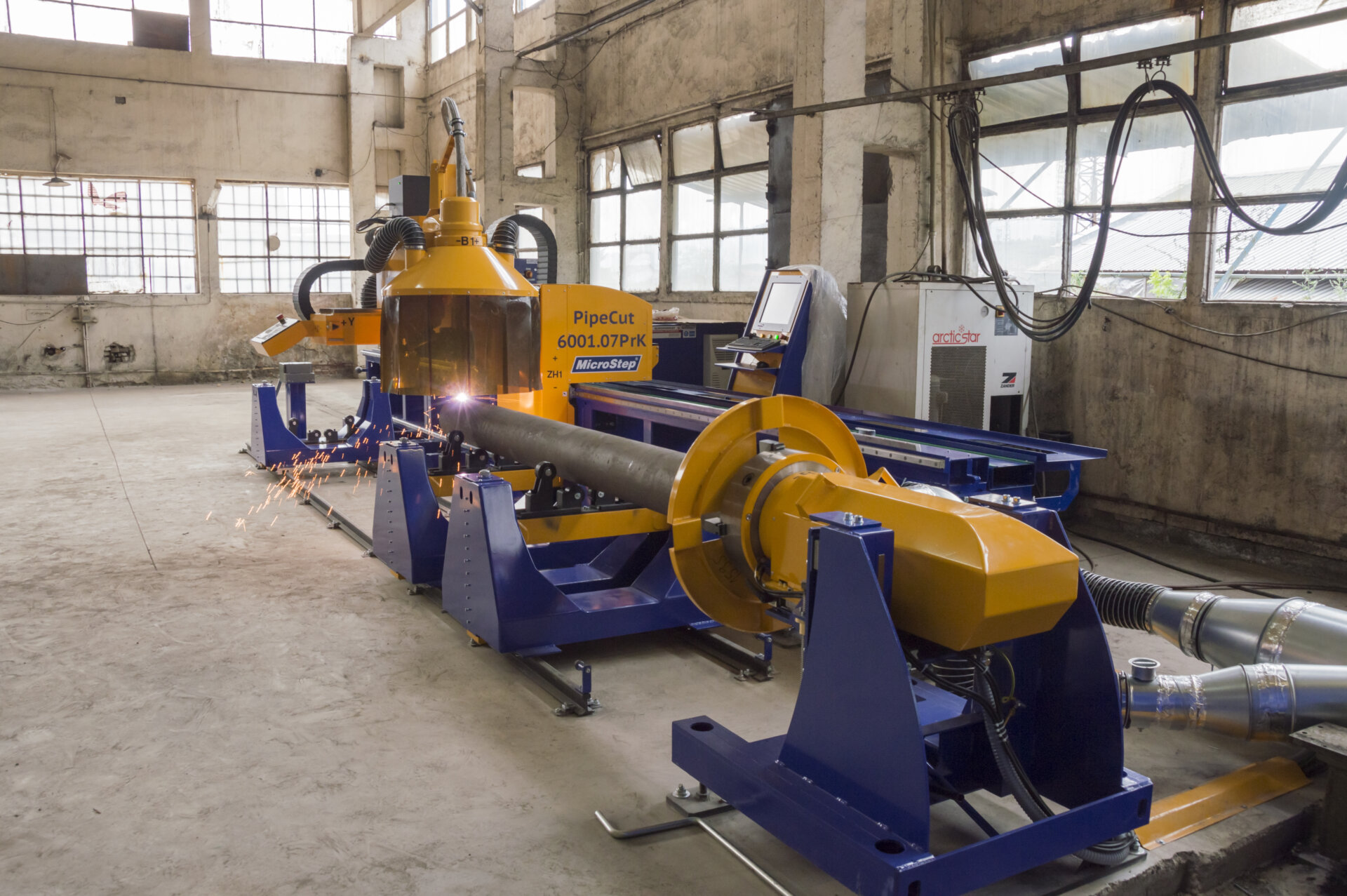

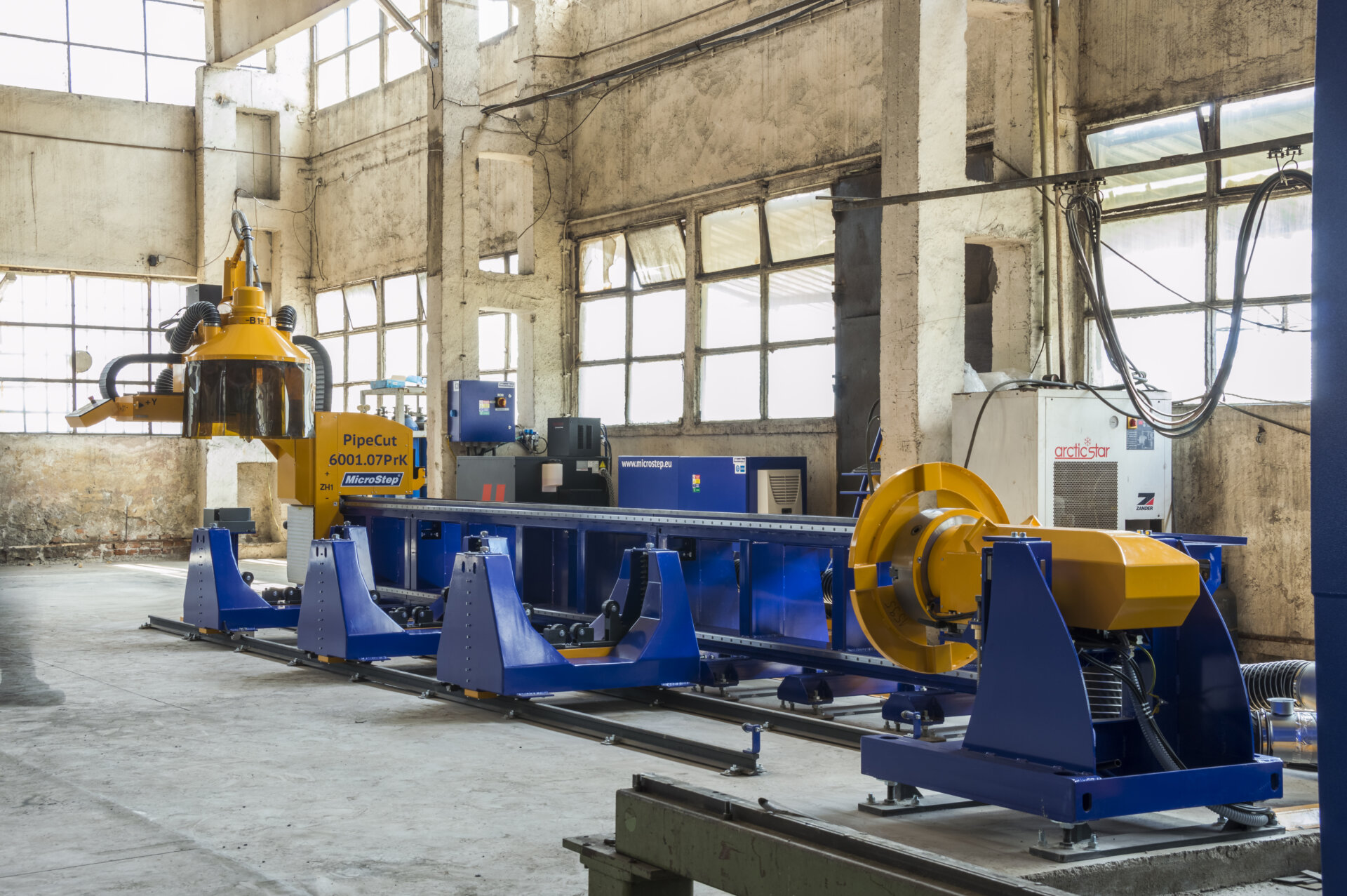

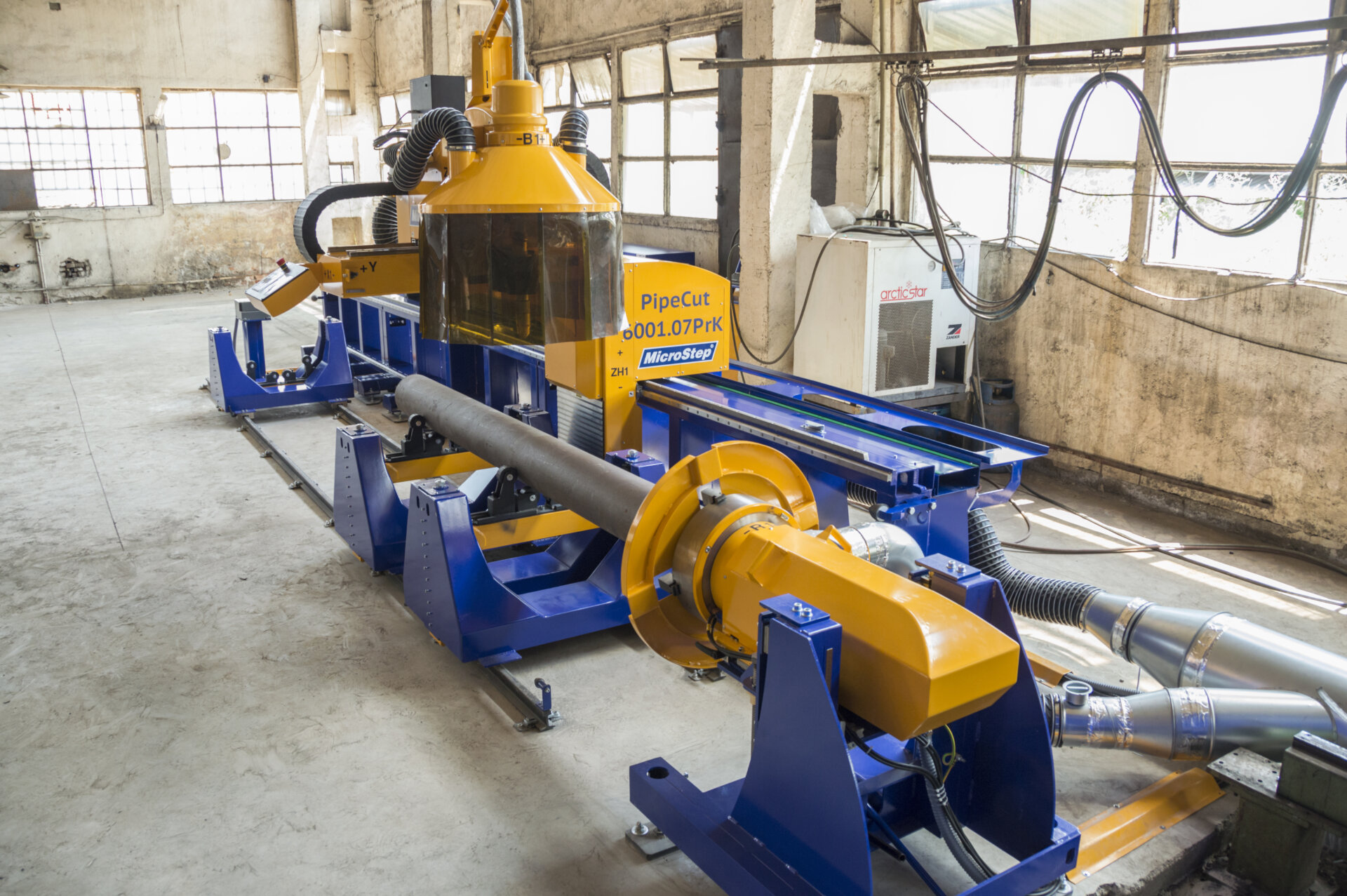

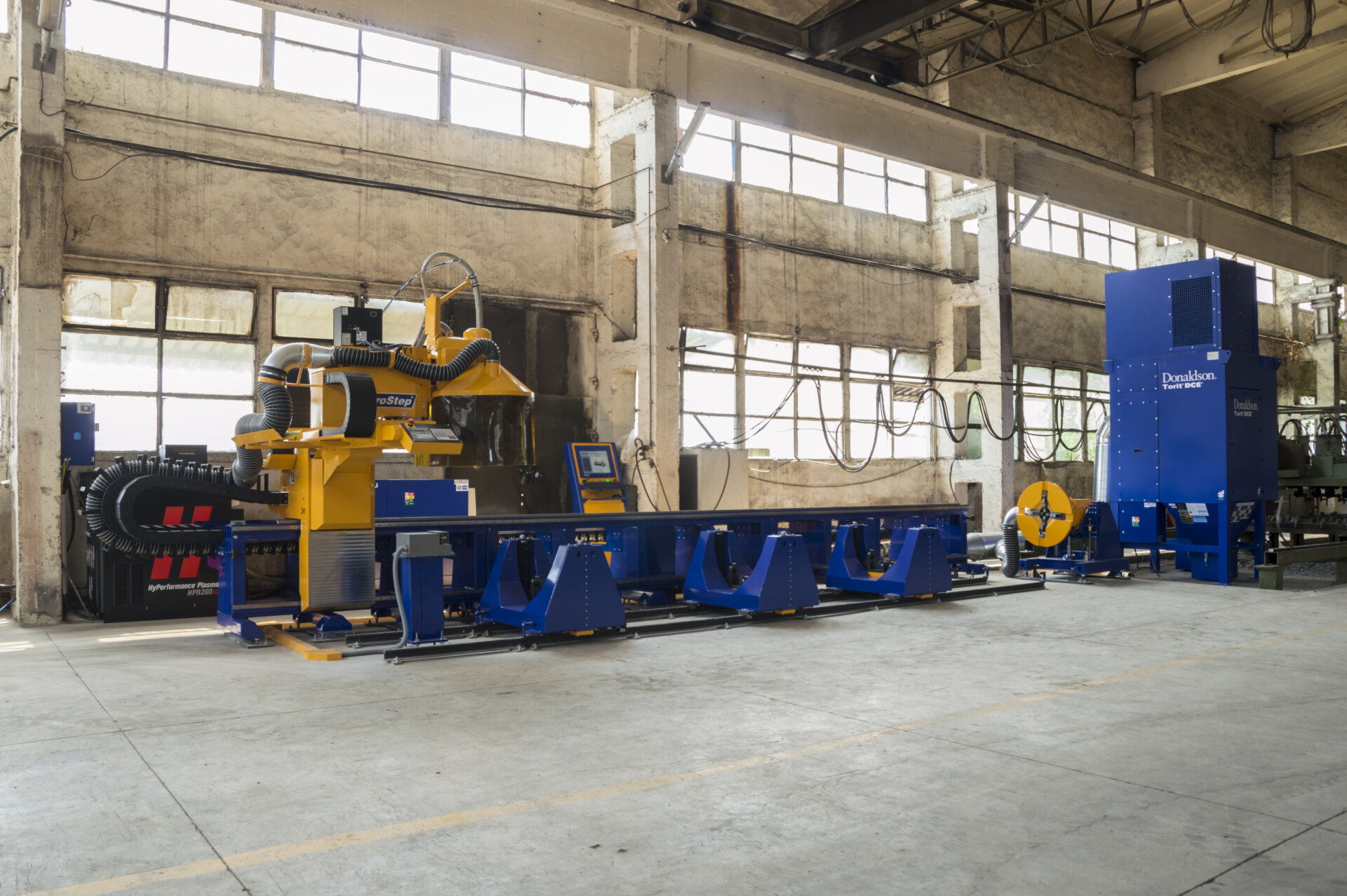

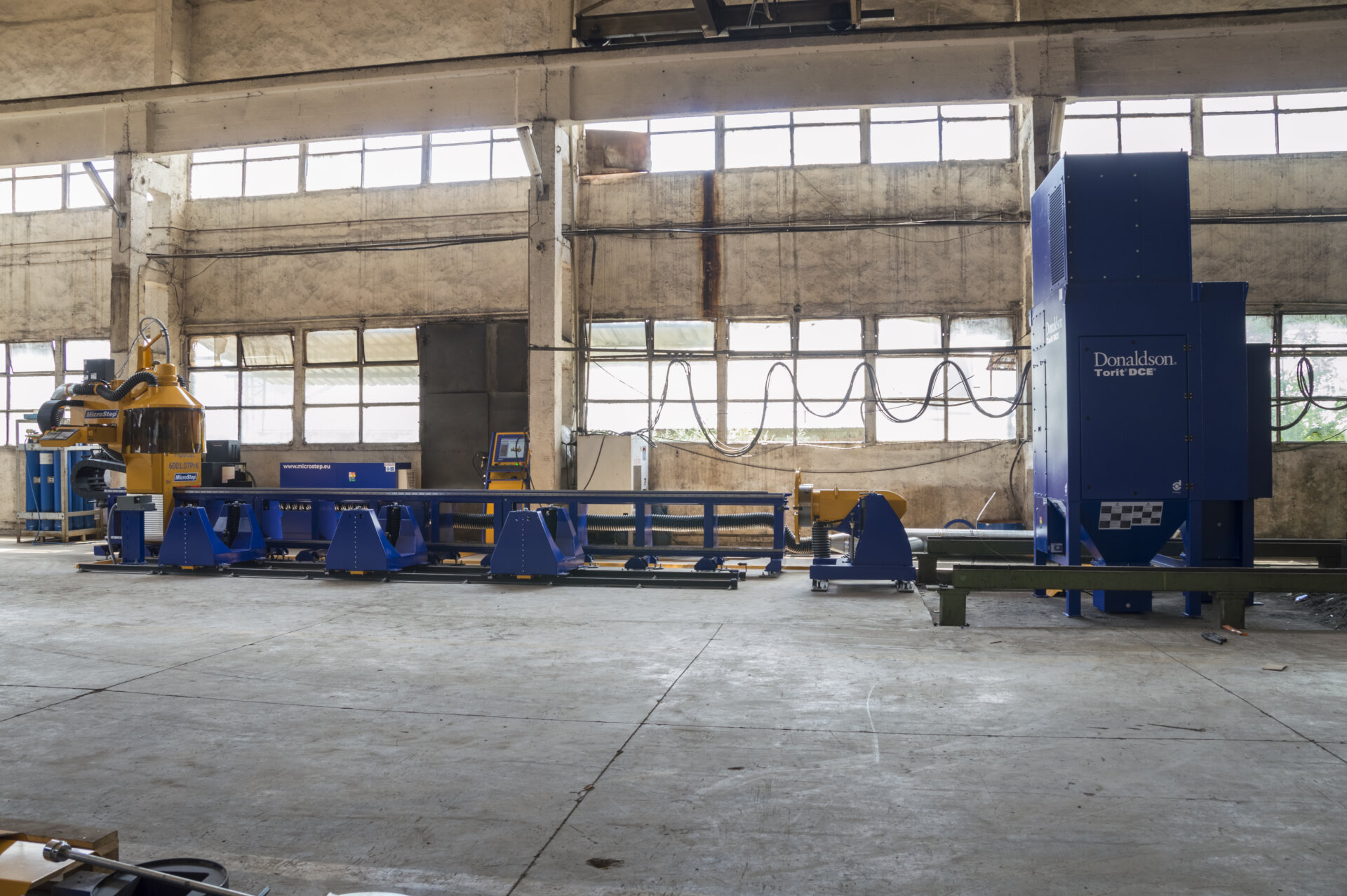

MicroStep‘s proven suction design for pipe cutting includes direct fume extraction from inside of the pipe through chuck as well as suction from the overhead cover around the cutting head.
Advantages:
- Reduced dust pollution of workpieces
- Prolonged lifetime of components
- Minimized fume exposure of the workshop staff

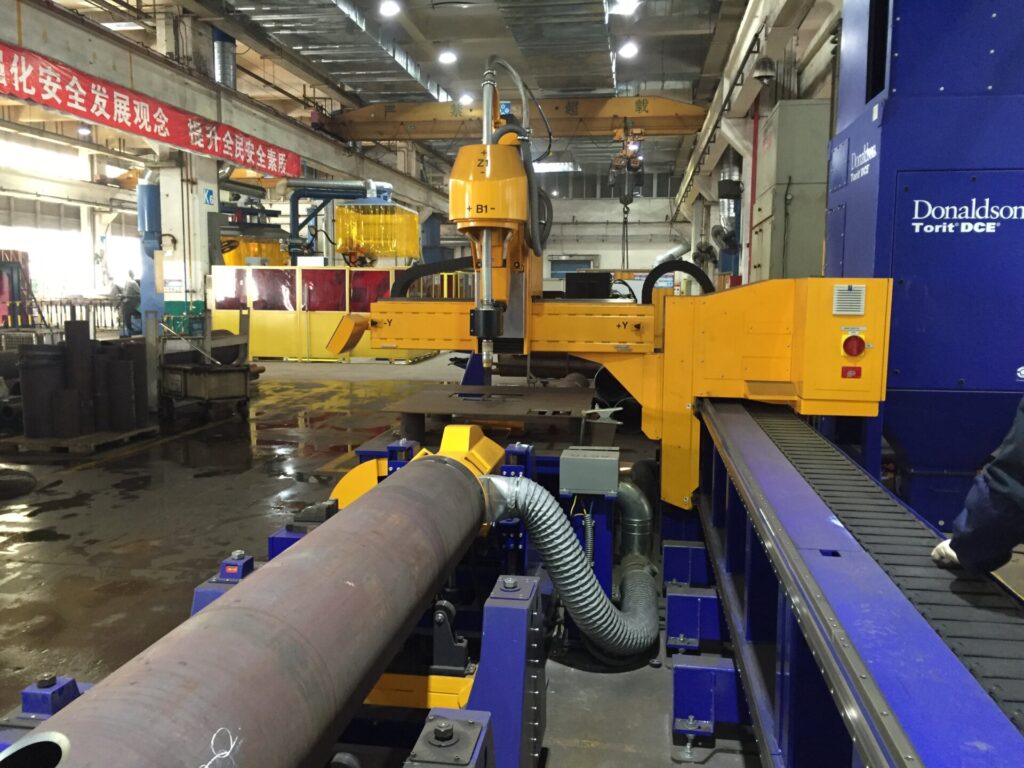

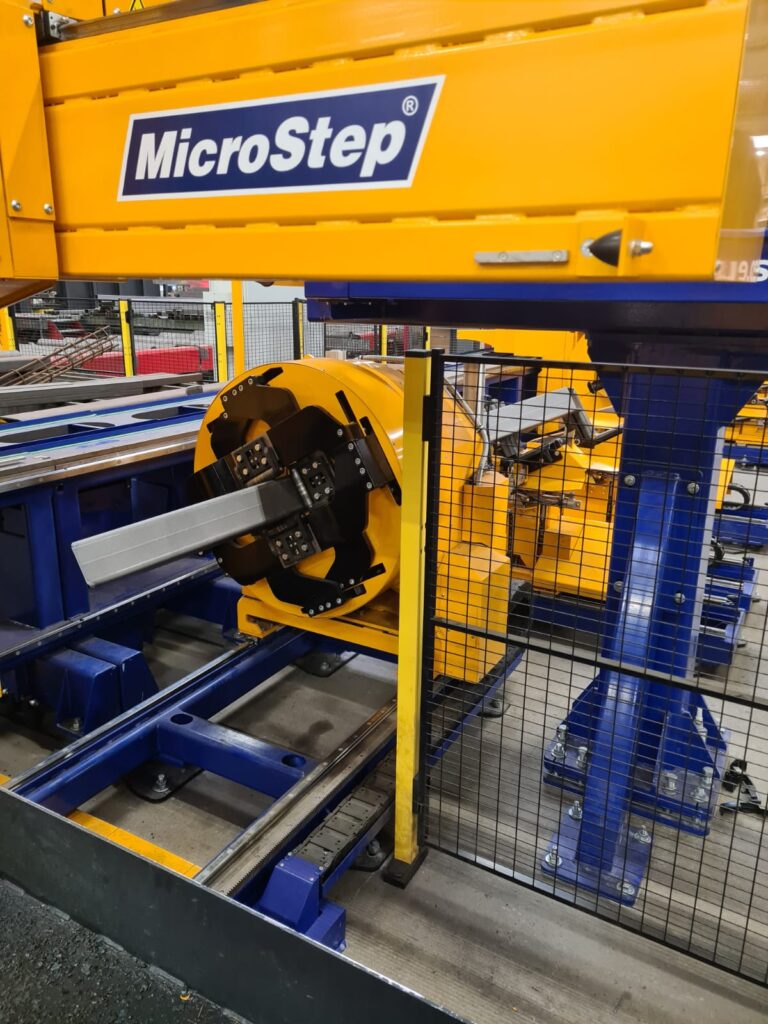

For cutting of hollow sections, the PipeCut machine can be equipped with a laser scanner that will measure the deviation of profile‘s position in the place of cutting to ensure precise positions of cut-outs and openings.

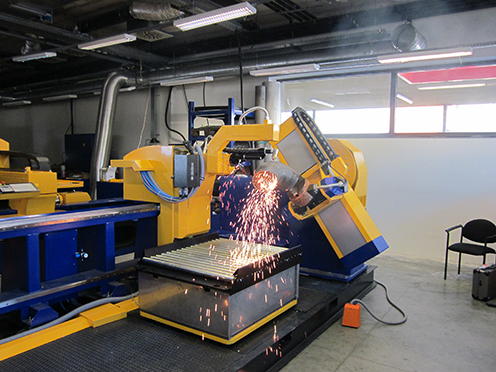

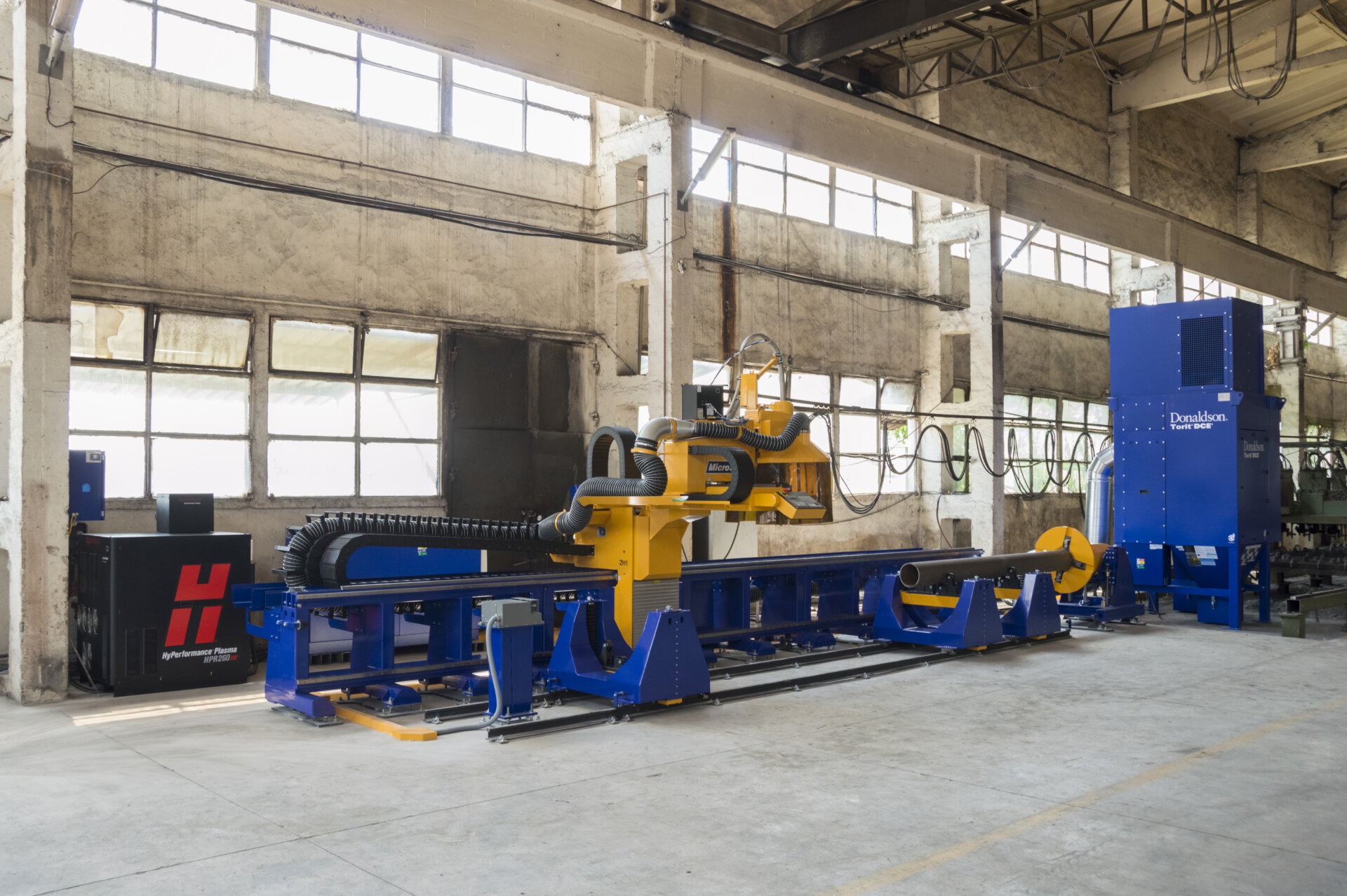

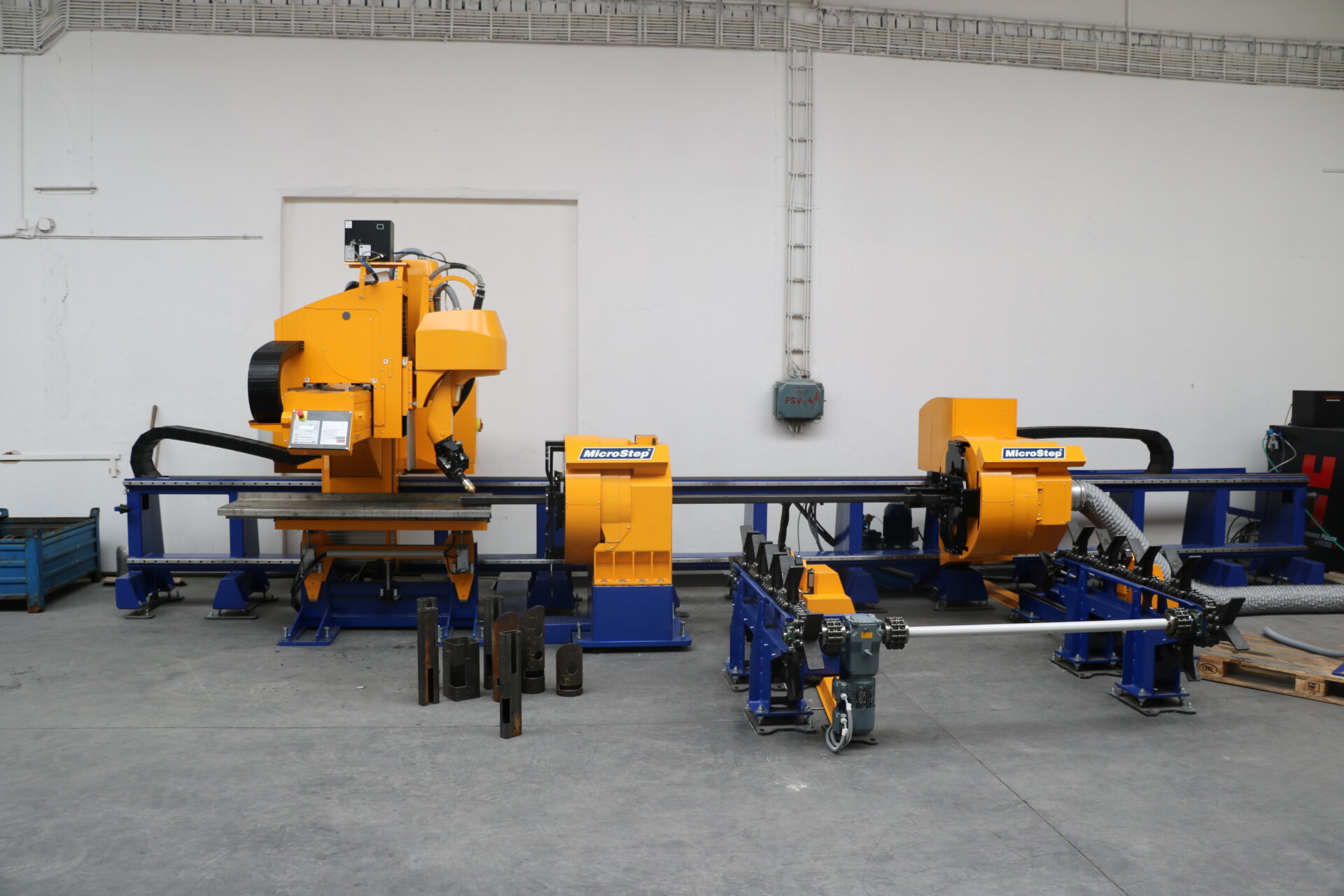

ElbowCut, a special version of the PipeCut machine, was designed for trimming of pipe elbows with preparation of trimmed edges for subsequent welding. The machine can process elbows in the range Ø 80 – 400 mm while ensuring high environmental safety and suction efficiency thanks to housing in a noise reducing cabin*.
*cabin not included in photo

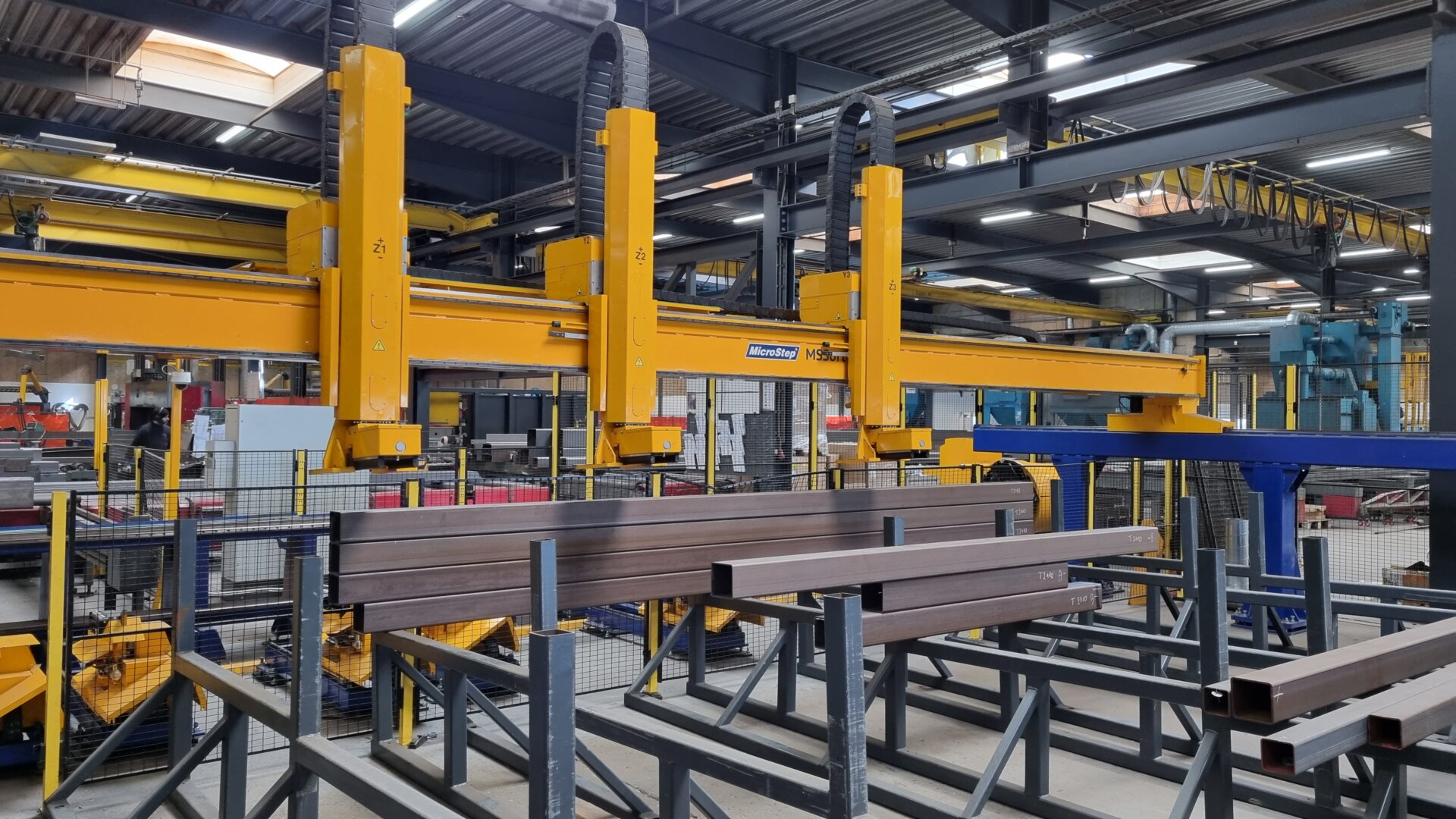

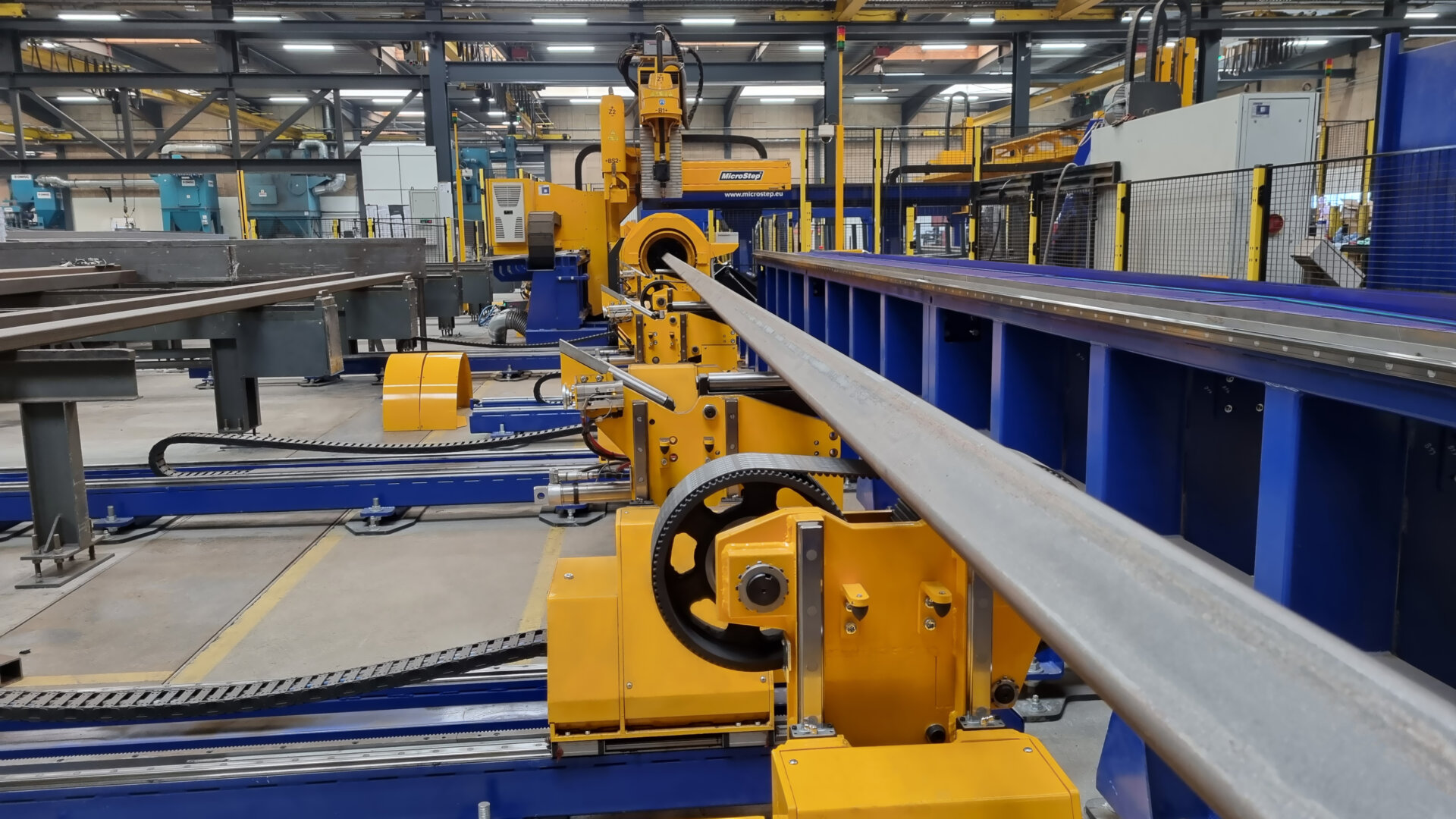

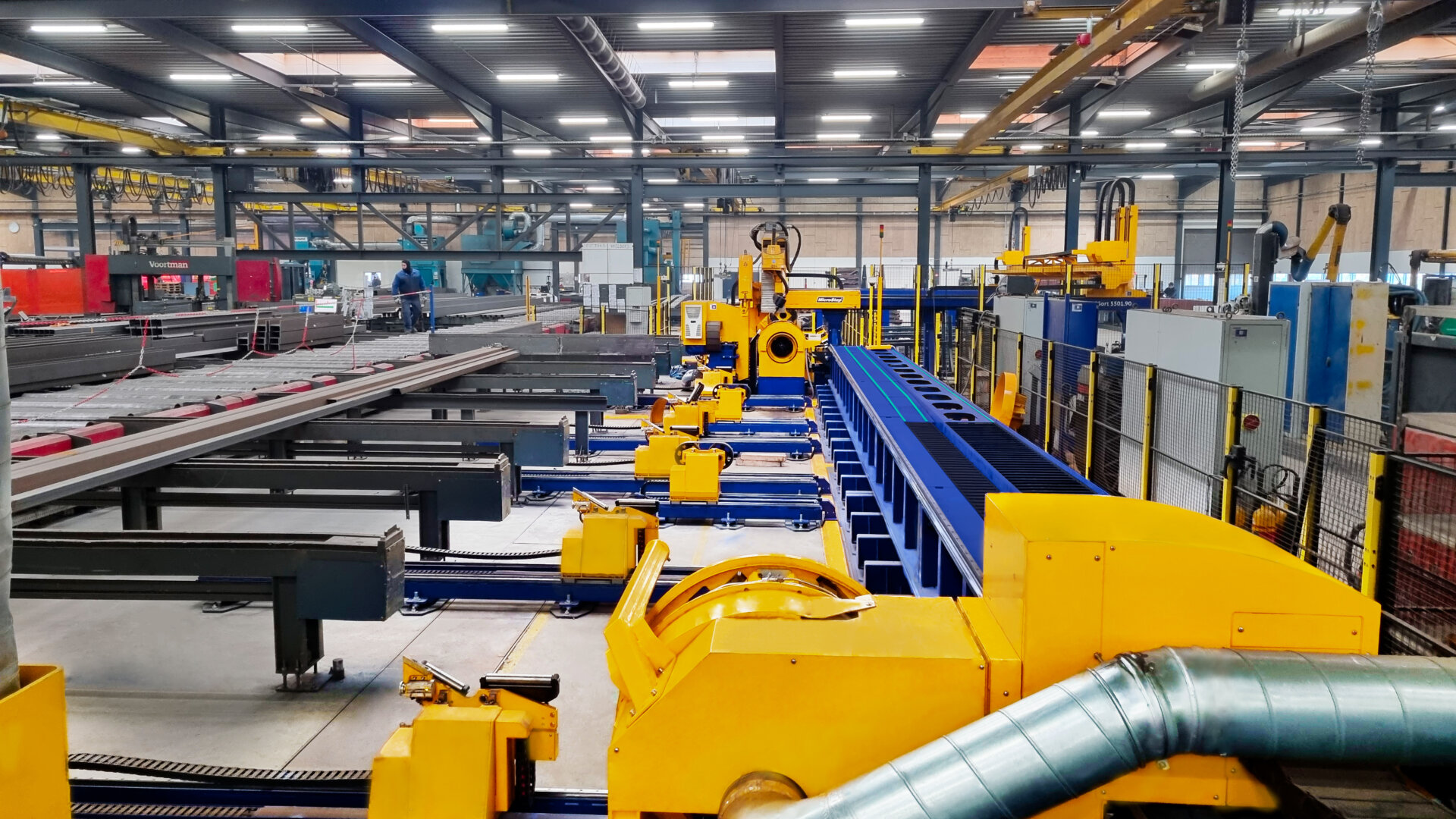

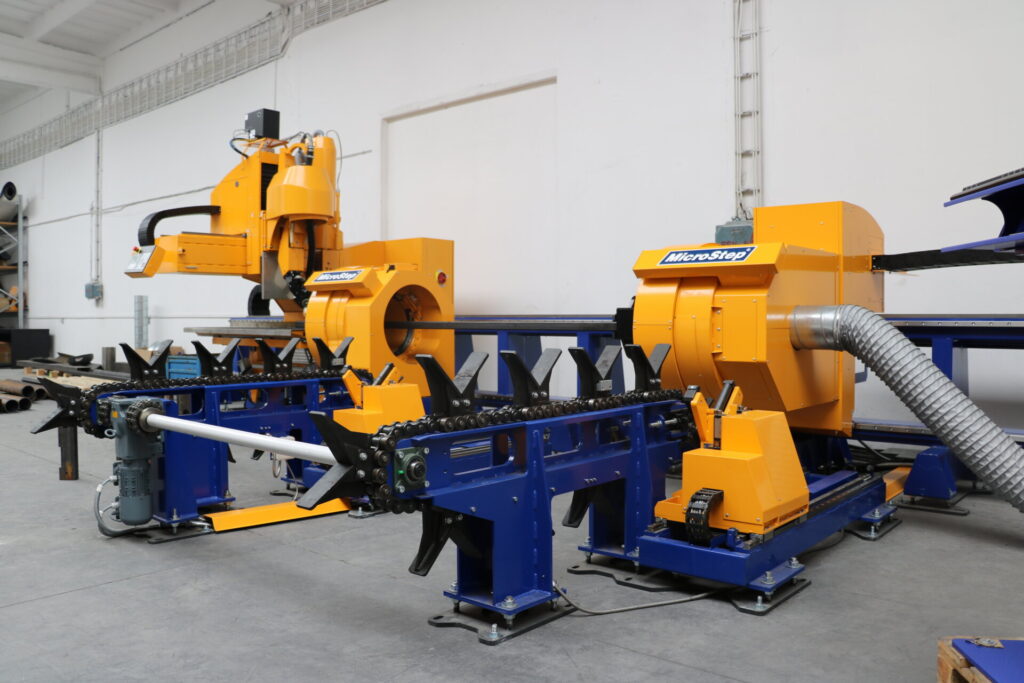

The PipeCut series can be fully automated via handling systems and Machine Production Management (MPM) software, including:

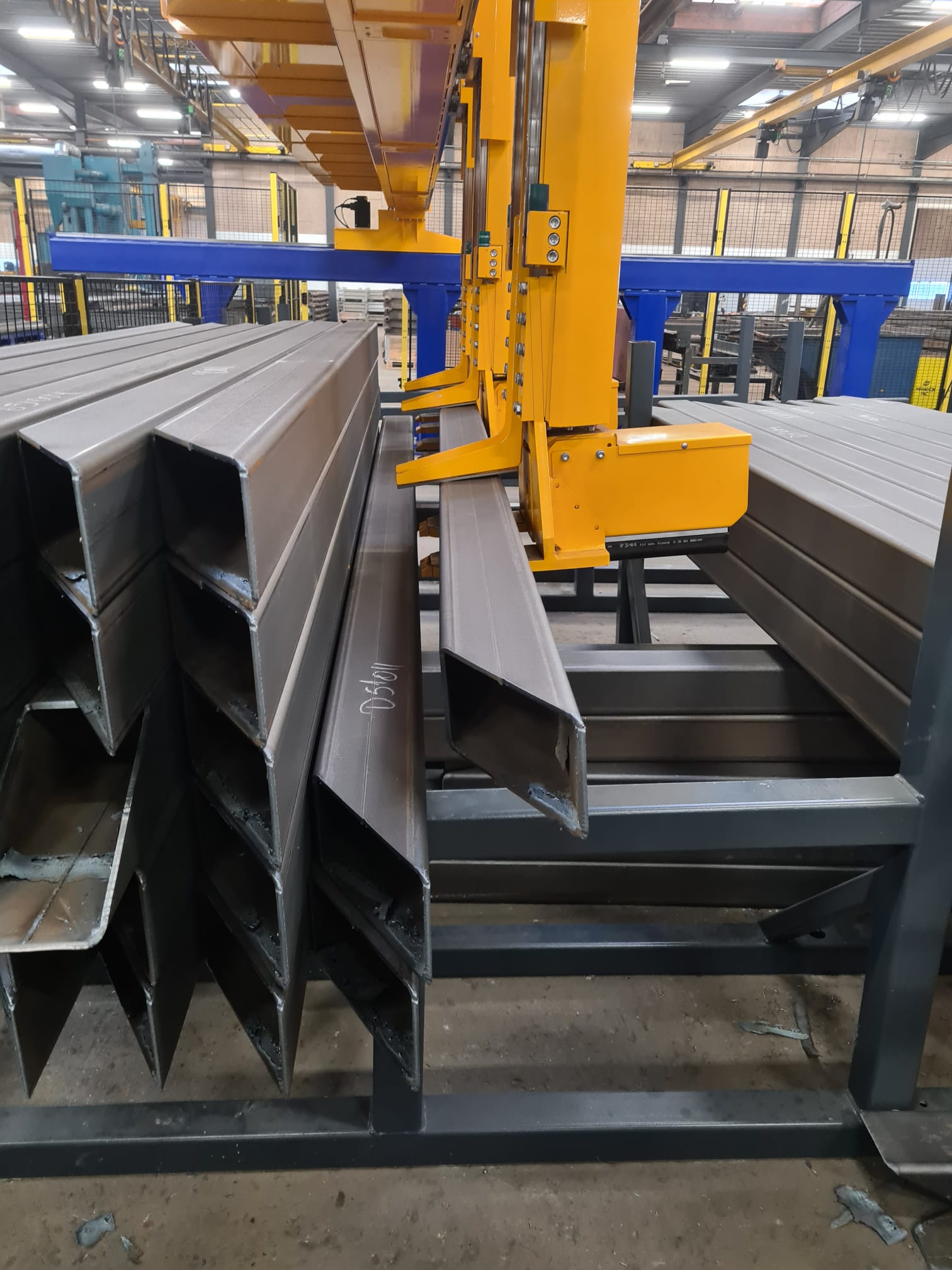

- Loading of pipes and profiles
- Detection of shape deviations via a laser scanner (applicable for hollow sections)
- Loading and execution of cutting programs
- Unloading of finished parts
- Updating of warehouse database, exchanging information with ERP system
PipeCut‘s cantilever design with open loading area enables processing of pipes and profiles up to Ø 800 mm.
- 3D plasma for fast and efficient cutting
- 3D oxyfuel for thick-walled workpieces
MicroStep‘s proven suction design for pipe cutting includes direct fume extraction from inside of the pipe through chuck as well as suction from the overhead cover around the cutting head.
Advantages:
- Reduced dust pollution of workpieces
- Prolonged lifetime of components
- Minimized fume exposure of the workshop staff
For cutting of hollow sections, the PipeCut machine can be equipped with a laser scanner that will measure the deviation of profile‘s position in the place of cutting to ensure precise positions of cut-outs and openings.
ElbowCut, a special version of the PipeCut machine, was designed for trimming of pipe elbows with preparation of trimmed edges for subsequent welding. The machine can process elbows in the range Ø 80 – 400 mm while ensuring high environmental safety and suction efficiency thanks to housing in a noise reducing cabin*.
*cabin not included in photo
The PipeCut series can be fully automated via handling systems and Machine Production Management (MPM) software, including:
- Loading of pipes and profiles
- Detection of shape deviations via a laser scanner (applicable for hollow sections)
- Loading and execution of cutting programs
- Unloading of finished parts
- Updating of warehouse database, exchanging information with ERP system
Video
Technical parameters
| Working length | max 12 000 mm |
|---|---|
| Working diameter | Ø 30 – 800 mm* |
| Max number of tool stations | 1 |
| Max thickness of material cut by plasma | according to the plasma source |
| Max thickness of material cut by oxyfuel | 40 mm |
| Bevel cutting | yes (see Accessories) |
|---|---|
| Plate cutting | no |
| Drilling and tapping | no |
| Max. speed in X direction | 35 m/min |

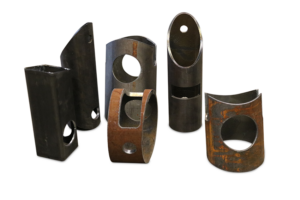

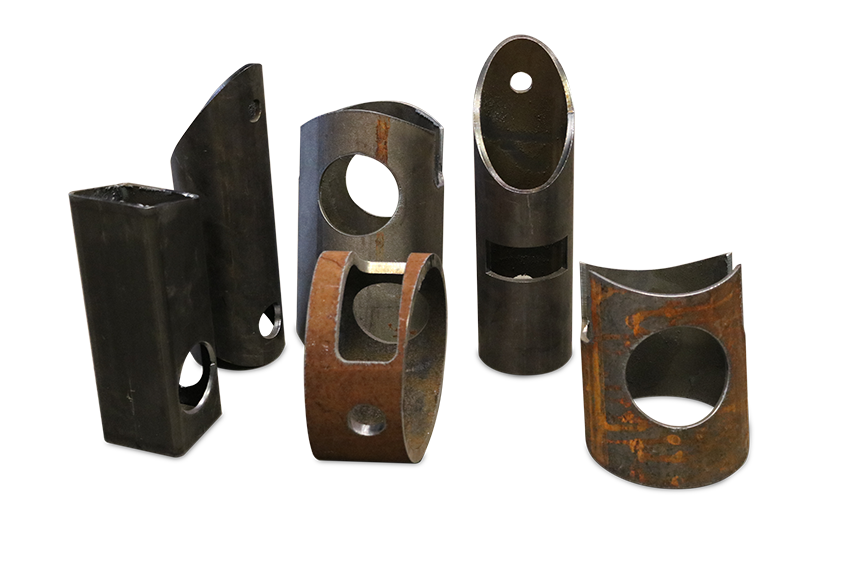

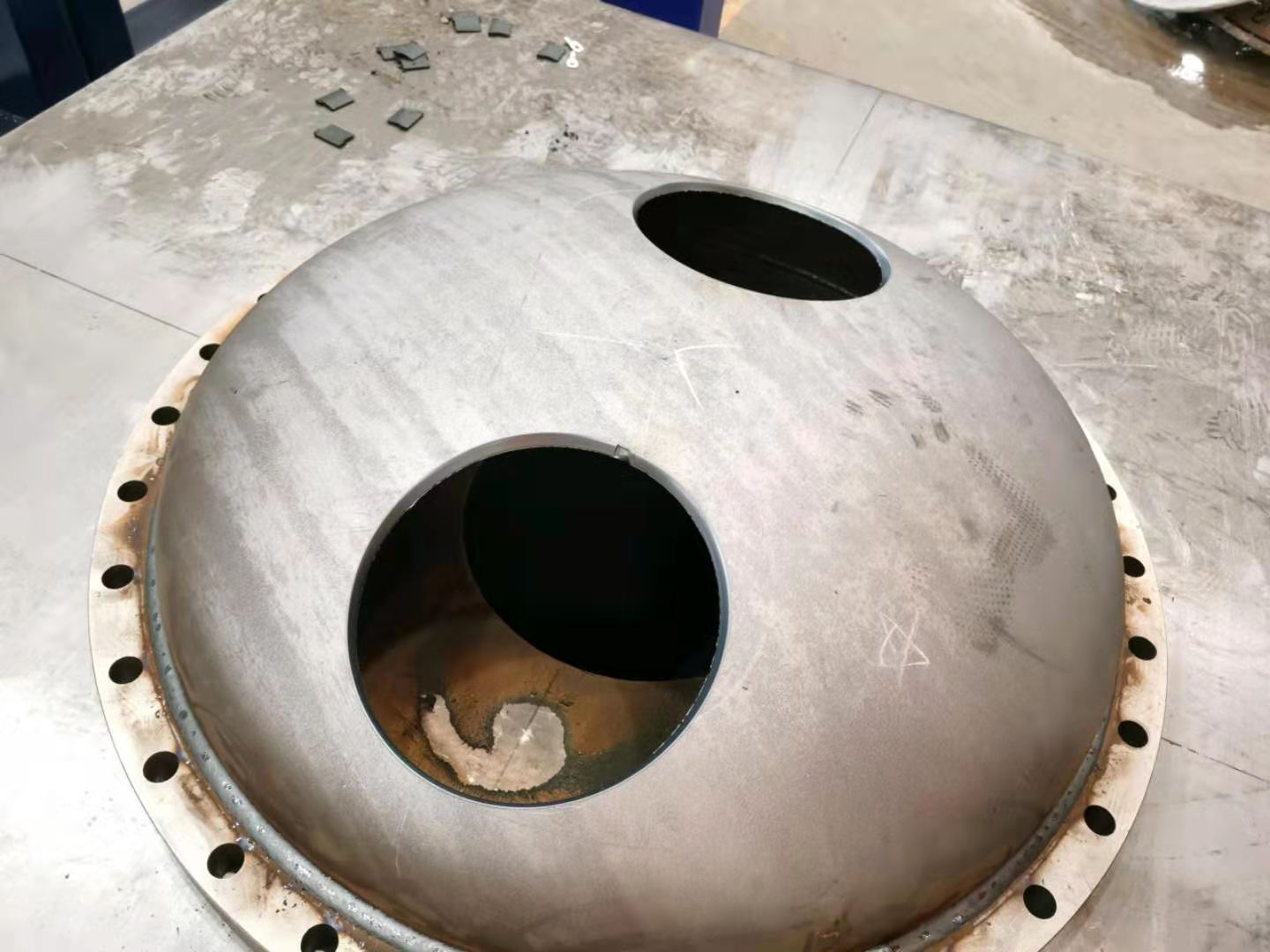

Samples
References
These companies use PipeCut Machines
