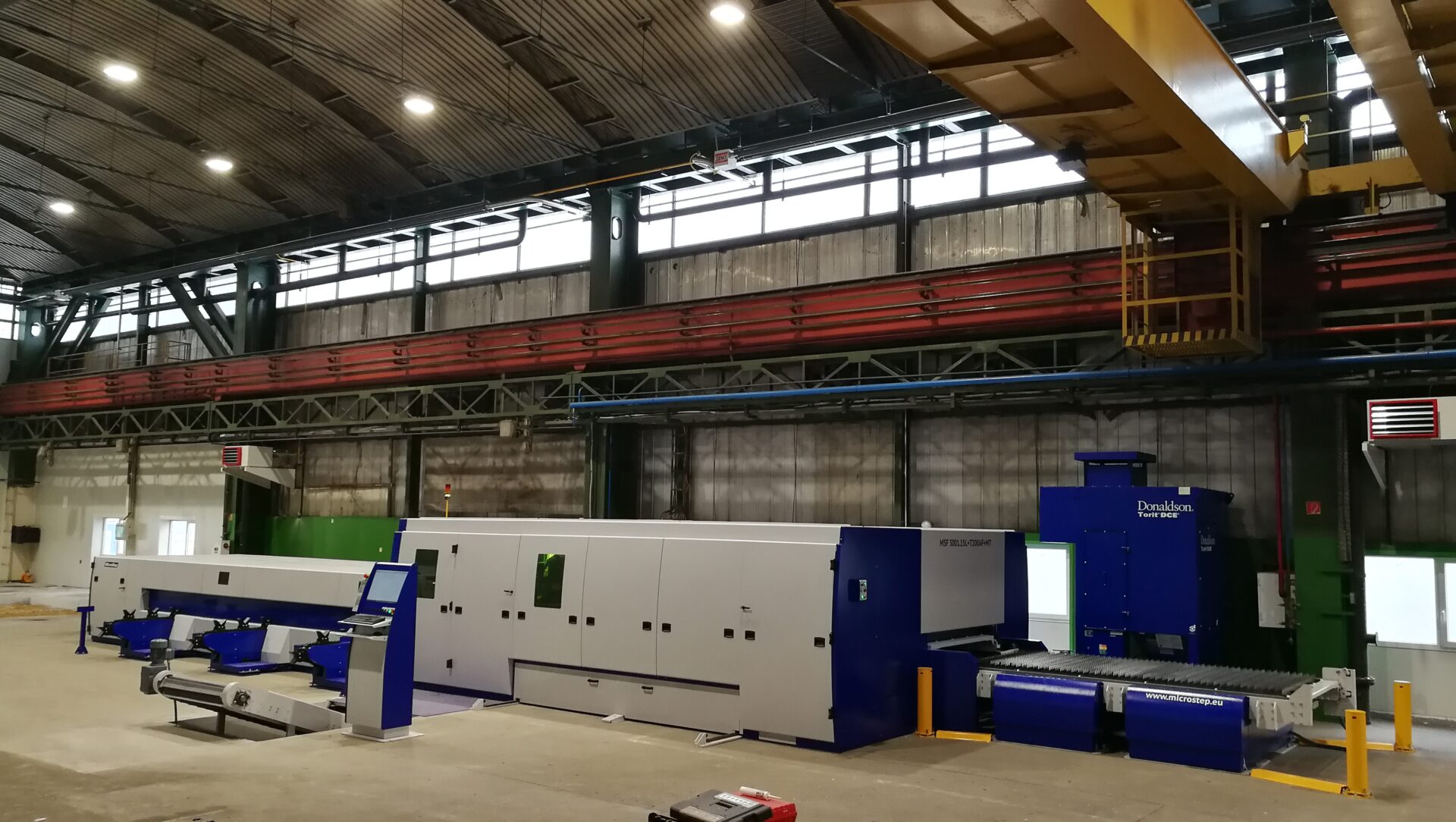

High-Speed Precision Laser Cutting Redefined

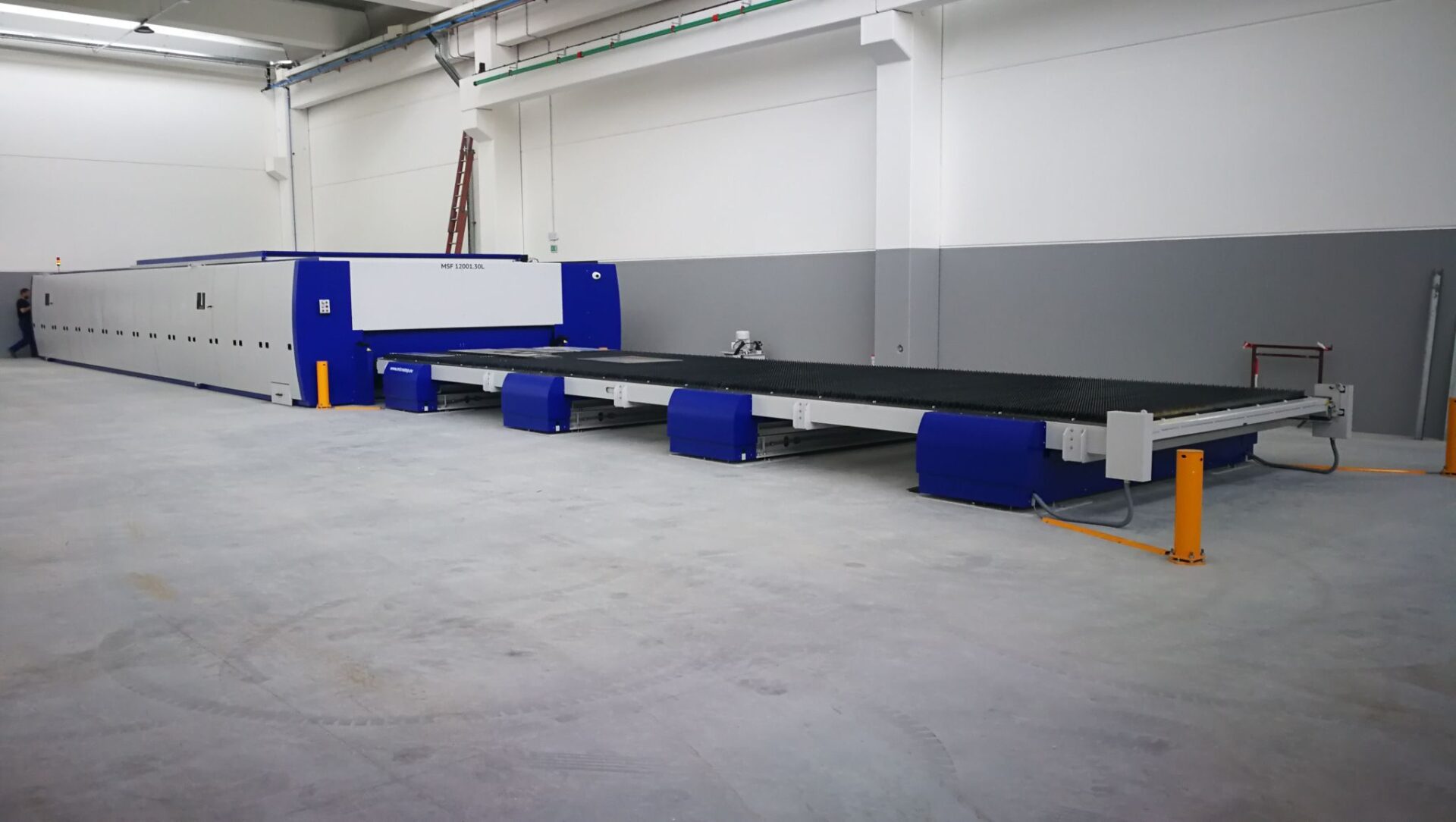

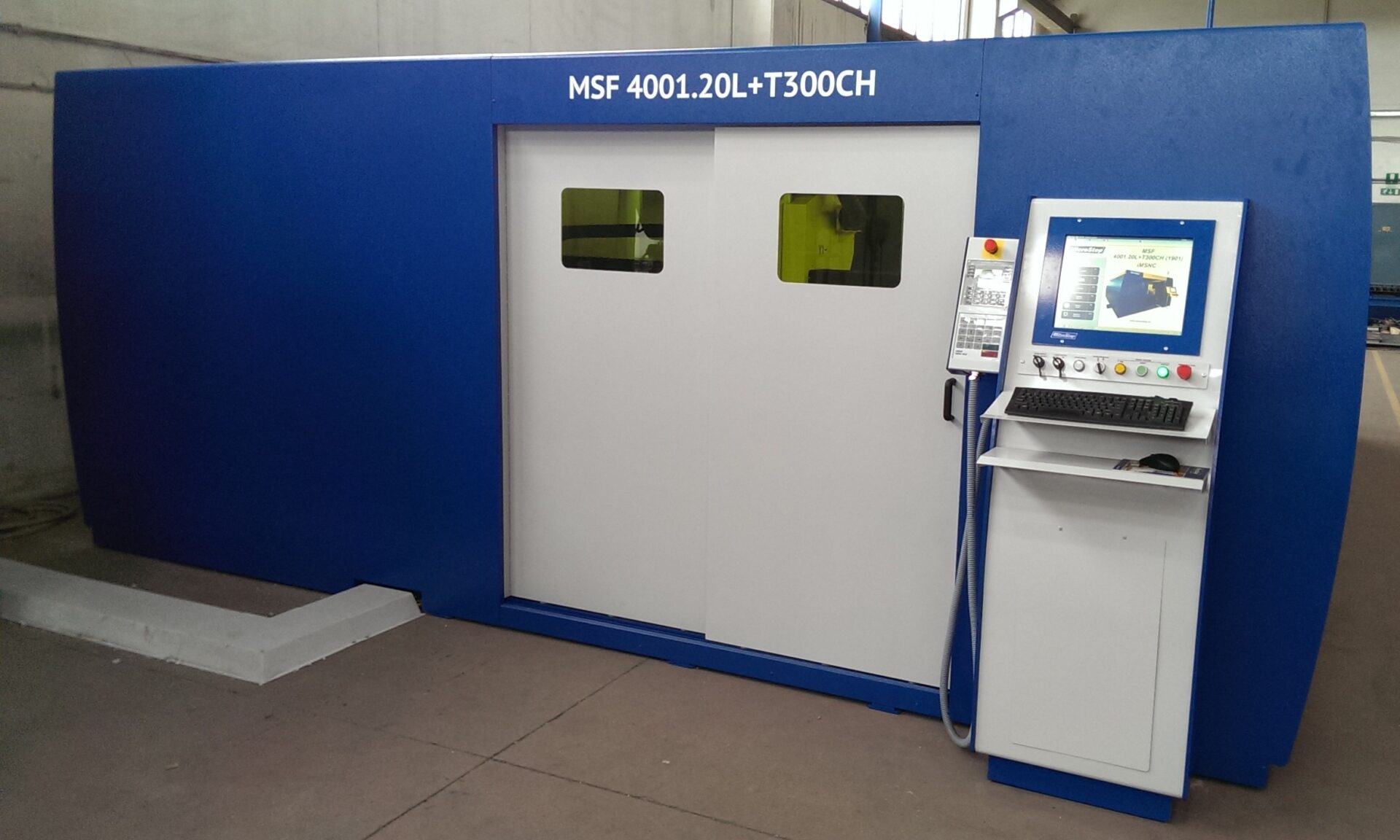

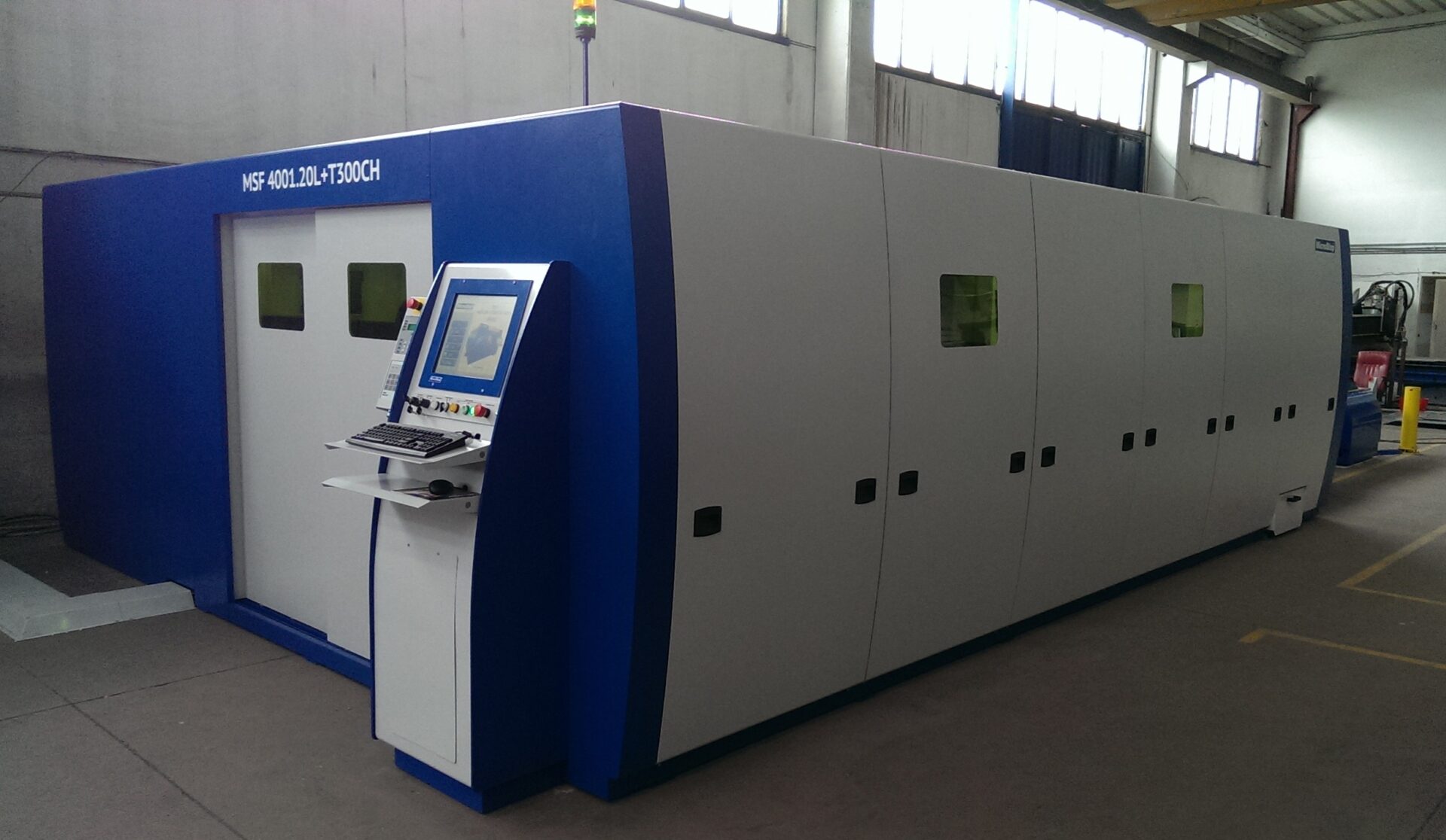

MSF Pro machine is a powerful laser cutting system for cutting of materials with a fiber laser, or a combination of fiber laser and plasma. The machine is designed for production of highly accurate parts at high cutting speeds, with surprisingly low maintenance and operational costs. The outstanding dynamics of MSF Pro is achieved by a low-seated gantry, digital AC drives and precise planetary gears. The machine is by default equipped with an automatic shuttle table.

Production

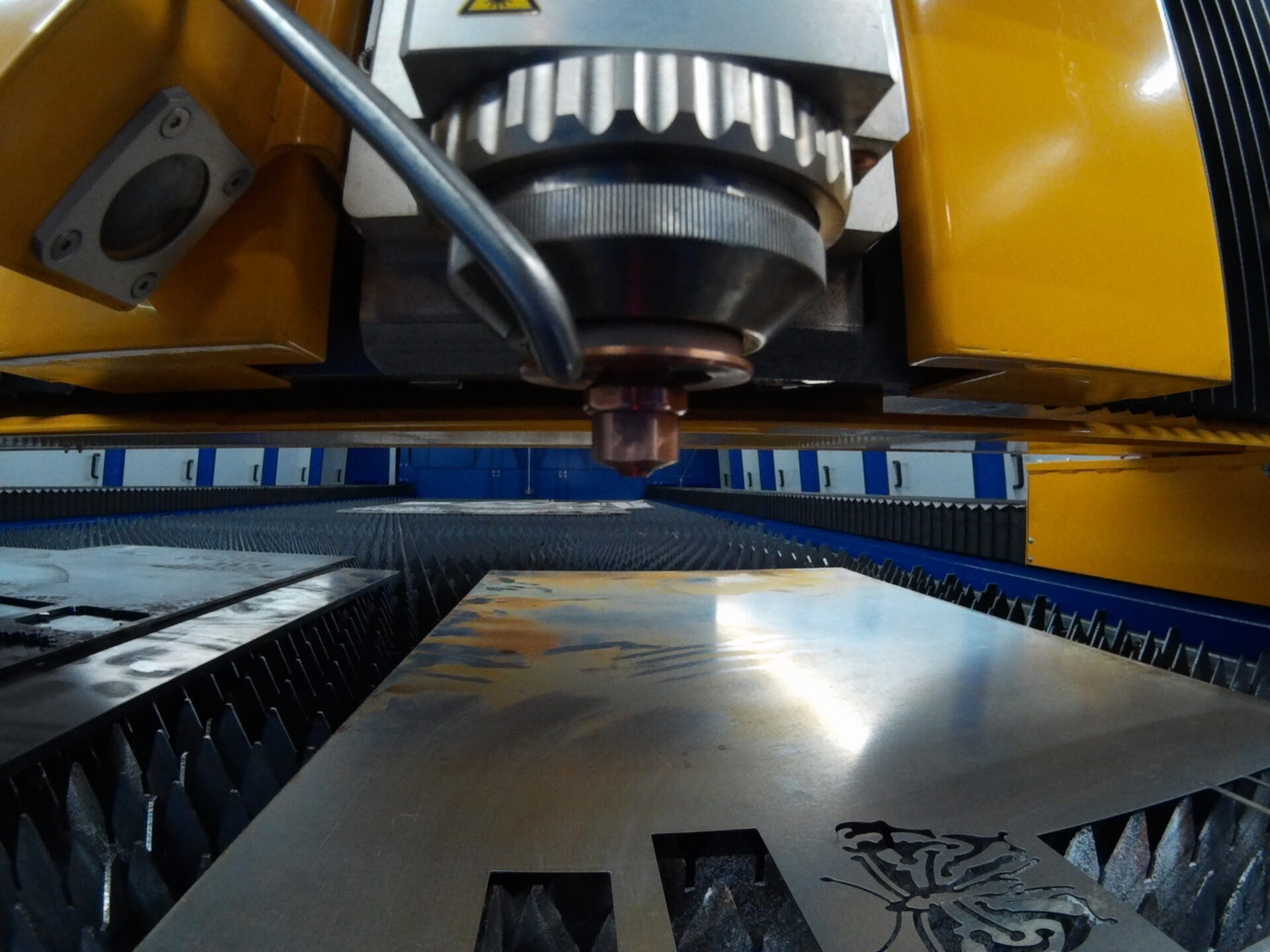

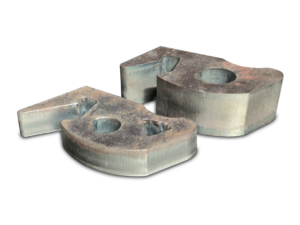

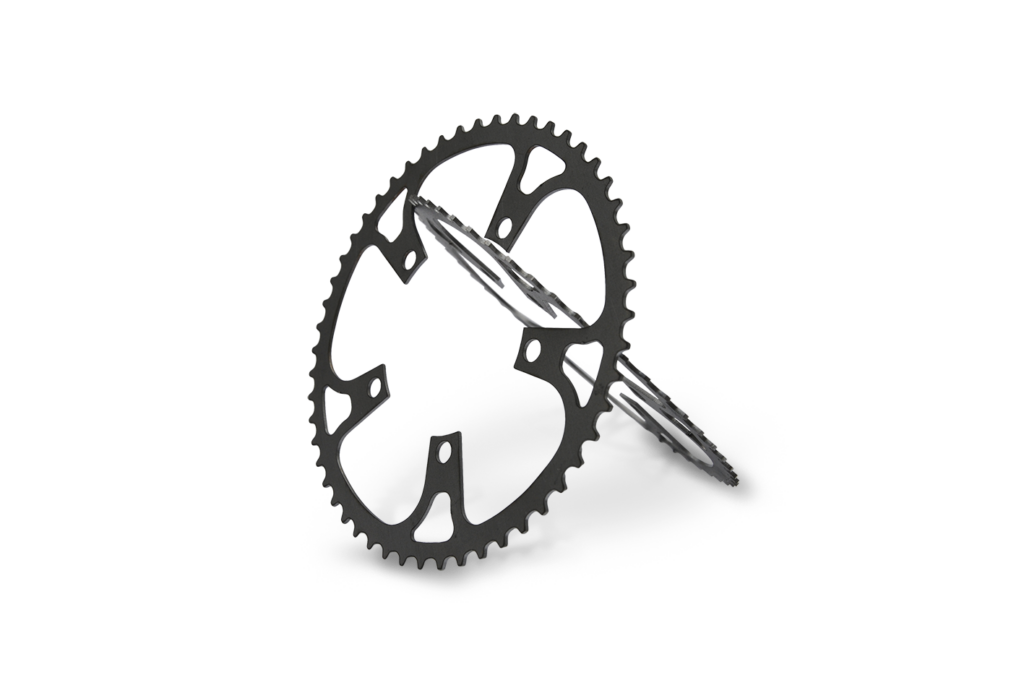

Precision Cutting for Plates and Pipes

Achieve unmatched accuracy and efficiency in cutting both plates and pipes with advanced fiber laser technology.

Features

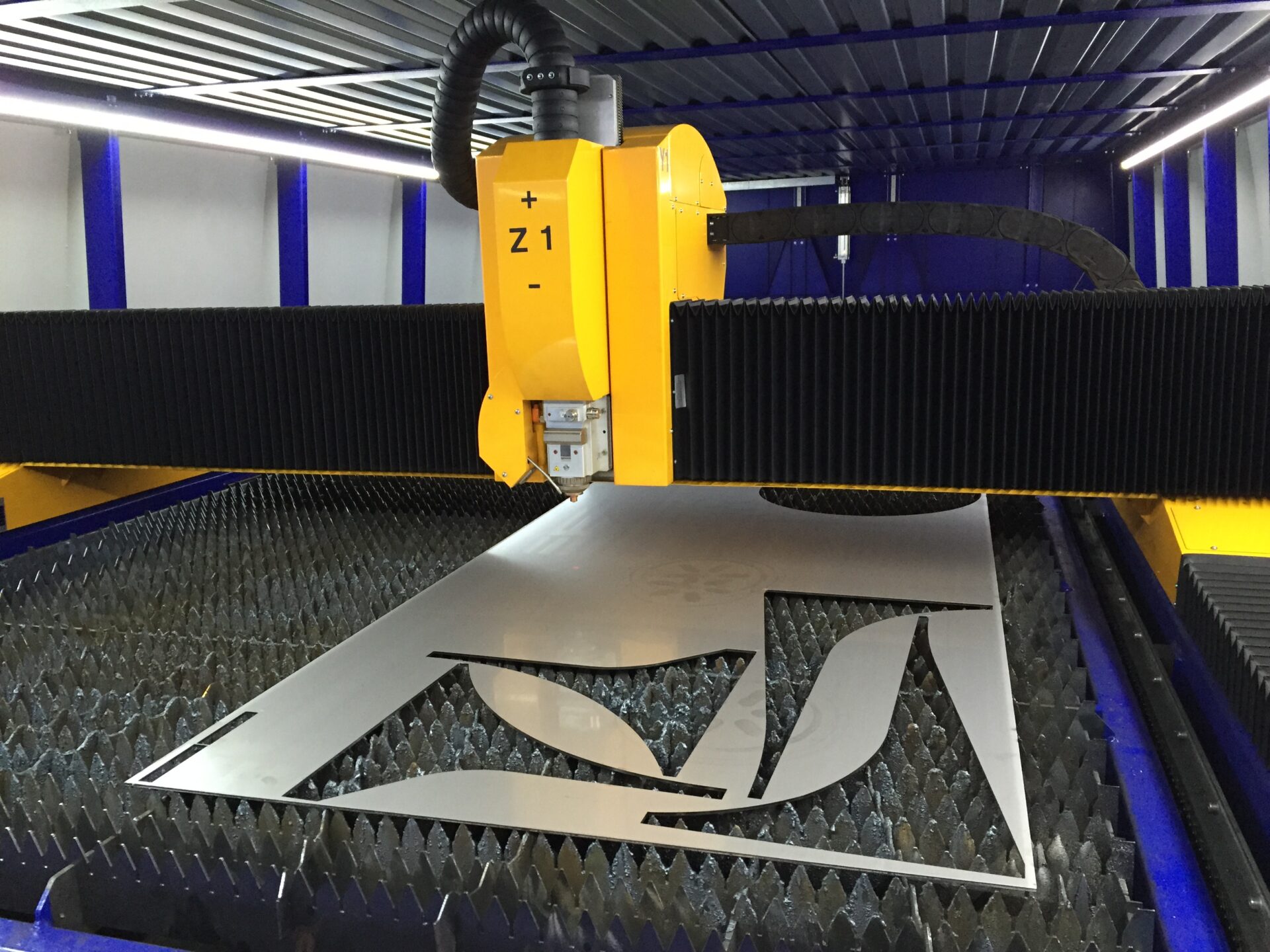

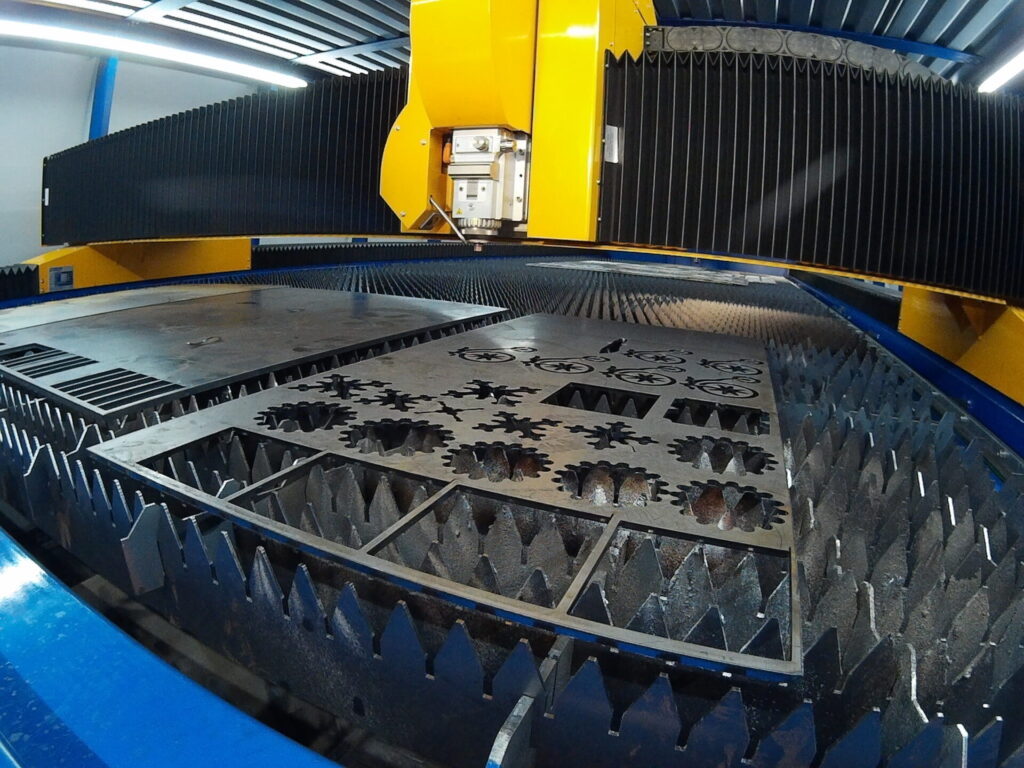

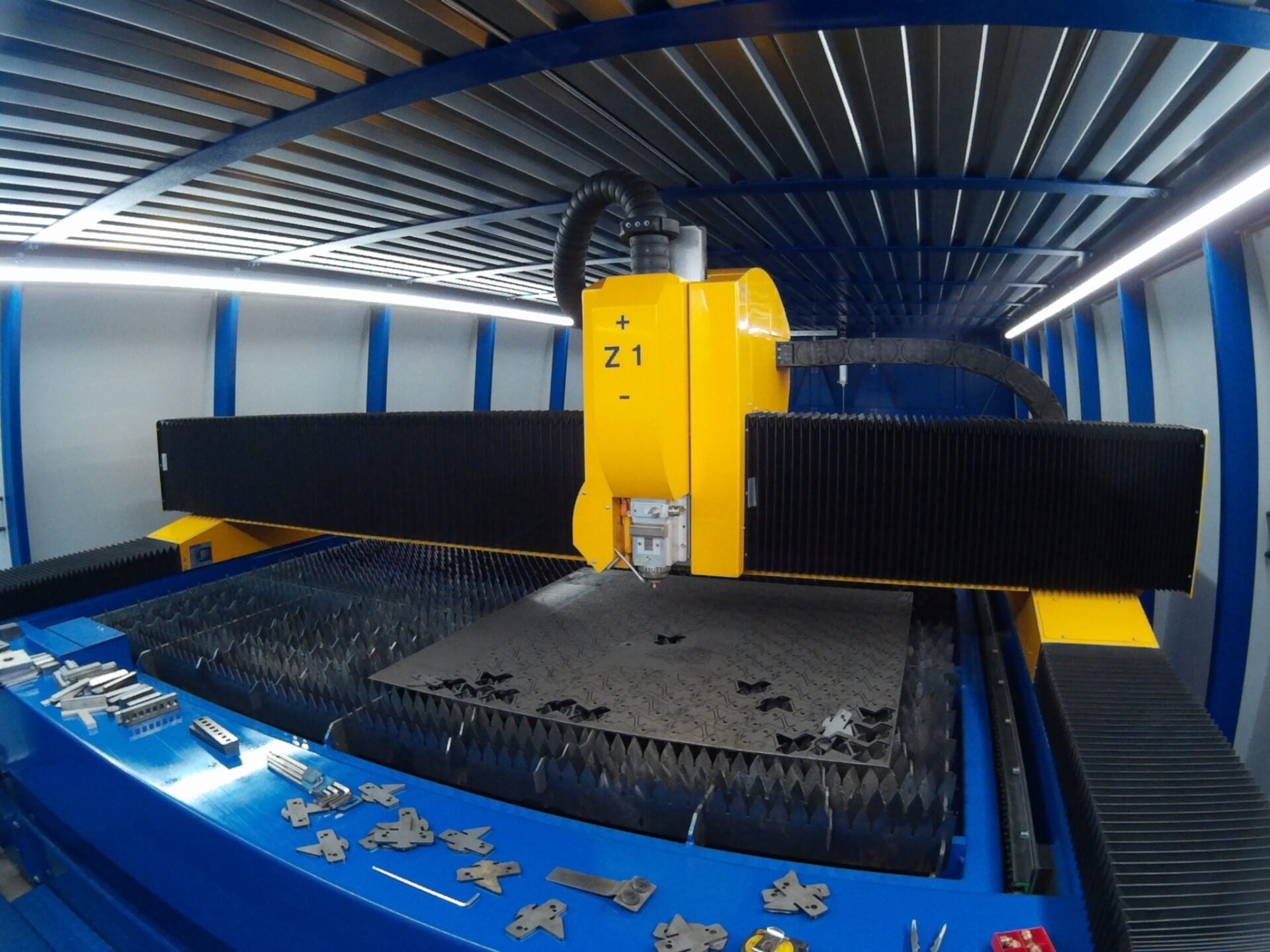

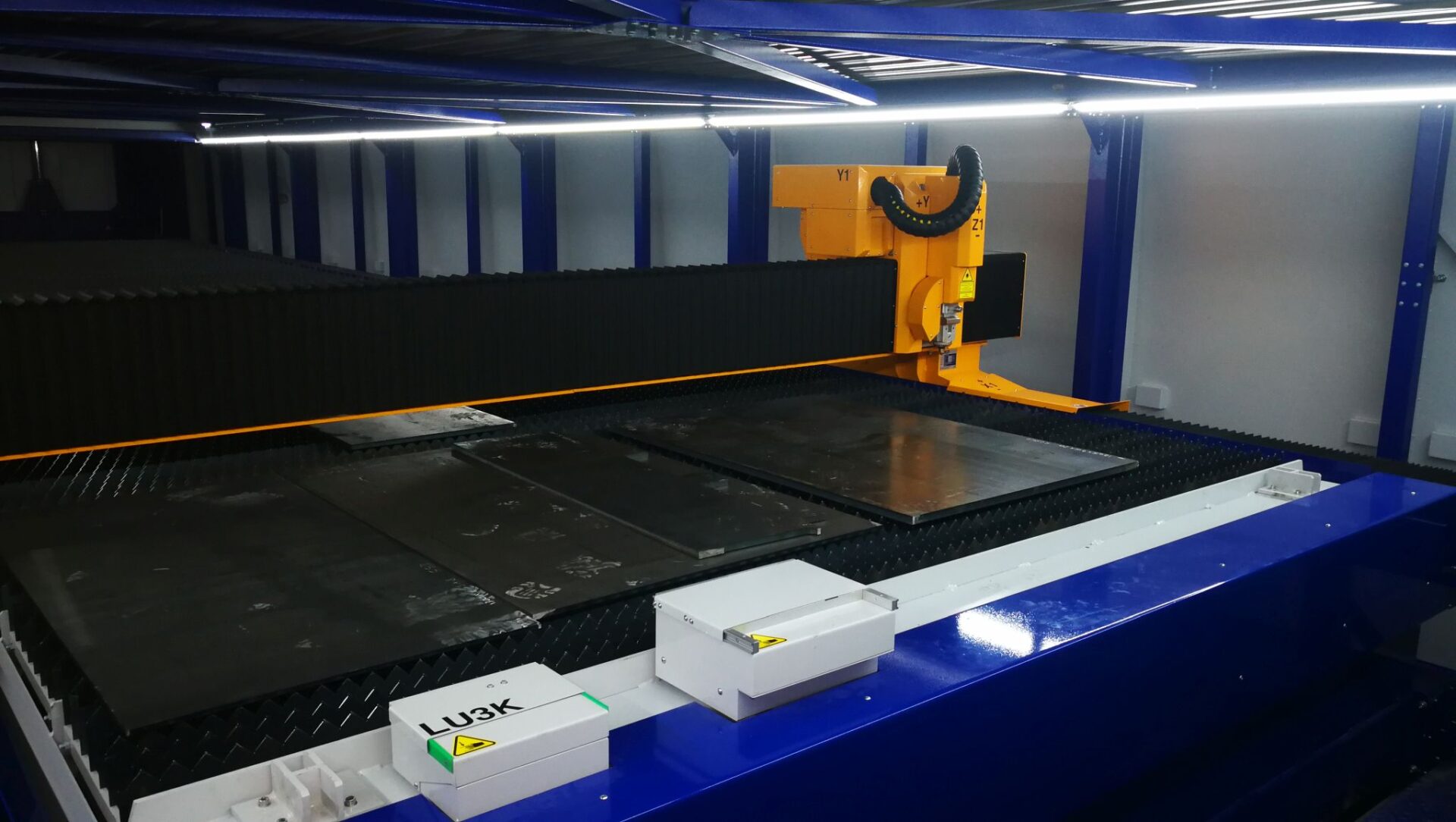

Gantries with extremely high torsion resistance enable high traverse speeds of up to 180 m/min with steel gantry and 200 m/min with carbon gantry

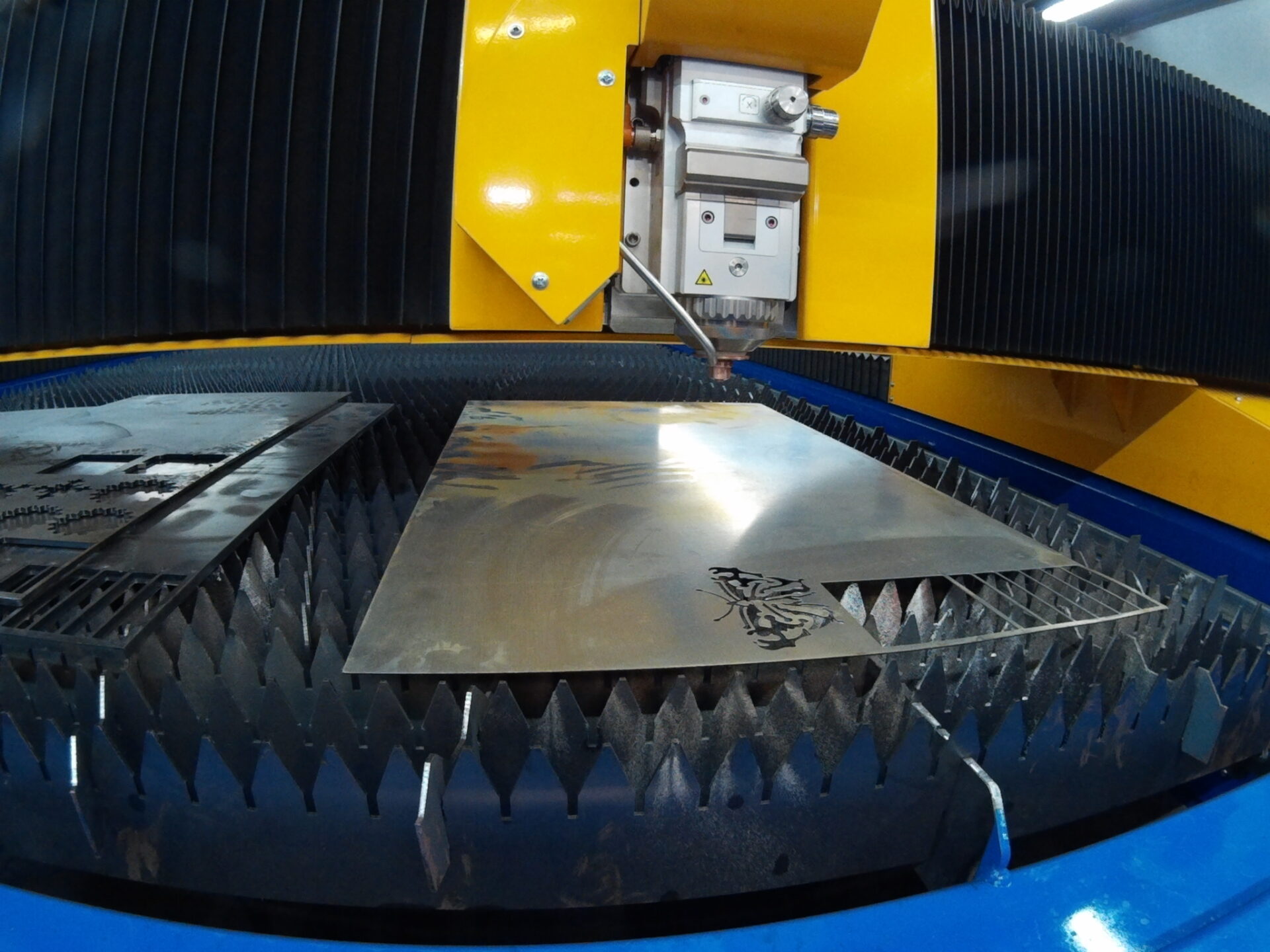

Bellows on all axes protect the guidelines from contamination
Automatic lubrication of linear guidelines and carriages with auto-control of its frequency and duration

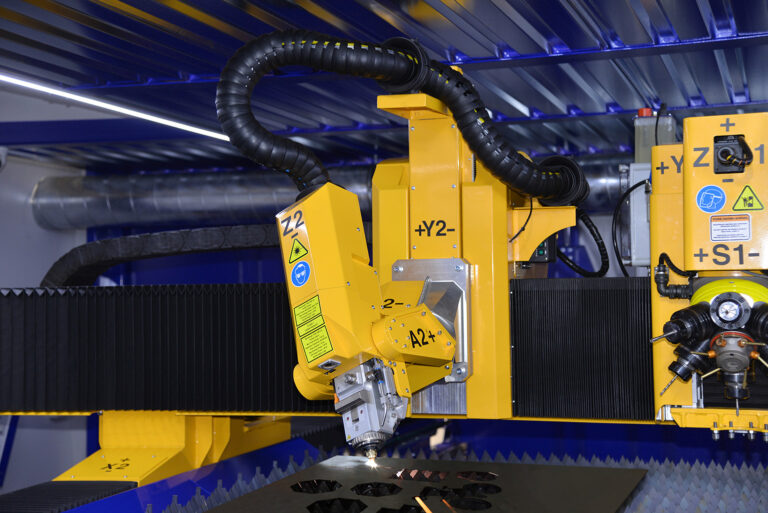

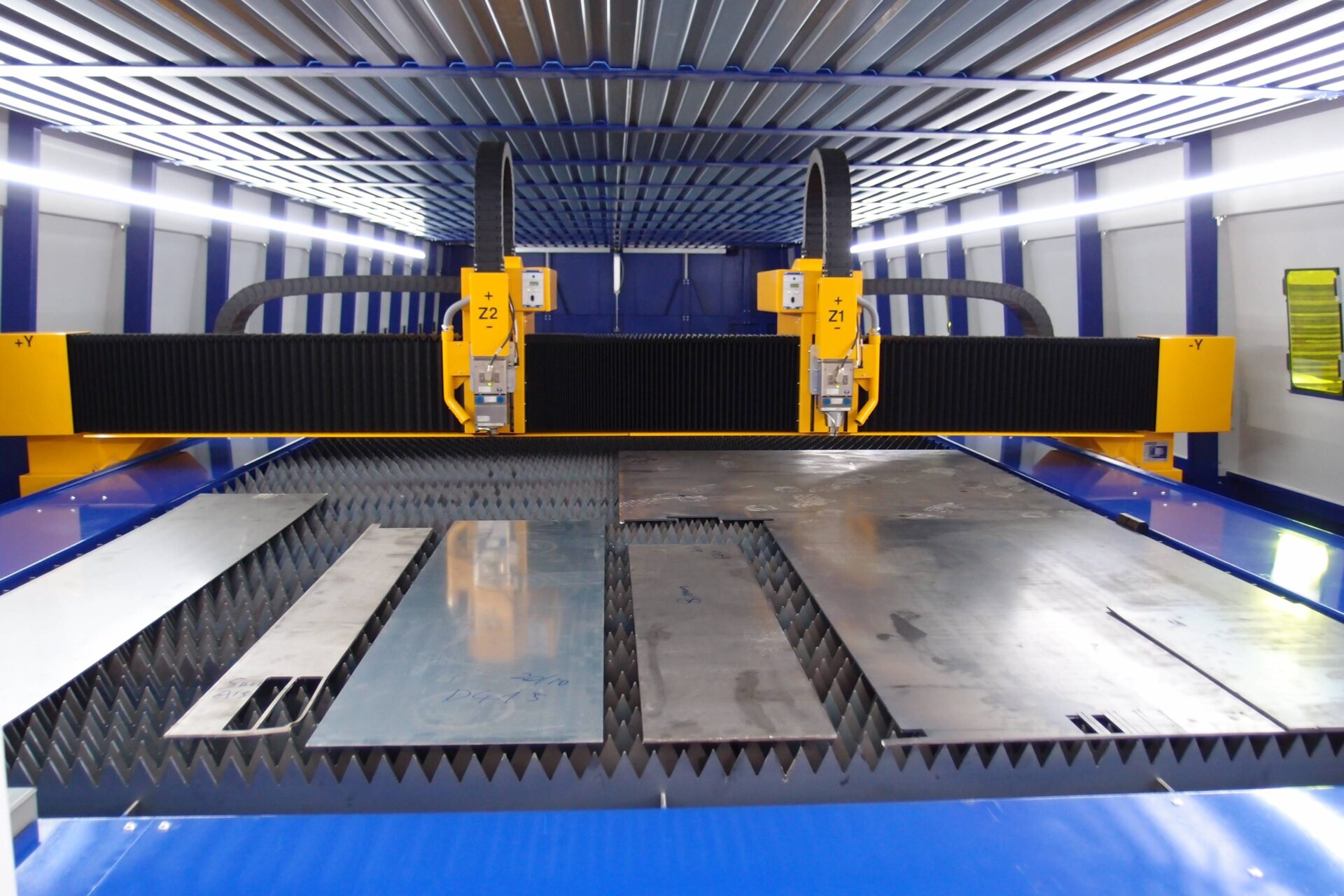

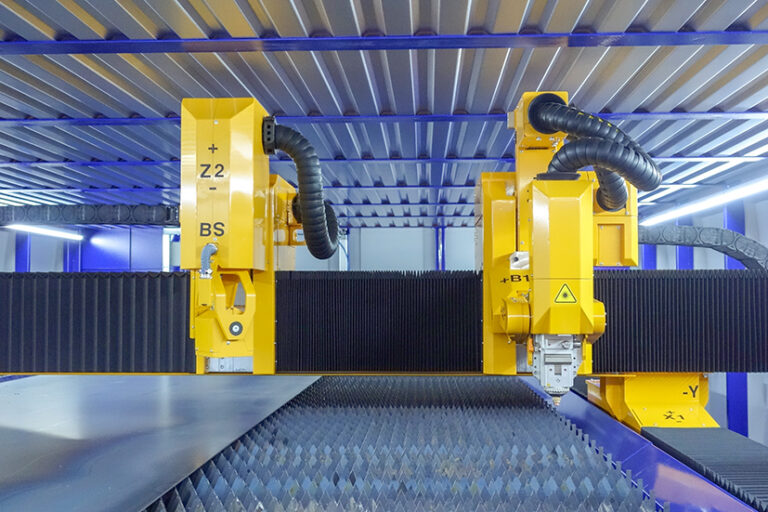

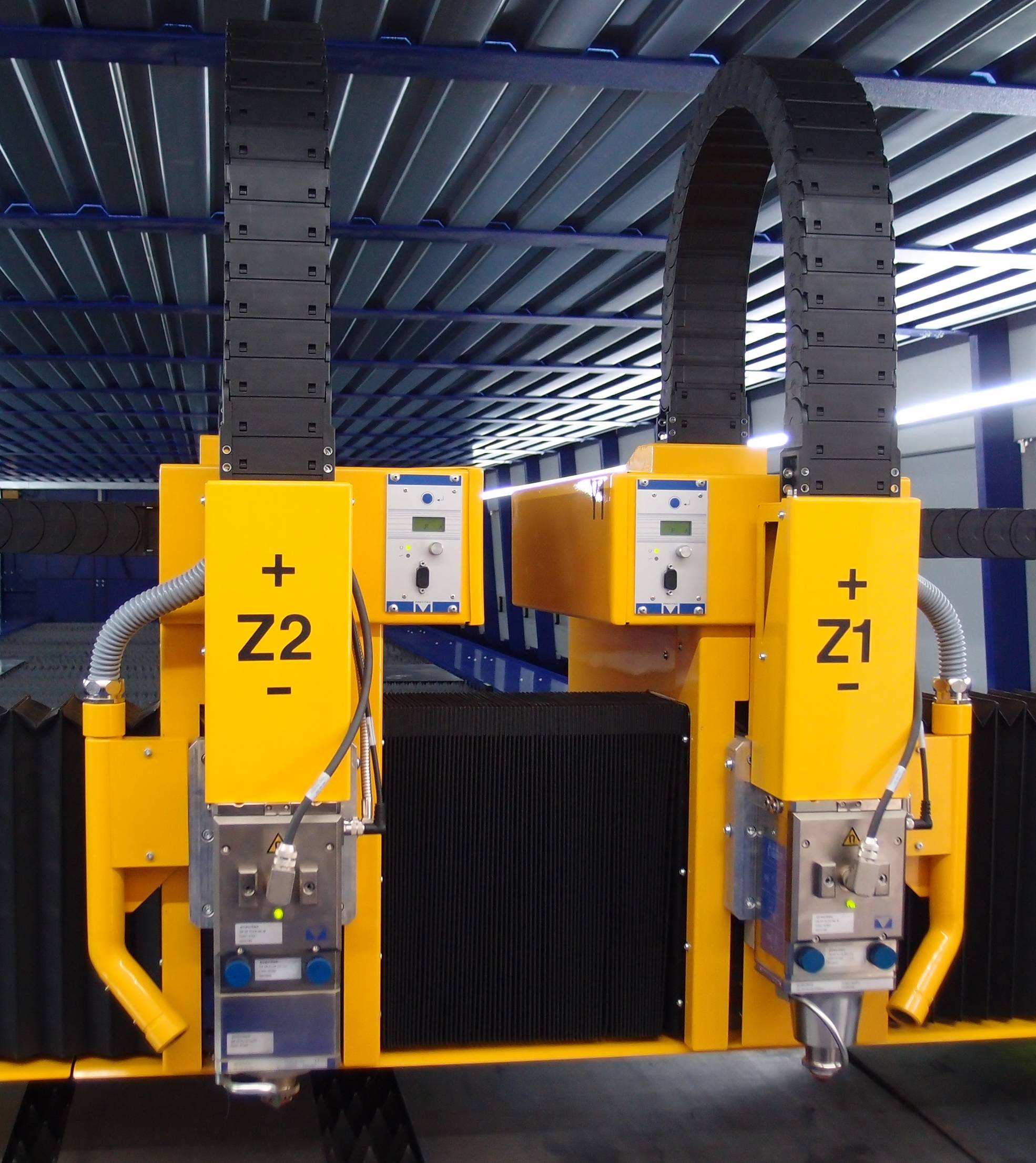

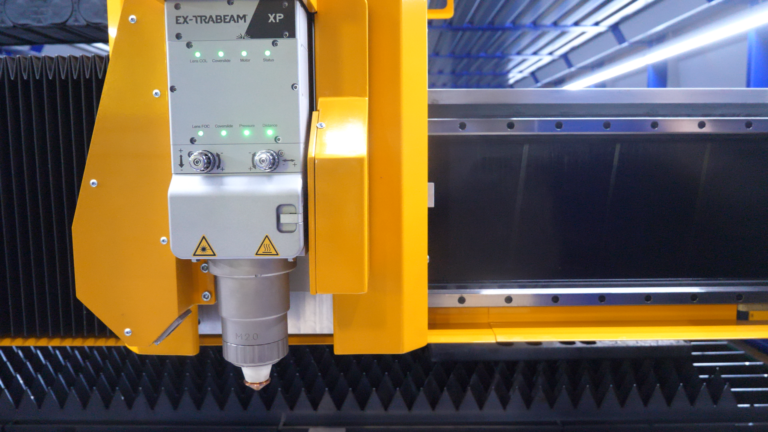

Possibility of parallel cutting with two cutting heads
Smart Z Movement (SZM) and DynaFly features for smoother and faster operation

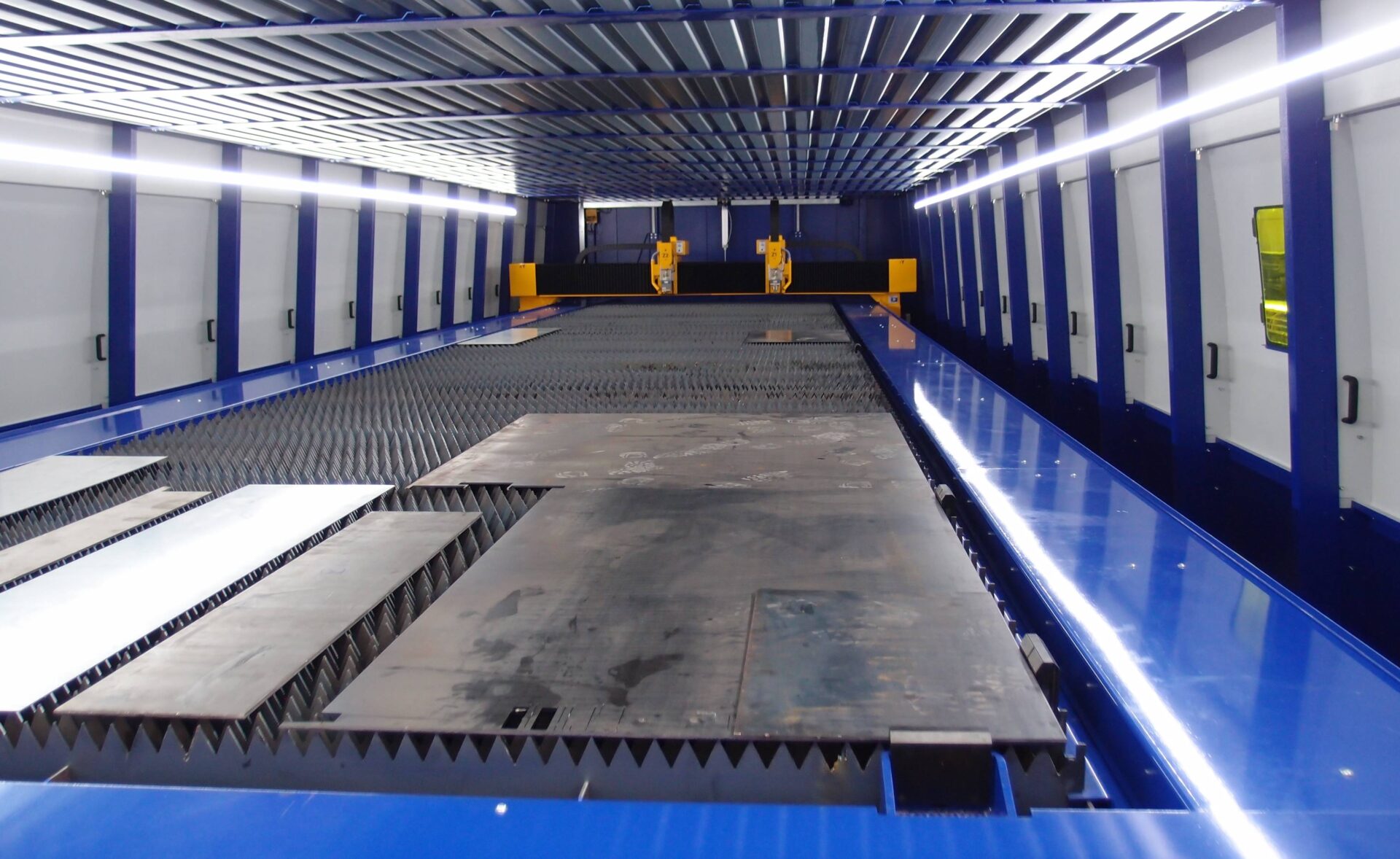

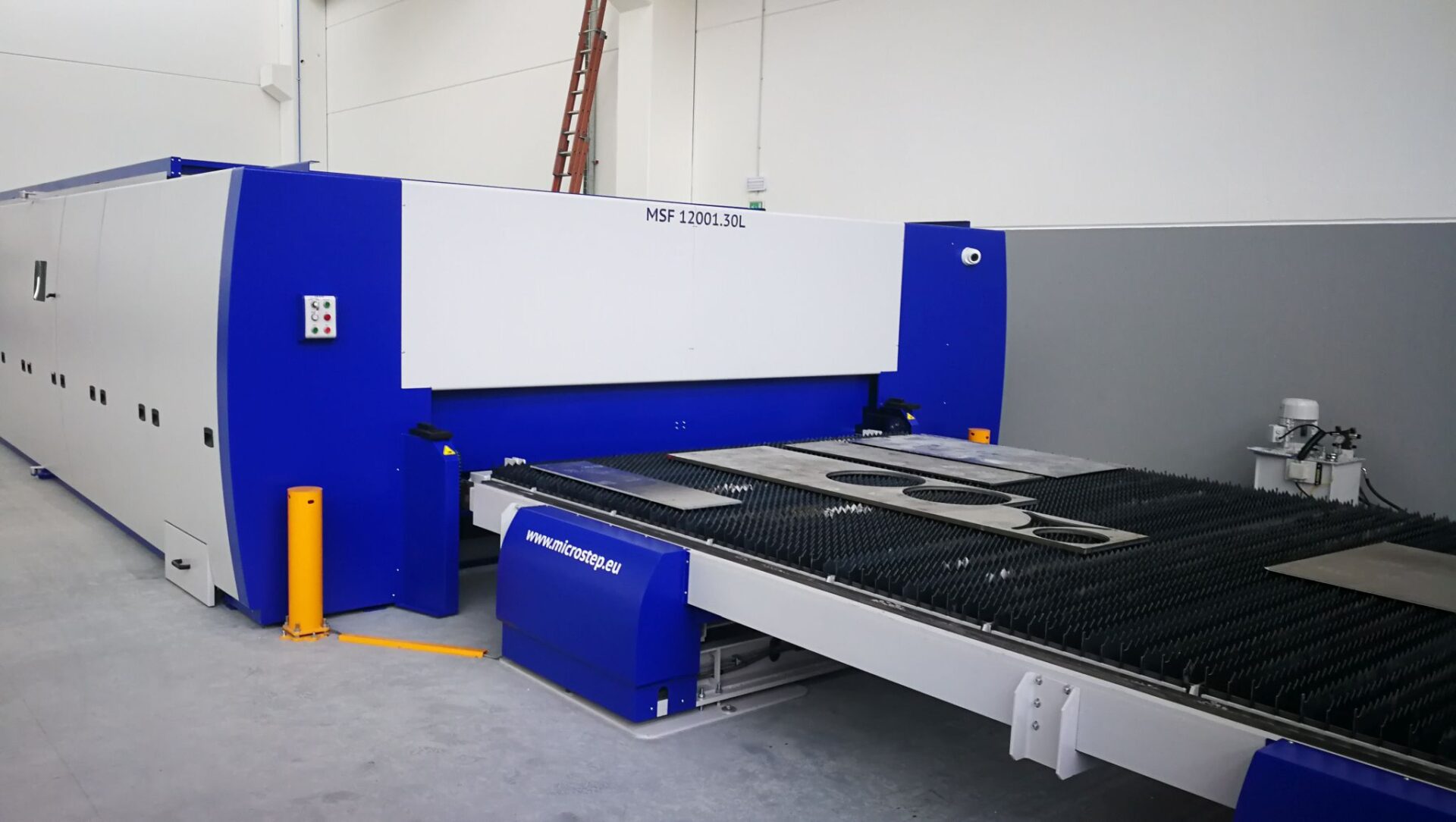

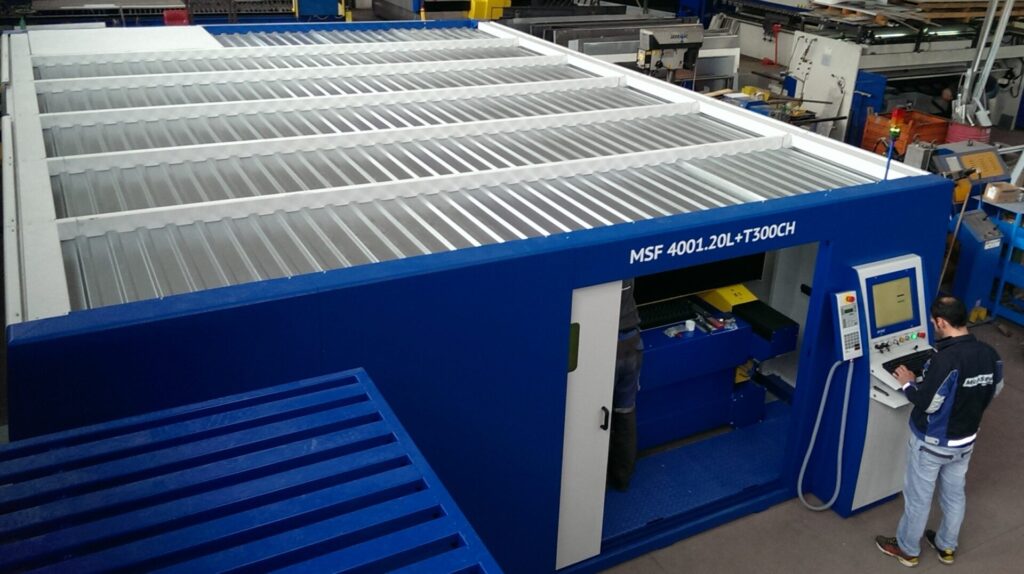

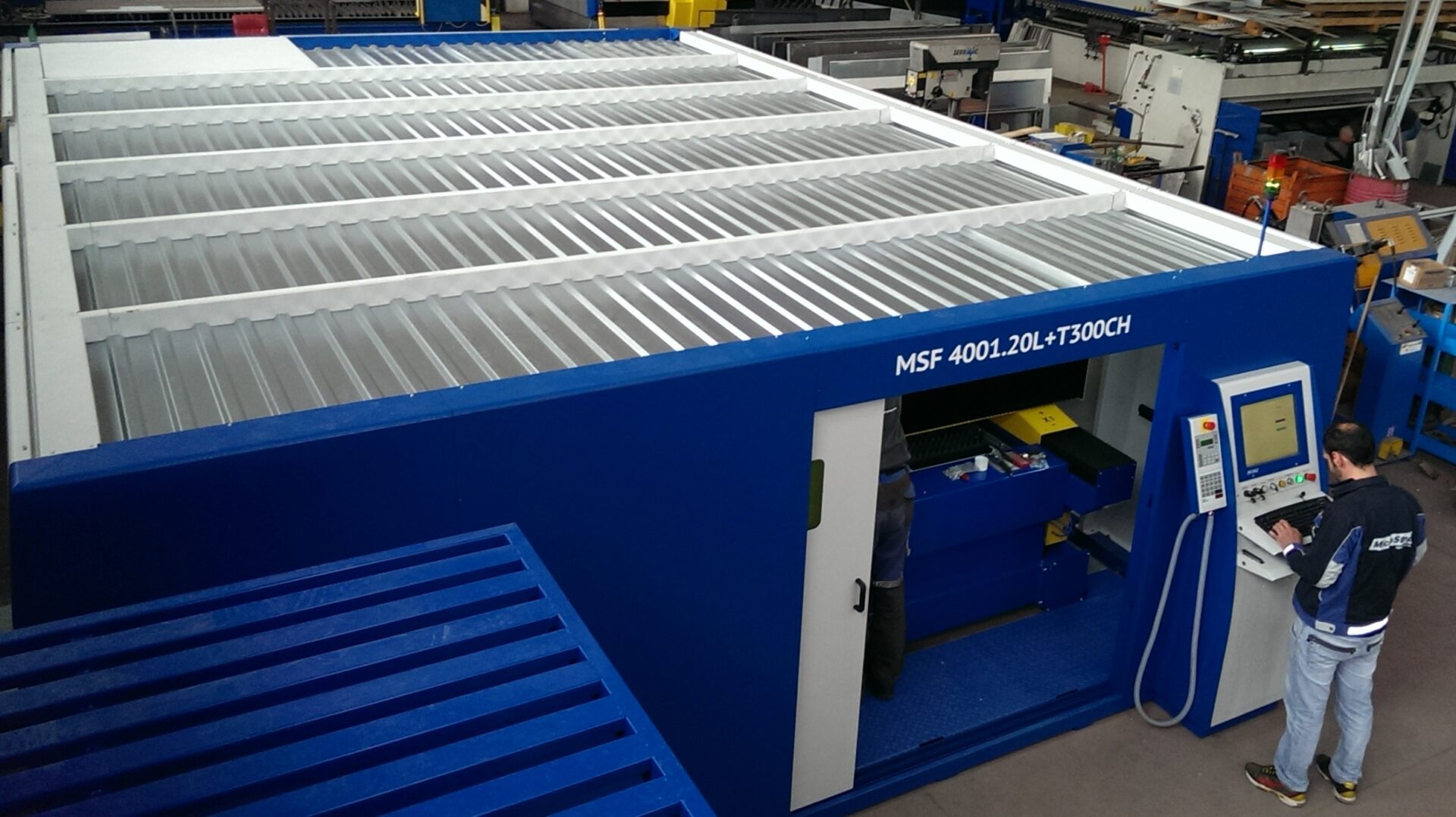

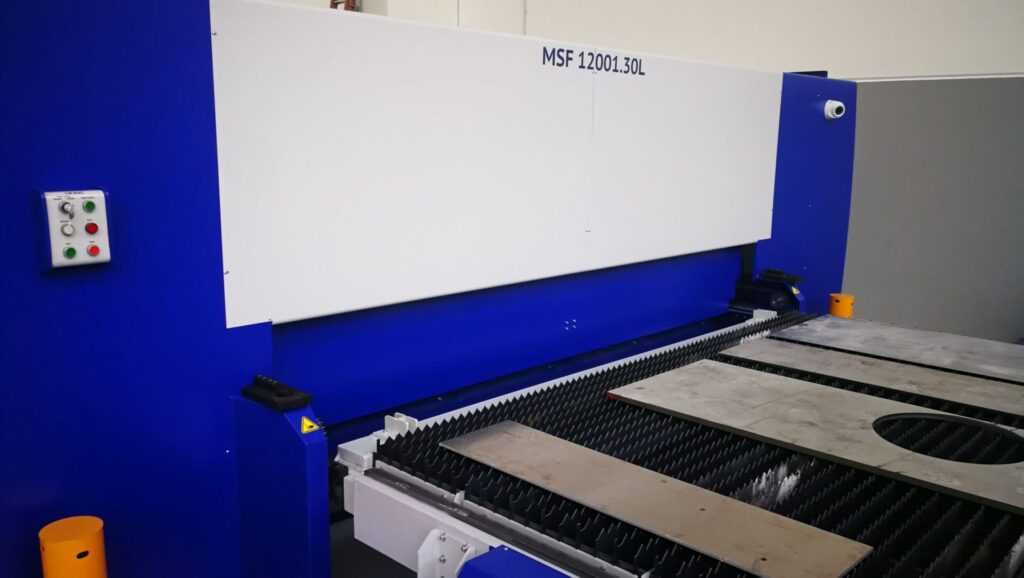

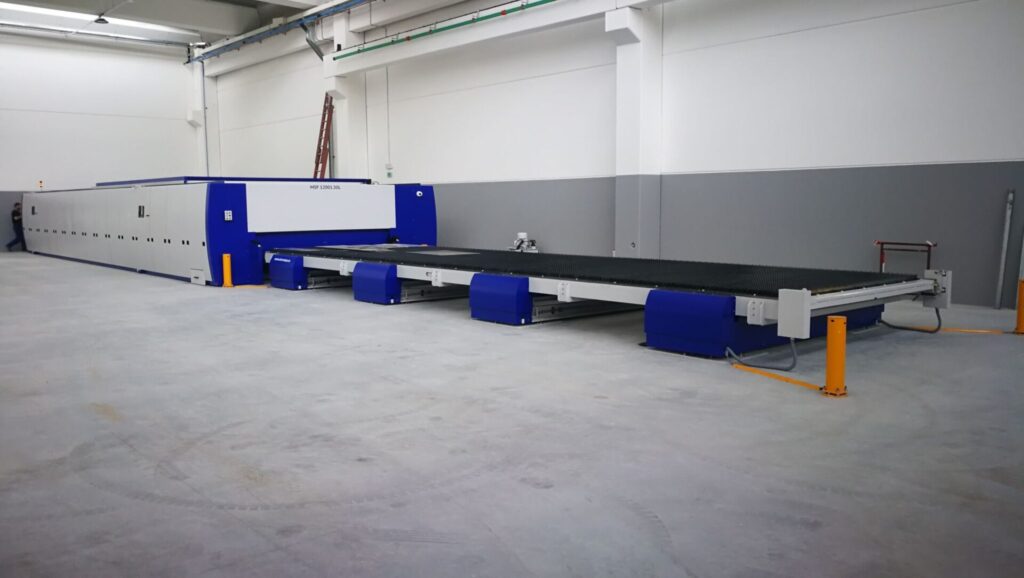

Shuttle table with fast table changeover reduces costly downtimes

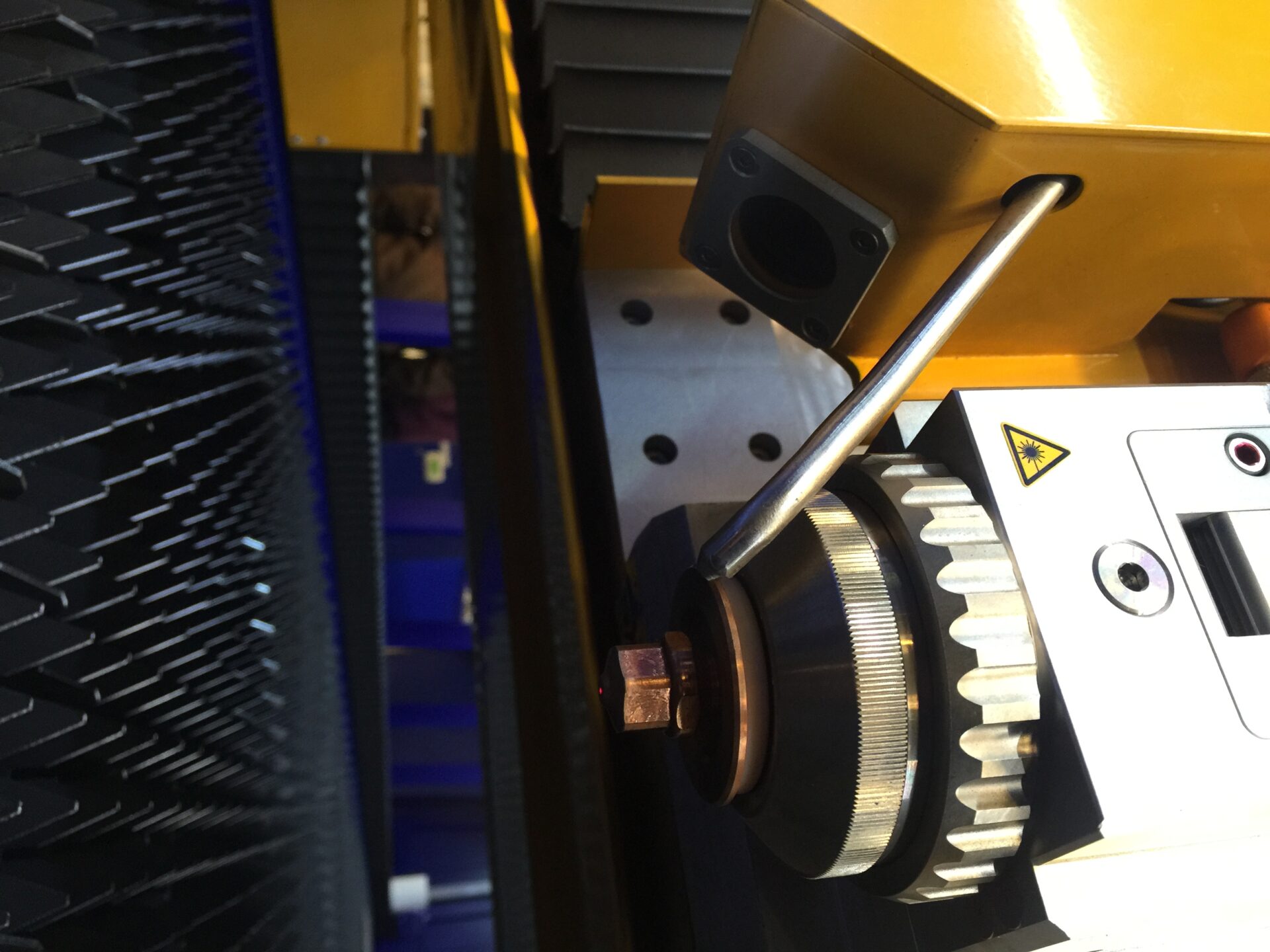

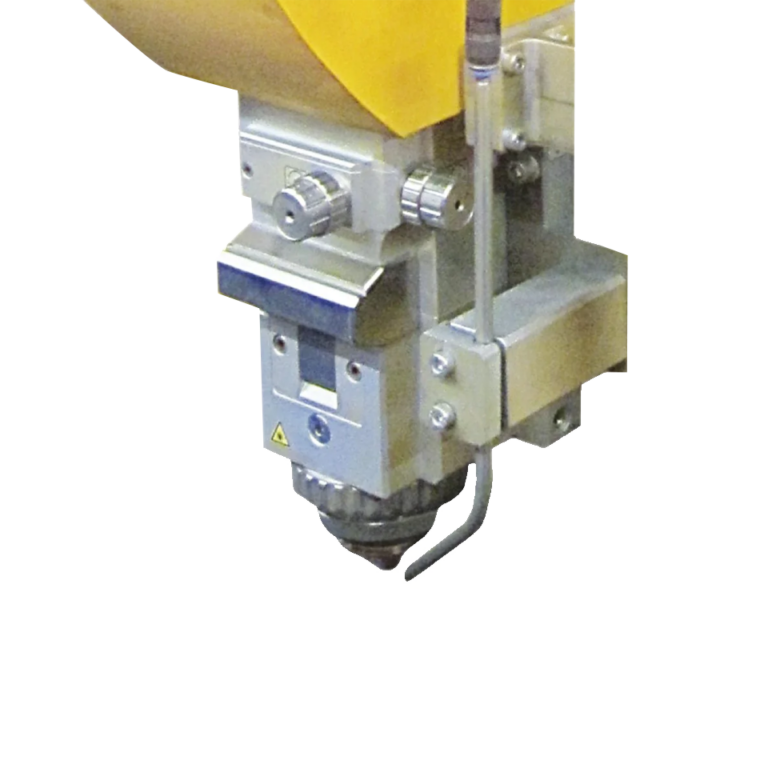

Automatic focus position and diameter adjustment according to the cut material

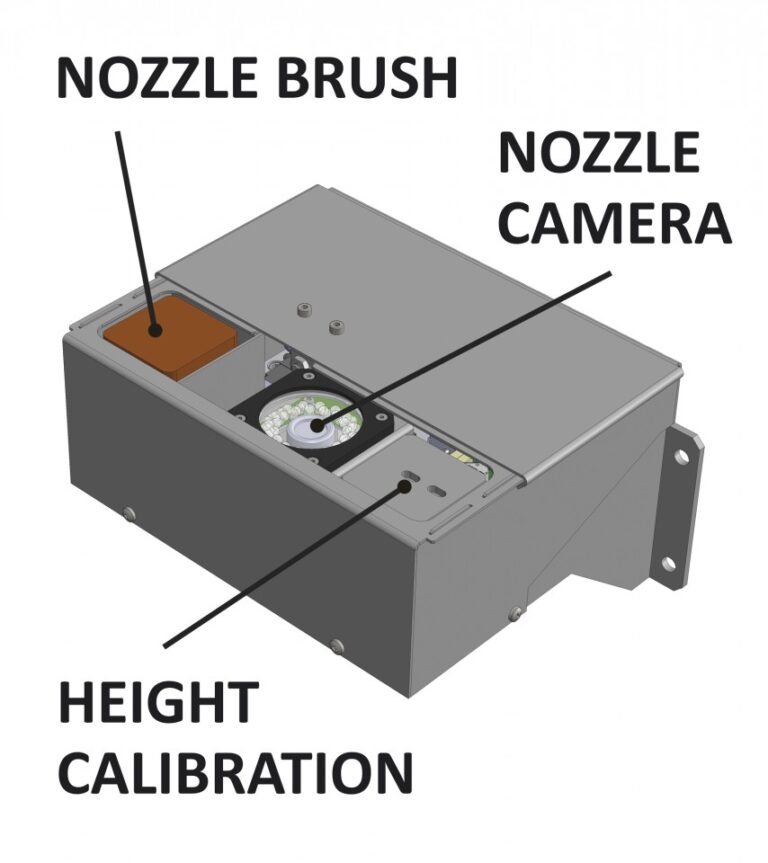

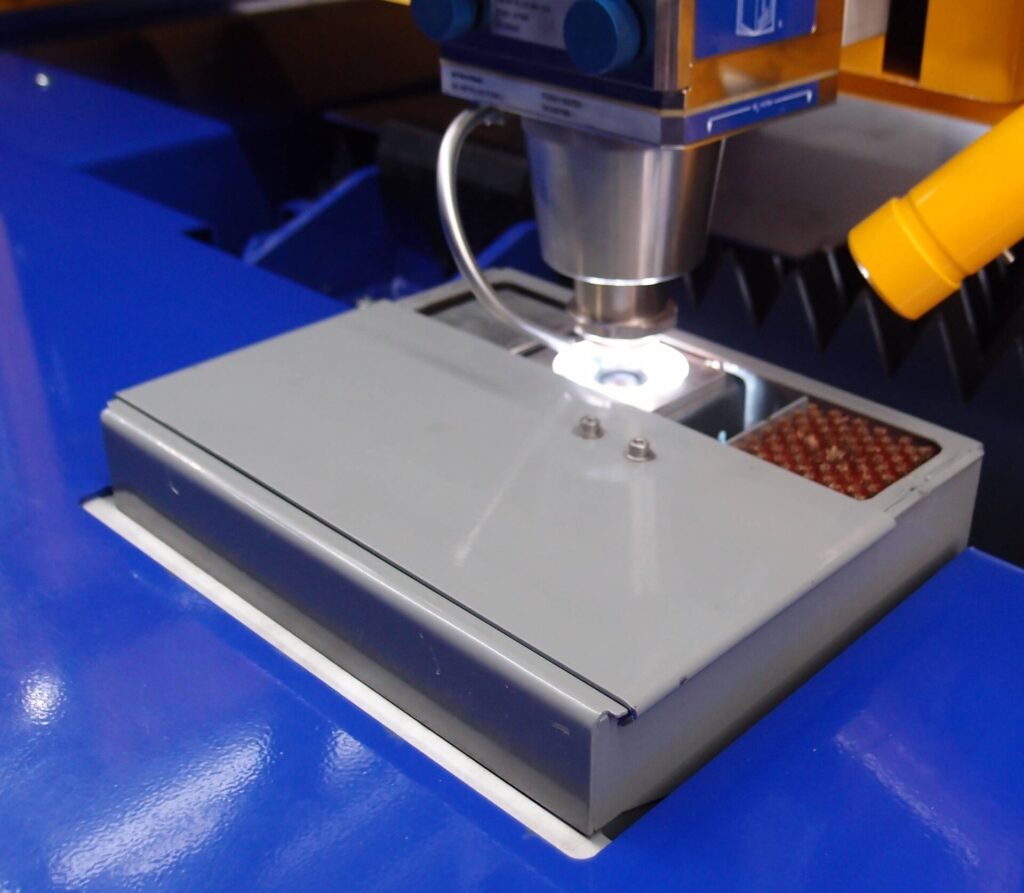

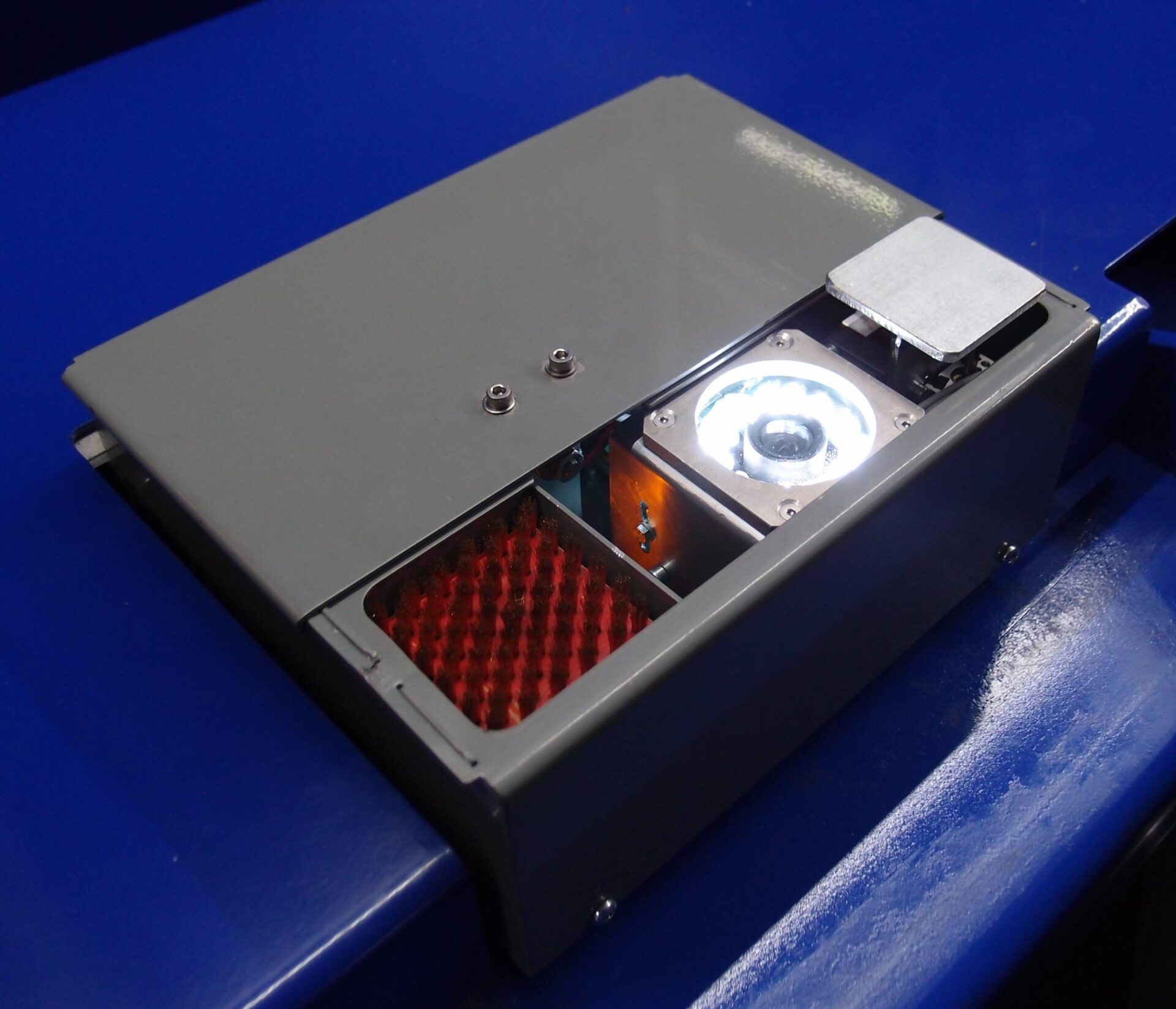

Automatic cutting height sensor calibration and nozzle cleaning cycle
Automatic nozzle change option

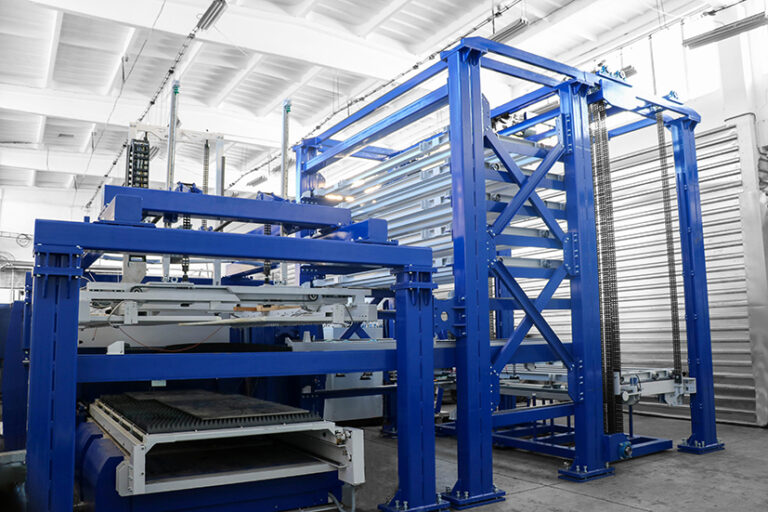

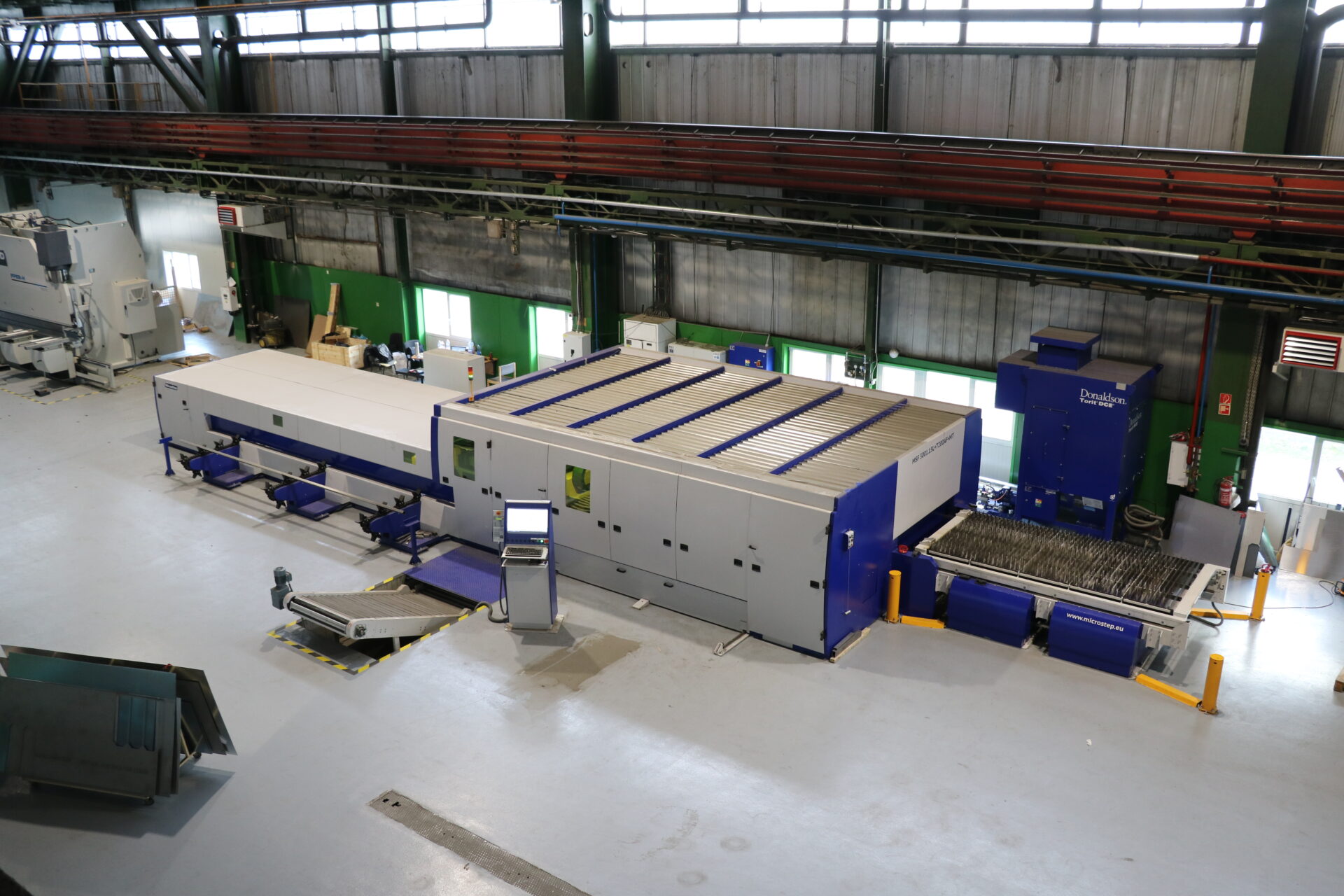

Possibility of complete automation of loading and unloading including tower storage and part sorting

For straight cutting with a single head up to an effective width 2 m, a carbon gantry option provides significant advantages:

higher traverse speed (200 m/min) and acceleration result in productivity gain up to 15 – 25% (for medium-sized parts with medium complexity)
vibration dampening properties of carbon allow for more rapid changes of direction which translates to faster cutting of complex contours
up to 40% weight decrease of gantry results in slower wear of load bearing
components

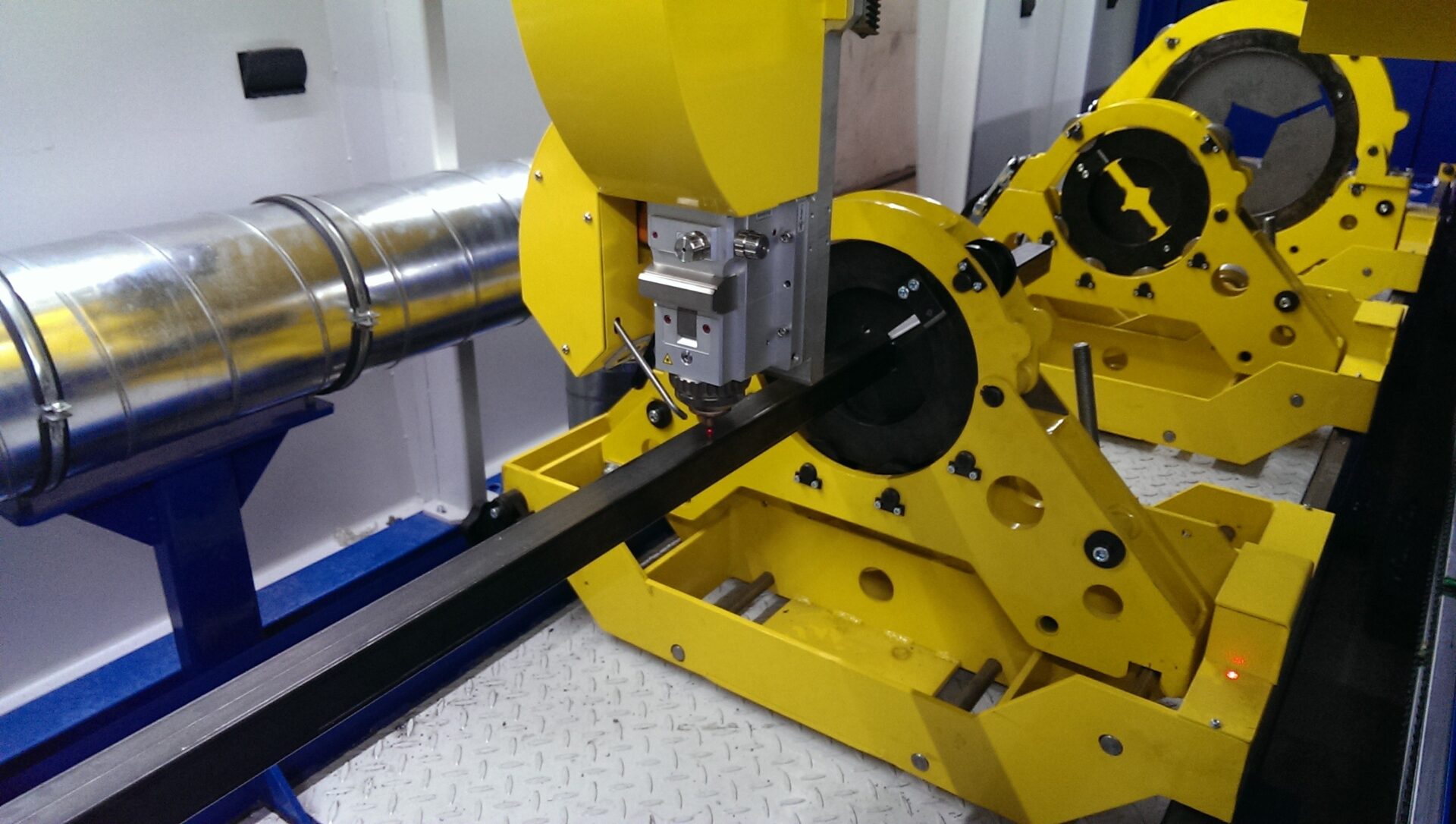

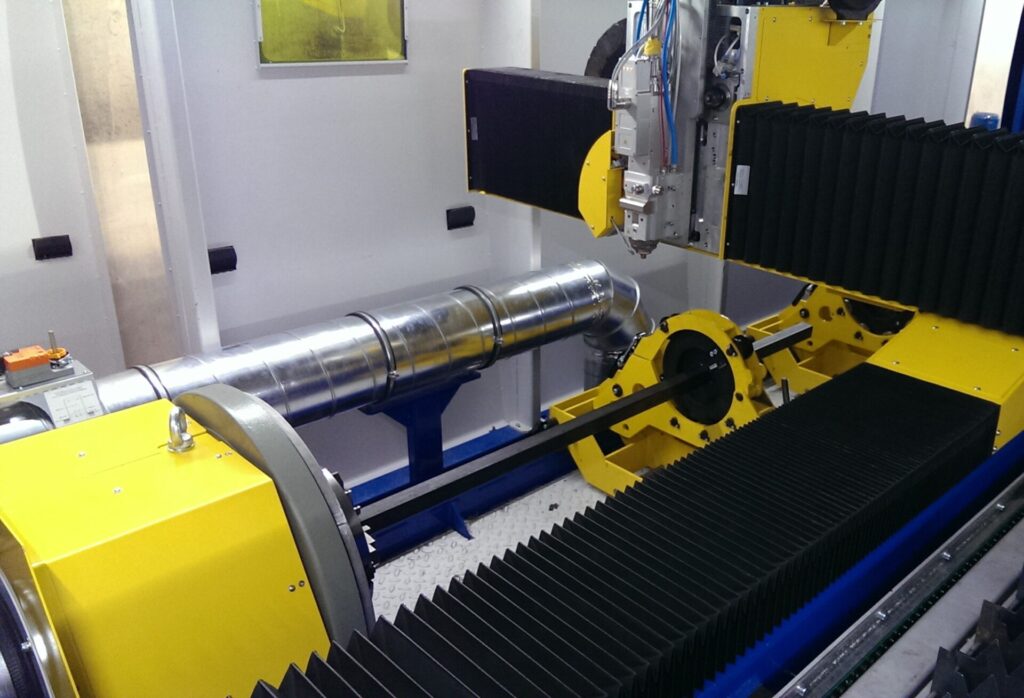

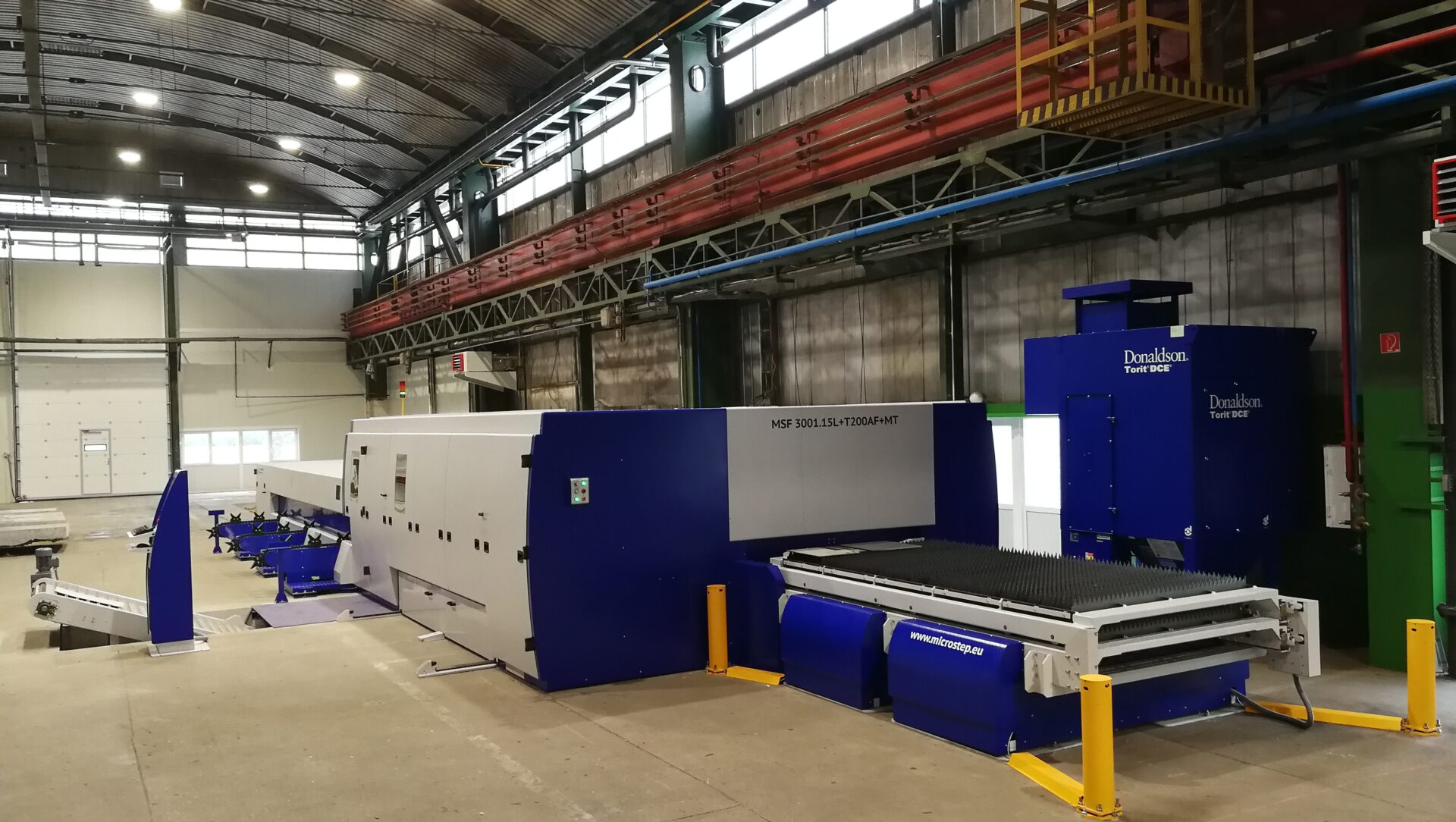

Supplementary pipe and profile cutting as add-on to sheet processing
Cutting of pipes up to Ø 500 mm and a length up to 12 m, and hollow sections up to the size 350 x 350 mm
Motorized and synchronized pipe supports positioned according to the cutting program
Automatic pipe loading, feeding and unloading system as option
Convenient cutting program creation in MicroStep’s 3D CAM software mCAM

V- and X-bevels as well as complex Y- or K-bevels up to 45° with micro joints
Auto-calibration of tool geometry (ACTG®) feature ensures high precision and reliability of bevel cutting with minimum downtimes for maintenance
Additional Beveling Process (ABP) – simple and reliable subsequent weld edge preparation via a laser scanning process
Auto-calibrated height sensor for correct height control in all cutting angles

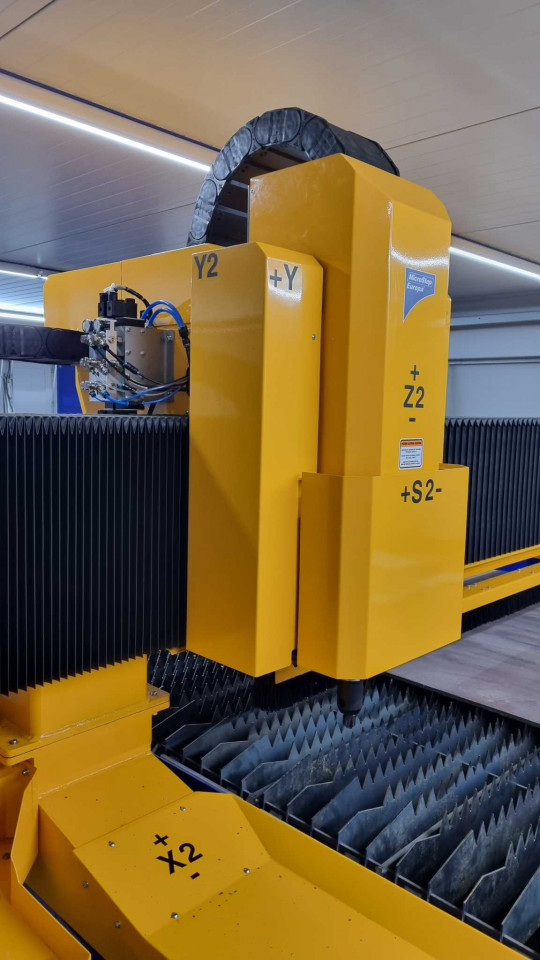

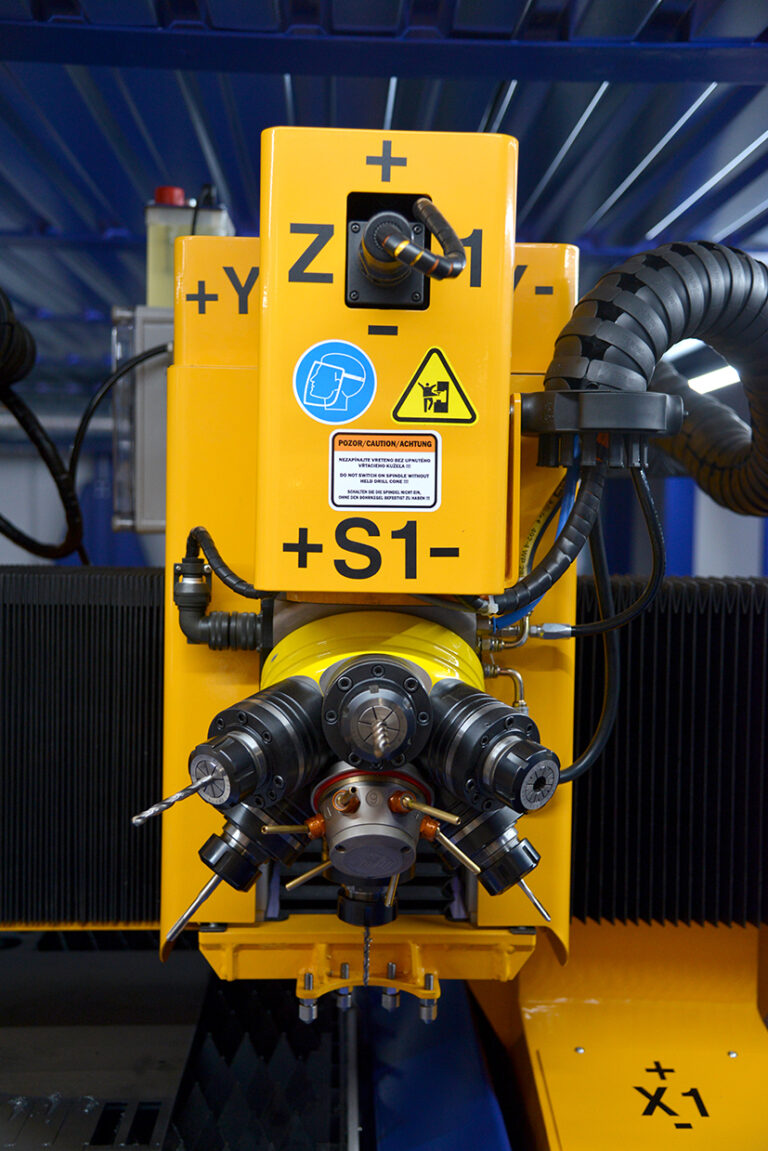

Fully automatic drilling solution for laser machines
Drilling up to Ø 15 mm, tapping up to M16 and countersinking
Turret head with tool magazine for 6 tools
Auto-calibration of drill bits (ACDB) feature
Pneumatic retainer close to the drill tool ensures accuracy of the drilling process

Robust, dynamic and long-lasting machine design

Gantries with extremely high torsion resistance enable high traverse speeds of up to 180 m/min with steel gantry and 200 m/min with carbon gantry
Bellows on all axes protect the guidelines from contamination
Automatic lubrication of linear guidelines and carriages with auto-control of its frequency and duration
Possibility of parallel cutting with two cutting heads
Smart Z Movement (SZM) and DynaFly features for smoother and faster operation

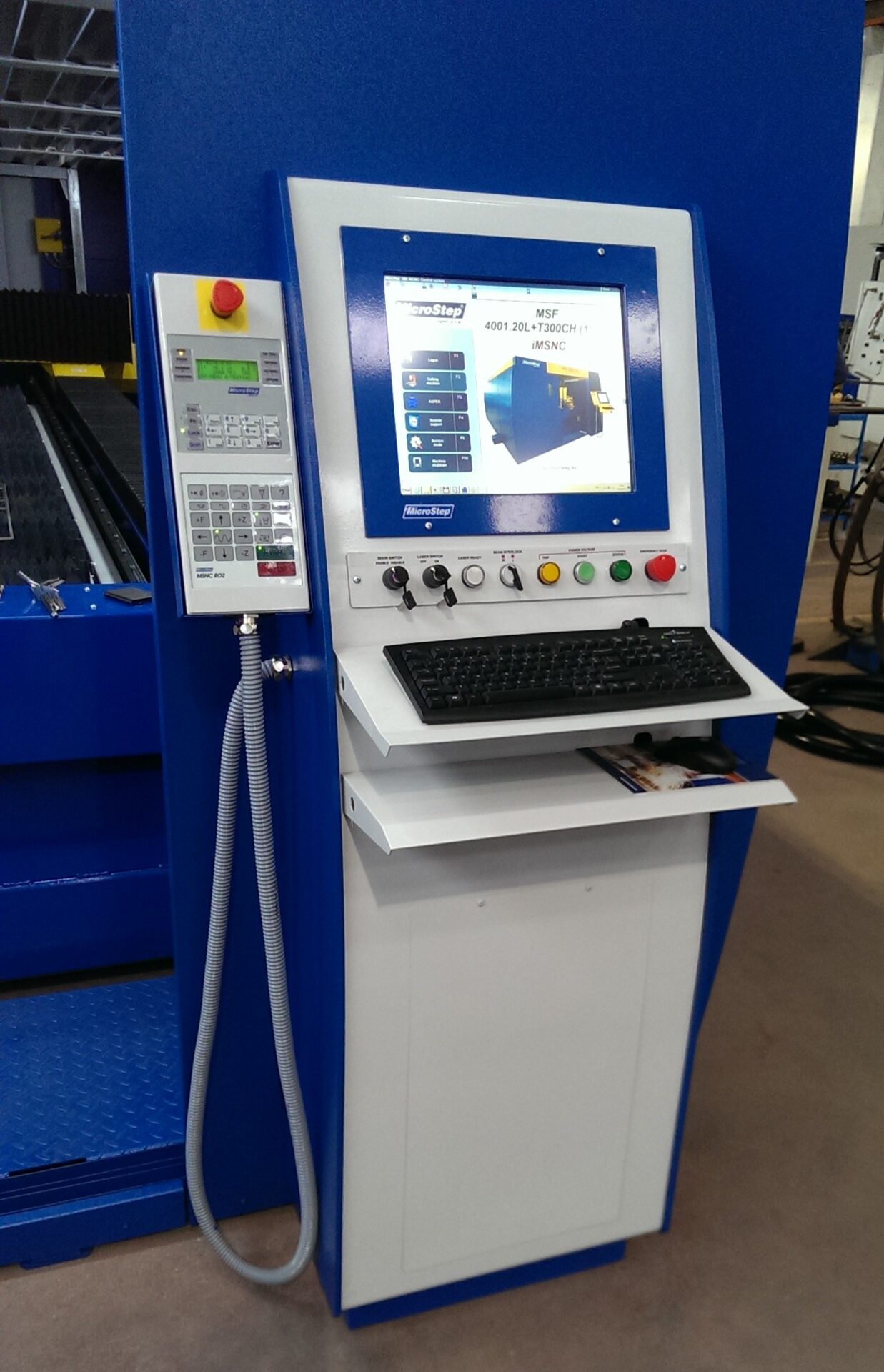

Extensive automation features and options

Shuttle table with fast table changeover reduces costly downtimes
Automatic focus position and diameter adjustment according to the cut material

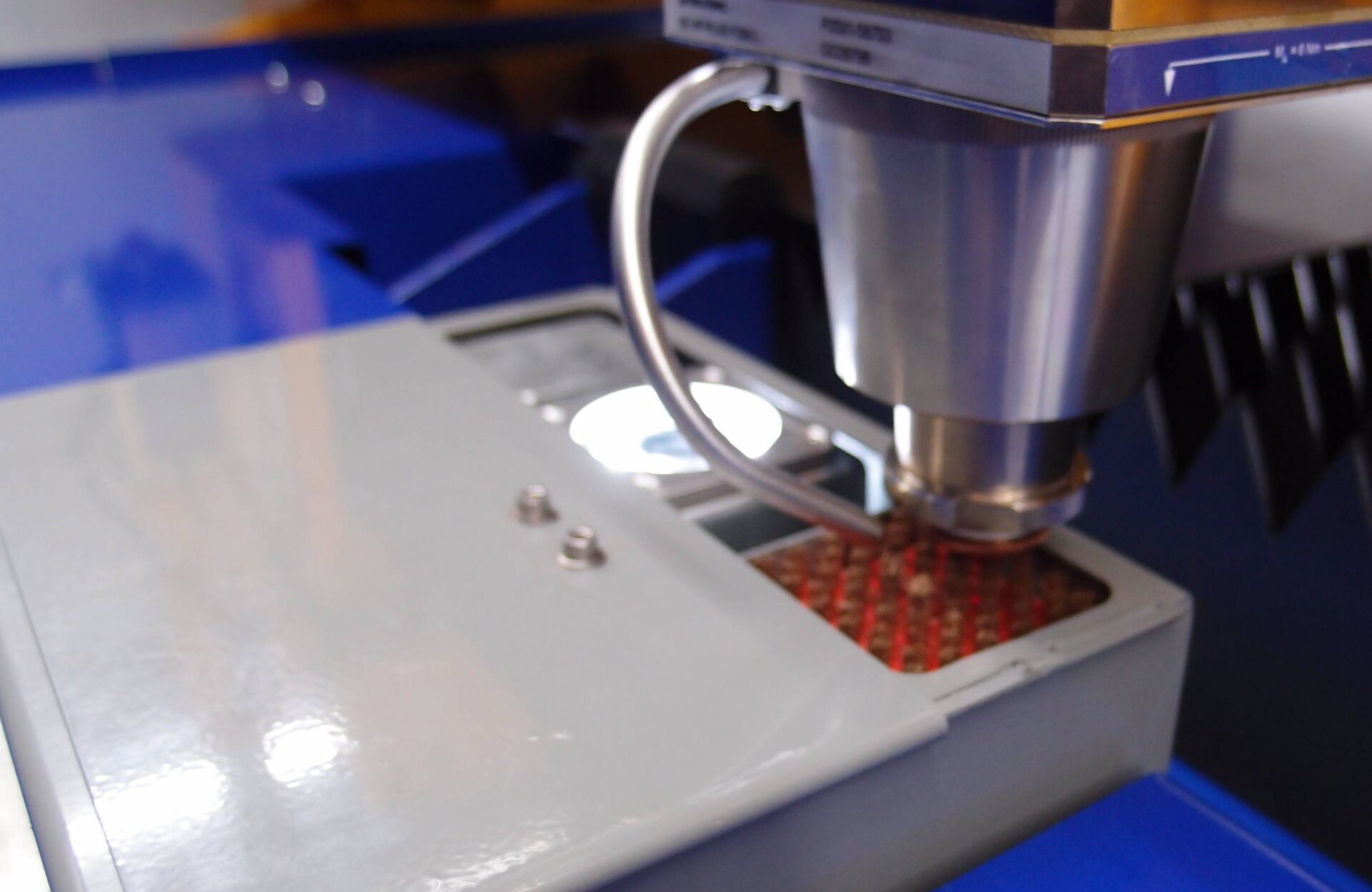

Automatic cutting height sensor calibration and nozzle cleaning cycle
Automatic nozzle change option
Possibility of complete automation of loading and unloading including tower storage and part sorting

Carbon gantry for highly dynamic 2D cutting

For straight cutting with a single head up to an effective width 2 m, a carbon gantry option provides significant advantages:

higher traverse speed (200 m/min) and acceleration result in productivity gain up to 15 – 25% (for medium-sized parts with medium complexity)
vibration dampening properties of carbon allow for more rapid changes of direction which translates to faster cutting of complex contours
up to 40% weight decrease of gantry results in slower wear of load bearing
components

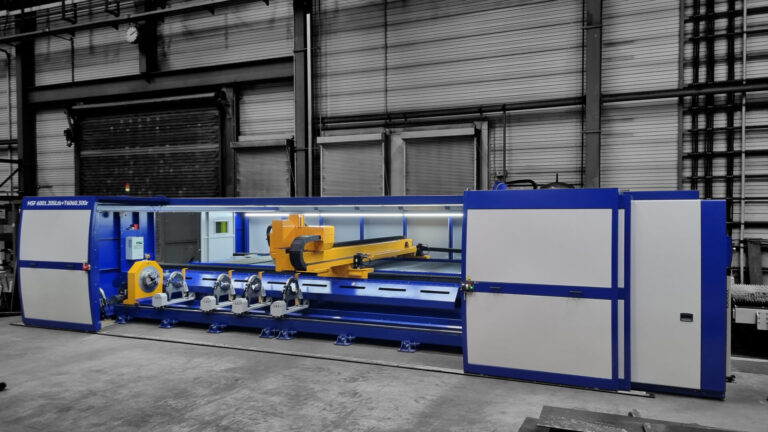

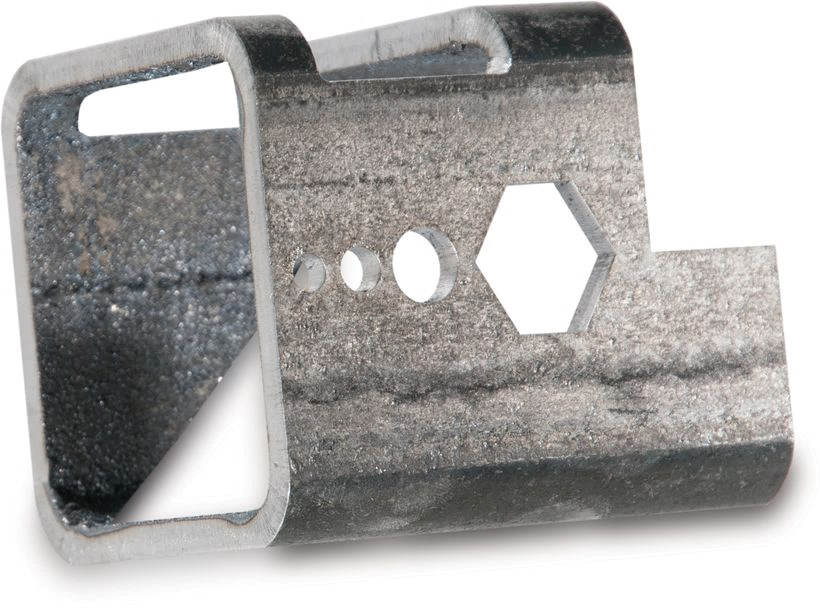

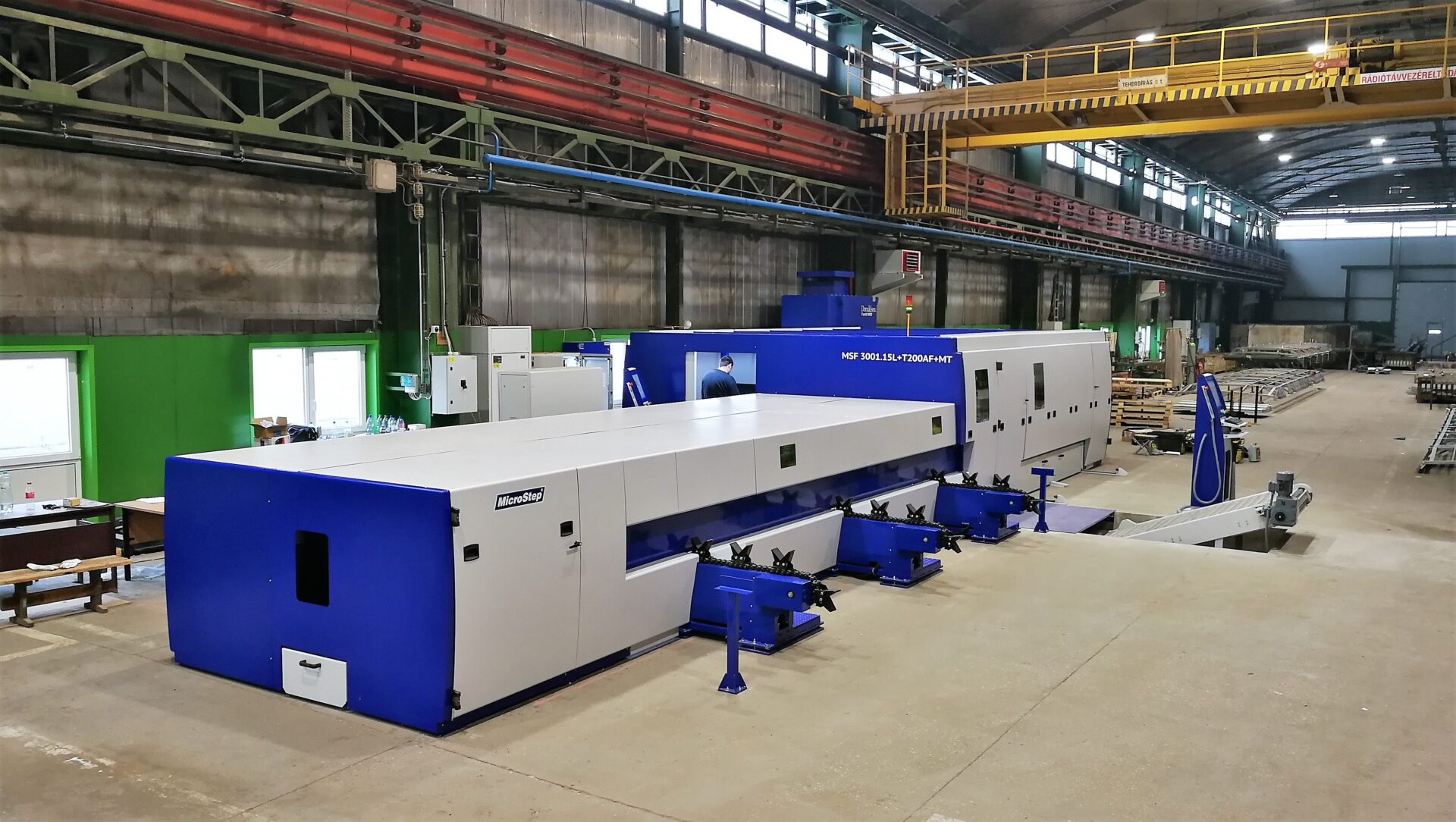

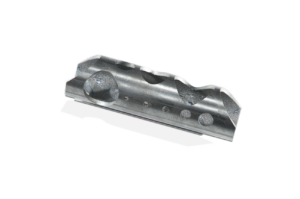

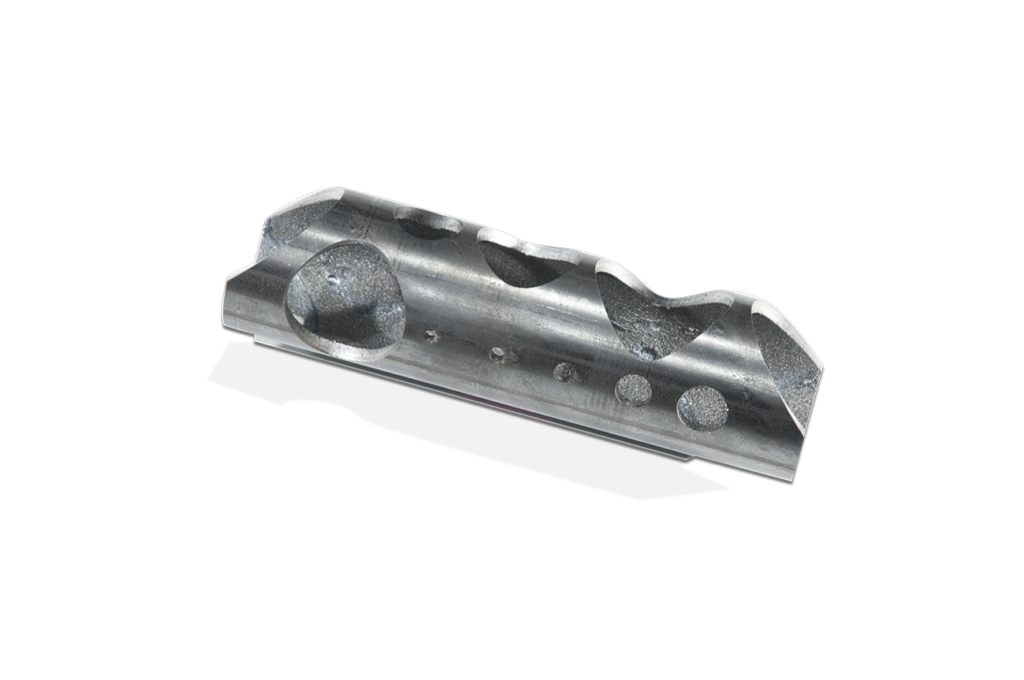

Pipe and profile cutting

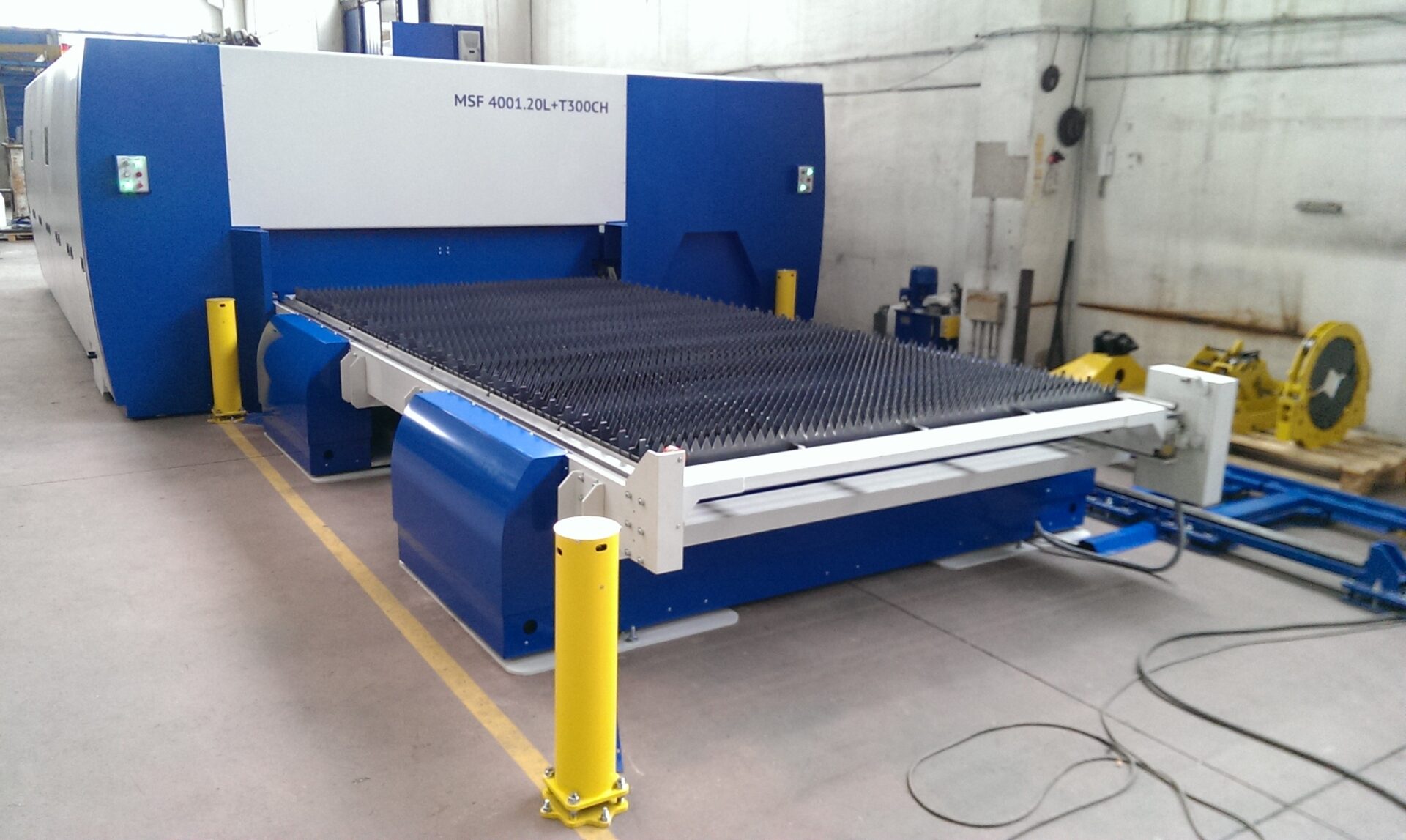

Supplementary pipe and profile cutting as add-on to sheet processing
Cutting of pipes up to Ø 500 mm and a length up to 12 m, and hollow sections up to the size 350 x 350 mm

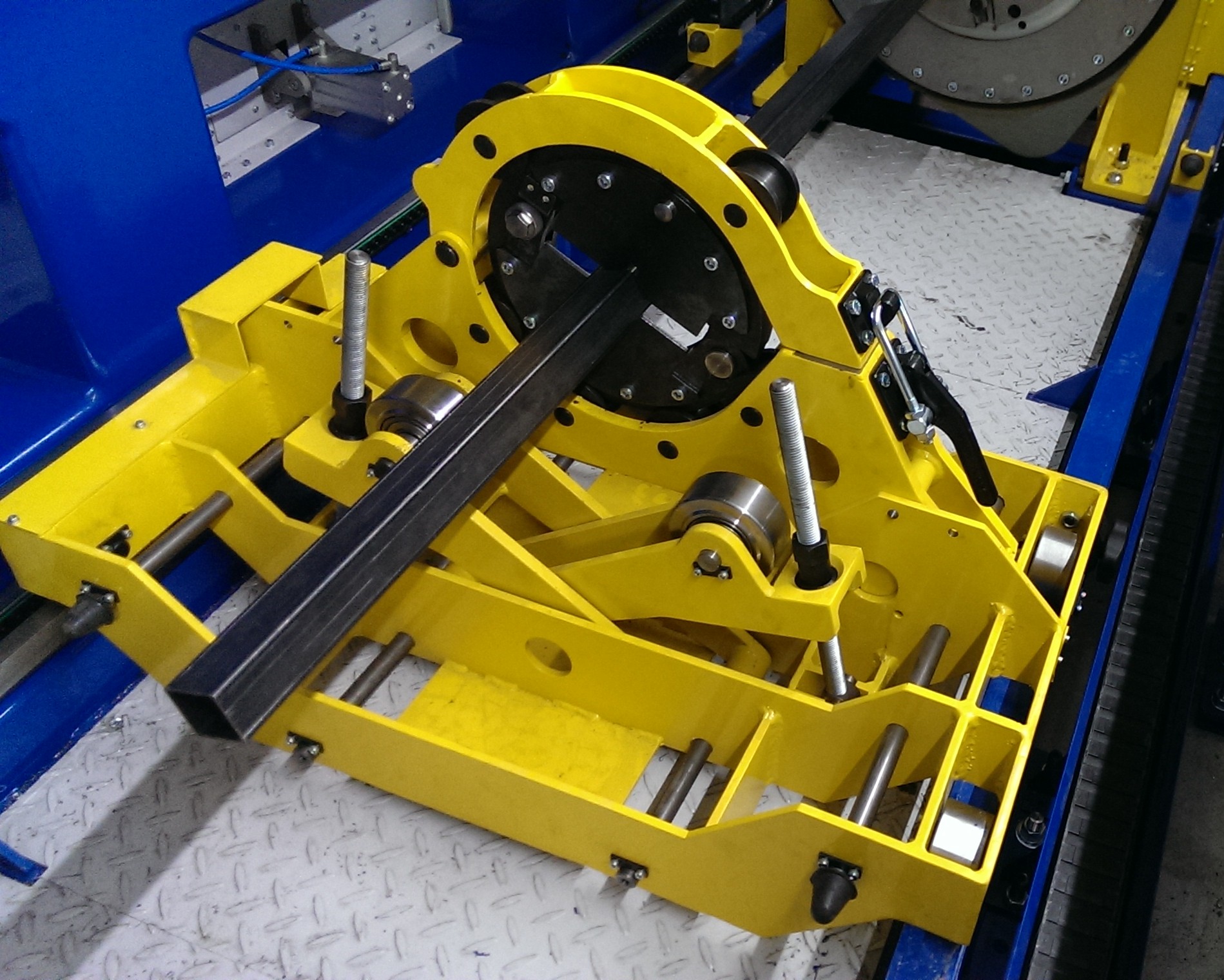

Motorized and synchronized pipe supports positioned according to the cutting program
Automatic pipe loading, feeding and unloading system as option
Convenient cutting program creation in MicroStep’s 3D CAM software mCAM

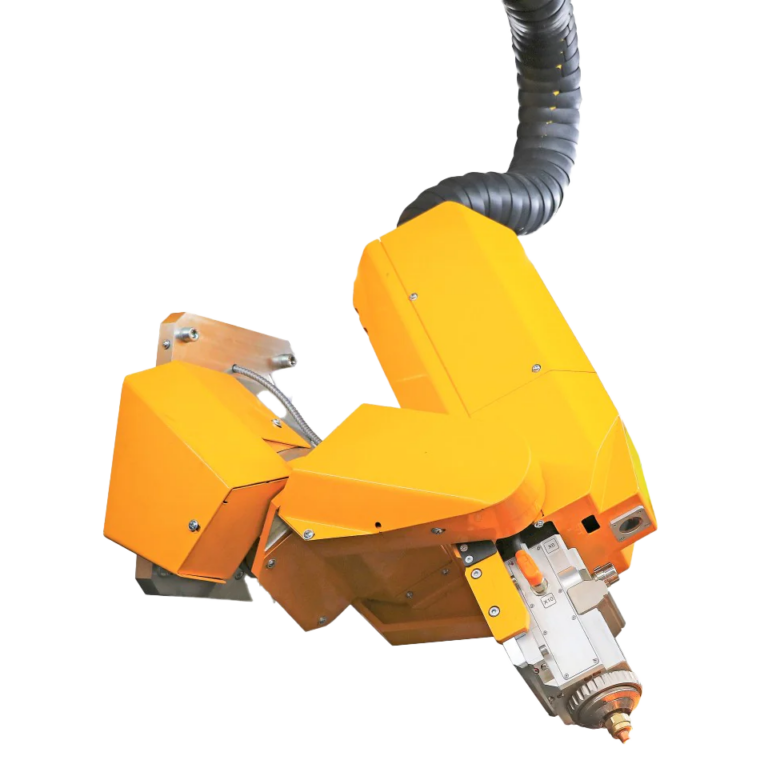

Laser bevel head for bevel cuts up to 45°

V- and X-bevels as well as complex Y- or K-bevels up to 45° with micro joints
Auto-calibration of tool geometry (ACTG®) feature ensures high precision and reliability of bevel cutting with minimum downtimes for maintenance
Additional Beveling Process (ABP) – simple and reliable subsequent weld edge preparation via a laser scanning process
Auto-calibrated height sensor for correct height control in all cutting angles

Fully automatic drilling up to Ø 15 mm and tapping up to M16

Fully automatic drilling solution for laser machines
Drilling up to Ø 15 mm, tapping up to M16 and countersinking
Turret head with tool magazine for 6 tools
Auto-calibration of drill bits (ACDB) feature
Pneumatic retainer close to the drill tool ensures accuracy of the drilling process

Accessories

Plasma

Video

Technologies for Precision and Efficiency

Our cutting machines include full range of contemporary used cutting technologies – plasma, laser, oxyfuel, waterjet, 3D mill.

Technical parameters

MetricImperial

Working lenght	1000 – 12000 mm
Working width	1500 – 3000 mm
Max. number of tool stations	2
Max. thickness of material cut by plasma	according to a laser source
Max. thickness of material cut by oxyfuel	according to a plasma source

Bevel cutting	[tooltip]See accessories[/tooltip]
Pipe cutting	Ø 30 – 500 mm
Drilling and tapping	inquire individually
Positioning speed	max 183 m/min
Bidirectional repeatability	0.03 mm/m

Working lenght	39.37 – 472.4 in
Working width	59.06 – 118.1 in
Max. number of tool stations	2
Max. thickness of material cut by plasma	according to a laser source
Max. thickness of material cut by oxyfuel	according to a plasma source

Bevel cutting	[tooltip]See accessories[/tooltip]
Pipe cutting	Ø 1.181 – 19.685 in
Drilling and tapping	inquire individually
Positioning speed	max 600.4 ft/min
Bidirectional repeatability	1.181 mil/m
