Great production versatility

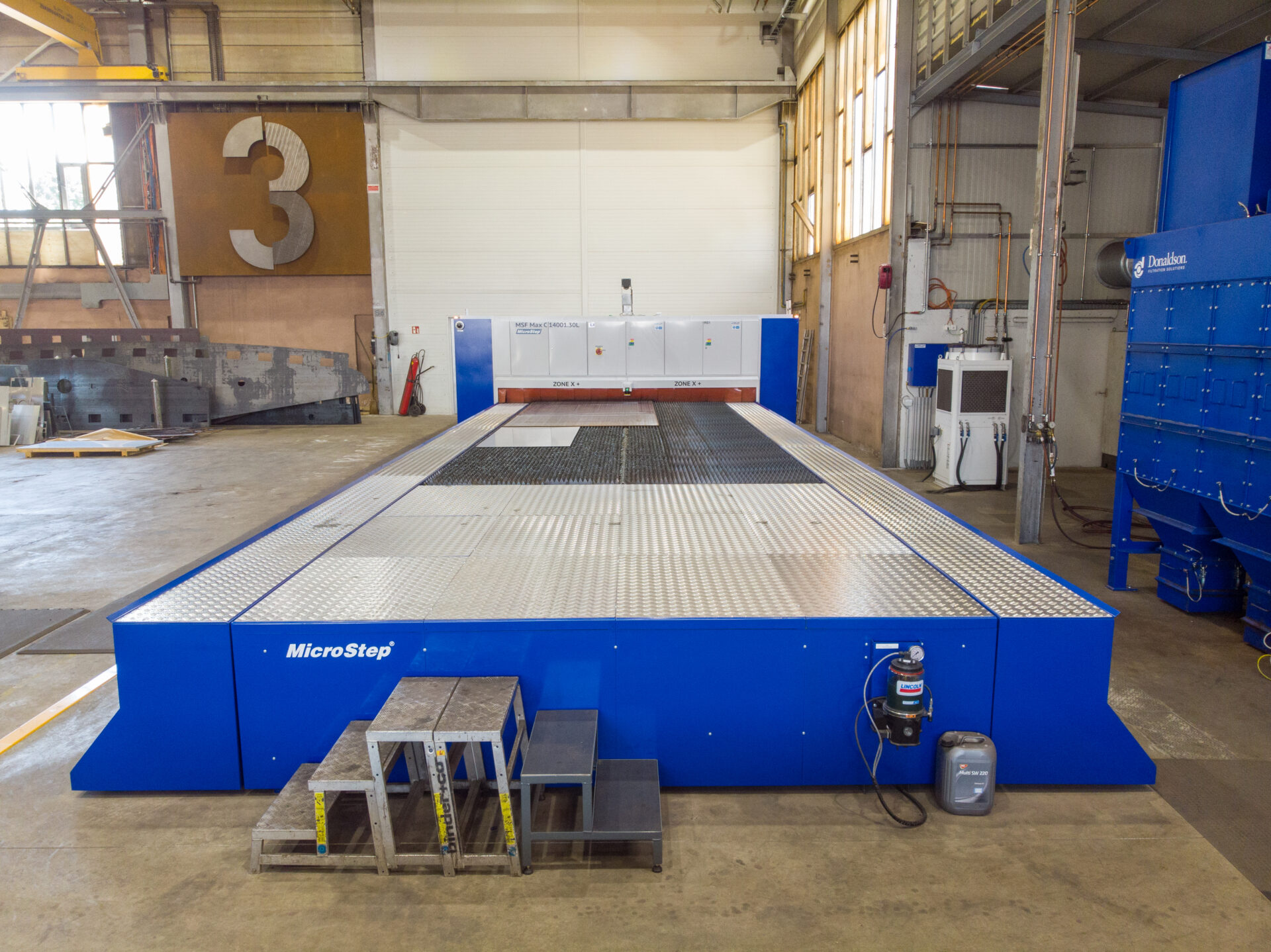

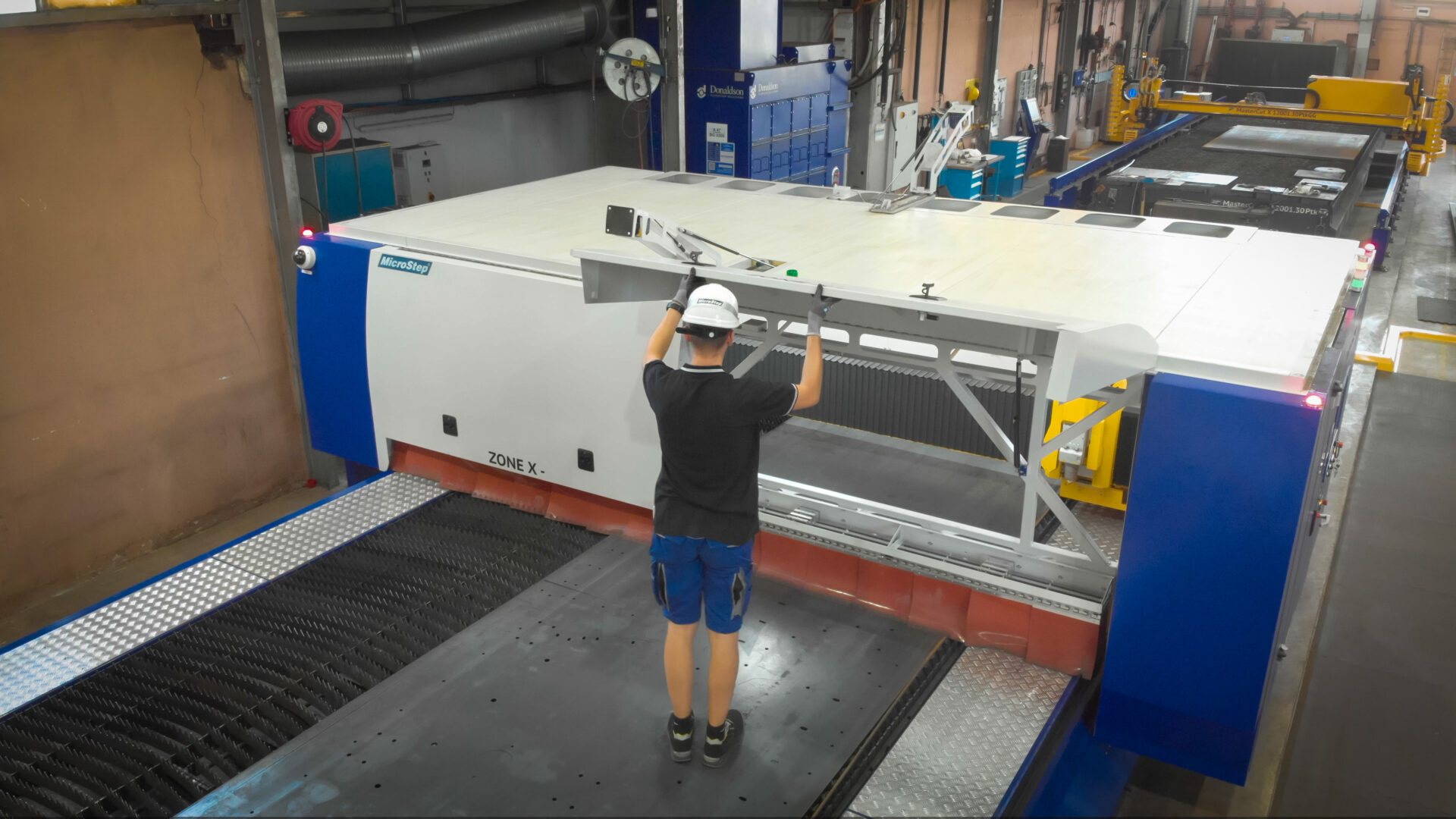

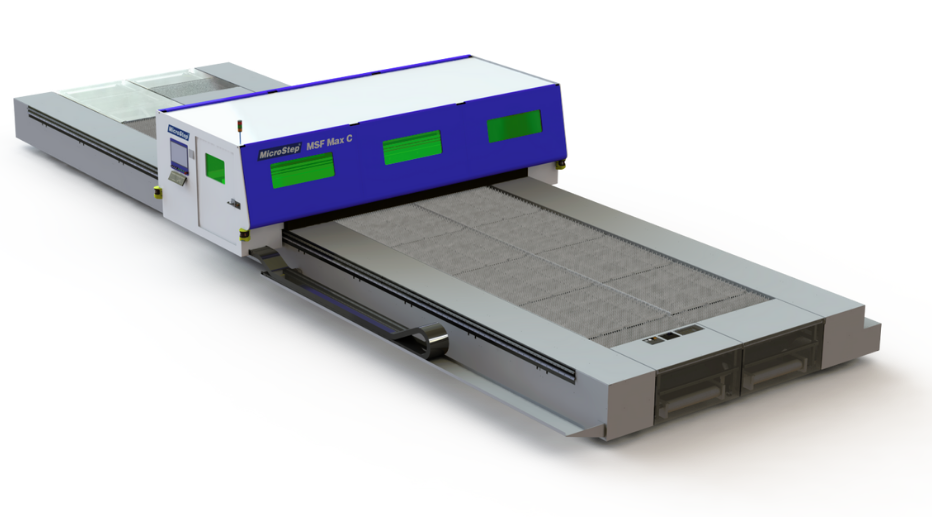

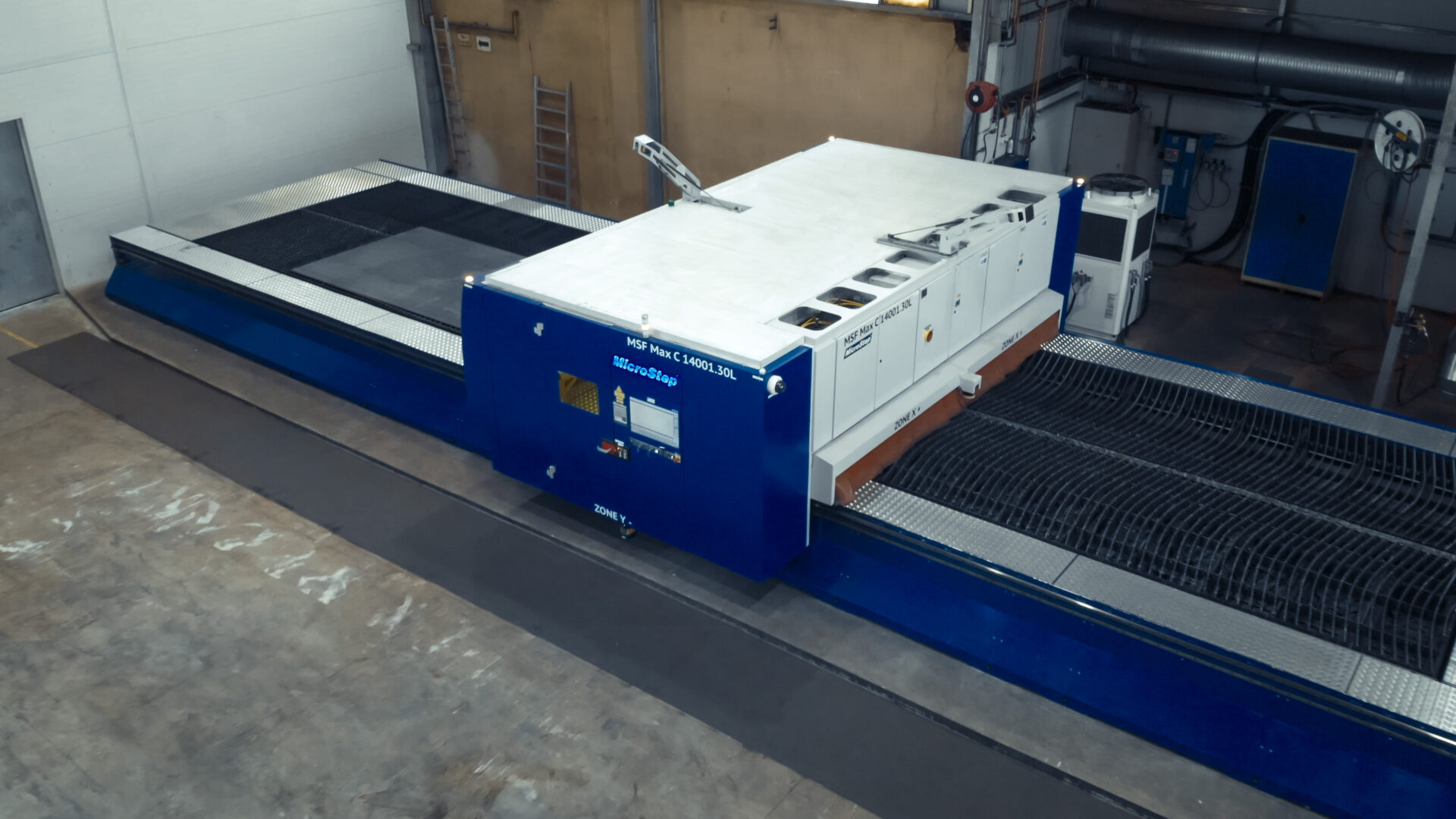

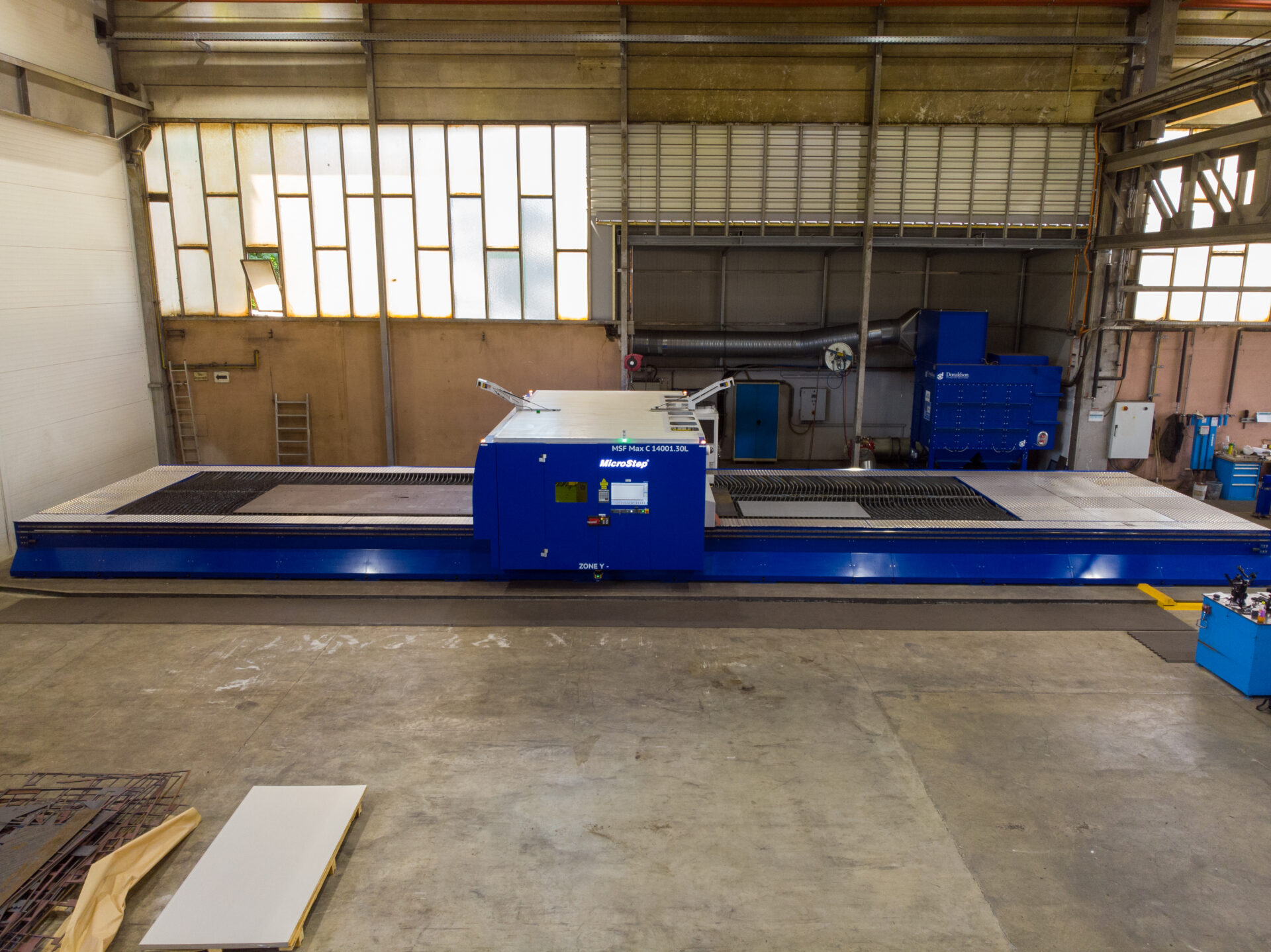

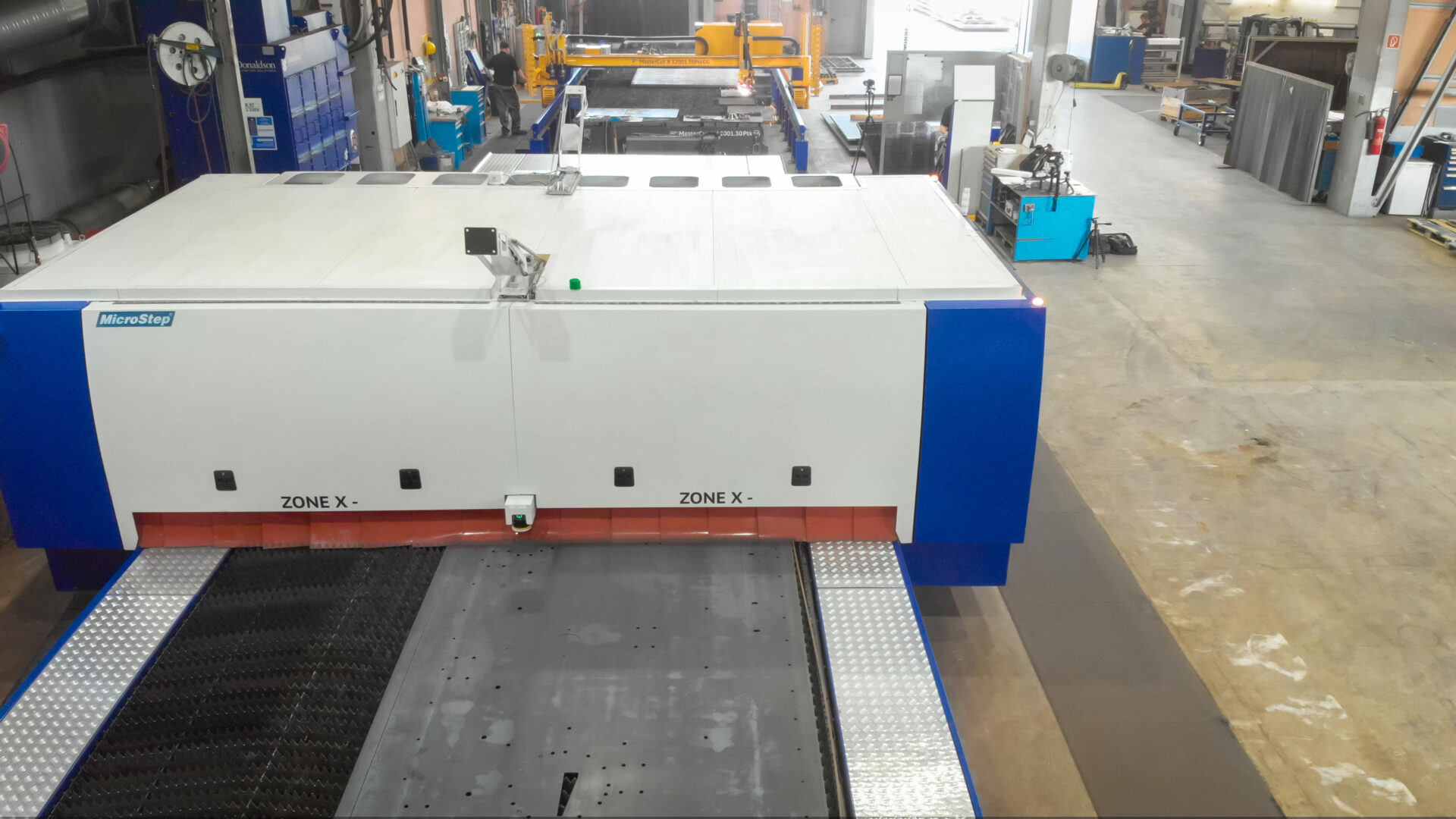

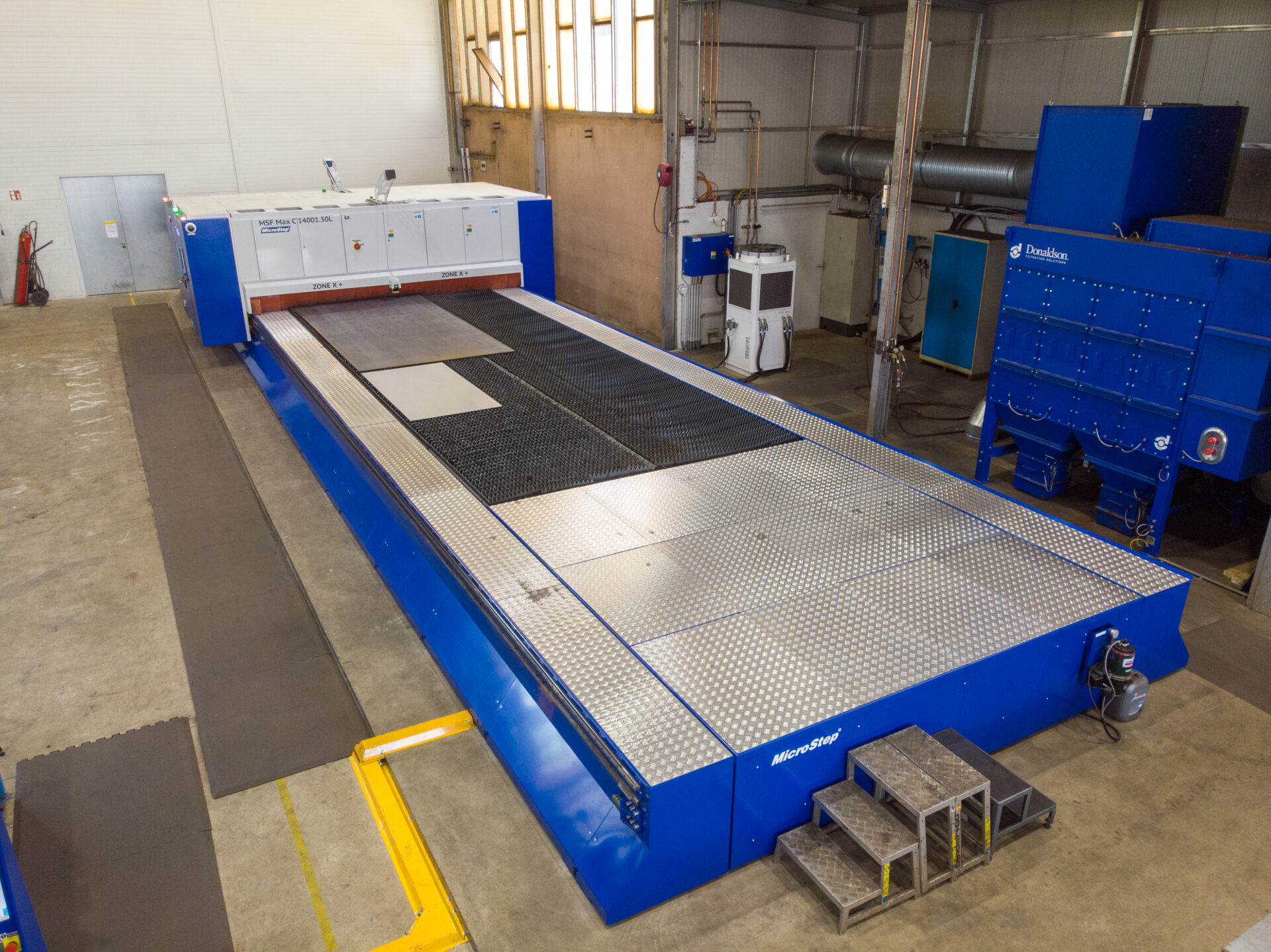

The high-speed 3D cutting machine is dedicated for precise processing of large-sized components for the most demanding industries, such as shipbuilding and large machine manufacture. MSF Max C combines great production versatility – 2D cutting, bevel cutting up to 45°, drilling up to Ø 30 mm, tapping up to M20, countersinking and marking – with a compact footprint. Its compact movable safety cabin encapsulates just the gantry instead of the whole work area. The fully enclosed cabin and extensive safety features allow for simultaneous cutting on one end of the table and loading/unloading at the other.
Features
The in-house developed automatic calibration system for geometry of the cutting tool – ACTG® –…
The Automatic Plate Alignment is a feature of the control system that enables automatic setting…
The nozzle cleaning and calibration station is equipped on every MSF machine. It has three…

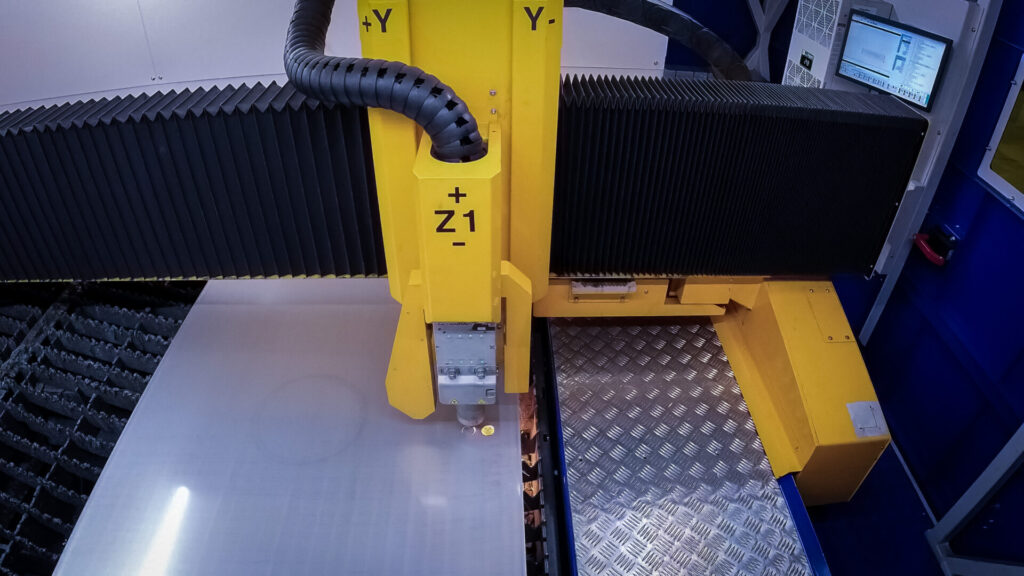

The 3D tilting head is designed for cutting of precise parts with bevel – possible…
The drilling tool station is designed to perform drilling of holes, taping and countersinking on…

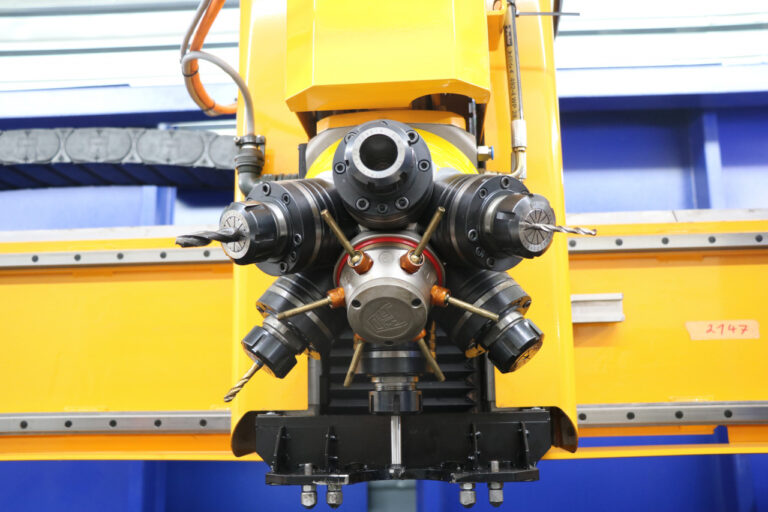

The drilling head MSF-15-P5-Turret is designed to perform drilling of holes, taping and countersinking by…
Video
Technical parameters
| Working length | max. 60 000 mm |
|---|---|
| Working width | max. 5 000 mm |
| Max. number of tool stations | 2 (3 with special execution) |
| Max. thickness of material cut by laser | according to laser source |
| Bevel cutting | yes (see accessories) |
| Pipe cutting | no |
|---|---|
| Drilling and tapping | up to Ø 30 mm |
| Positioning speed (XY) | max 100 m/min |
| Bidirectional repeatability | 0.03 mm/m |
| Cabin movement speed (X axis) | max 80 m/min
(max 60 m/min with multiple cutting heads and/or large laser source in cabin) |
