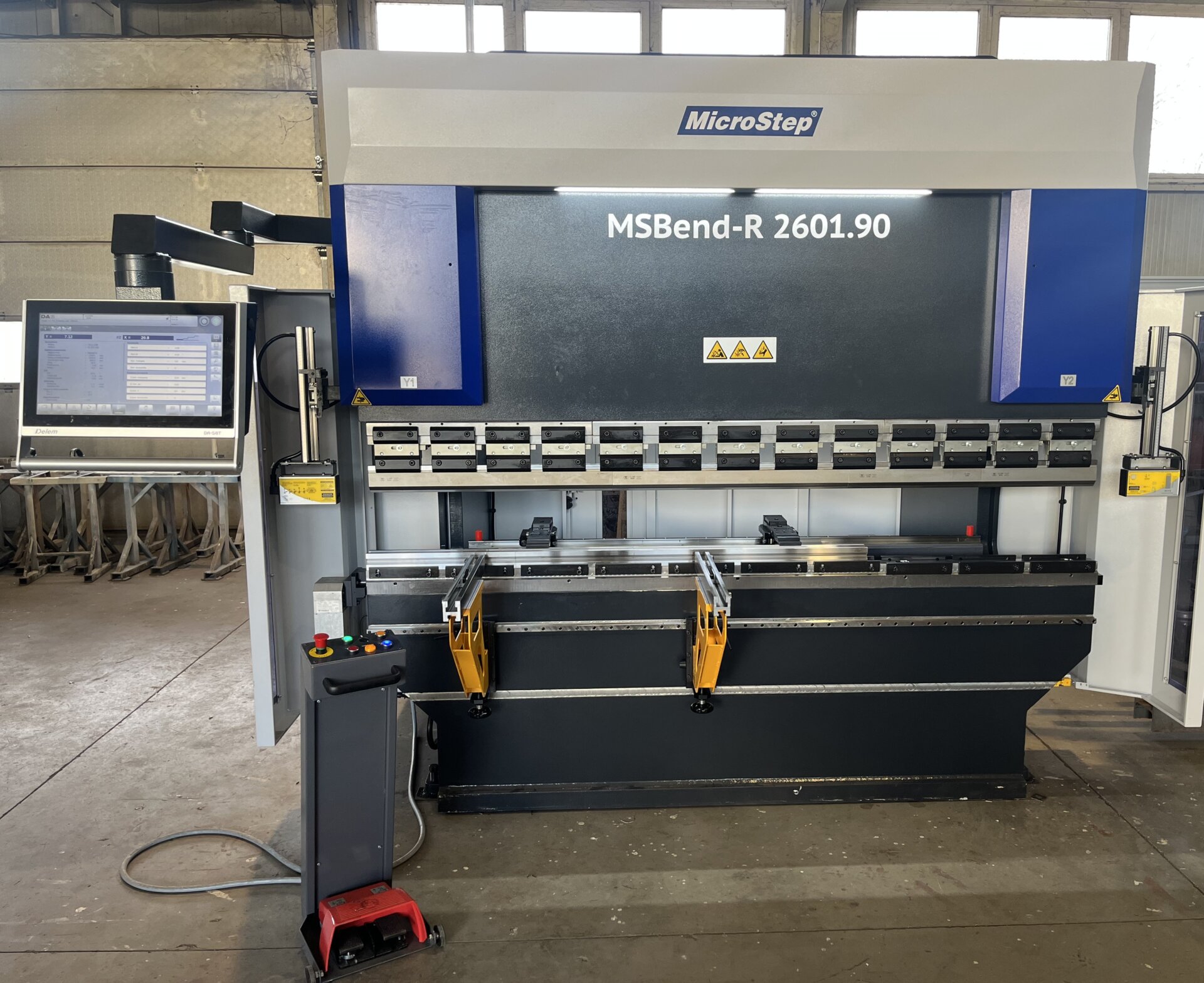

High precision from every angle
Designed for simple use, strong performance and precision, the MSBend-R series offers high bend accuracy and a repeatability for a reasonable price.
Features

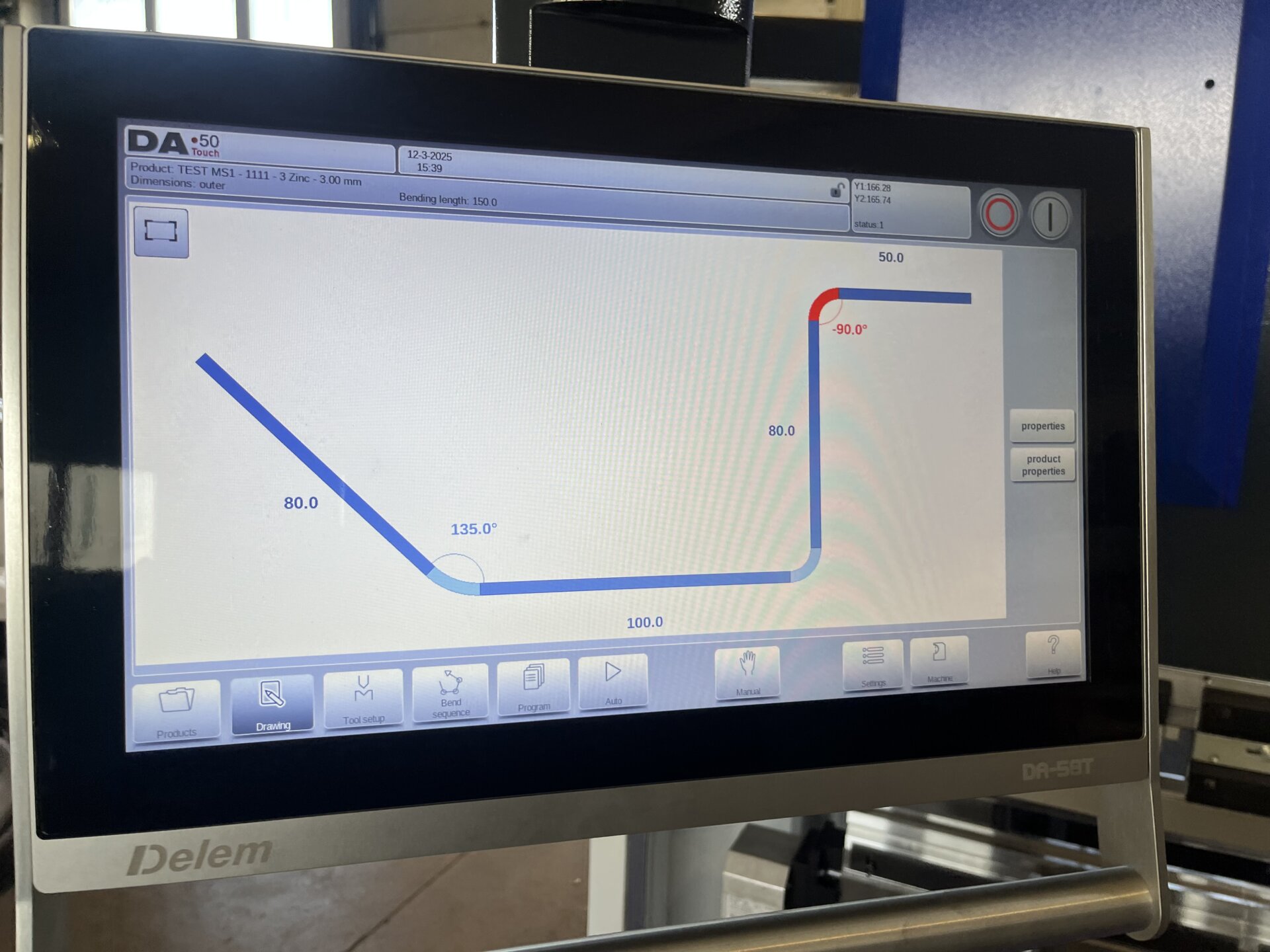

High-end DELEM CNC control unit with a touch screen
provides direct navigation between programming and
production. The UI is optimized for ergonomics with functions
exactly where the operator needs them. The panel is conveniently mounted on a fully adjustable arm.
Press brakes feature a rigid mono-block machine frame for minimum deflection under load. The steel frame is checked
by ultrasound and is stressrelieved after welding. All reference surfaces and connection holes are machined.

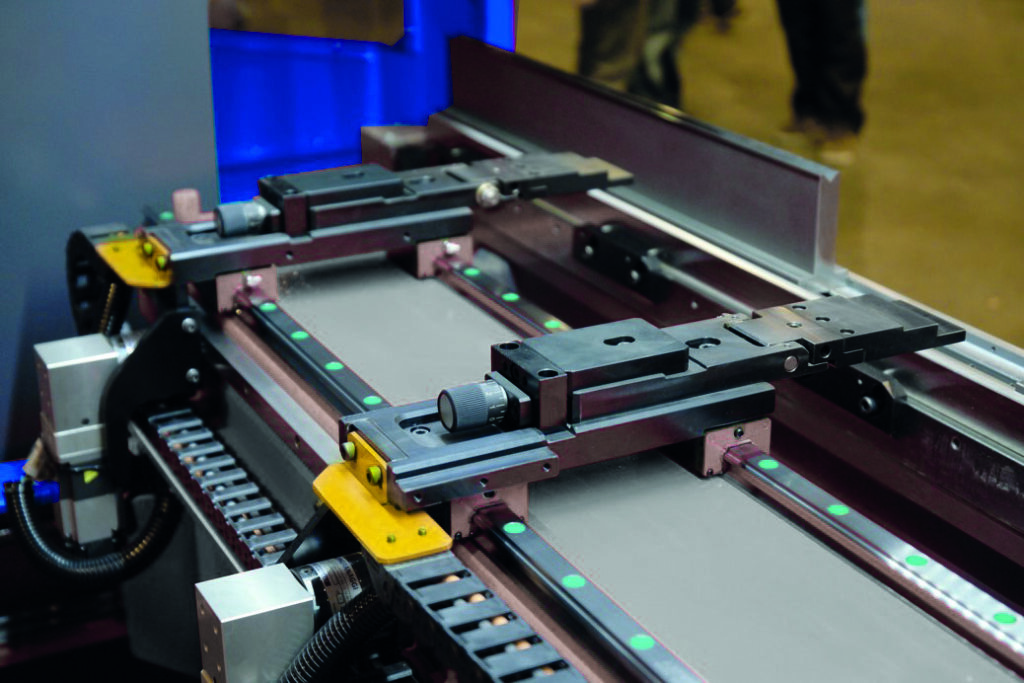

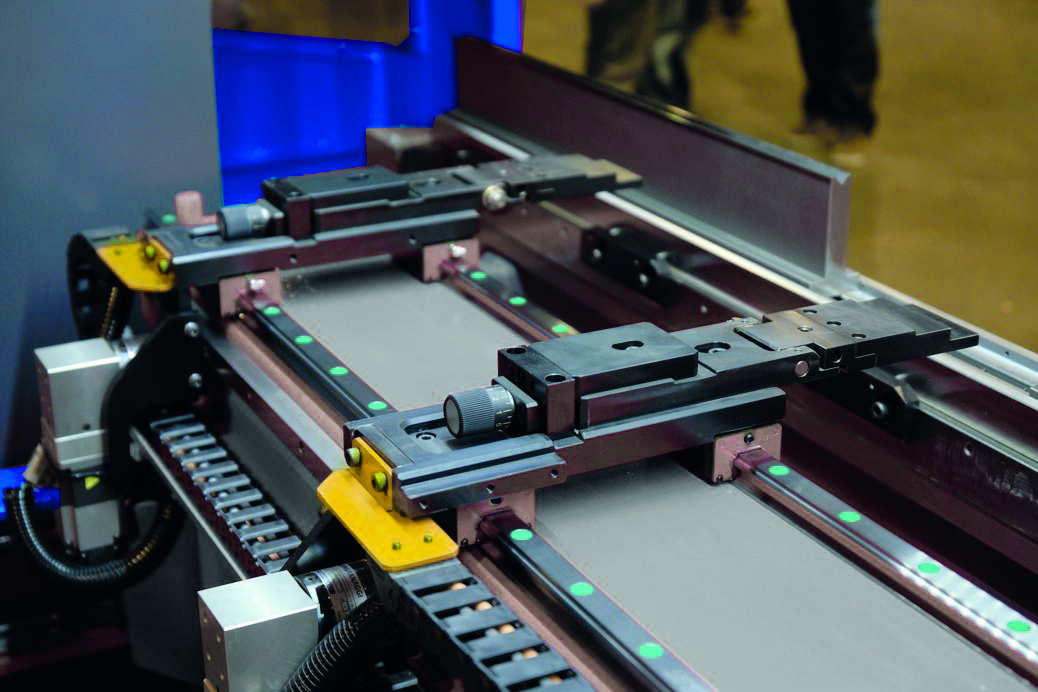

CNC-controlled and servo-driven backgauge that automatically adjusts position to ensure the material is positioned accurately, resulting in high quality finished parts.
The generous work space facilitates versatile production of parts requiring increased clearance. Throat depth can be optionally increased to allow processing of very large parts
Crowning eliminates the need for time consuming shimming by creating an adjustable crown in the middle of the table. All press brakes come with manual or a CNC-controlled crowning system. In the latter, the position and setting is automatically calculated from part data and set via CNC control.
High-end DELEM CNC control unit with a touch screen
provides direct navigation between programming and
production. The UI is optimized for ergonomics with functions
exactly where the operator needs them. The panel is conveniently mounted on a fully adjustable arm.
Press brakes feature a rigid mono-block machine frame for minimum deflection under load. The steel frame is checked
by ultrasound and is stressrelieved after welding. All reference surfaces and connection holes are machined.
CNC-controlled and servo-driven backgauge that automatically adjusts position to ensure the material is positioned accurately, resulting in high quality finished parts.
The generous work space facilitates versatile production of parts requiring increased clearance. Throat depth can be optionally increased to allow processing of very large parts
Crowning eliminates the need for time consuming shimming by creating an adjustable crown in the middle of the table. All press brakes come with manual or a CNC-controlled crowning system. In the latter, the position and setting is automatically calculated from part data and set via CNC control.
Video
Technical parameters
| Bending force | 400 – 4400 kN |
|---|---|
| Motor power | 4 – 30 kW |
| Oil tank capacity | 80 – 450 liters |
| Approach speed | 80 – 170 mm/s |
| Working speed | 8 – 10 mm/s |
| Return speed | 70 – 130 mm/s |
| Approx. weight | 3.3 – 22 ton |
| Bending length | 1,250 – 4,100 mm |
| Distance between columns | 1,070 – 3.550 mm |
|---|---|
| Side frame width | 1,470 – 2,060 mm |
| Bed height | 800 – 1,005 mm |
| Daylight opening | 455 – 660 mm |
| Stroke | 210 – 320 mm |
| Table width | 60 – 450 mm |
| Throat gap | 410 – 500 mm |
