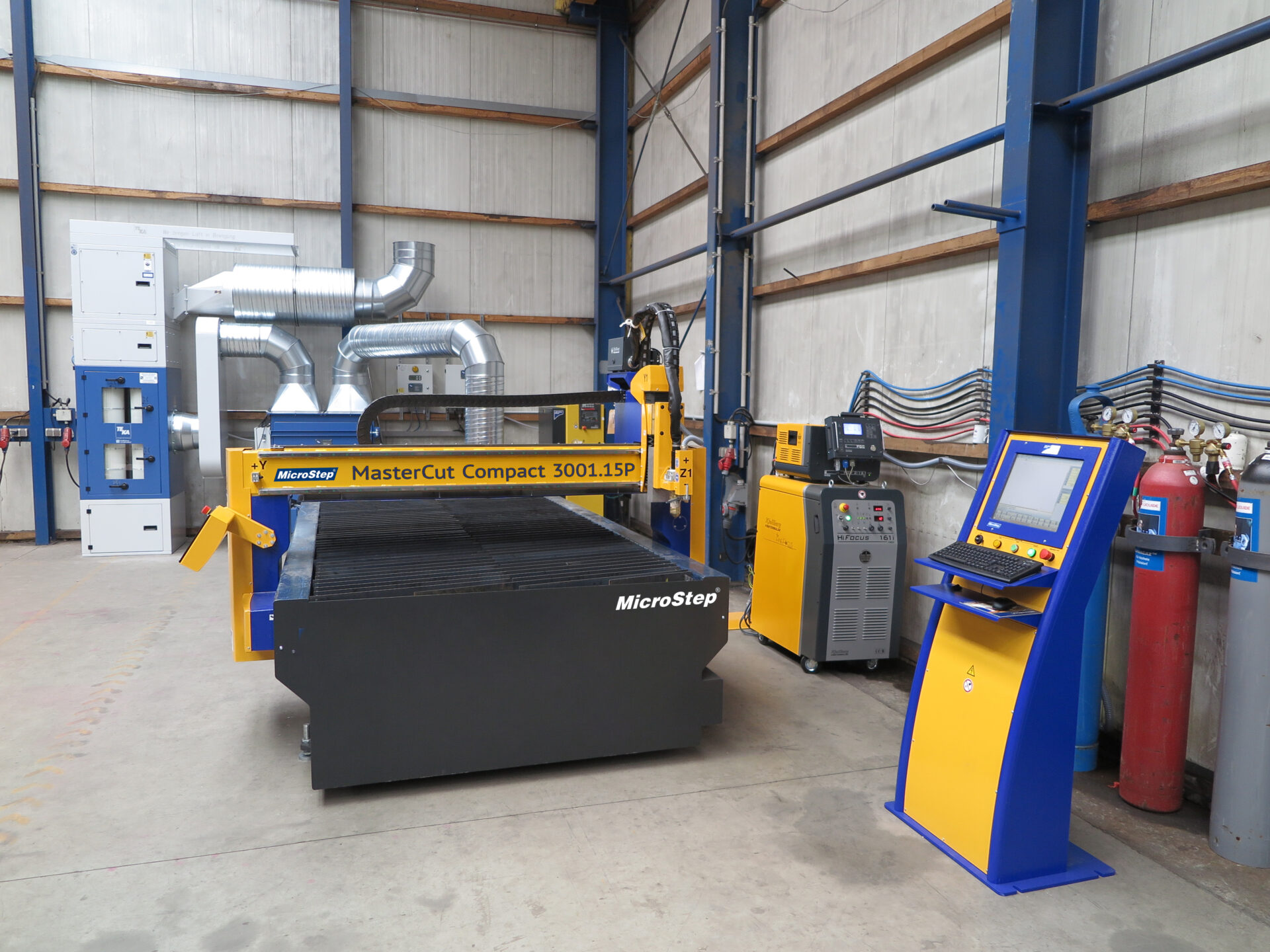

Compact, versatile and dynamic

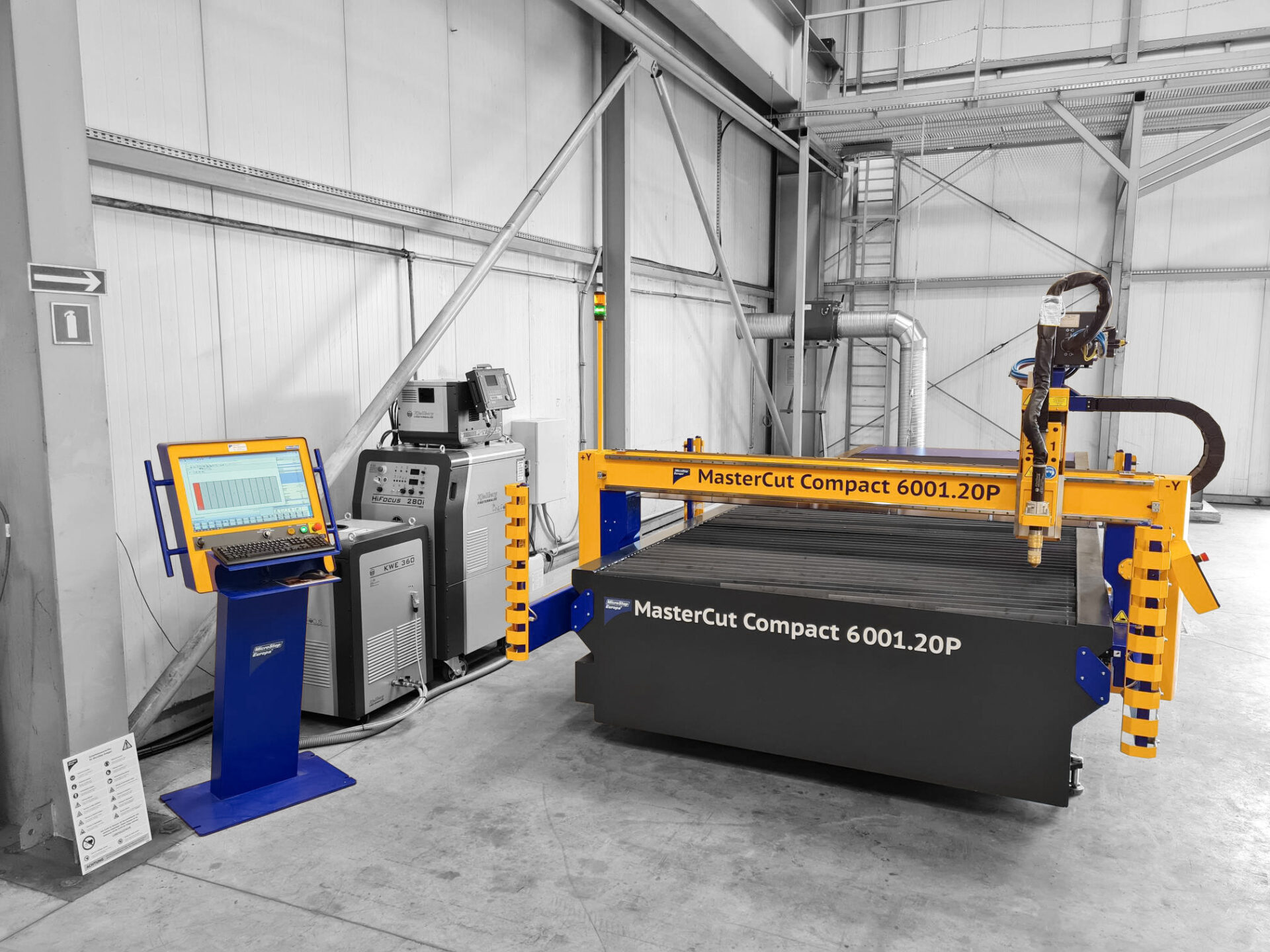

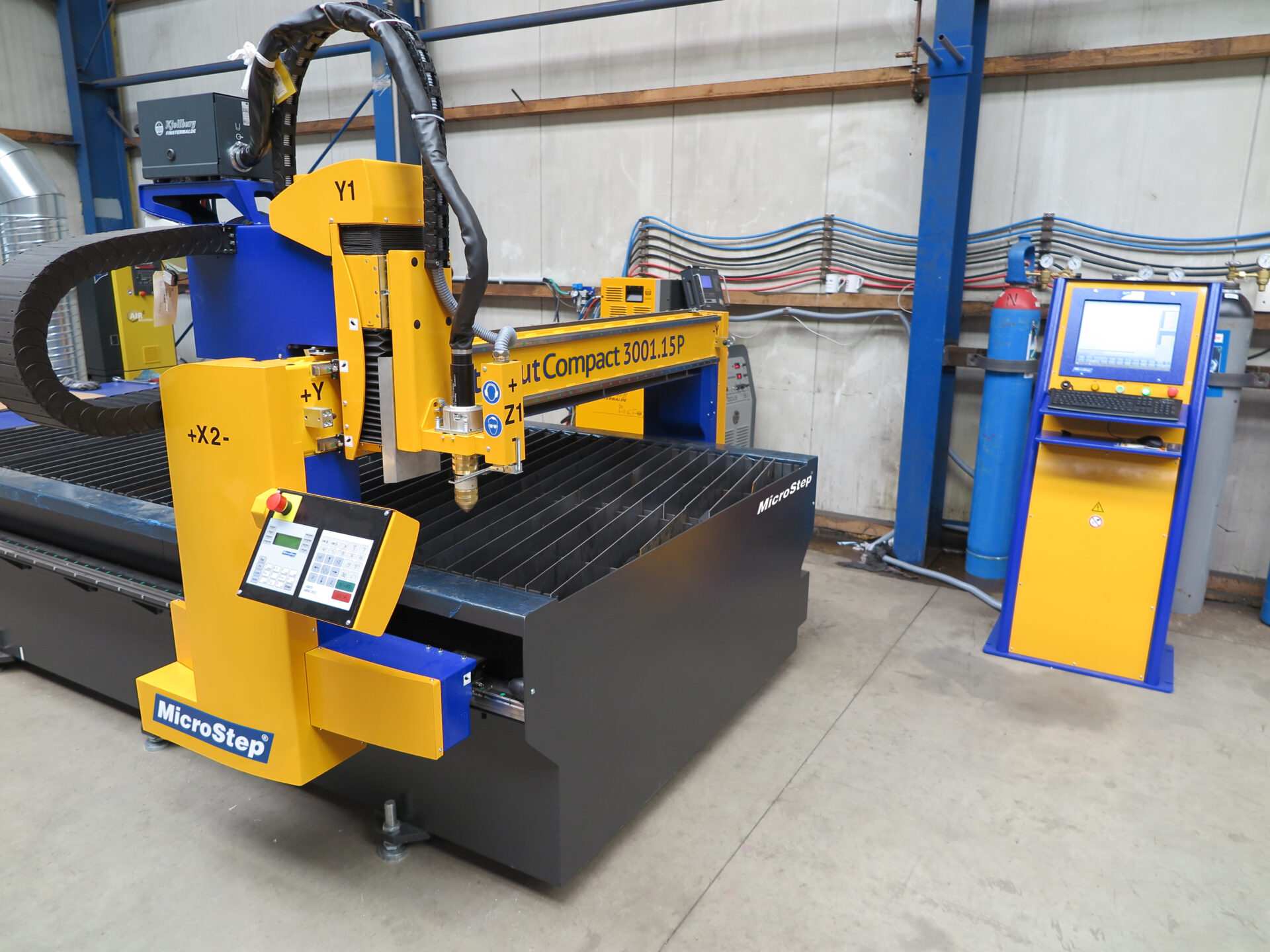

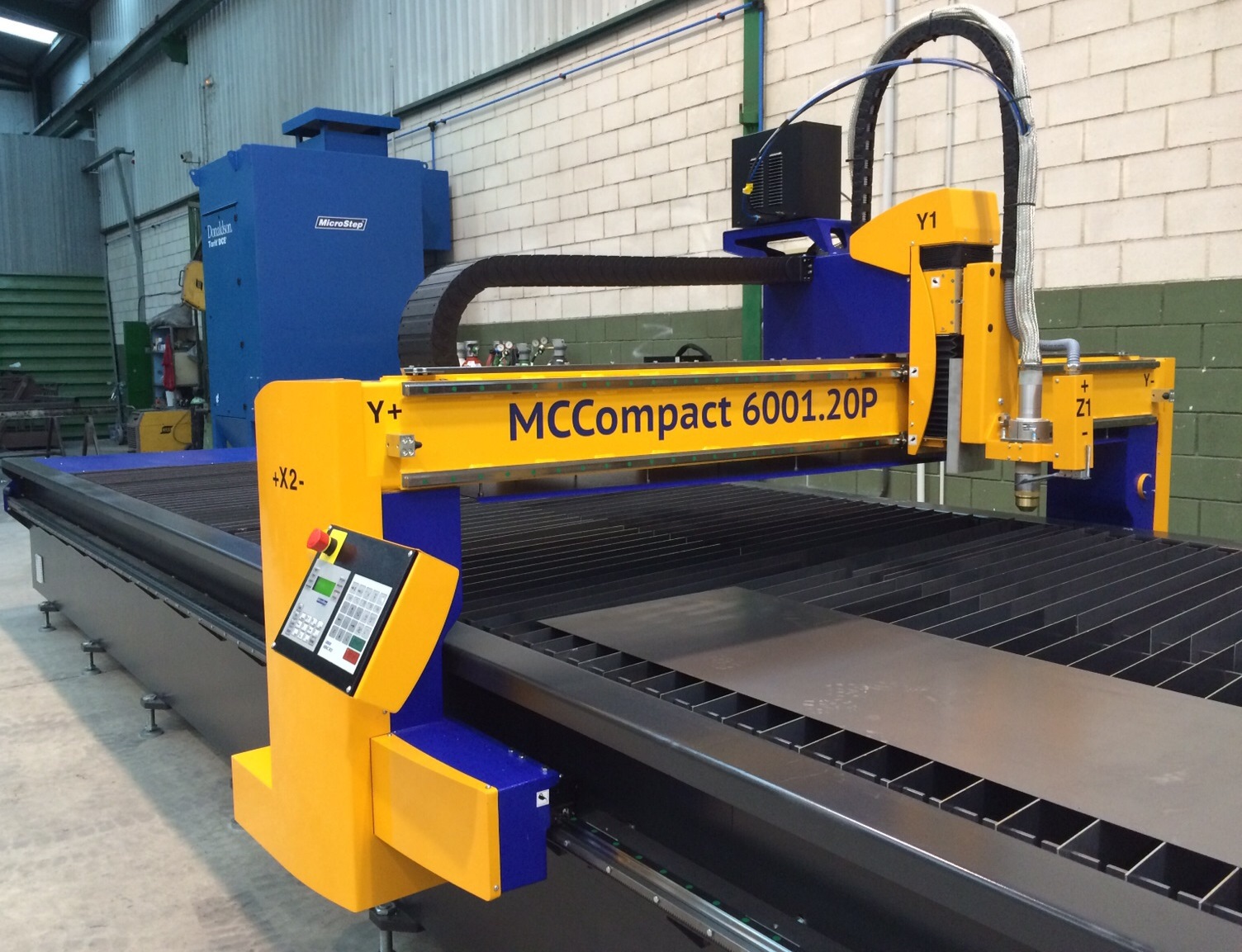

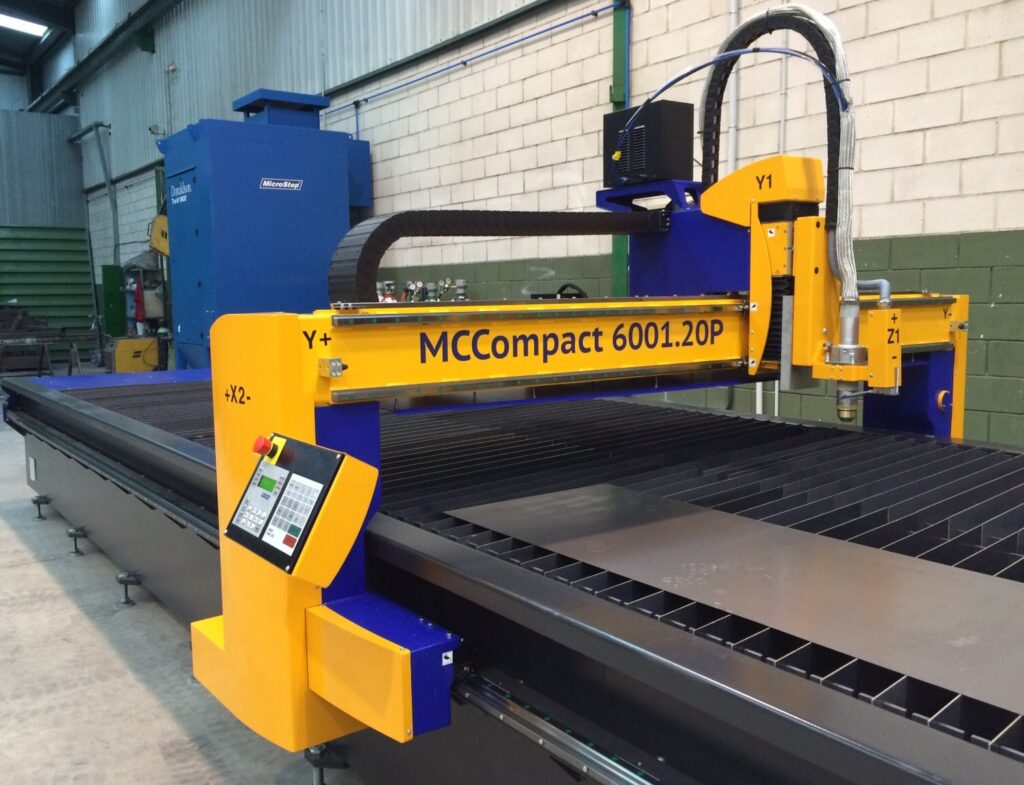

Thanks to its sophisticated design and highquality components, the machine smoothly delivers latest features of plasma technology for a decent price – true contours, small holes, sharp corners and efficient operation. As a fully compact machine it is moveable within the workshop while delivery in a preassembled state significantly shortens its start-up time.
Features

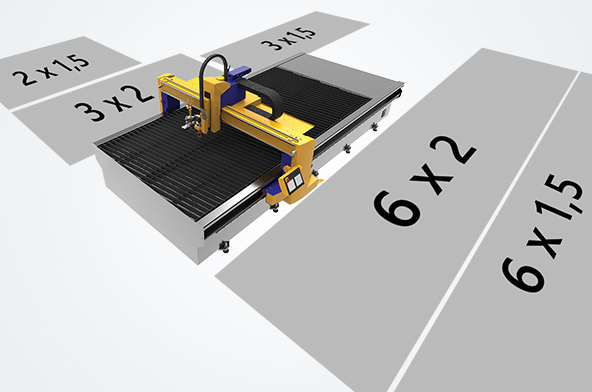

In order to optimize your production, you can choose from seven standard work area sizes.

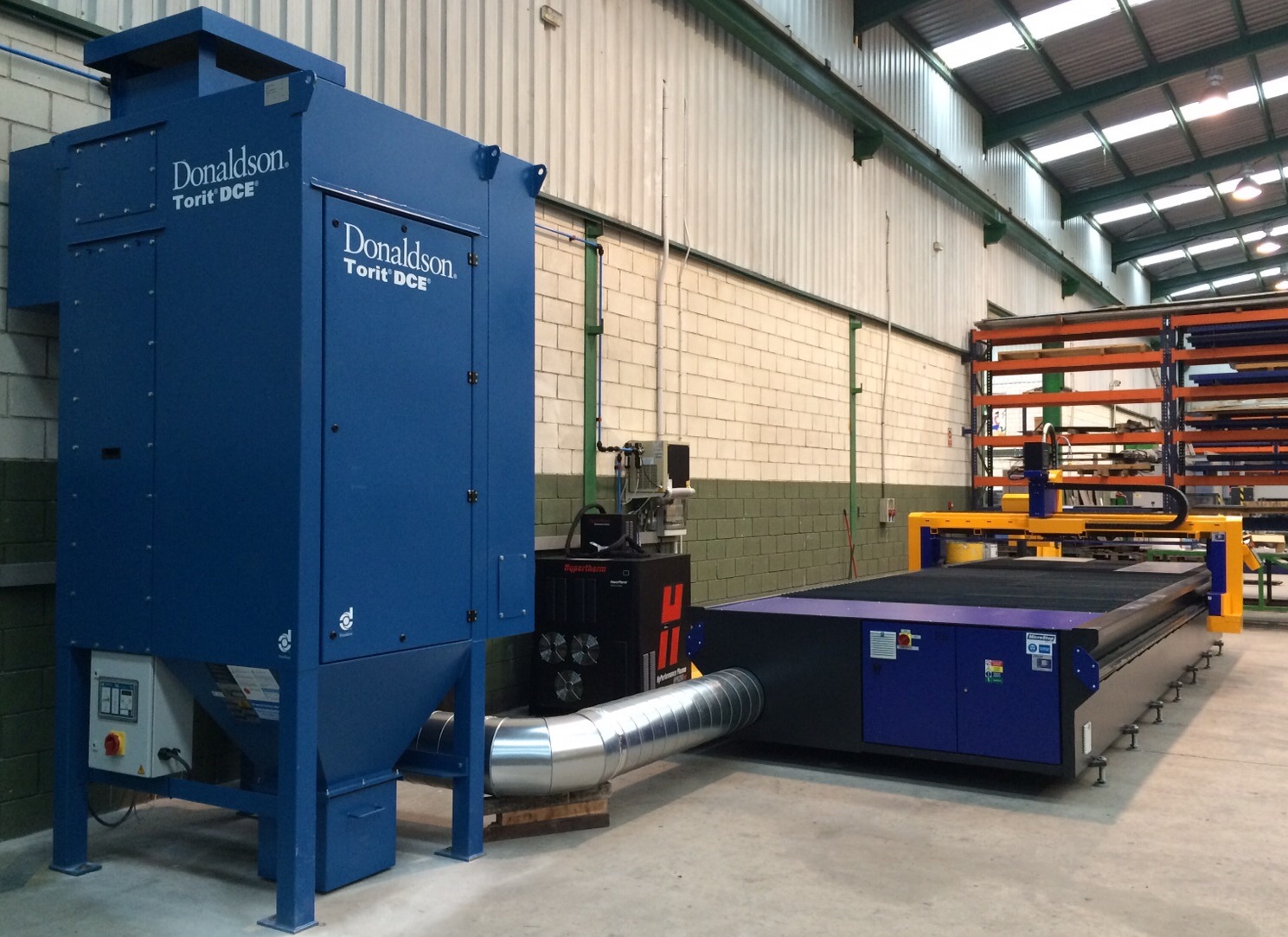

Space is costly so we designed MasterCut Compact as a compact stand-alone solution. Less space needed for cabling and media supplies gives you more space for your work.

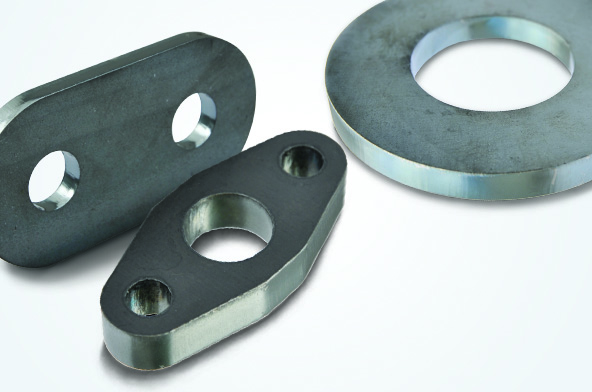

Better cutting quality means less post-processing, which helps you to save manufacturing costs. A proper technology is available for each cutting task: in addition to plasma, MasterCut Compact can be equipped also with an oxyfuel cutting head.
Cost savings are key – in comparison with laser systems, modern plasma cutting machines impress with their high cutting speeds and excellent cutting quality at substantially lower costs.

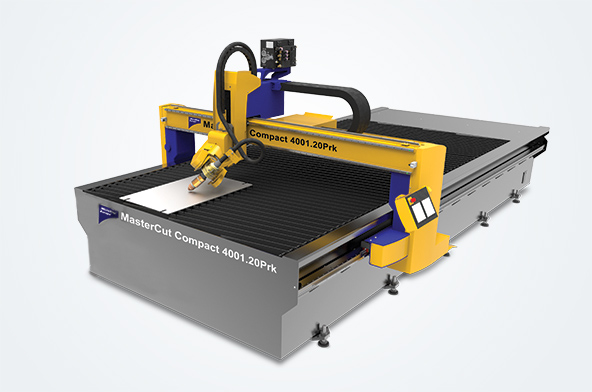

- V- and X-cuts as well as complex Y- or K-cuts
- Fully-automatic compensation of potential mechanical imprecisions of the bevel head’s geometry in the range of hundredths of a mm thanks to MicroStep’s patented ACTG® technology
- Automatic compensation of bevel angle with the Adaptive Bevel Compensation feature (ABC)

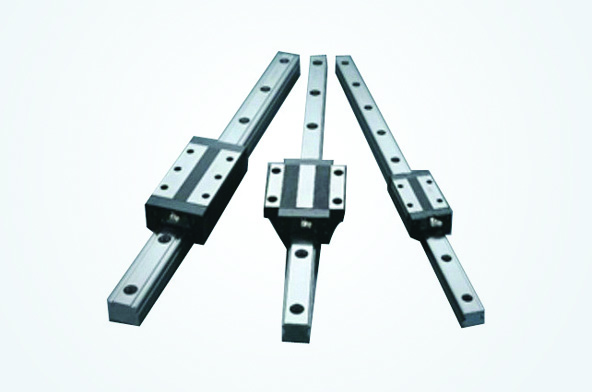

The machine maintains an uncompromising quality of components – linear guidelines in all axes, helical gears, sturdy gantries and monitoring of all electronic components ensure a seamless operation.
In order to optimize your production, you can choose from seven standard work area sizes.
Space is costly so we designed MasterCut Compact as a compact stand-alone solution. Less space needed for cabling and media supplies gives you more space for your work.
Better cutting quality means less post-processing, which helps you to save manufacturing costs. A proper technology is available for each cutting task: in addition to plasma, MasterCut Compact can be equipped also with an oxyfuel cutting head.
Cost savings are key – in comparison with laser systems, modern plasma cutting machines impress with their high cutting speeds and excellent cutting quality at substantially lower costs.
- V- and X-cuts as well as complex Y- or K-cuts
- Fully-automatic compensation of potential mechanical imprecisions of the bevel head’s geometry in the range of hundredths of a mm thanks to MicroStep’s patented ACTG® technology
- Automatic compensation of bevel angle with the Adaptive Bevel Compensation feature (ABC)
The machine maintains an uncompromising quality of components – linear guidelines in all axes, helical gears, sturdy gantries and monitoring of all electronic components ensure a seamless operation.
The in-house developed automatic calibration system for geometry of the cutting tool – ACTG® –…

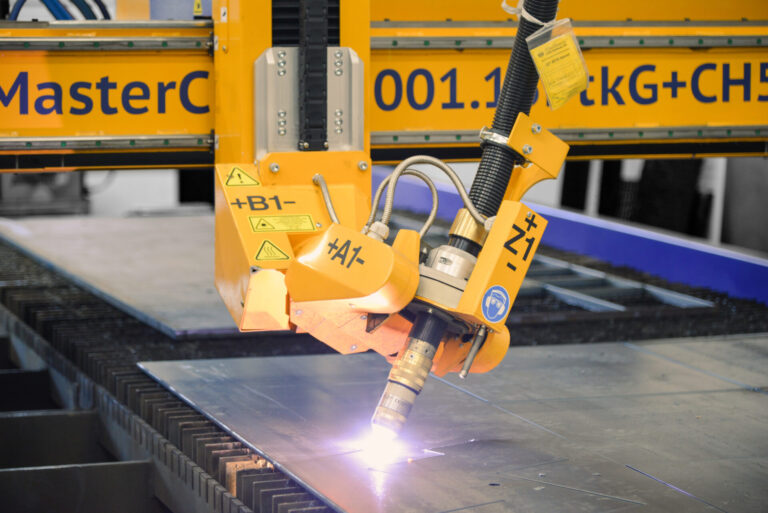

The 3D tilting plasma tool station enables bevel cutting with possibility of tilting up to…
Plasma tool station for straight (vertical) cutting comes with anti-collision protection, laser pointer, automatic torch-height…
Video
Technical parameters
| Working length | 1500 – 6000 mm |
|---|---|
| Working width | 1500 – 2000 mm |
| Max number of tool stations | 1 (2 with 2000 mm width) |
| Max thickness of material cut by plasma | according to the plasma source |
| Max thickness of material cut by oxyfuel | 100 mm |
| Bevel cutting | yes (see Accessories) |
|---|---|
| Pipe cutting | no |
| Drilling and tapping | no |
| Positioning speed | max 51 m/min |
| Bidirectional repeatability | 0.05 mm/m |

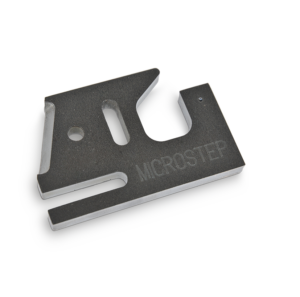

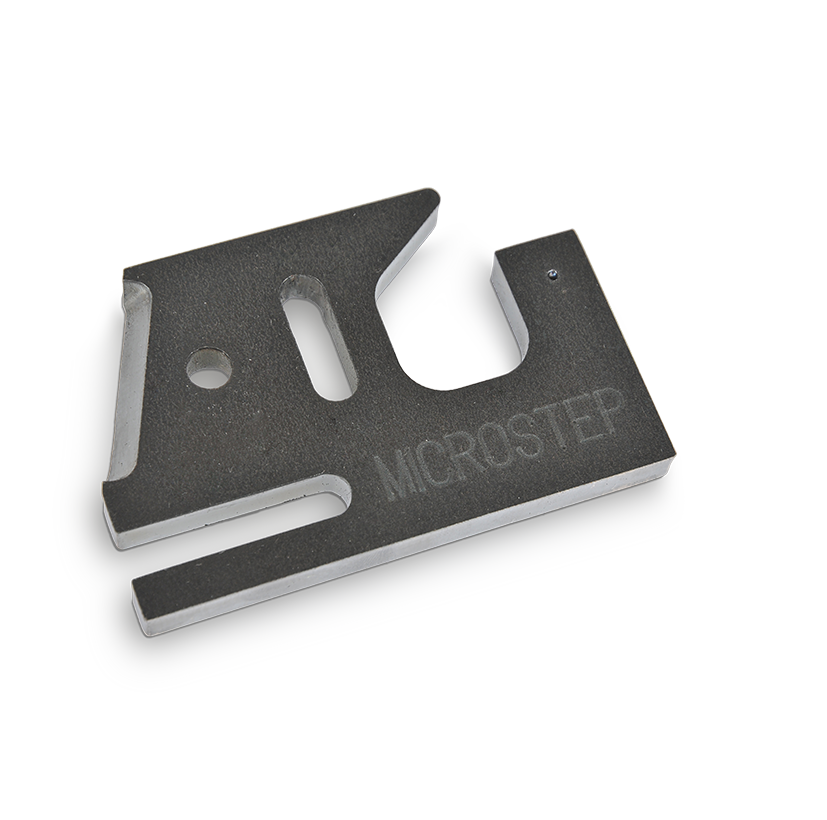

Samples
