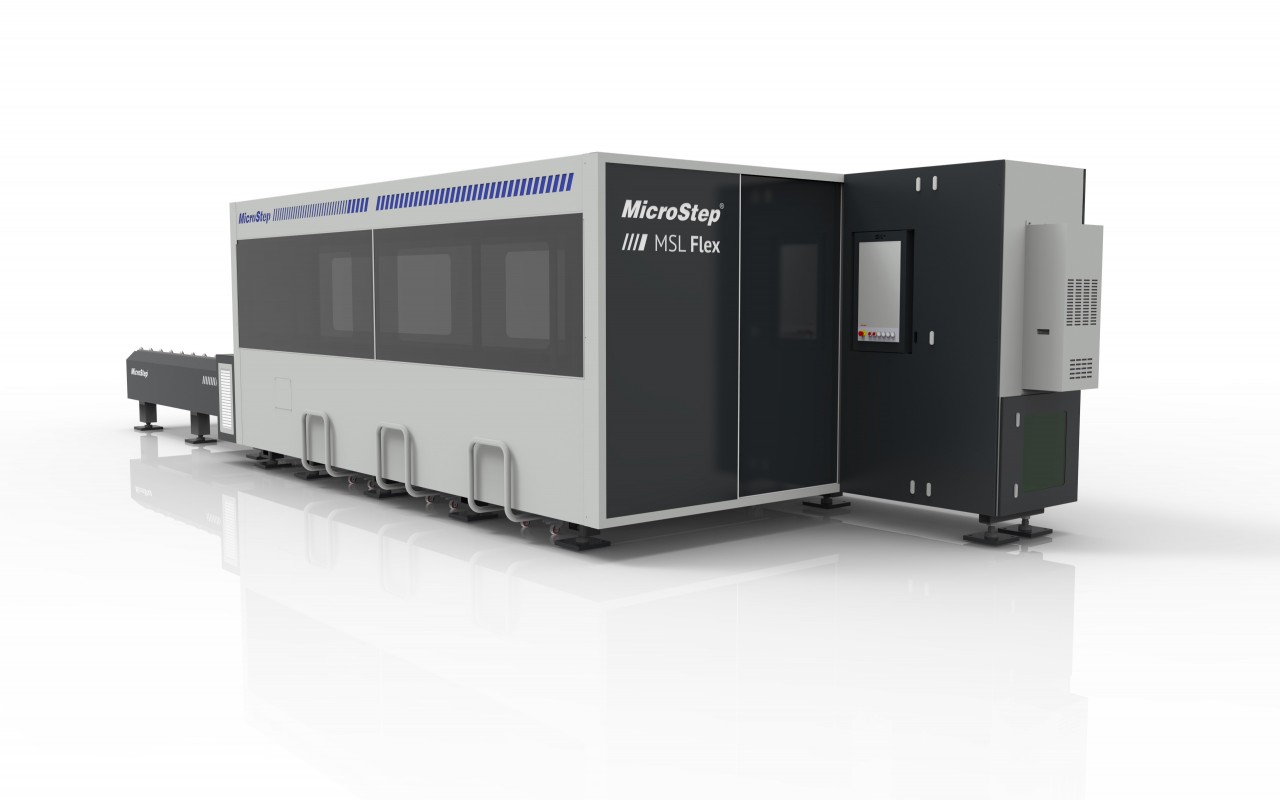

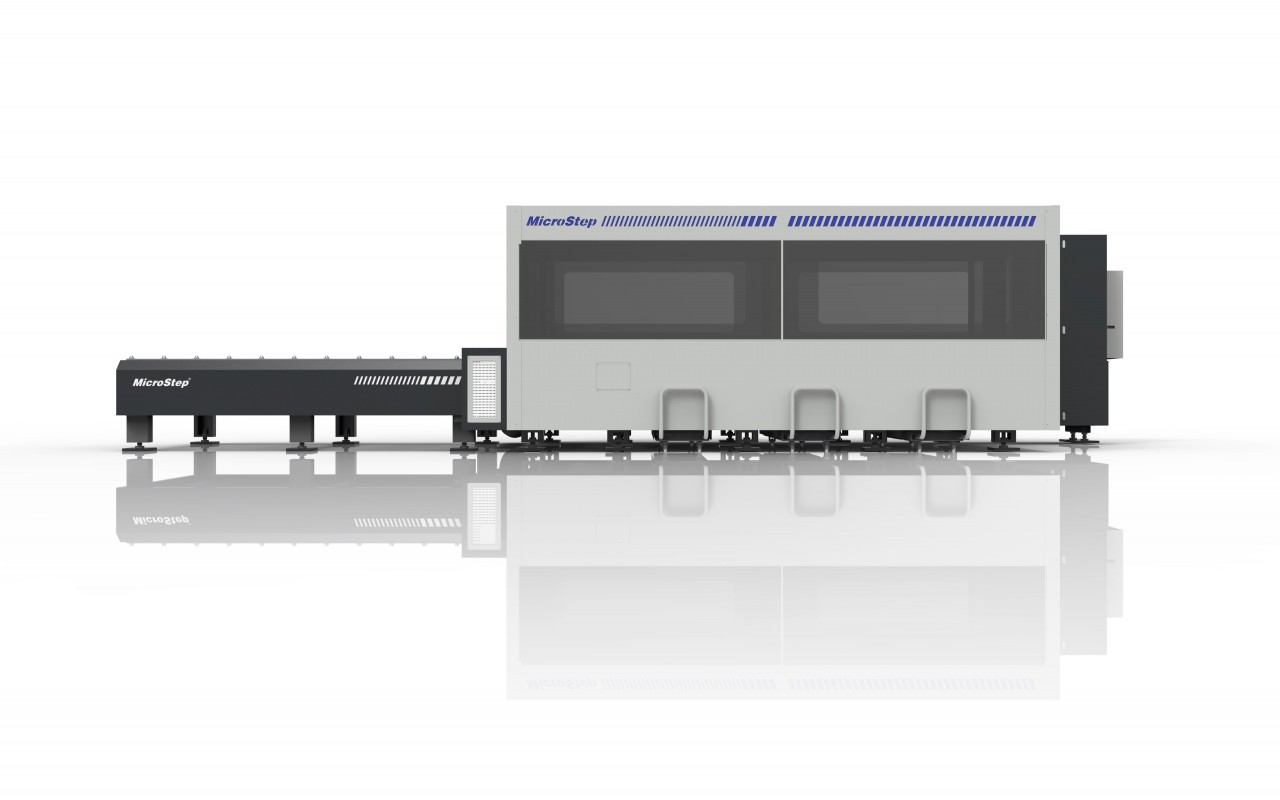

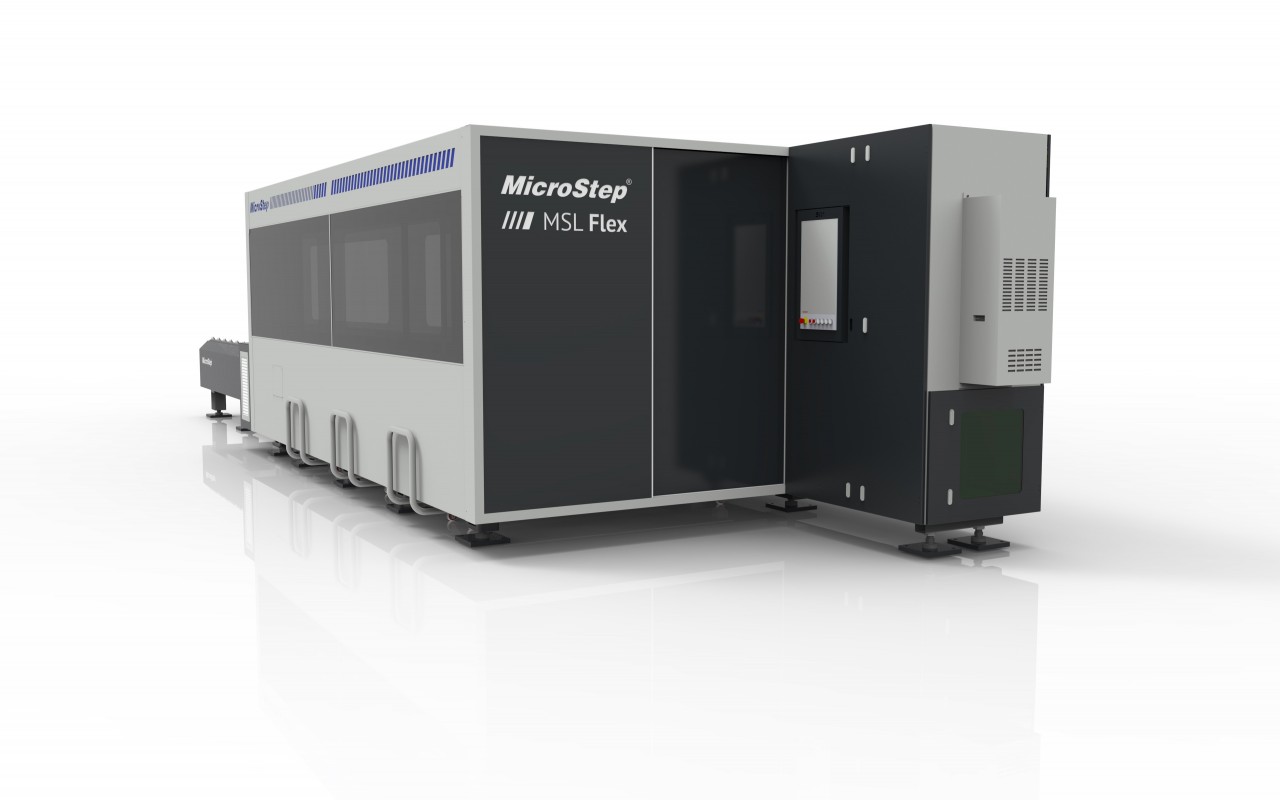

MSL Flex is the perfect stepping stone into the world of laser cutting. The precise laser cutting machine delivers an excellent value for money without compromising on quality. With reliable processing of 2D cutting tasks it lets its performance to speak for itself.
| Machine sizes | 3 x 1.5 m, 4 x 2 m, 6 x 2m, 6.5 x 2.5 m |
| Gantry | aluminum extrusion |
| Max number of tool stations | 1 (straight cutting only) |

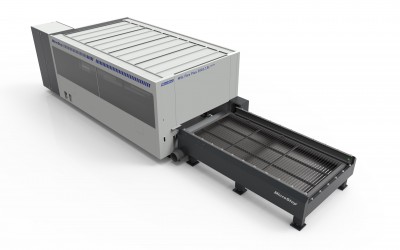

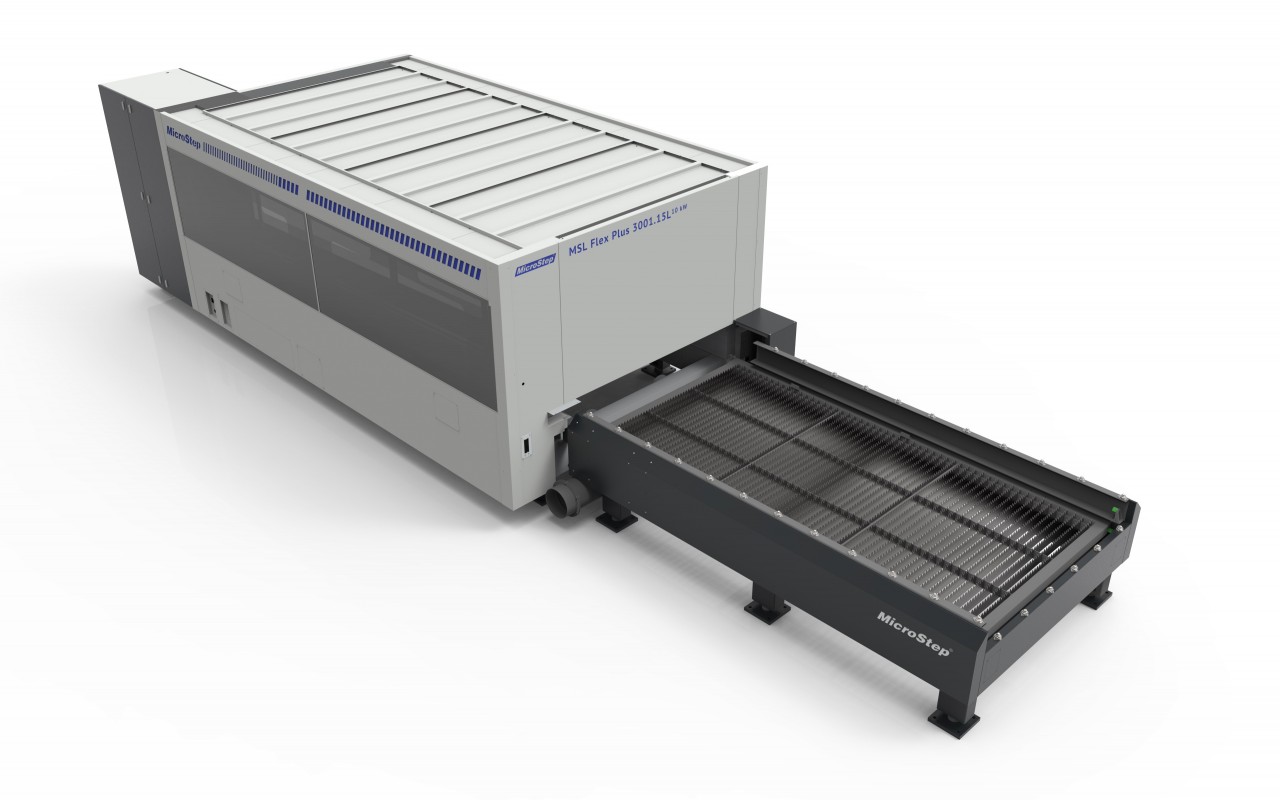

| Exchange table | two-level with automatic pallet exchange |
| Laser source | up to 20 kW*: IPG Photonics, Maxphotonics |
| (Entry-level laser source option) | SIL Laser |
| Cutting head | up to 8 kW: Raytools BM or THERMACUT EX-TRABEAM® Eco above 8 kW: Raytools BS or THERMACUT EX-TRABEAM® XP |
| Positioning speed | 130 m/min |
| Max. acceleration | 1.5 G |
| Positioning accuracy | ± 0.03 mm |
| CNC control | ECAT |
* Different laser powers are available on request
| Laser Source Power | Average Power Input in Production |
| 4 kW | 12 kW |
| 6 kW | 14 kW |
| 8 kW | 16 kW |
| 10 kW | 18 KW |
| 12 kW | 24 kW |
| 15 kW | 26 kW |
| 20 kW | 30 KW |
Please note: The tables above shows typical parameters. If you have different requirements, please contact us. All our solutions are tailor-made to customers' needs.
