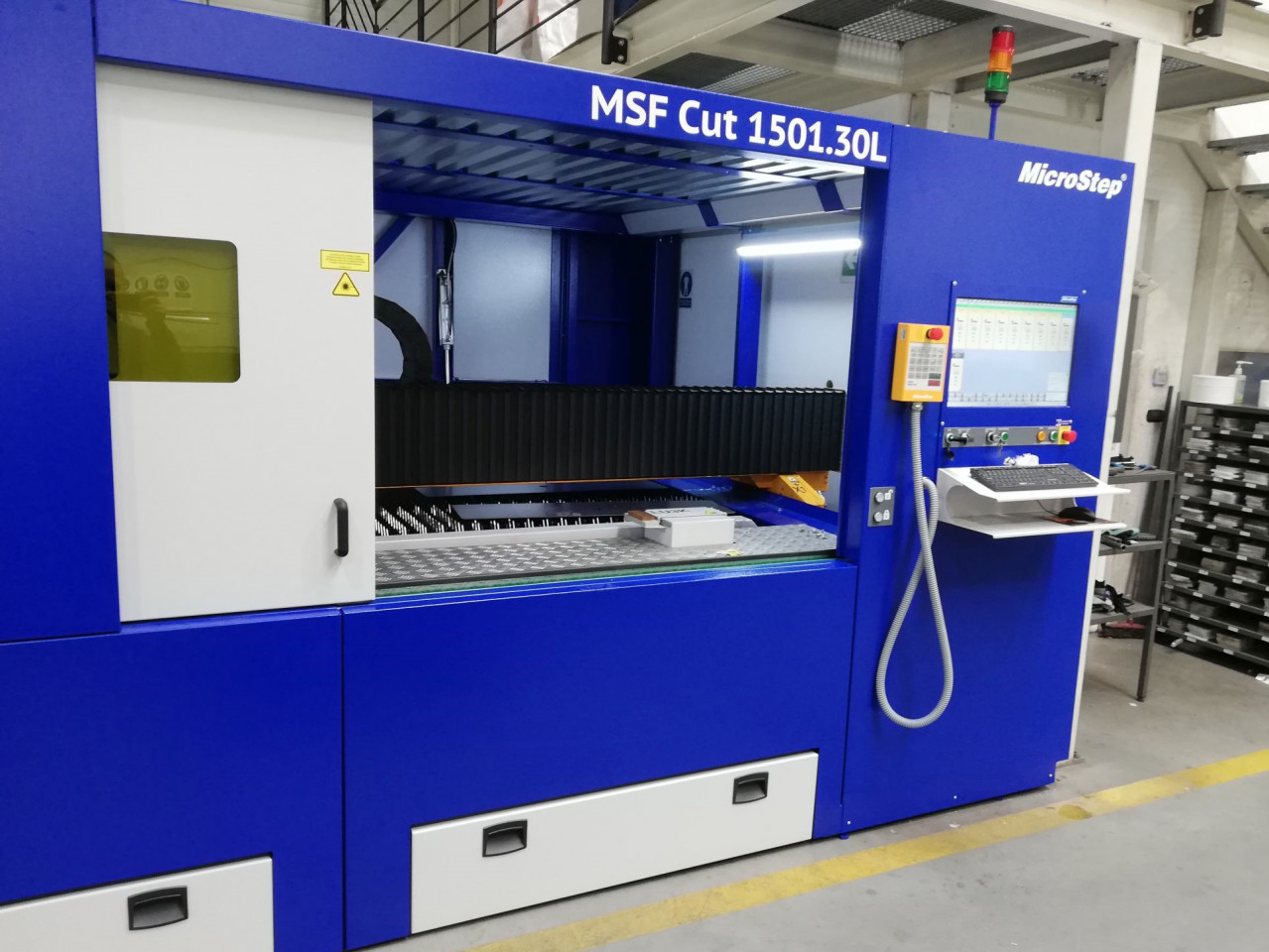

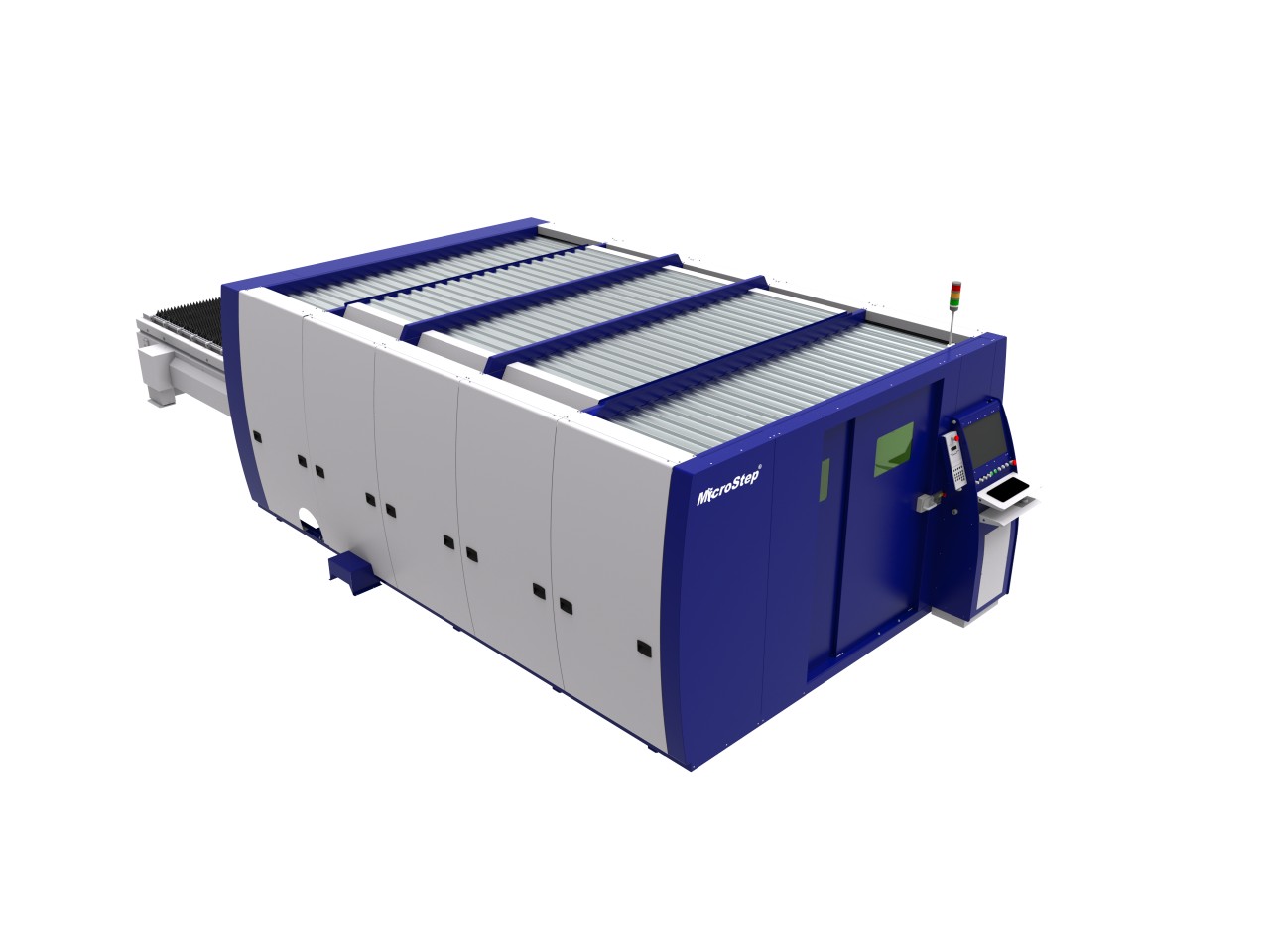

The fiber laser cutting machine MSF Cut offers a good price-performance ratio while preserving the dynamics inherent to MicroStep's MSF laser machine series. It impresses with high cutting accuracy at high cutting speeds as well as with low operational and maintenance costs. The machine is equipped with an automatic shuttle table that helps to streamline the material handling process. By default, MSF Cut features a 24-inch display GUI that provides an excellent overview of machine's operation and includes several advanced straight cutting functions, such as optimization of the cutting tool movement, automatic removal of protective plastic film that covers sheet metal in the cut area, or automatic calibration of material distance sensor in the cutting head.

Technical parameters

Machine sizes 3 x 1.5 m; 4 x 2 m; 6 x 2 m
Max number of tool stations 1 (only 2D cutting)
Max thickness of material  according to the laser source
Max laser source power 15 kW
Bevel cutting no (possible only on MSF Pro and MSF Max)
Pipe cutting no
Drilling and tapping no
Positioning speed (XY) max 180 m/min
Bidirectional repeatability 0.03 mm/m

Inquiry formBrochure

MSF Cut gallery

Accessories

  • Automatic Plate Alignment
  • Laser Straight Tool Station
