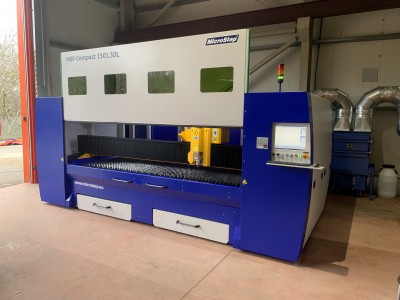

MSF Compact

MSF Compact is a powerful yet cost-effective fiber laser cutting machine, which doesn't compromise any of the dynamic properties of the MSF line. The machine is designed for production of highly accurate parts at high cutting speeds with a single cutting head and with suprisingly low maintenance and operational costs. It is equipped with fully telescopic single grate system mounted on linear guidelines which is pulled from the cabin to the front of the machine in order to ensure convenient loading/unloading.

Technical parameters

Machine sizes 1x2m, 1.25x2.5m, 1.5x3m
Max number of tool stations 1 (only 2D cutting)
Max thickness of material  according to the laser source
Max laser source power 8 kW
Bevel cutting no (possible only on MSF Pro and MSF Max)
Pipe cutting no
Drilling and tapping no
Positioning speed (XY) max 183 m/min
Bidirectional repeatability 0.03 mm/m


Please note: MSF Compact is supplied only in limited number of configurations and sizes.

Inquiry formBrochure

MSF Compact – “Plug & produce” fiber laser cutting machine

MSF Compact videos
MSF Compact gallery

MSF Compact References

Accessories

  • Automatic Plate Alignment
  • Laser Straight Tool Station
