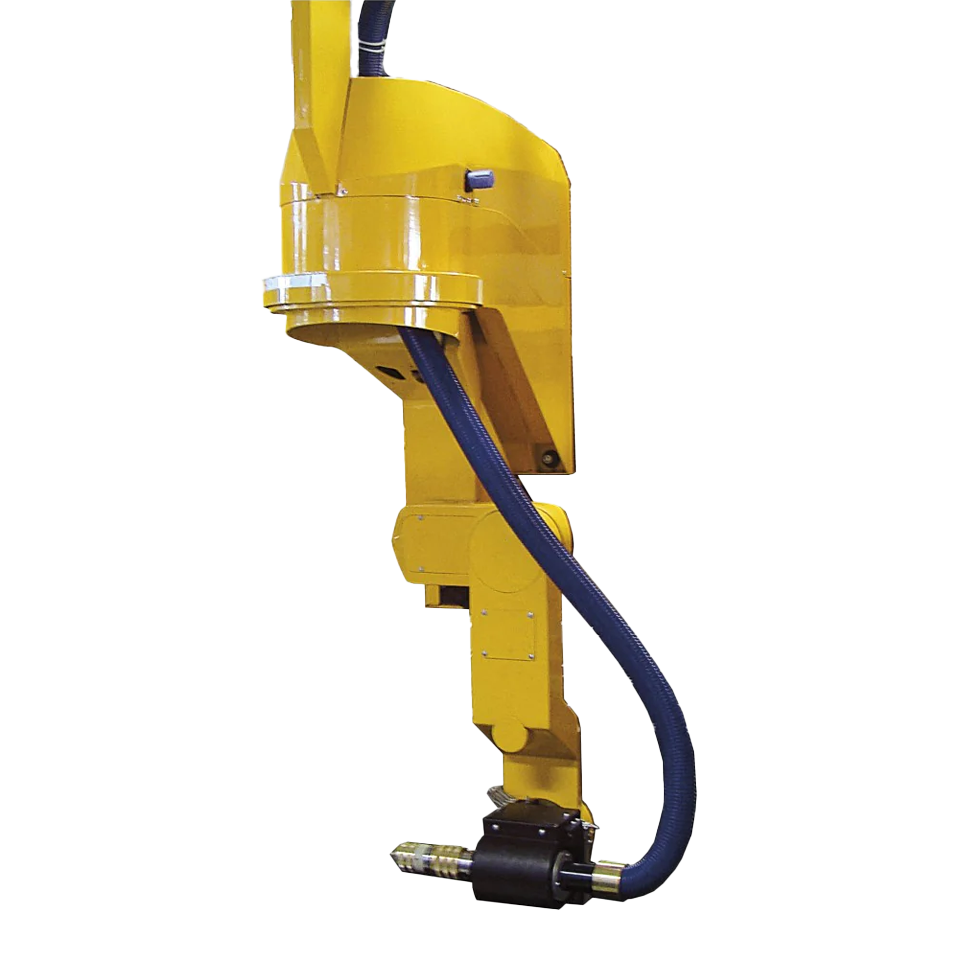

Plasma Rotator 120°

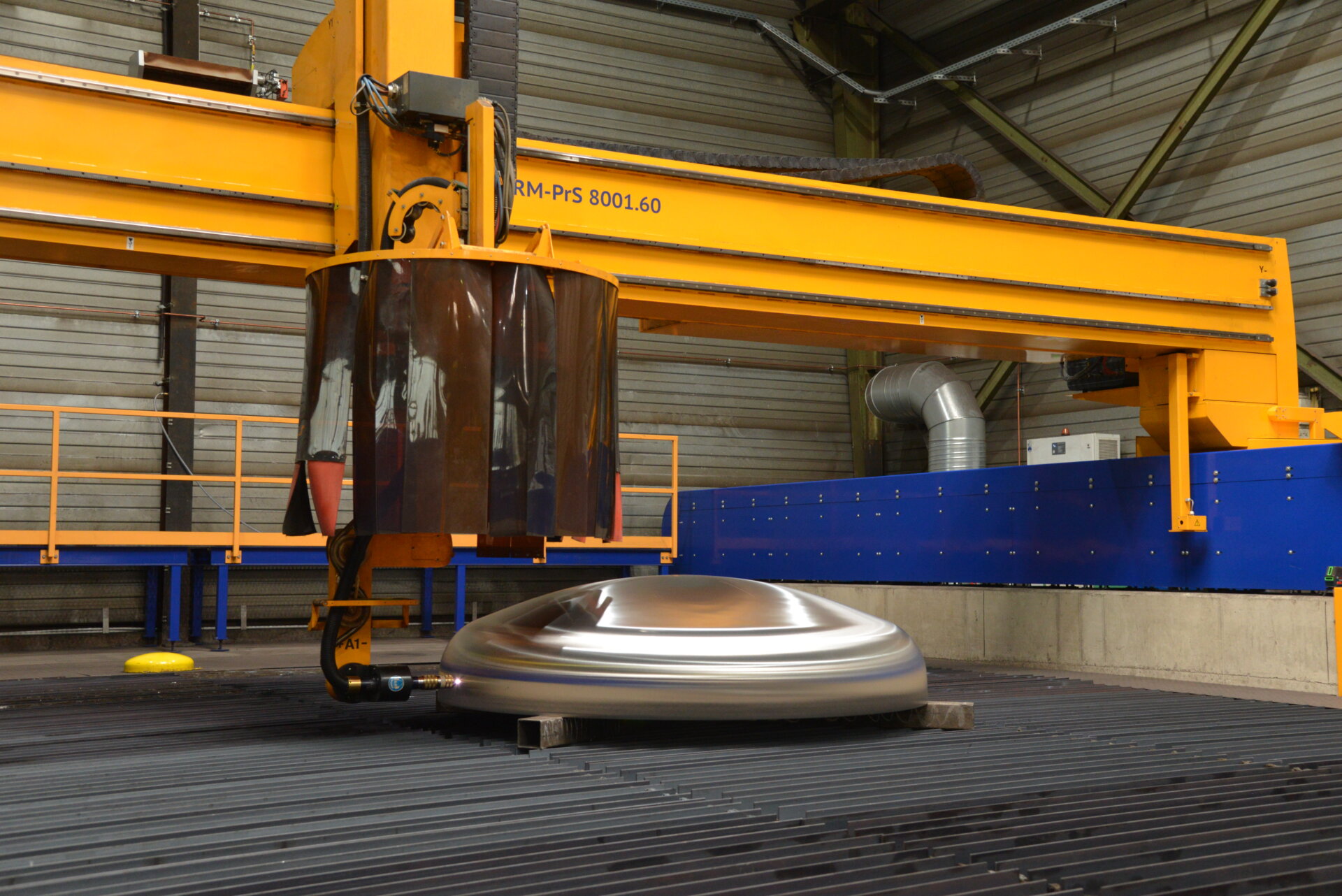

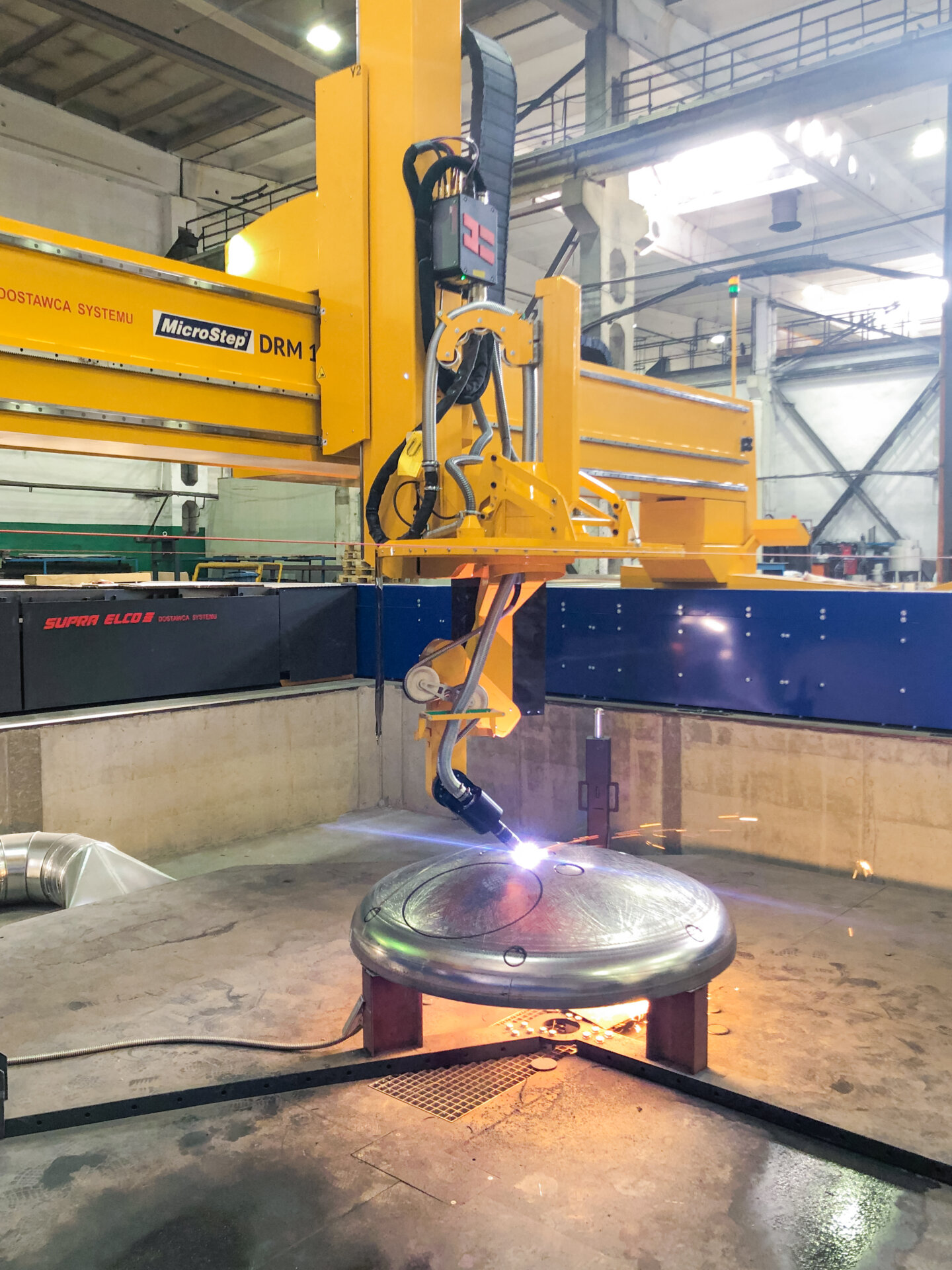

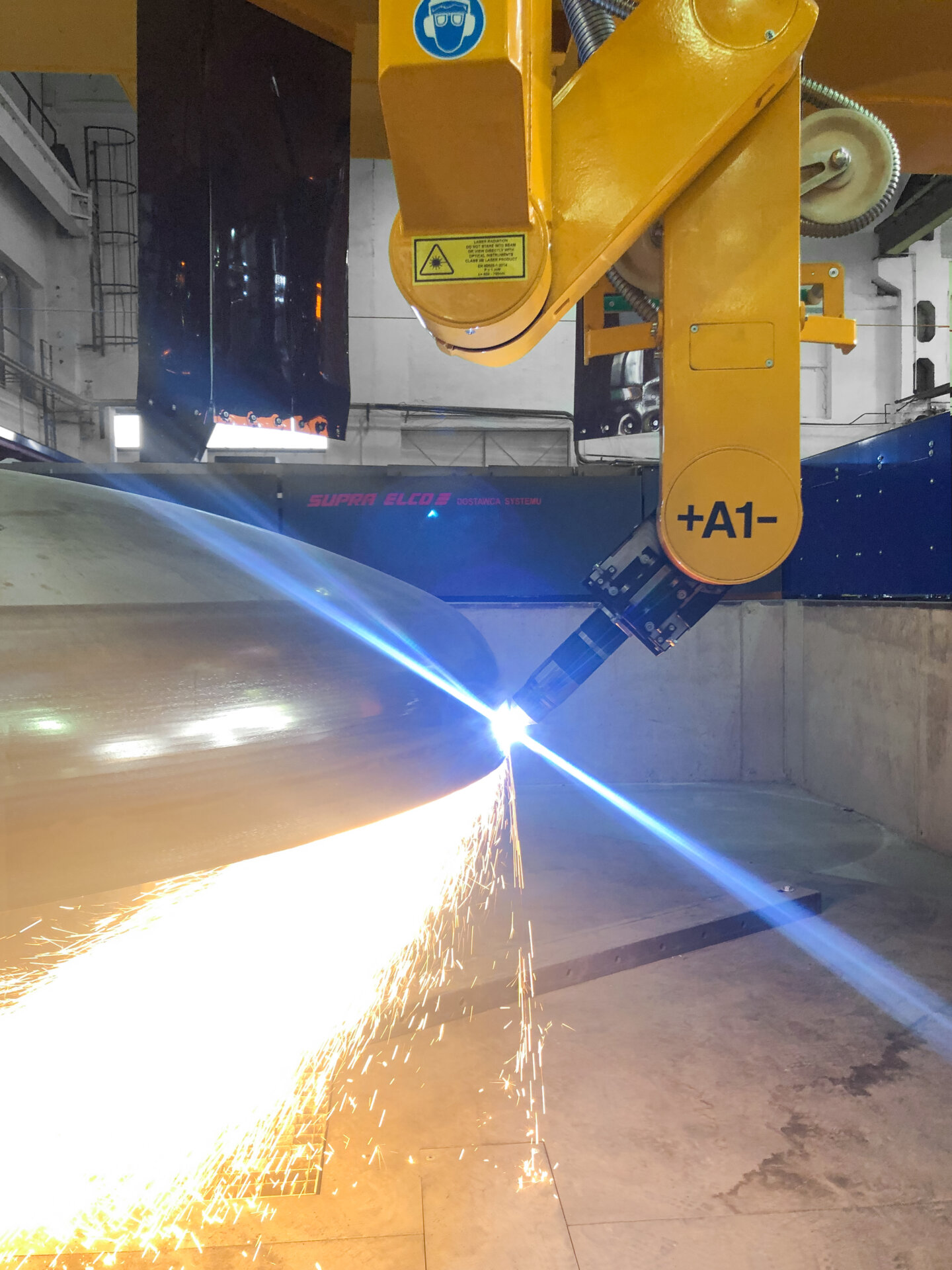

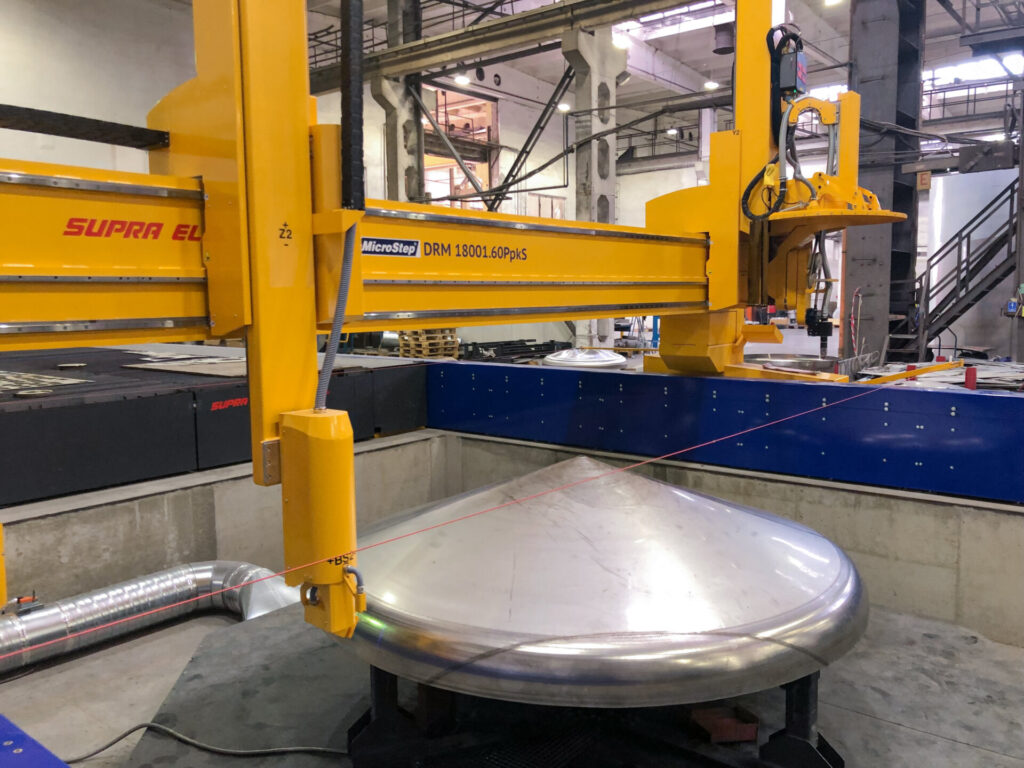

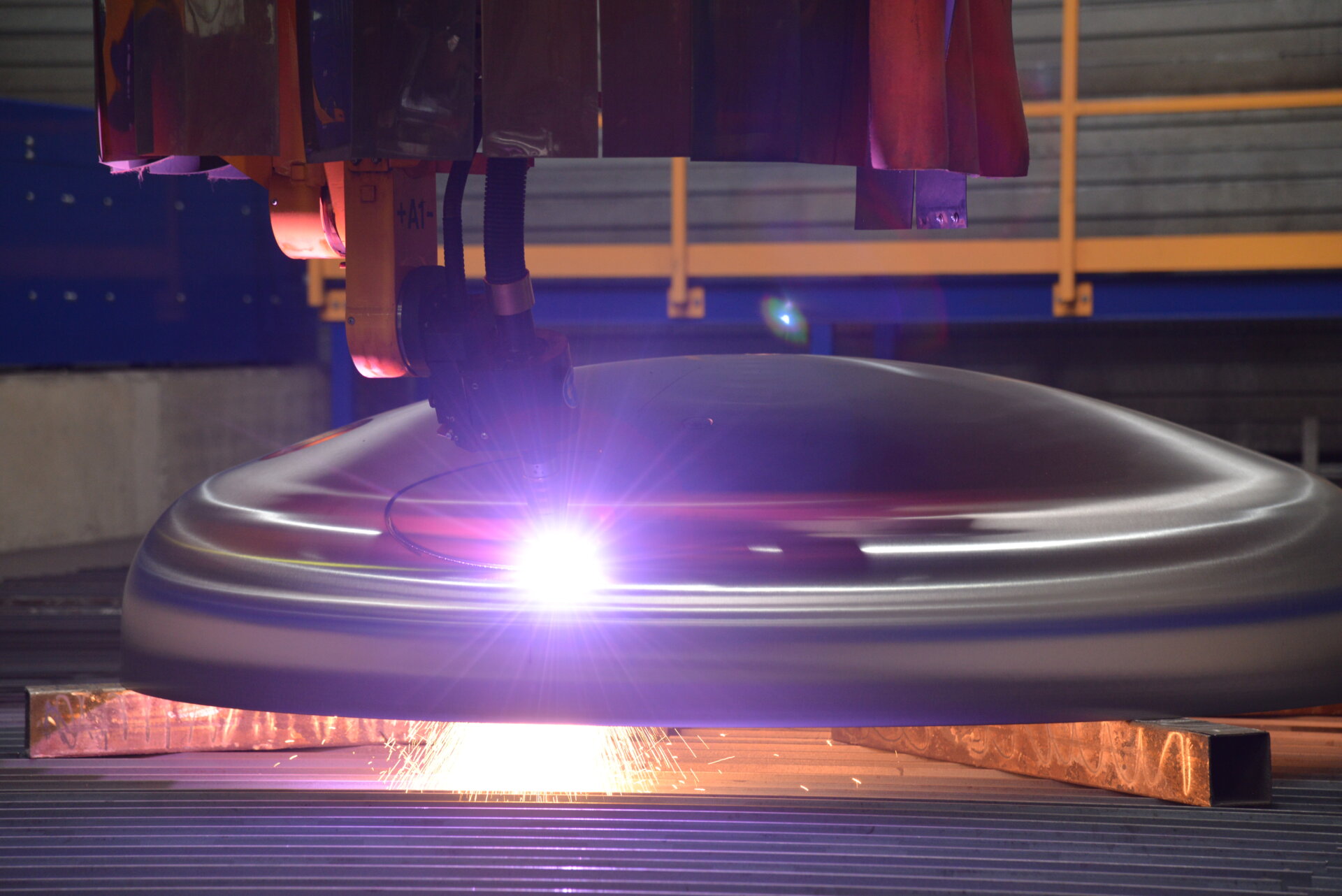

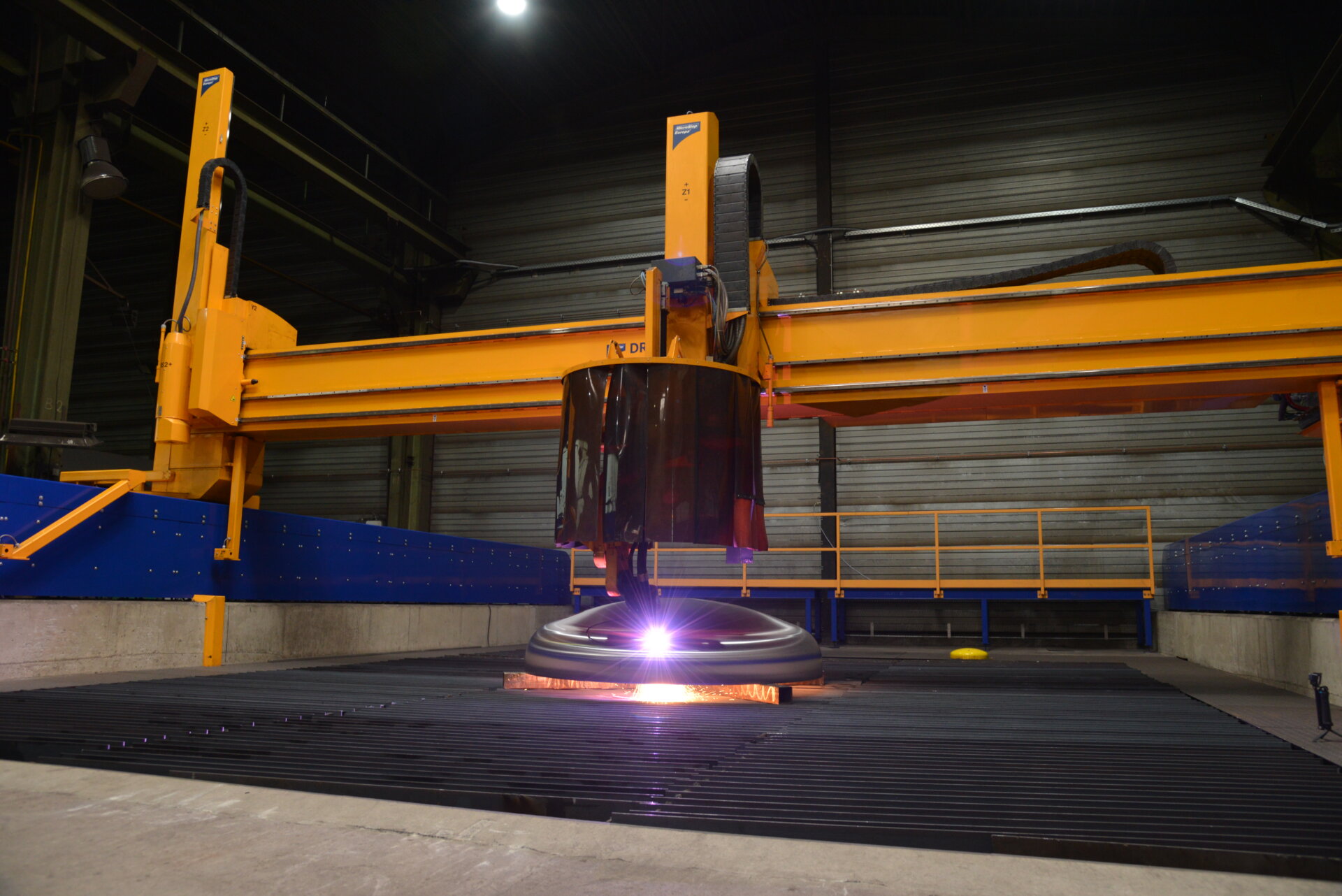

A special design with a tilt range of up to 120° and Z-axis stroke up to 1,500 mm is especially useful for cutting domes, steel beams and open profiles. It can cut at any point of a dome as well as to trim its edge. It can also trim ends of steel profiles and make various cuts in their webs and flanges. The variable bevel cutting feature provides a constant welding volume along the contour for robotic welding.
Technical parameters
| Degrees of freedom | 4 (Y, Z, A, B) + X on the machine |
|---|---|
| Max. thickness of material | according to plasma source |
| Torch inclination range (A) | +120° / -90° (including bevel corrections) |
| Torch rotation range (B) | unlimited |
| Working stroke (Z) | up to 1,500 mm[tooltip]Total stroke up to 1,600 mm[/tooltip] |
|---|---|
| Angular velocity | up to 130°/s (A and B axes) |
| Positioning speed in Z | up to 6 m/min |
| Precision of cutting | ISO 9013:2002 – tolerance class 2 |
Please note: Some parameters (e.g. max. thickness of material, total stroke etc.) vary with the machine type the tool station is installed upon.
| Degrees of freedom | 4 (Y, Z, A, B) + X on the machine |
|---|---|
| Max. thickness of material | according to plasma source |
| Torch inclination range (A) | +120° / -90° (including bevel corrections) |
| Torch rotation range (B) | unlimited |
| Working stroke (Z) | up to 59 1⁄16 in [tooltip] Total stroke up to 62 63⁄64 in [/tooltip] [tooltip]Total stroke up to 62 63⁄64 in [/tooltip] |
|---|---|
| Angular velocity | up to 130°/s (A and B axes) |
| Positioning speed in Z | up to 19.67 ft/min |
| Precision of cutting | ISO 9013:2002 – tolerance class 2 |
Please note: Some parameters (e.g. max. thickness of material, total stroke etc.) vary with the machine type the tool station is installed upon.
