Plasma Bevel Tool Station

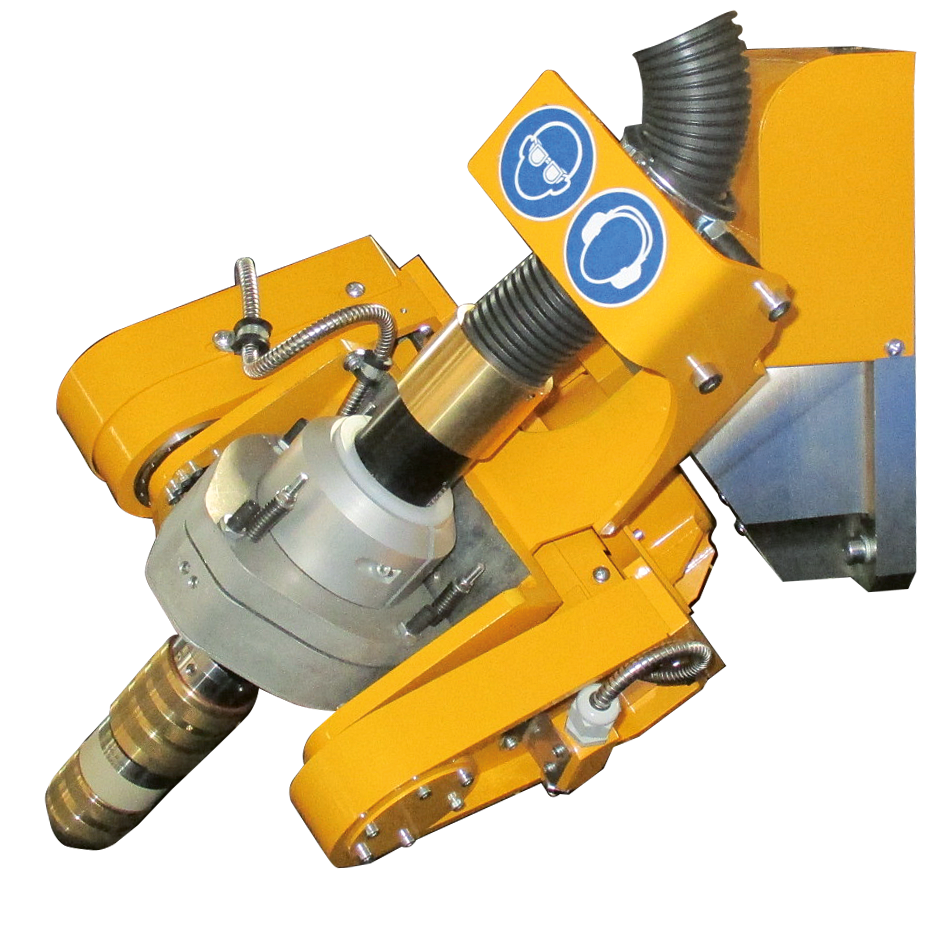

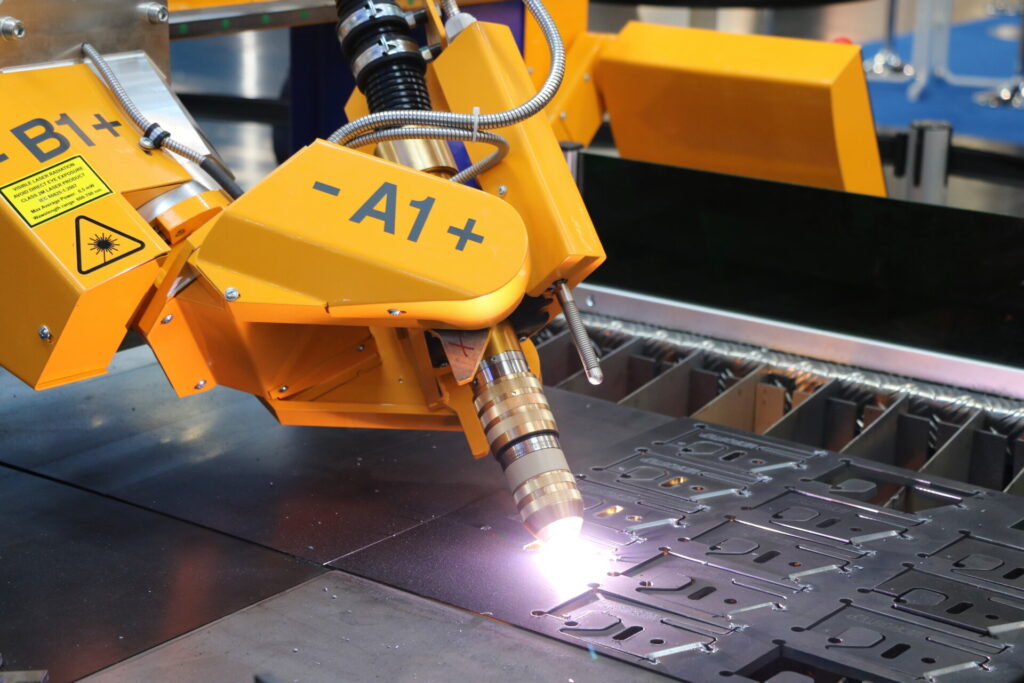

Plasma bevel cutting head with a tilting ability up to 47° allows to perform a great portion of common bevel cutting jobs. The plasma torch is fixed in an anti-collision holder.
Technical parameters
| Degrees of freedom | 4 (Y, Z, A, B) + X on the machine |
|---|---|
| Max. thickness of material | according to plasma source |
| Torch inclination range (A) | ± 47° (including bevel corrections) |
| Total stroke (Z) | up to 150 mm |
| Angular velocity | up to 130°/s (A and B axes) |
|---|---|
| Positioning speed in Y | up to 20 m/min |
| Positioning speed in Z | up to 6 m/min |
| Precision of cutting | ISO 9013:2002 – tolerance class 2 |
Please note: Some parameters (e.g. max. thickness of material, total stroke etc.) vary with the machine type the tool station is installed upon.
| Degrees of freedom | 4 (Y, Z, A, B) + X on the machine |
|---|---|
| Max. thickness of material | according to plasma source |
| Torch inclination range (A) | ± 47° (including bevel corrections) |
| Total stroke (Z) | up to 5 29⁄32 in |
| Angular velocity | up to 130°/s (A and B axes) |
|---|---|
| Positioning speed in Y | up to 65.62 ft/min |
| Positioning speed in Z | up to 19.69 ft/min |
| Precision of cutting | ISO 9013:2002 – tolerance class 2 |
Please note: Some parameters (e.g. max. thickness of material, total stroke etc.) vary with the machine type the tool station is installed upon.
