Accessories

5-axis plasma head with infinitive rotation enables bevel cutting of sheets, pipes and profiles with tilting up to 50°.

Tilting tool station enables automatic setting of the torch's tilt for bevel cutting with plasma in the longitudinal direction (X axis).

A special design with a tilt range of up to 90° is especially useful for cutting domes and steel beams/profiles.

he MicroPunch marking unit is intended for fast and simple marking of parts with different surfaces (tubes, planar parts) and material. The surface can be finished or unfinished.

Inkjet writer tool station carries an inkjet writer device. Apart from Y and Z axes, the tool station has a rotary axis for turning orifices of the device around the Z axis, thus enabling marking of lines with different thicknesses and texts of different sizes.

MicroStep offers variety of drilling and tapping tool stations for several machine types reaching from small drilling heads for soft sandwich materials to big drilling and tapping units with internal ...

This camera can be used for two applications: Template scanning or Synchronization with pre-drilled holes.

The Automatic Plate Alignment is a feature of the control system that enables automatic setting of a program starting point and detecting rotation of the plate.

Additional beveling process (ABP) is used for creating Y or K cuts in thicker plates. This process works with a special dedicated scanner (ABP scanner).

This tool station with a fork-type torch is intended for cutting stripes with oxyfuel torches in the width range of 70 – 150 mm. It is equipped with an anti-collision protection system and igniter for ...

It has three functions: cleaning of a laser cutting head nozzle, camera for checking status of the nozzle and calibration of a capacitive height sensor.

This tool station for oxyfuel bevel cutting with continuous rotation allows contour bevel cutting with no cable "un-wrap" cycle required. It enables cutting of K-, V- and Y-cuts in one go.

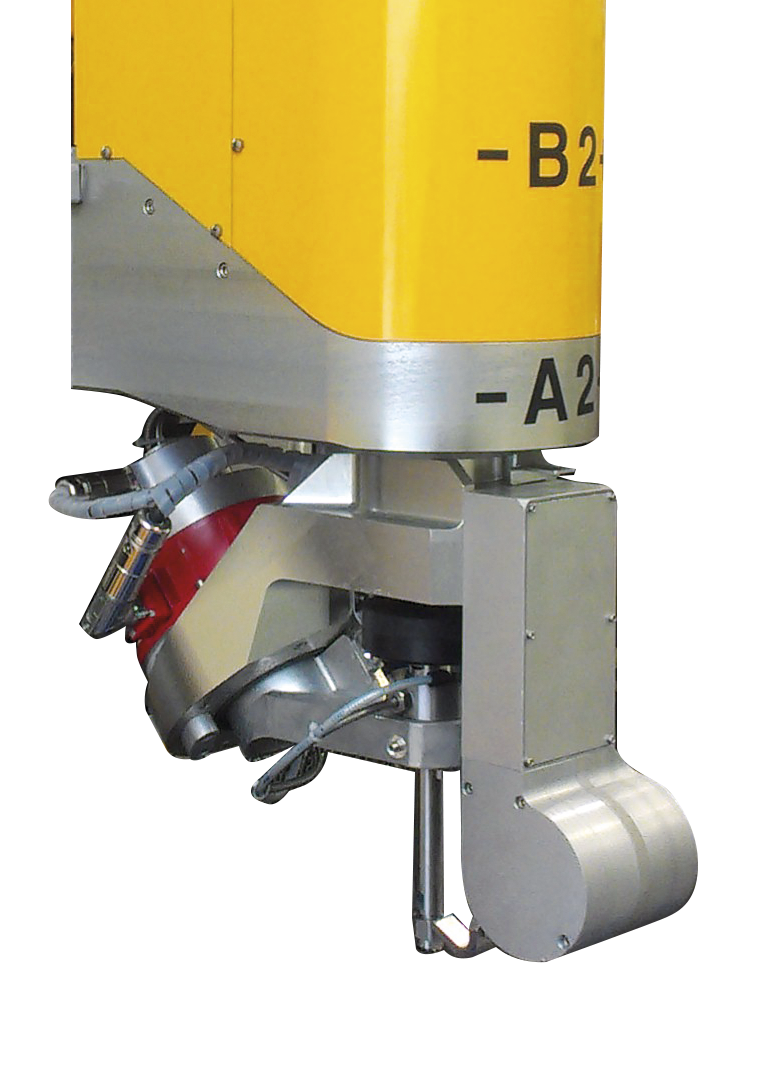

5-axis waterjet head with 600° rotation enables bevel cutting with tilting up to 50°.

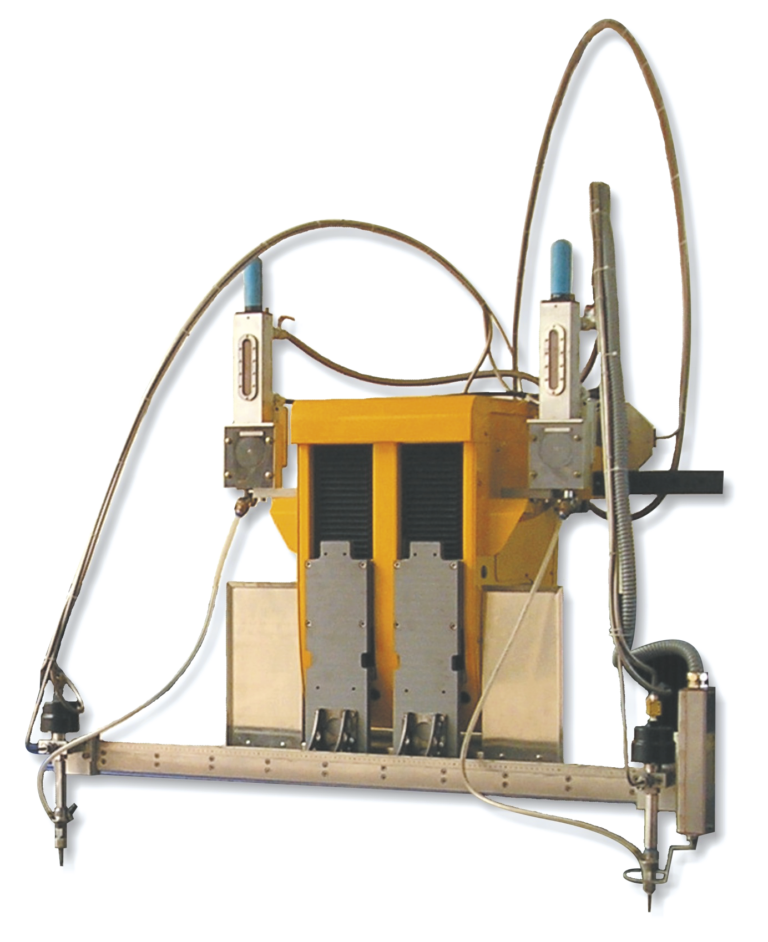

This tool station with up to 4 cutting nozzles is designed for simultaneous cutting of identical parts with waterjet technology.

It is possible to add another touch screen on the gantry which has the all function like the touch screen on the MMI console.

A standard tool station used for straight (vertical) cutting.

A standard tool station used for straight (vertical) cutting.

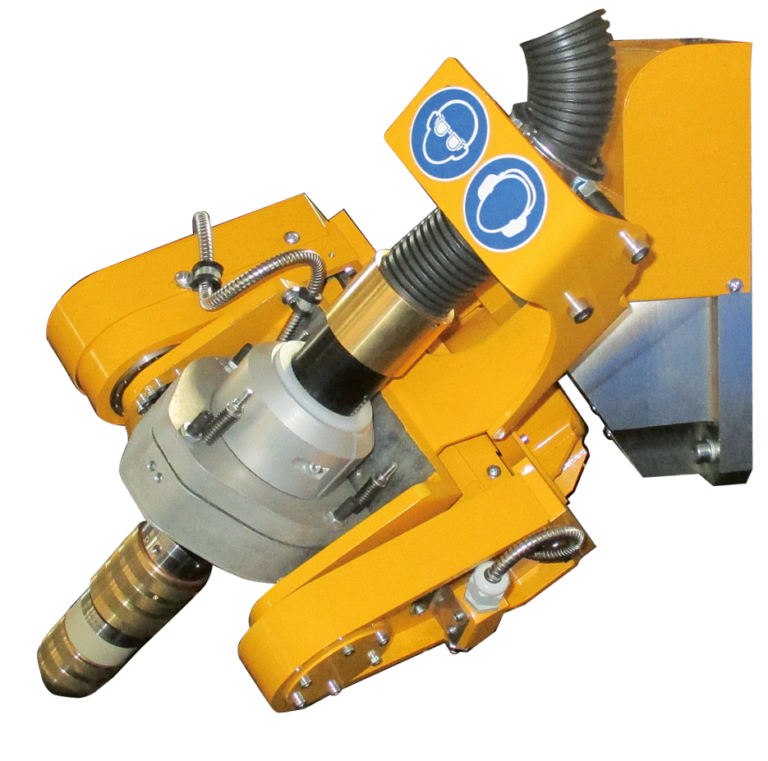

The 3D tilting plasma tool station enables bevel cutting with possibility of tilting up to 50°.

This scanner has been specifically designed for scanning of profiles / steel beams for identification of profile edges' real position.

A standard tool station used for straight (vertical) cutting.

This plasma tool station is used for plasma cutting on our waterjet cutting machine AquaCut.

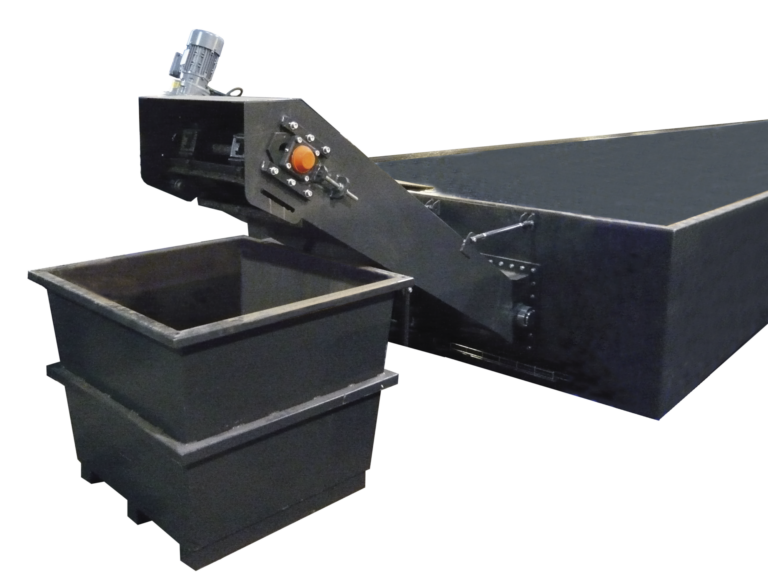

This equipment is designed for mechanical sludge removal from an AquaCut tank.

A standard tool station used for straight (vertical) cutting.

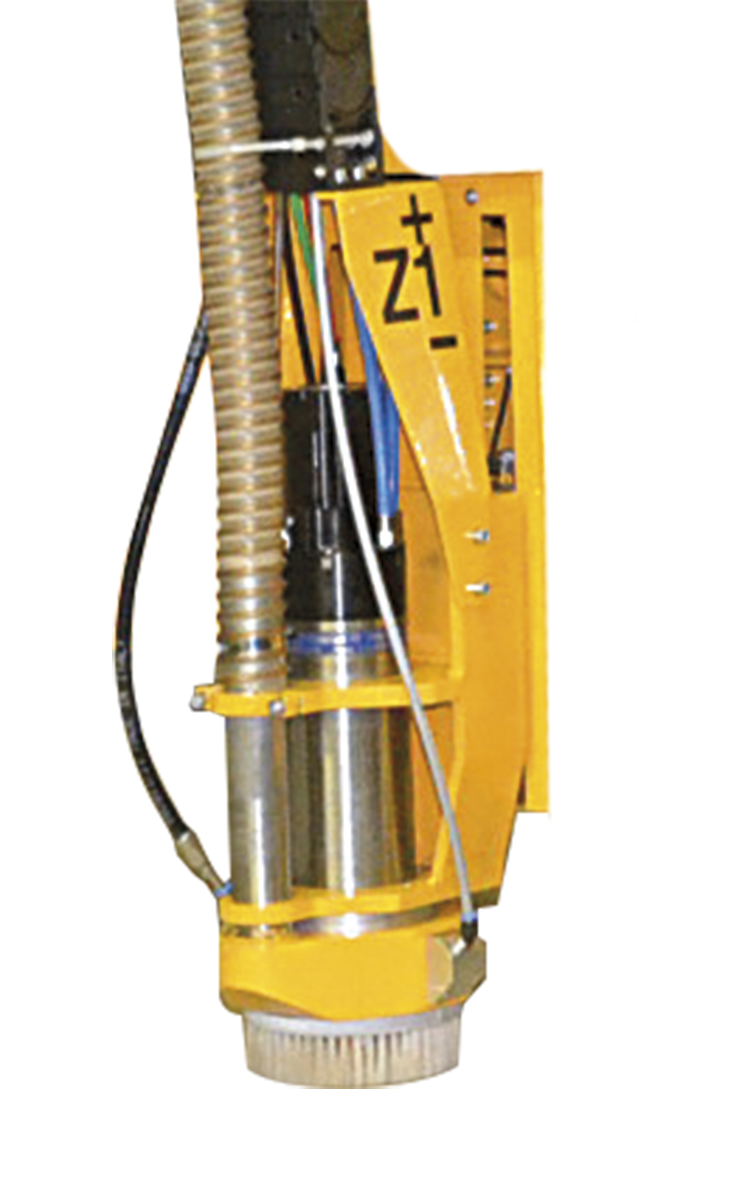

 Designed for 3D CNC milling of mild metals, plastics and wood by means of high-revolution spindles. Type of spindle is determined according to the application.

The laser marking head is capable of marking text, linear and 2D barcodes and lines by burning them into the top layer of marked material.

The 3D tilting head is designed for cutting of precise parts with bevel – possible bevel types are V, Y, K and X. All laser sources offered by MicroStep can be used with the tilting head. With a 6 kW ...

MicroStep offers variety of drilling and tapping tool stations for several machine types reaching from small drilling heads for soft sandwich materials to big drilling and tapping units with internal ...

The in-house developed automatic calibration system for geometry of the cutting tool – ACTG – is designed to eliminate mechanical inaccuracies in the setting of the cutting head and thereby to increase accuracy of bevel cutting by the plasma rotator.

This scanner has been specifically designed for scanning of domes. It can be used with a rotator or 3D tilting tool station on DRM, MG, CombiCut and ProfileCut machines. The scanner can rota ...

RSV is dedicated for clamping and turning of pipes and profiles. Together with plasma rotator and advanced software modules and libraries from MicroStep it offers the full range of pipe based applicat ...

RSV is dedicated for clamping and turning of pipes and profiles. Together with plasma rotator and advanced software modules and libraries from MicroStep it offers the full range of pipe based applicat ...

5-axis rotary bevel head with endless  rotation enables oxyfuel bevel cutting of plates, pipes and profiles up to 65°. The innovative ITH torch holder includes sensors for torch displacement detection ...

The drilling tool station is designed to perform drilling of holes, taping and countersinking on MSF laser cutting machines. It is equipped with a strong 21 kW direct drive spindle to provide proper d ...

The drilling head MSF-15-P5-Turret is designed to perform drilling of holes, taping and countersinking by a multi-spindle revolver turret that allows for quick exchange of 6 tools.   It is equipped wi ...
