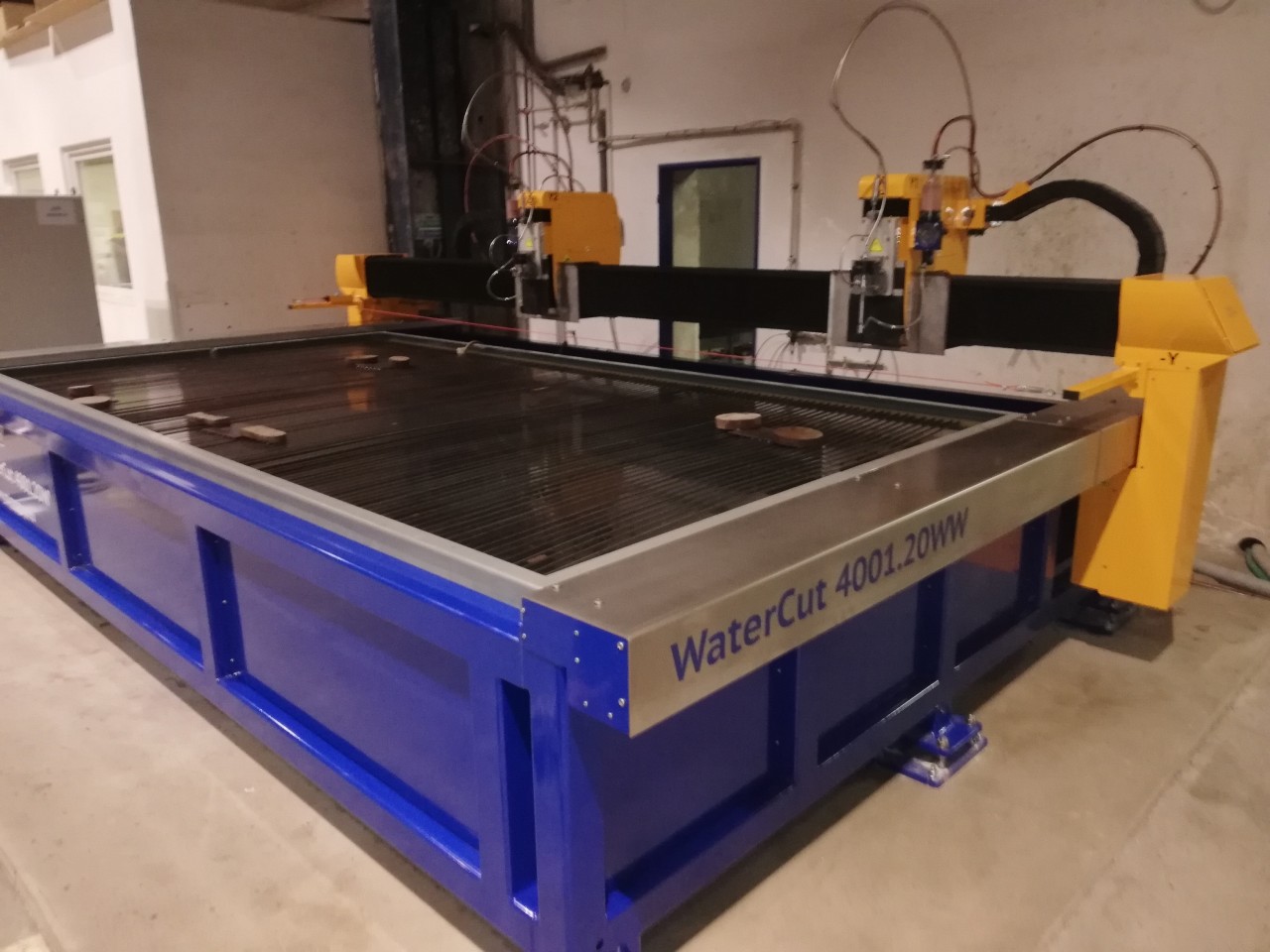

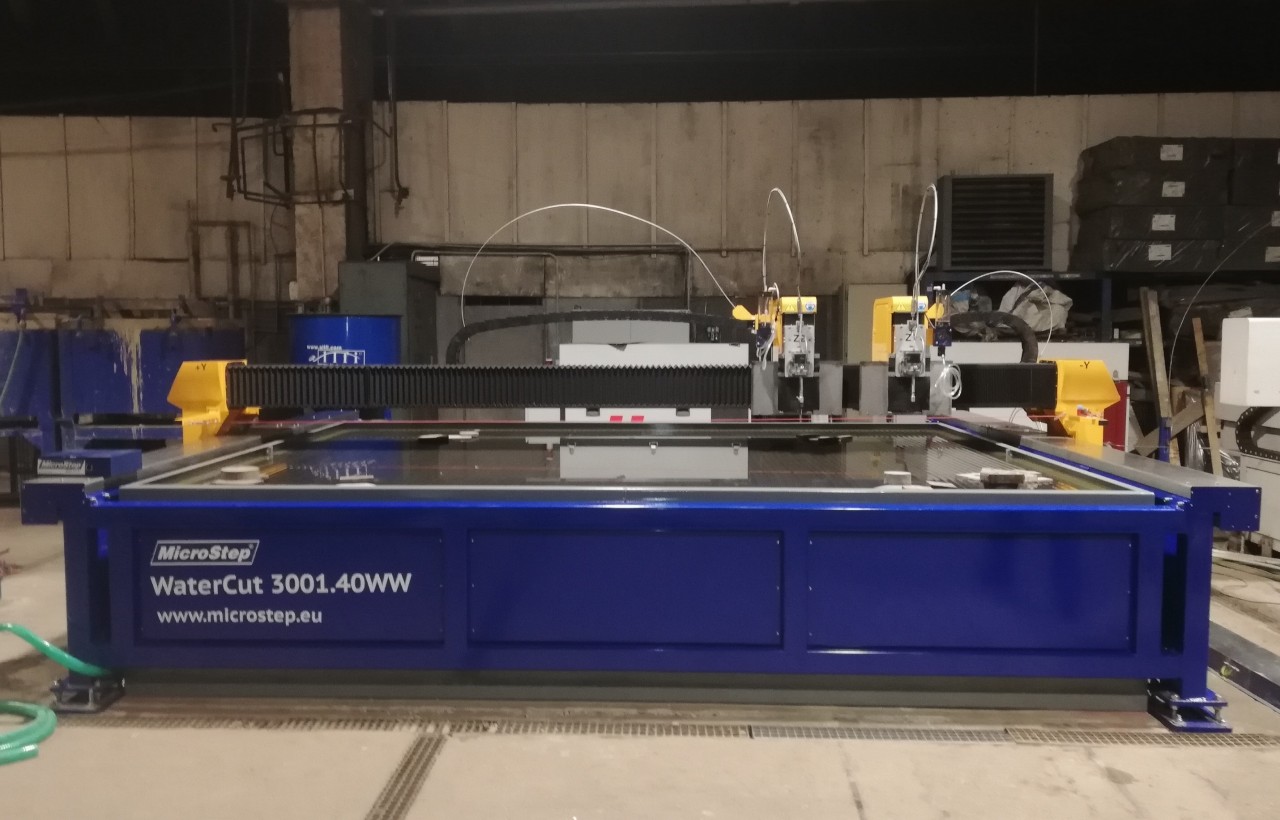

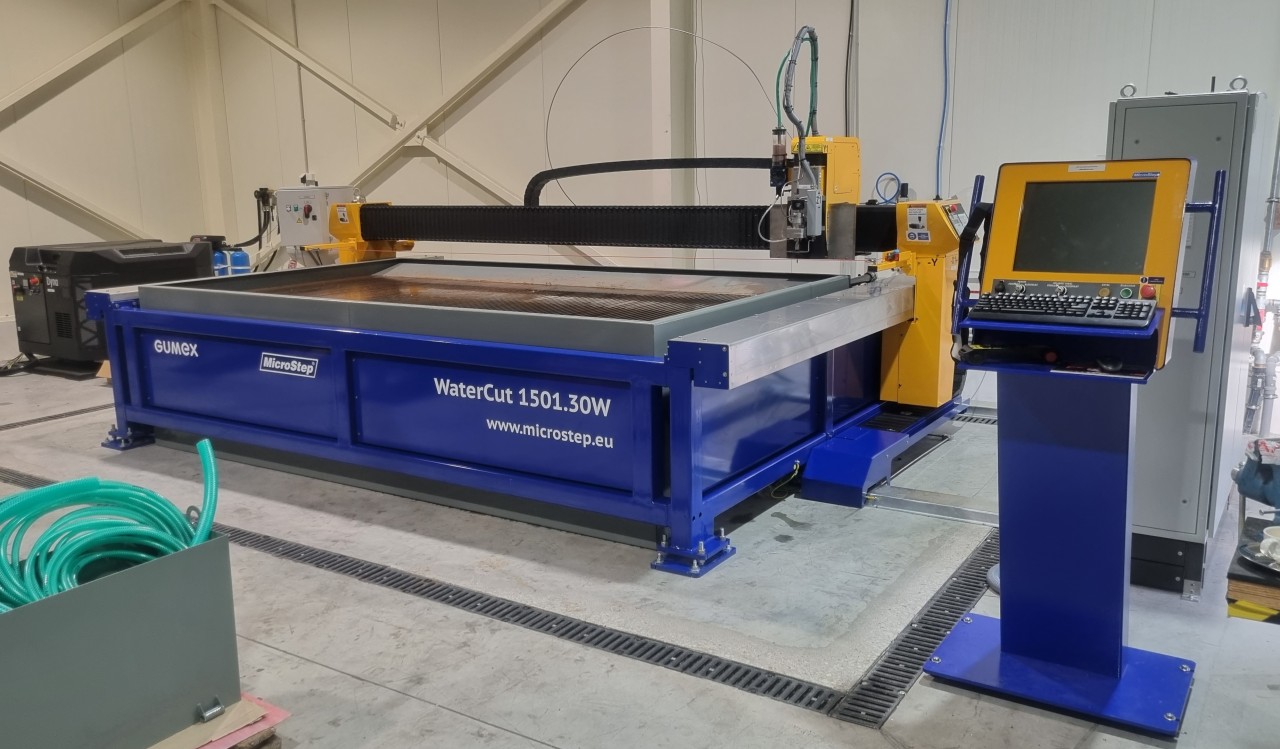

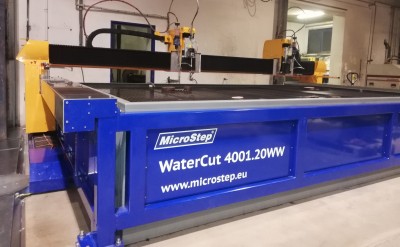

WaterCut is a highly precise and reliable waterjet cutting machine designed for 2D waterjet cutting of metallic and non-metallic materials by the water beam of high pressure or a combination of waterjet and plasma. Besides a single tool station, WaterCut can be equipped with a multi-tool station with outer span 1200 mm, carrying up to 4 water jets on a single Z axis, or a small drilling unit for piercing of sandwich materials. It is a precise technology with the possibility to reach the cutting surface of high quality.
| Machine sizes | 1.5 x 1.5 m; 1.5 x 3.0 m; 2.0 x 3.0 m; 2.0 x 4.0 m |
| Max. number of tool stations | 2 |
| Max. thickness of material cut by waterjet | 150 |
| Bevel cutting | yes |
| Pipe cutting | no |
| Positioning speed | max 56 m/min |
| Bidirectional repeatability | 0.05 mm/m |
